NSN 3110-00-042-0929 MS20202KP37B, MS2764237, MS27642-37

Product Details | AIRFRAME BALL BEARING

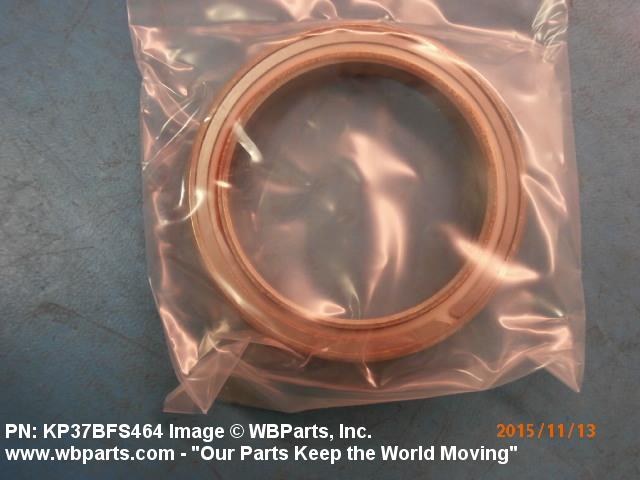

3110-00-042-0929 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

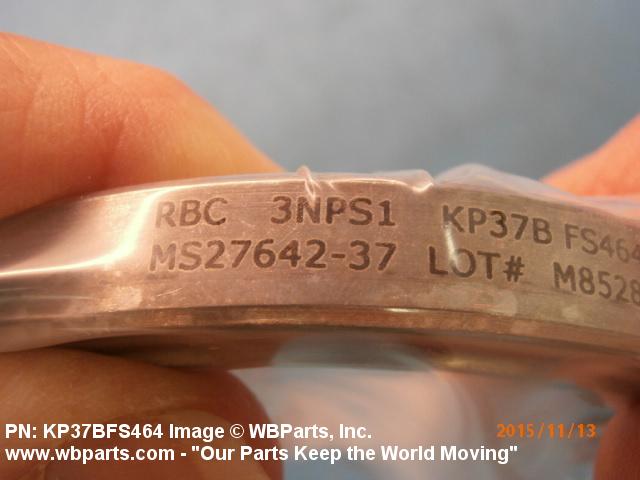

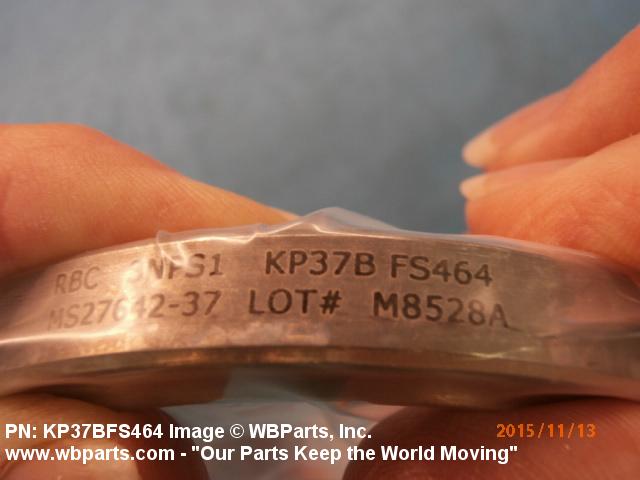

Part Alternates: MS20202KP37B, MS2764237, MS27642-37, N20885161, N2088516-1, AN202KP37B, AN202KP37BANG25, AS27642, KP37B, KP37BANG25, KP37BFS10125, KP37BFS10160, KP37BFS10160X, KP37BFS160, KP37BFS464, KP37BFS50125, KP37BFS50160, KP37BFS50160X, 6026-7026-3, 20885161, 2088516-1, 2557-43198, 3011038P5, 301-1038P5, 3021038P5, 302-1038P5, 556-3543-22, 6026-7360-1, 6361223, 63612-23, 710922, 82173, 3110-00-042-0929, 00-042-0929, 3110000420929, 000420929, 255743198, 556354322, 602670263, 602673601

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	13 JAN 1972	00-042-0929	00041 ( BEARING, BALL, AIRFRAME )

Drawings & Photos | NSN 3110-00-042-0929

Part Number	Request Date	QTY	Origin
3110-00-042-0929	2024-10-303	30	DIBBS
3110-00-042-0929	2024-05-140	7	DIBBS
3110-00-042-0929	2022-09-261	45	DIBBS
3110-00-042-0929	2022-05-139	51	DIBBS
3110-00-042-0929	2021-12-340	6	DIBBS
3110-00-042-0929	2021-04-117	400	Taiwan
MS20202KP37B	2021-01-05	1	AT
3110-00-042-0929	2019-08-219	2	United States
3110-00-042-0929	2018-10-278	1	US
MS20202KP37B	2018-01-02	1	United States
KP37B	2016-10-295	16	United States
3110-00-042-0929	2015-12-342	5	US
KP37B	2015-08-237	20	United States
3110-00-042-0929	2015-08-216	233	DIBBS
3110-00-042-0929	2015-03-78	81	DIBBS
MS2764237	2015-02-43	2	US
KP37B	2013-12-337	2	FR
3110-00-042-0929	2013-02-39	382	DIBBS
AN202KP37B	2013-01-13	2	US
3110-00-042-0929	2012-11-324	77	DIBBS
KP37B	2011-08-243	300	Italy
3110-00-042-0929	2011-08-220	160	DIBBS
3110-00-042-0929	2011-07-193	1	US
3110-00-042-0929	2011-07-193	1	US
KP37B	2011-06-172	1	MX
KP37BFS464	2011-05-145	24	US
MS2764237	2010-10-275	2	US
3110-00-042-0929	2010-06-155	40	US
MS20202KP37B	2010-05-138	1	US
MS27642-37	2010-05-126	20	United States
3110-00-042-0929	2010-01-08	25	US
KP37BFS464	2009-09-251	80	Taiwan
AN202KP37B	2009-07-211	2	US
3110-00-042-0929	2009-03-82	2	US
KP37B	2009-02-45	2	US
3110-00-042-0929	2009-01-05	2	US
3110-00-042-0929	2009-01-05	2	US
KP37BFS464	2008-08-239	10	US
3110-00-042-0929	2008-07-184	2	US
MS2764237	2008-04-107	1	Australia
MS20202KP37B	2007-12-355	1	US
3110-00-042-0929	2007-08-216	101	DIBBS
3110-00-042-0929	2007-05-131	128	DIBBS
KP37BFS464	2006-04-117	10	US

Cross Reference | NSN 3110-00-042-0929

Part Number	Cage Code	Manufacturer
2088516-1	94931	BENDIX CORP THE BENDIX INTERNATIONAL DIV
2557-43198	14418	UNISYS CORP DEFENSE SYSTEMS
301-1038P5	49956	RAYTHEON COMPANY DBA RAYTHEON
302-1038P5	49956	RAYTHEON COMPANY DBA RAYTHEON
556-3543-22	11530	LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION
6026-7026-3	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7360-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
63612-23	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
63612-23	D2638	EME ELEKTRO-METALL EXPORT GMBH
710922	06840	BENDIX CORP THE
710922	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
82173	36378	RAYTHEON TECHNICAL SERVICES COMPANY
AN202KP37B	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN202KP37BANG25	80059	JOINT AIRCRAFT COMMITTEE
AS27642	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KP37B	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37B	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KP37BANG25	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS10125	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS10160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS10160X	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
KP37BFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS50125	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS50160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP37BFS50160X	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS20202KP37B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27642-37	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27642-37	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N2088516-1	94931	BENDIX CORP THE BENDIX INTERNATIONAL DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-042-0929

Compare

Related Products | NSN 3110-00-042-0929

3110-00-042-0930, 3110-00-042-0998, 3110-00-042-1011, 3110-00-042-1012, 3110-00-042-1045

Technical Data | NSN 3110-00-042-0929

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES

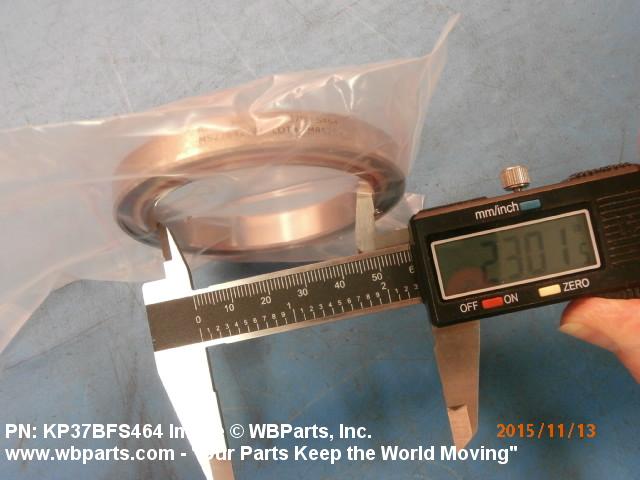

BORE DIAMETER	2.3130 INCHES NOMINAL

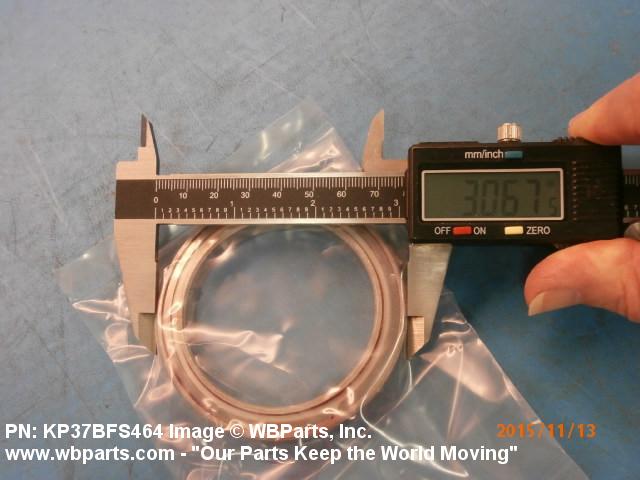

OVERALL OUTSIDE DIAMETER	3.0625 INCHES NOMINAL
OUTER RING WIDTH	0.3750 INCHES NOMINAL

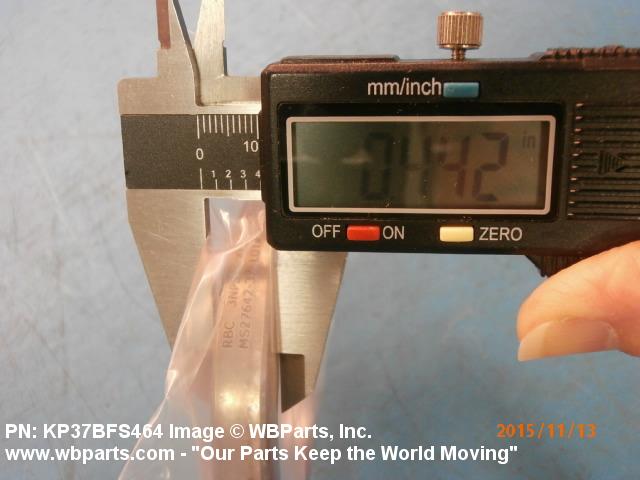

INNER RING WIDTH	0.4370 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG. F,RADIAL AND LATERAL ECCENTRICITY,INNER RING 0.0010 IN. OUTER RING 0.0016 IN.,0.0003-0.0010 IN. RADIAL CLEARANCE

Restrictions/Controls & Freight Information | NSN 3110-00-042-0929

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-042-0929

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
