NSN 3110-00-042-0930 MS20202KP47B, MS2764247, MS27642-47

Product Details | AIRFRAME BALL BEARING

3110-00-042-0930 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS20202KP47B, MS2764247, MS27642-47, AS27642, AS2764247, AS27642-47, KP47B, KP47B JS464, KP47BFS464, KP47BJS464, 3110-00-042-0930, 00-042-0930, 3110000420930, 000420930

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	13 JAN 1972	00-042-0930	00041 ( BEARING, BALL, AIRFRAME )

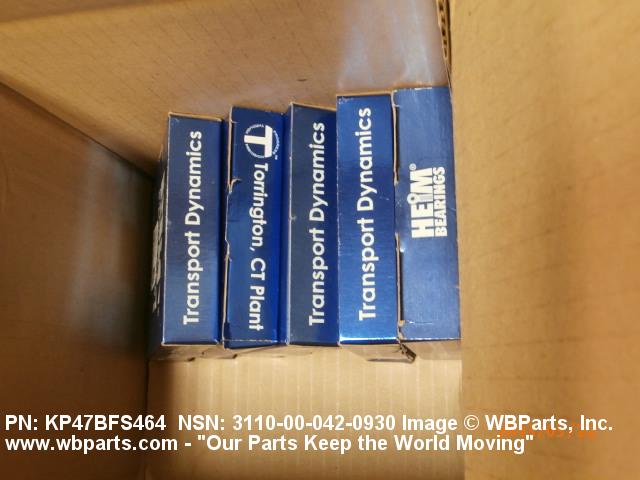

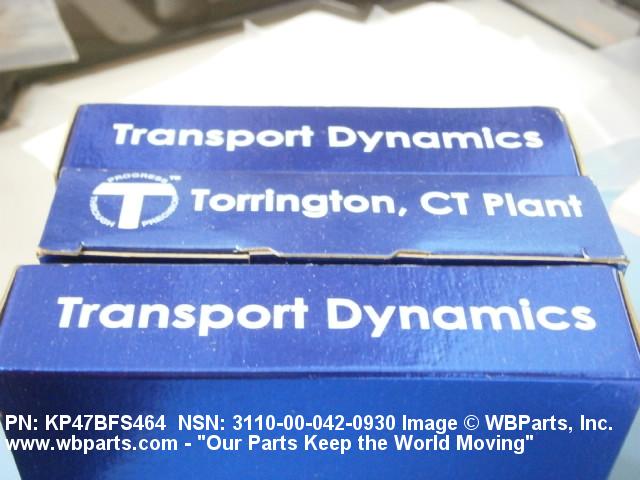

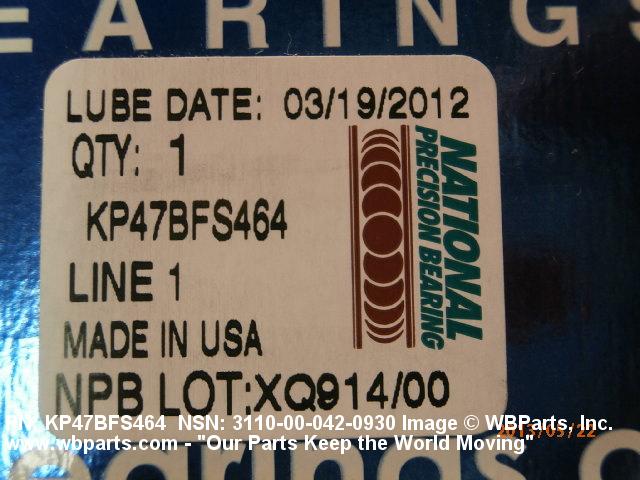

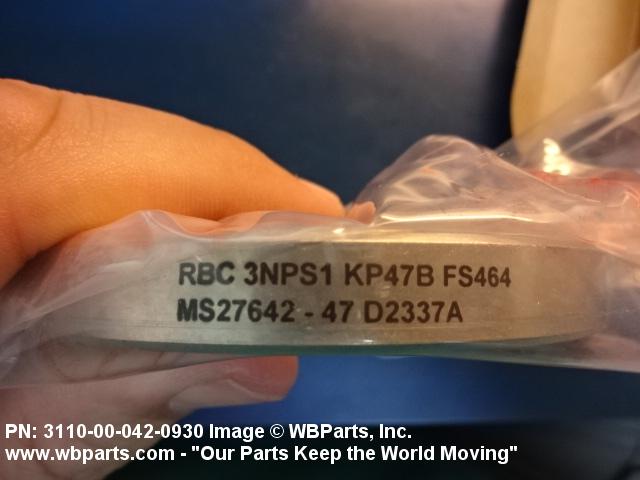

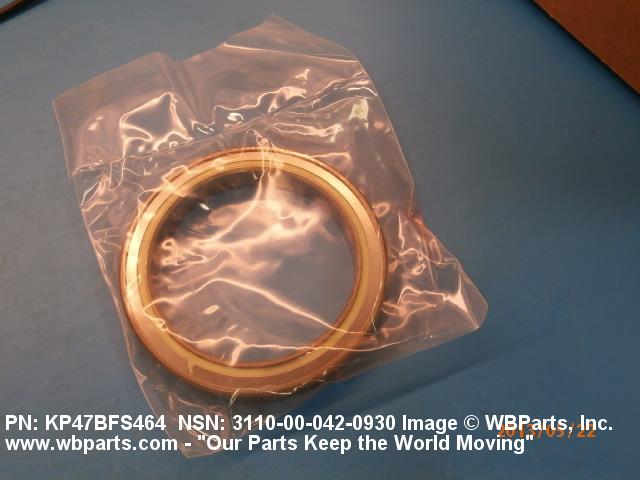

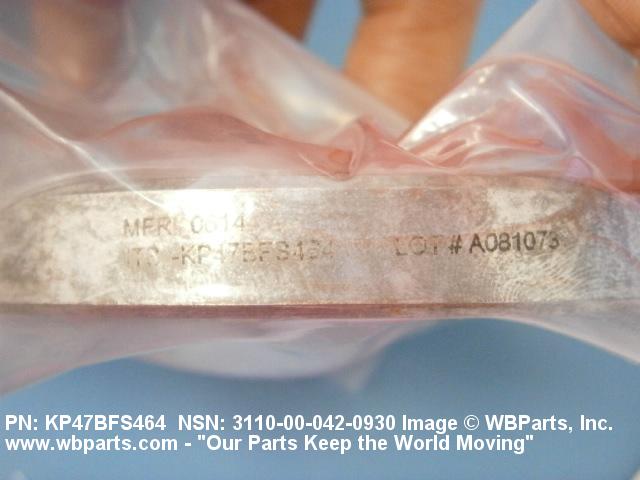

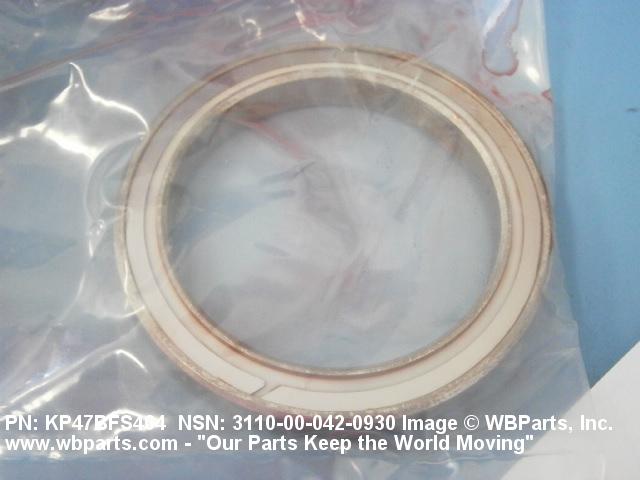

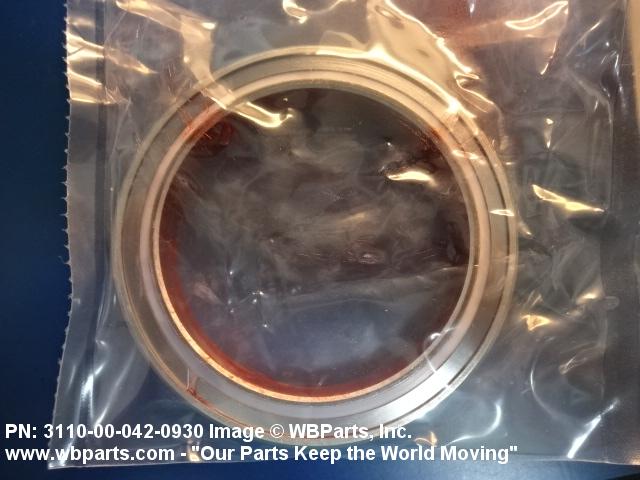

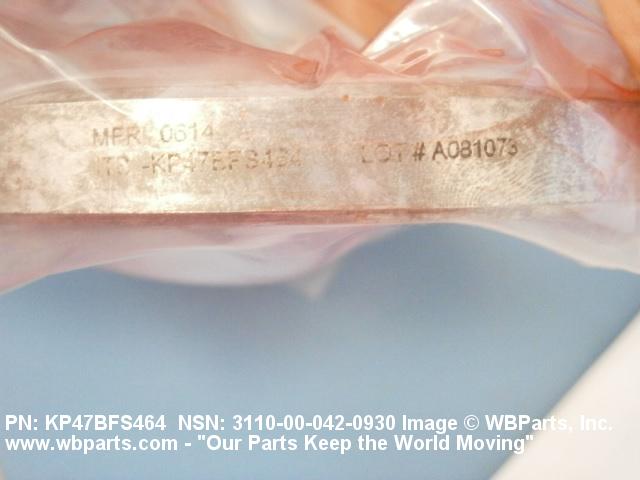

Drawings & Photos | NSN 3110-00-042-0930

Part Number	Request Date	QTY	Origin
3110-00-042-0930	2022-10-289	21	DIBBS
3110-00-042-0930	2022-06-173	124	DIBBS
3110-00-042-0930	2022-02-48	17	DIBBS
3110-00-042-0930	2021-09-269	8	DIBBS
3110-00-042-0930	2021-04-113	10	PK
3110-00-042-0930	2021-04-107	10	PK
3110-00-042-0930	2020-11-317	50	Sweden
3110-00-042-0930	2020-06-169	7	DIBBS
3110-00-042-0930	2020-04-105	7	DIBBS
3110-00-042-0930	2020-04-105	36	DIBBS
3110-00-042-0930	2020-03-66	3	Sweden
3110-00-042-0930	2020-03-65	3	Sweden
3110-00-042-0930	2020-03-65	10	Sweden
3110-00-042-0930	2018-11-325	90	United States
3110-00-042-0930	2018-05-128	60	DIBBS
3110-00-042-0930	2018-04-113	4	Sweden
3110-00-042-0930	2018-03-60	10	Sweden
3110-00-042-0930	2017-09-256	5	Sweden
KP47BFS464	2017-08-236	16	US
3110-00-042-0930	2017-08-215	30	Sweden
KP47B	2017-02-40	5	Sweden
3110-00-042-0930	2016-01-14	10	Sweden
3110-00-042-0930	2015-08-240	40	Sweden
MS2764247	2015-07-183	83	Sweden
3110-00-042-0930	2015-06-163	12	PK
MS2764247	2015-04-100	6	Sweden
3110-00-042-0930	2015-01-09	50	Sweden
3110-00-042-0930	2013-10-303	40	Sweden
3110-00-042-0930	2013-05-133	5	Sweden
3110-00-042-0930	2013-03-77	5	Sweden
3110-00-042-0930	2012-04-94	267	DIBBS
KP47BFS464	2012-01-23	3	Italy
MS20202KP47B	2012-01-23	2	Italy
MS20202KP47B	2012-01-23	3	Italy
KP47BFS464	2012-01-16	3	Italy
3110-00-042-0930	2012-01-13	317	DIBBS
KP47B	2011-08-227	22	US
KP47BFS464	2011-08-227	22	US
KP47BFS464	2010-04-120	1	US
KP47B	2009-10-276	15	PK
KP47BFS464	2009-07-190	12	US
3110-00-042-0930	2009-05-125	20	US
3110-00-042-0930	2009-03-63	2	US
KP47BFS464	2008-03-64	576	US
MS2764247	2007-11-328	4	NZ
3110-00-042-0930	2007-10-295	50	US
3110-00-042-0930	2007-07-211	50	US
3110-00-042-0930	2007-03-86	110	DIBBS
KP47B	2006-10-279	1	Chile

Cross Reference | NSN 3110-00-042-0930

Part Number	Cage Code	Manufacturer
AS27642	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS27642-47	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KP47B	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KP47B JS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP47BFS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
KP47BFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS20202KP47B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27642-47	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27642-47	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-042-0930

Compare

Related Products | NSN 3110-00-042-0930

3110-00-042-0998, 3110-00-042-1011, 3110-00-042-1012, 3110-00-042-1045, 3110-00-042-3853

Technical Data | NSN 3110-00-042-0930

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES

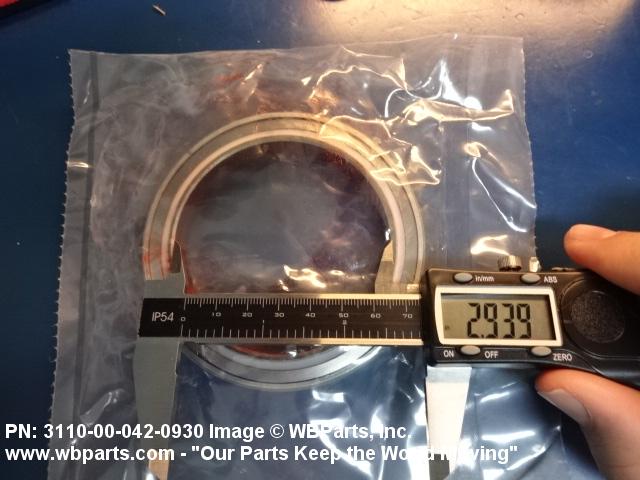

BORE DIAMETER	2.9380 INCHES NOMINAL

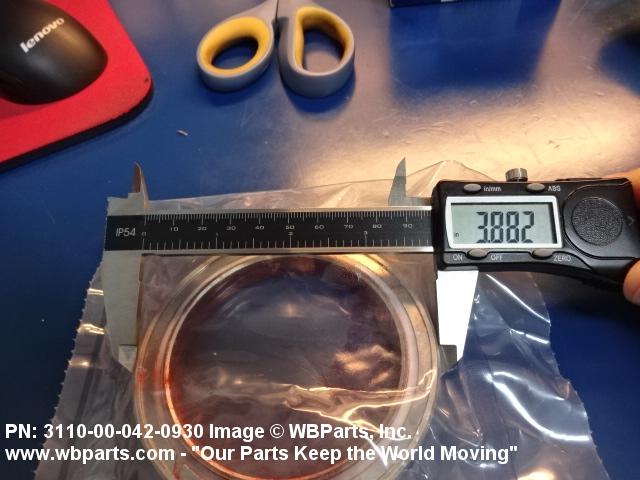

OVERALL OUTSIDE DIAMETER	3.8750 INCHES NOMINAL

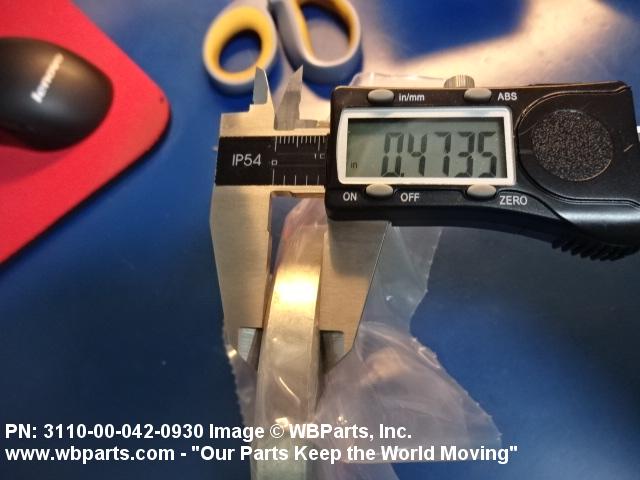

OUTER RING WIDTH	0.4690 INCHES NOMINAL
INNER RING WIDTH	0.5310 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG. F,RADIAL AND LATERAL ECCENTRICITY,INNER RING 0.0010 IN. OUTER RING 0.0016 IN.,0.0003-0.0010 IN.RADIAL CLEARANCE

Restrictions/Controls & Freight Information | NSN 3110-00-042-0930

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-042-0930

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
