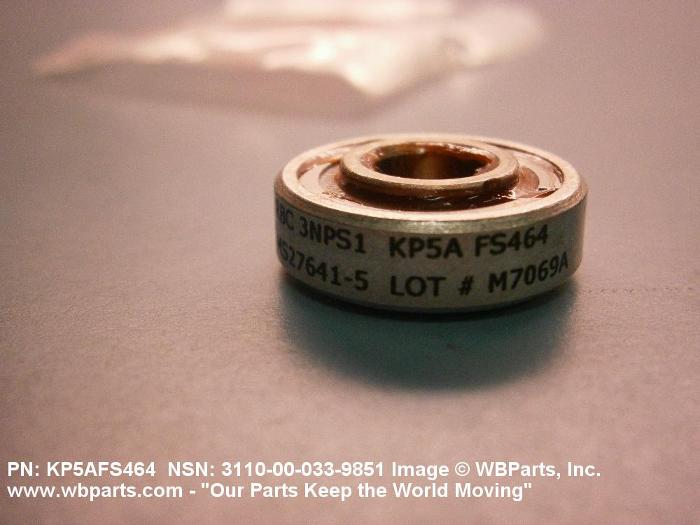

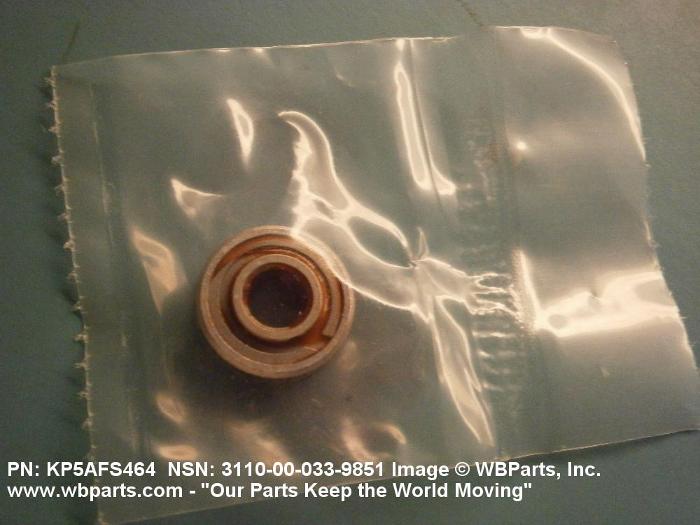

Product Details | AIRFRAME BALL BEARING

3110-00-033-9851 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS276415, MS27641-5, MS27641KP5A, MM276415, MM27641-5, AS276415, AS27641-5, SAE AS27641, SAE AS27641-5, SAEAS27641, SAEAS276415, KP5A KP5A-FS464, KP5AE6531, KP5AFS464, KP5AKP5AFS464, KP5A, 2910069, 5386635, 538663-5, 3110-00-033-9851, 00-033-9851, 3110000339851, 3110001424465 , 000339851

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	05 JAN 1972	00-033-9851	00041 ( BEARING, BALL, AIRFRAME )

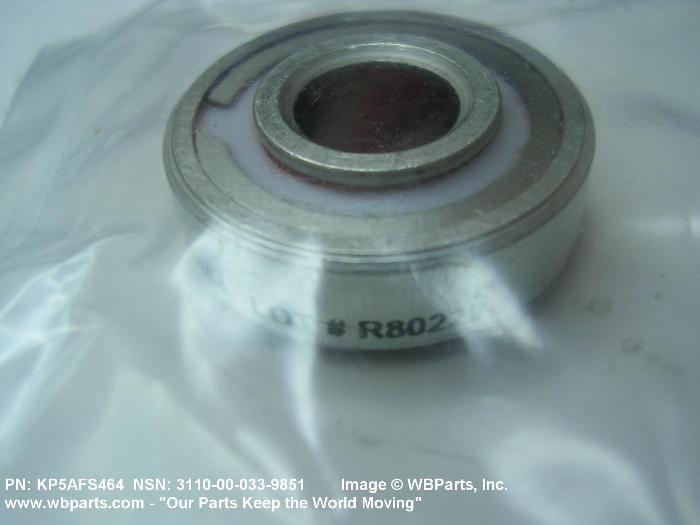

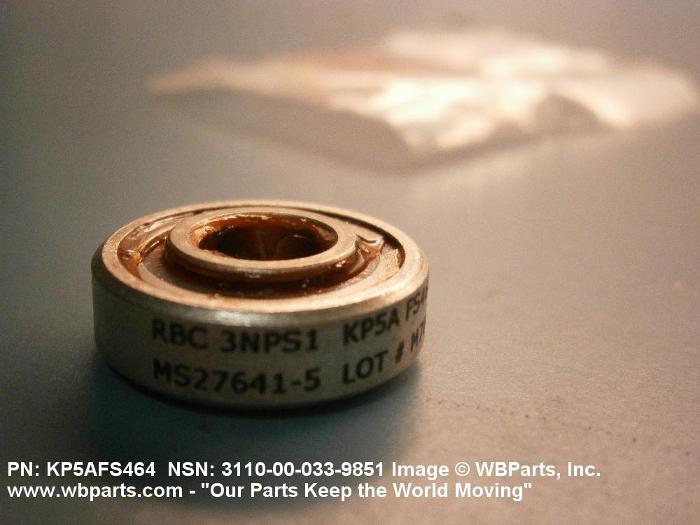

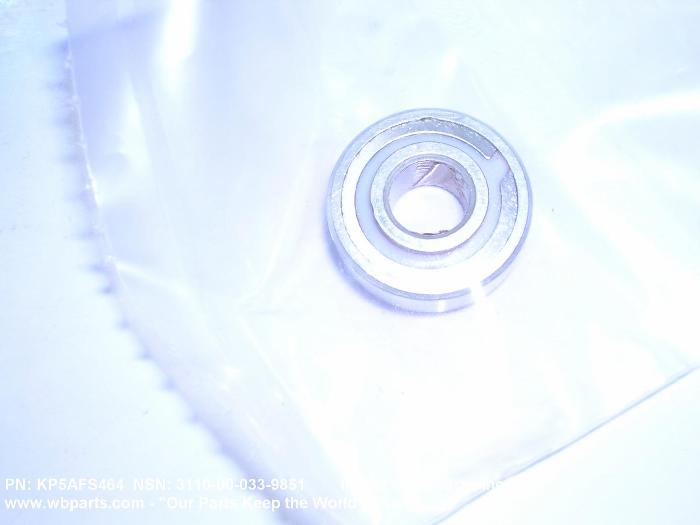

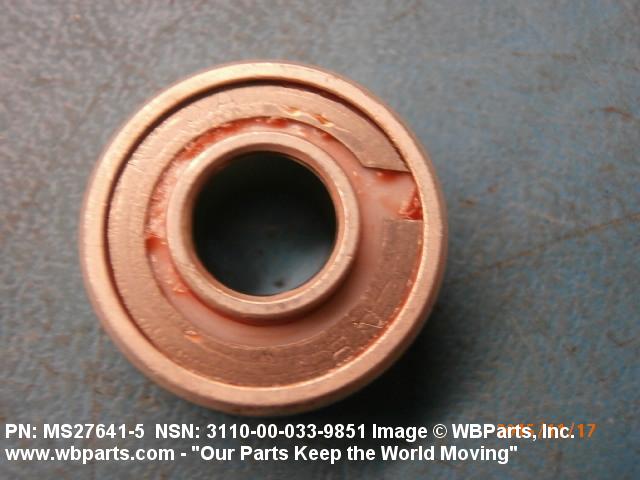

Drawings & Photos | NSN 3110-00-033-9851

Part Number	Request Date	QTY	Origin
3110-00-033-9851	2023-09-262	2	HU
3110-00-033-9851	2022-05-135	313	DIBBS
MS276415	2022-03-81	1	United States
3110-00-033-9851	2022-01-25	357	DIBBS
3110-00-033-9851	2021-09-269	180	DIBBS
MS276415	2021-04-103	14	US
3110-00-033-9851	2021-03-80	666	DIBBS
KP5A	2021-02-41	80	United States
KP5A	2021-01-05	2	AT
3110-00-033-9851	2020-02-44	281	DIBBS
MS276415	2019-10-303	42	United States
3110-00-033-9851	2018-06-168	286	DIBBS
MS276415	2016-05-131	3	Egypt
3110-00-033-9851	2016-03-67	10	US
MS276415	2015-11-317	10	United States
MS276415	2015-11-306	10	United States
KP5A	2014-06-171	8	Canada
MS276415	2014-03-80	1000	CN
MS276415	2014-03-79	1000	CN
MS276415	2014-02-52	150	CN
3110-00-033-9851	2013-11-325	1	DIBBS-RFPs
3110-00-033-9851	2013-10-291	1	DIBBS-RFPs
3110-00-033-9851	2013-09-246	1	DIBBS-RFPs
3110-00-033-9851	2012-09-255	144	US
MS27641-5	2012-07-187	10	KR
KP5AFS464	2012-05-125	40	United States
3110-00-033-9851	2012-04-117	100	United States
MS276415	2012-02-52	500	CN
MS276415	2012-02-51	500	CN
3110-00-033-9851	2011-07-211	1481	DIBBS
MS276415	2011-06-167	36	United States
MS276415	2011-03-84	2	US
3110-00-033-9851	2011-02-55	2	United States
3110-00-033-9851	2010-10-279	5103	DIBBS
KP5AFS464	2010-09-257	0	United States
MS276415	2010-09-257	150	United States
KP5AFS464	2010-08-223	6	Brazil
3110-00-033-9851	2010-01-08	205	DIBBS
KP5A	2009-12-351	20	US
3110-00-033-9851	2009-11-308	8	US
3110-00-033-9851	2009-08-215	4122	DIBBS
MS276415	2009-06-174	1272	United States
KP5A	2009-02-51	4	United States
3110-00-033-9851	2009-02-45	4	US
3110-00-033-9851	2008-04-121	2	United States
3110-00-033-9851	2008-04-121	2	United States
3110-00-033-9851	2008-04-94	3959	DIBBS
3110-00-033-9851	2007-12-338	36	US
3110-00-033-9851	2007-07-187	727	DIBBS
3110-00-033-9851	2007-03-86	541	DIBBS

Cross Reference | NSN 3110-00-033-9851

Part Number	Cage Code	Manufacturer
2910069	001JK	EMBRAER S/A
2910069	FB459	EMBRAER AVIATION INTERNATIONAL
2910069	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
3110000339851	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
3110001424465	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
538663-5	96214	RAYTHEON COMPANY DBA RAYTHEON
AS27641-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KP5A	21760	SCHATZ BEARING CORPORATION
KP5A	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KP5A KP5A-FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP5AE+6531	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP5AFS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
KP5AFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MM27641-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27641-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27641-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27641KP5A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SAE AS27641	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
SAE AS27641-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-033-9851

Compare

Related Products | NSN 3110-00-033-9851

3110-00-034-0594, 3110-00-034-1507, 3110-00-034-1512, 3110-00-034-1516, 3110-00-034-1517

Technical Data | NSN 3110-00-033-9851

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED

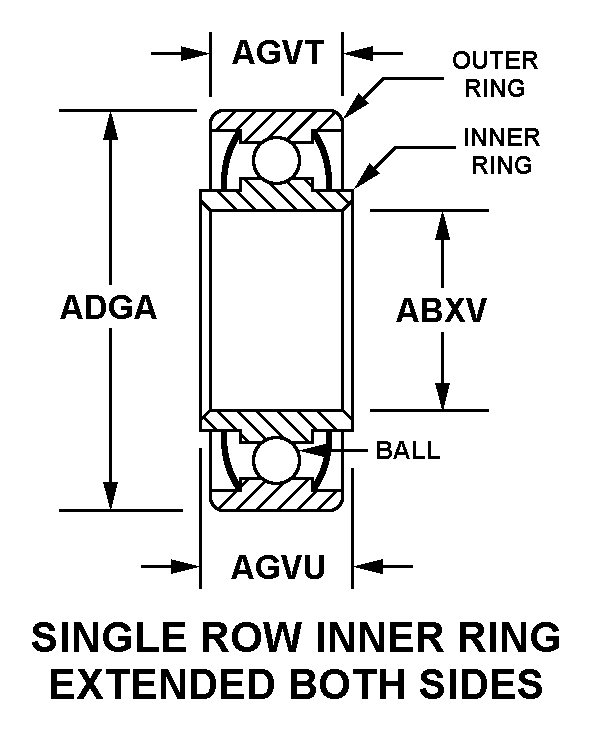

STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES
