NSN 3110-00-293-9195 MS2764645G, MS27646-45G, AS27646

Product Details | AIRFRAME BALL BEARING

3110-00-293-9195 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764645G, MS27646-45G, AS27646, B545DD, B545DDFS160, GB520H33, 1371450702, 137-145-0702, 8525358, 3110-00-293-9195, 00-293-9195, 3110002939195, 002939195

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-293-9195	00041 ( BEARING, BALL, AIRFRAME )

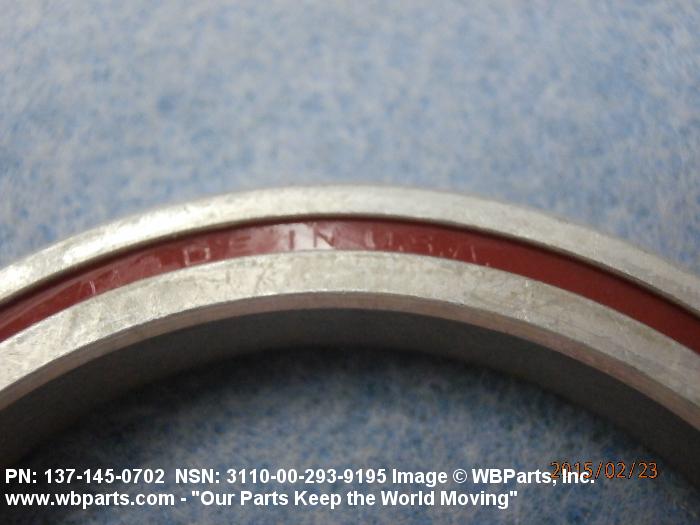

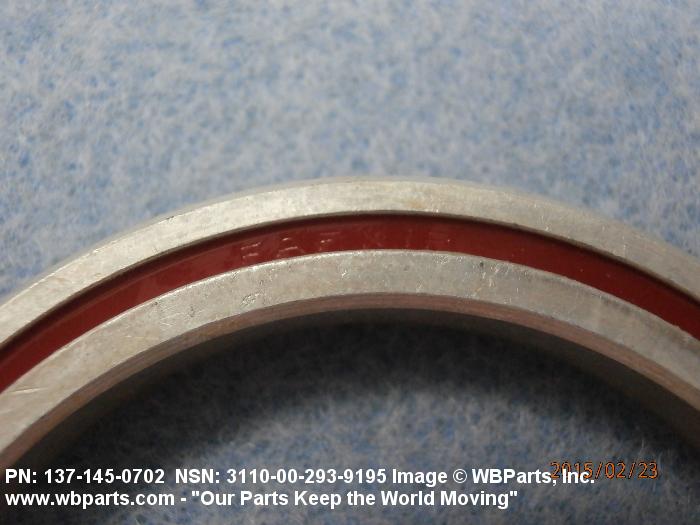

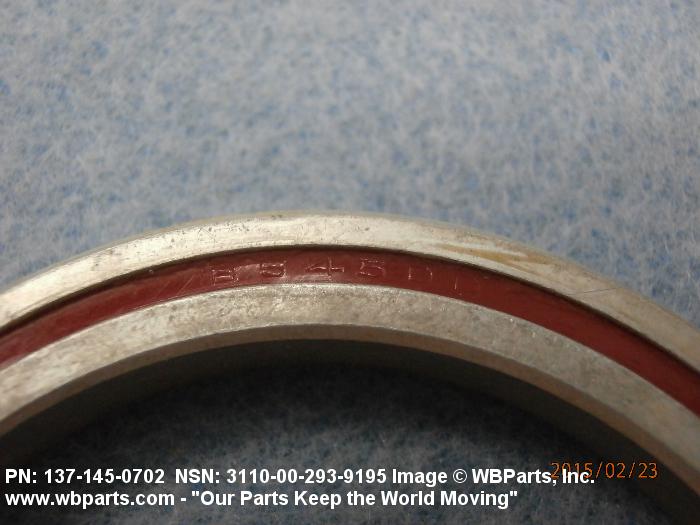

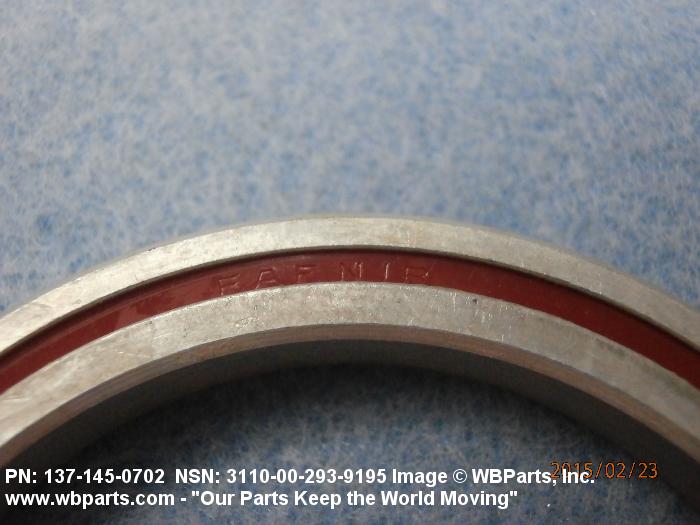

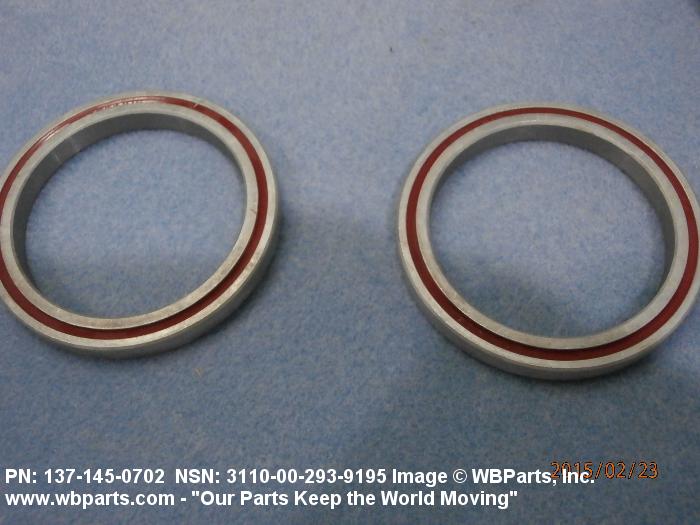

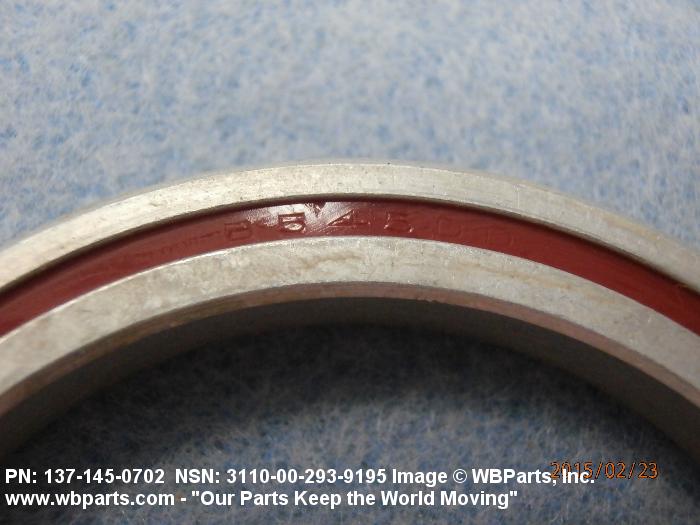

Drawings & Photos | NSN 3110-00-293-9195

Part Number	Request Date	QTY	Origin
3110-00-293-9195	2021-12-343	5	IT
3110-00-293-9195	2021-11-314	1	US
3110-00-293-9195	2018-06-177	97	DIBBS
3110-00-293-9195	2018-02-44	163	DIBBS
3110-00-293-9195	2018-01-29	126	DIBBS
3110-00-293-9195	2018-01-21	47	DIBBS
3110-00-293-9195	2017-12-352	75	DIBBS
3110-00-293-9195	2017-11-333	52	DIBBS
3110-00-293-9195	2016-10-285	500	US
3110-00-293-9195	2012-11-318	171	DIBBS
3110-00-293-9195	2010-01-12	116	DIBBS
3110-00-293-9195	2010-01-07	120	US
B545DD	2007-12-355	1	IS
MS2764645G	2007-12-348	16	us
1371450702	2007-10-303	2	us
MS2764645G	2007-03-60	51	us
3110-00-293-9195	2007-02-39	202	DIBBS
1371450702	2006-12-349	1	US
1371450702	2006-12-349	1	US
B545DDFS160	2006-11-320	59	US
1371450702	2006-09-256	2	United States
1371450702	2006-09-256	2	United States
1371450702	2006-09-245	2	United States

Cross Reference | NSN 3110-00-293-9195

Part Number	Cage Code	Manufacturer
137-145-0702	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
8525358	18876	U S ARMY AVIATION AND MISSILE COMMAND
AS27646	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
B545DD	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B545DDFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GB520H33	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MS27646-45G	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27646-45G	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-293-9195

Compare

Related Products | NSN 3110-00-293-9195

3110-00-293-9196, 3110-00-293-9201, 3110-00-293-9216, 3110-00-293-9218, 3110-00-293-9225

Technical Data | NSN 3110-00-293-9195

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC POLYAMIDE SHIELD
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	2.0625 INCHES NOMINAL

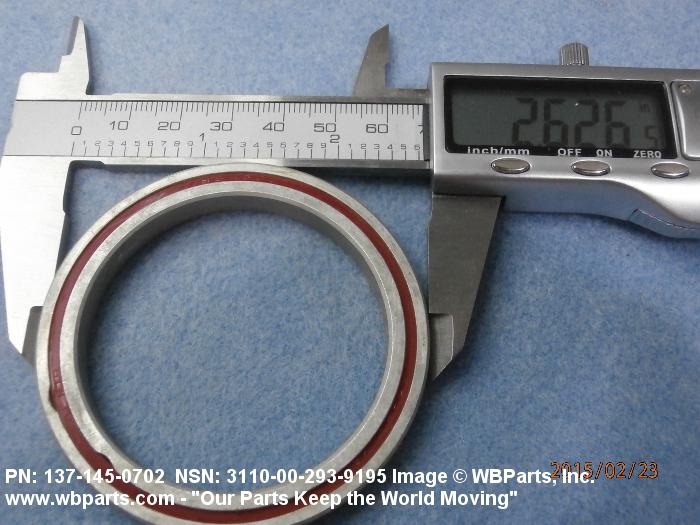

OVERALL OUTSIDE DIAMETER	2.6250 INCHES NOMINAL
OUTER RING WIDTH	0.2500 INCHES NOMINAL
INNER RING WIDTH	0.2810 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SHIELD QUANTITY	2
LOAD DIRECTION	RADIAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27646-45G

Restrictions/Controls & Freight Information | NSN 3110-00-293-9195

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-293-9195

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
