NSN 3110-00-142-0952 HT403S, HT40-3S, HT6709
Product Details | AIRFRAME BALL BEARING
3110-00-142-0952 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: HT403S, HT40-3S, HT6709, HT670-9, 40022, 4002-2, 971713, 97171-3, 9M1713, 9M171-3, 9M1713A, 9M171-3A, 3110-00-142-0952, 00-142-0952, 3110001420952, 001420952
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-142-0952 | 00041 ( BEARING, BALL, AIRFRAME ) |

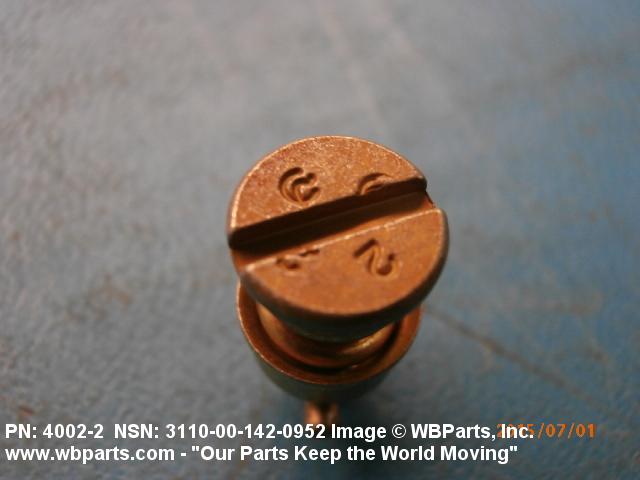

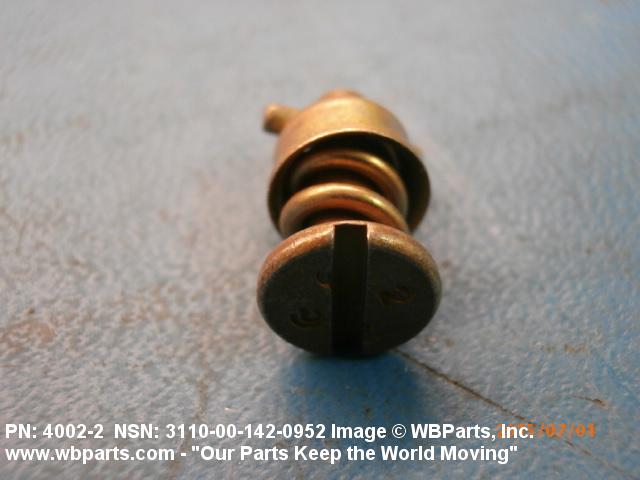

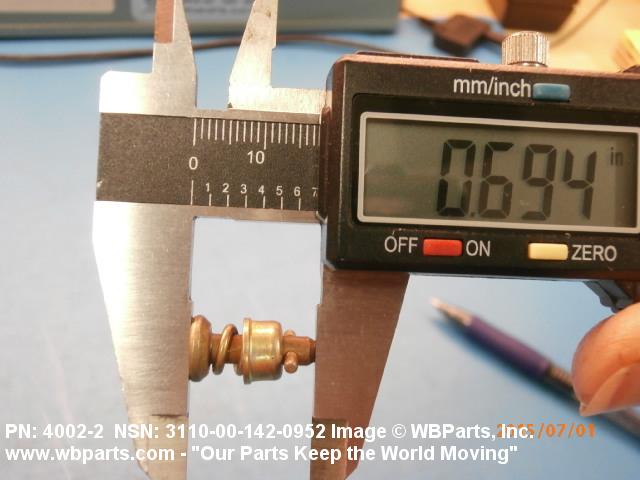

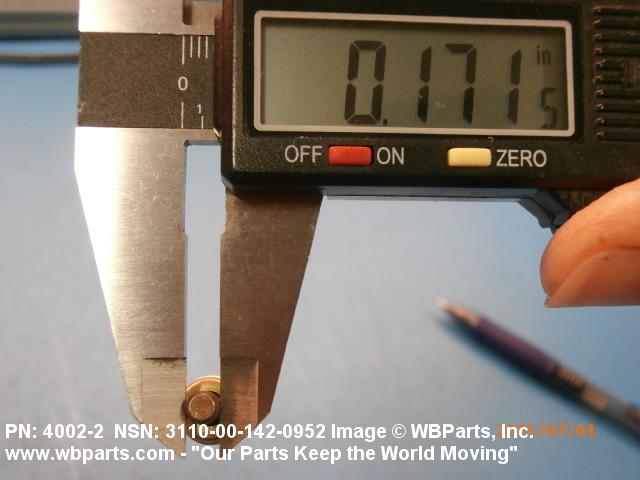

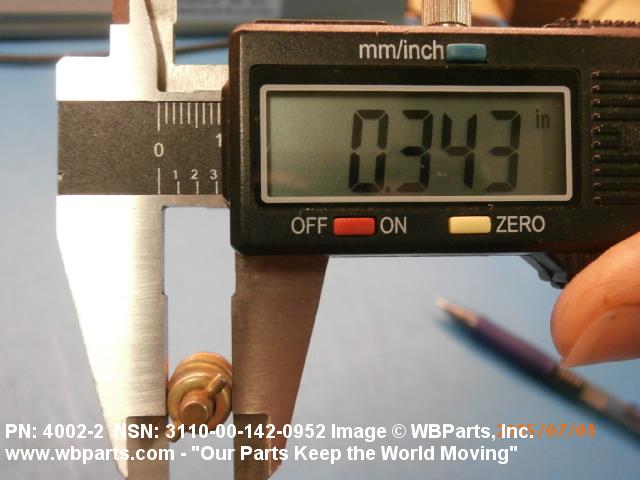

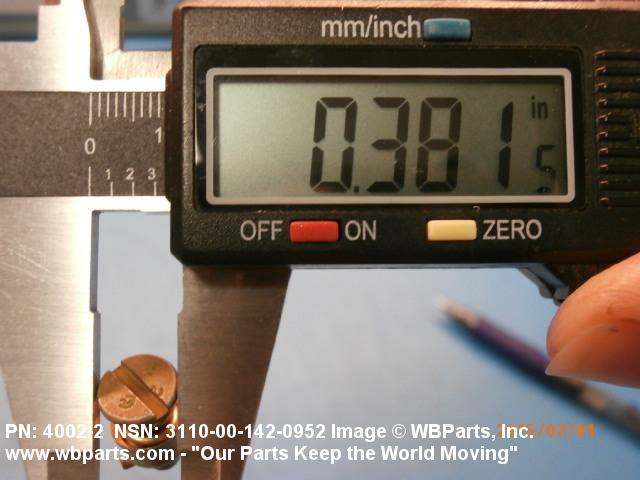

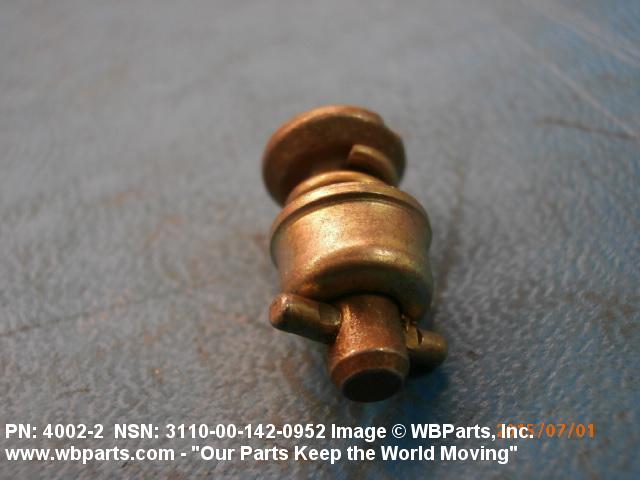

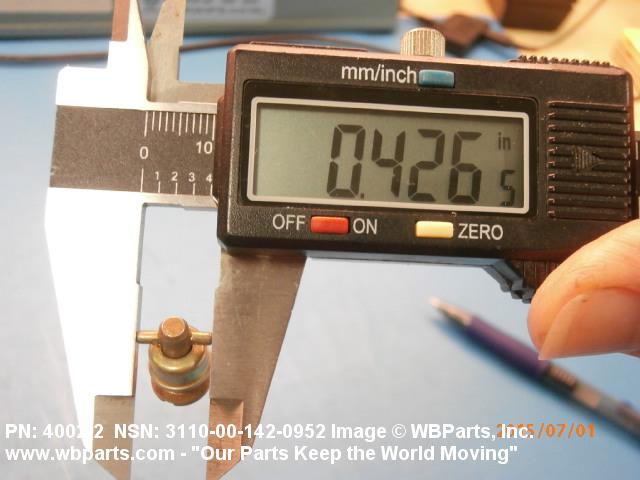

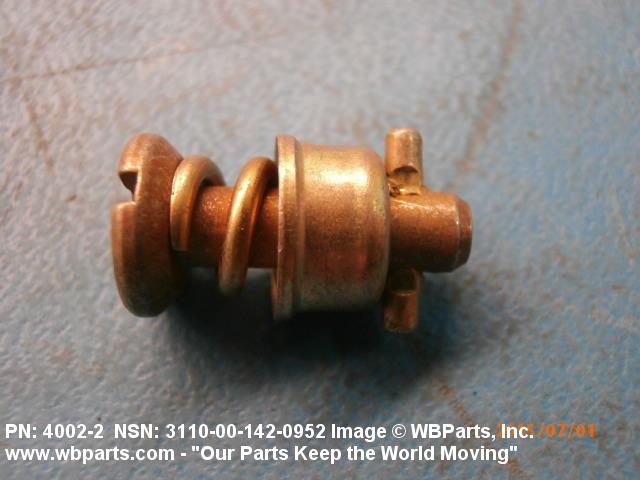

Drawings & Photos | NSN 3110-00-142-0952
Demand History | NSN 3110-00-142-0952
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 40022 | 2024-10-292 | 100 | Japan |
| 9M1713A | 2022-07-182 | 2 | United States |
| 3110-00-142-0952 | 2015-06-181 | 42 | United States |
| 3110-00-142-0952 | 2015-03-76 | 45 | United States |
| 3110-00-142-0952 | 2013-12-350 | 48 | DIBBS |
| 40022 | 2011-05-144 | 2 | United States |
| 3110-00-142-0952 | 2010-09-244 | 16 | DIBBS |
| 3110-00-142-0952 | 2007-05-134 | 68 | DIBBS |
Cross Reference | NSN 3110-00-142-0952
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4002-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 97171-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 9M171-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 9M171-3A | 76301 | BOEING COMPANY, THE DBA BOEING |
| 9M171-3A | 83014 | HARTWELL CORPORATION |
| 9M171-3A | 84596 | AVIATION MANUFACTURING GROUP, LLC DBA FREEMAN CO, THE |
| 9M171-3A | 9N899 | CONTINENTAL CABLE, LLC |
| HT40-3S | 83014 | HARTWELL CORPORATION |
| HT670-9 | 6R871 | WINCHESTER MACHINE CO INC |
| HT670-9 | 83014 | HARTWELL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-142-0952
Related Products | NSN 3110-00-142-0952
Technical Data | NSN 3110-00-142-0952
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| SURFACE TREATMENT | ZINC AND NICKEL OR CADMIUM AND CHROMATE ALL EXTERNAL/EXPOSED METAL SURFACES |

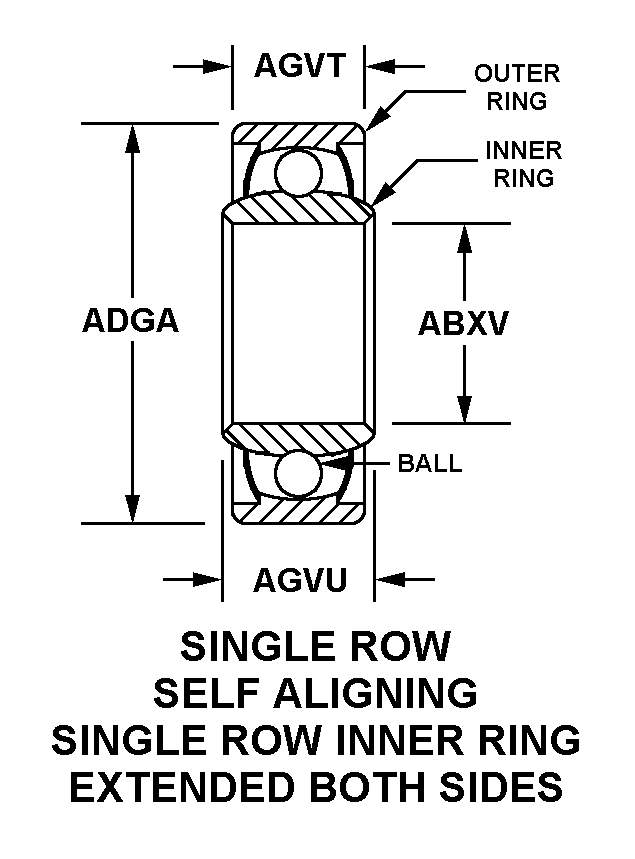

| STYLE DESIGNATOR | 198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 0.3125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.2500 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3750 INCHES NOMINAL |
| INNER RING WIDTH | 0.5580 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 ASSN STD SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | TERMINAL CABLE ASSY CONTAINING AIRFRAME BALL BEARING MS27645-5, 10 DEG SELF-ALIGNIMENT IN EITHER DIRECTION, BORE CENTER TO SHANK END 3.035 IN. MAX |
| MANUFACTURERS CODE | 76301 |
| MFR SOURCE CONTROLLING REFERENCE | 9M171-3A |
