NSN 3110-00-042-1045 MS20206DSP4, MS20206-DSP4, MS276434

Product Details | AIRFRAME BALL BEARING

3110-00-042-1045 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS20206DSP4, MS20206-DSP4, MS276434, MS27643-4, AN206DSP4, AS27643, DSP4FS464, 10107322, 2910108, 3110-00-042-1045, 00-042-1045, 3110000421045, 000421045

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	13 JAN 1972	00-042-1045	00041 ( BEARING, BALL, AIRFRAME )

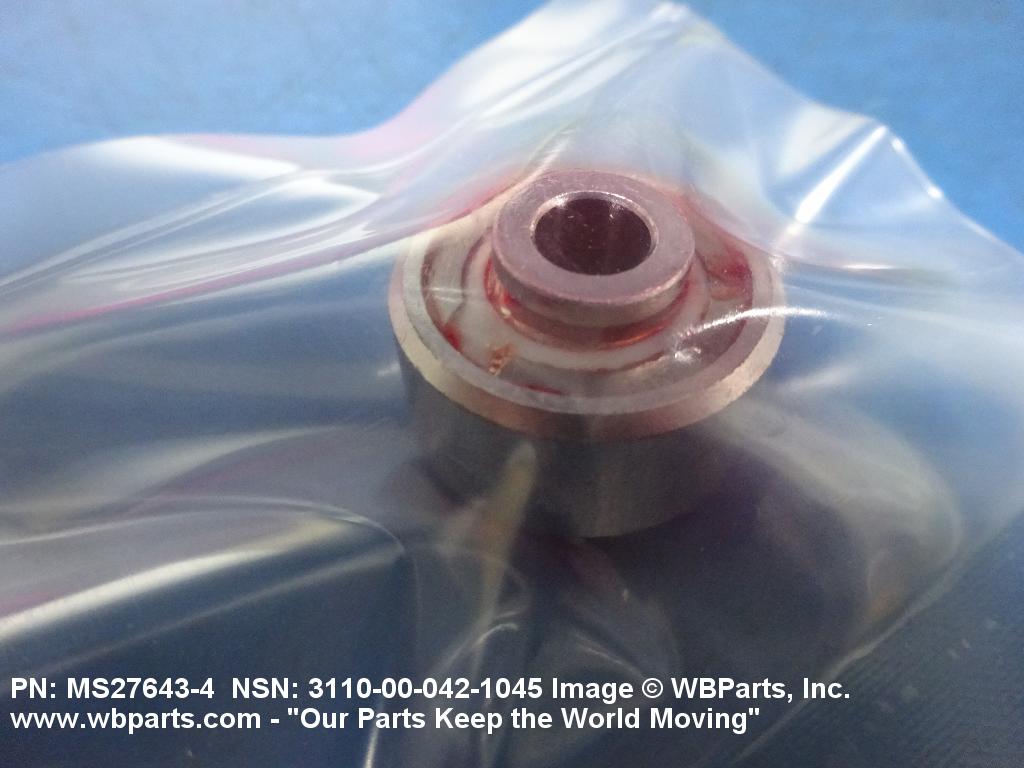

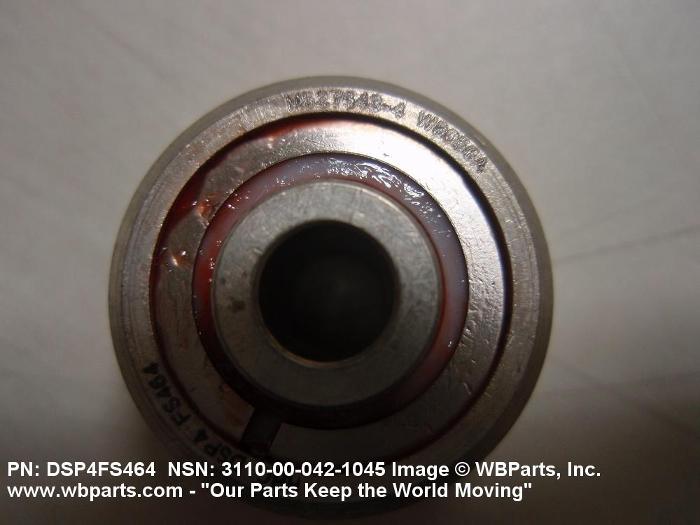

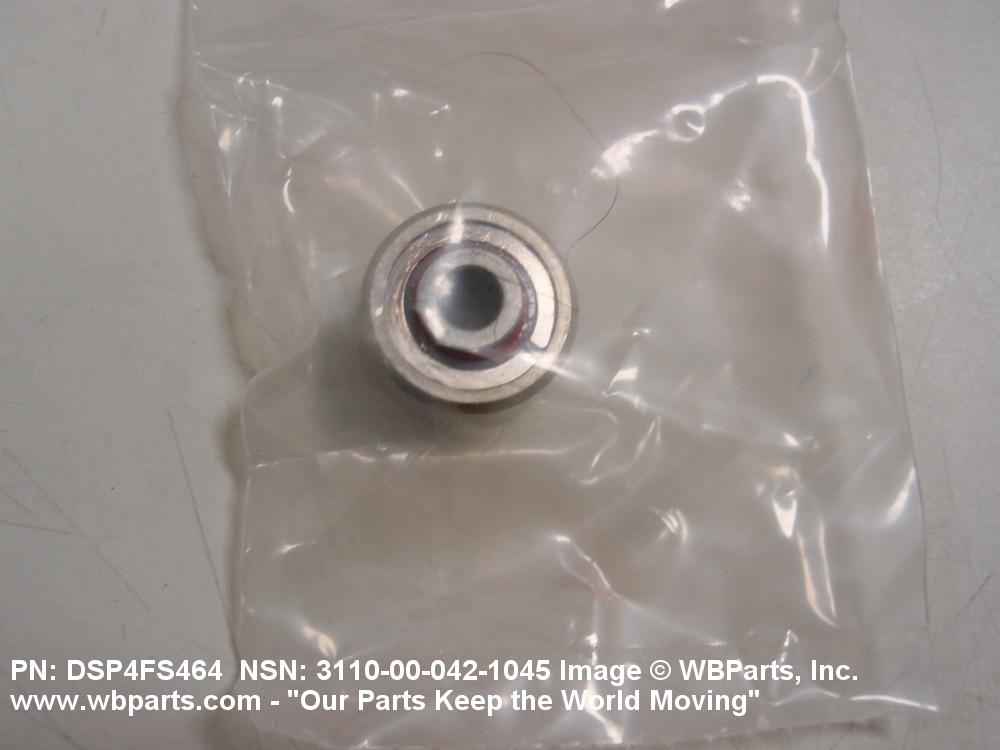

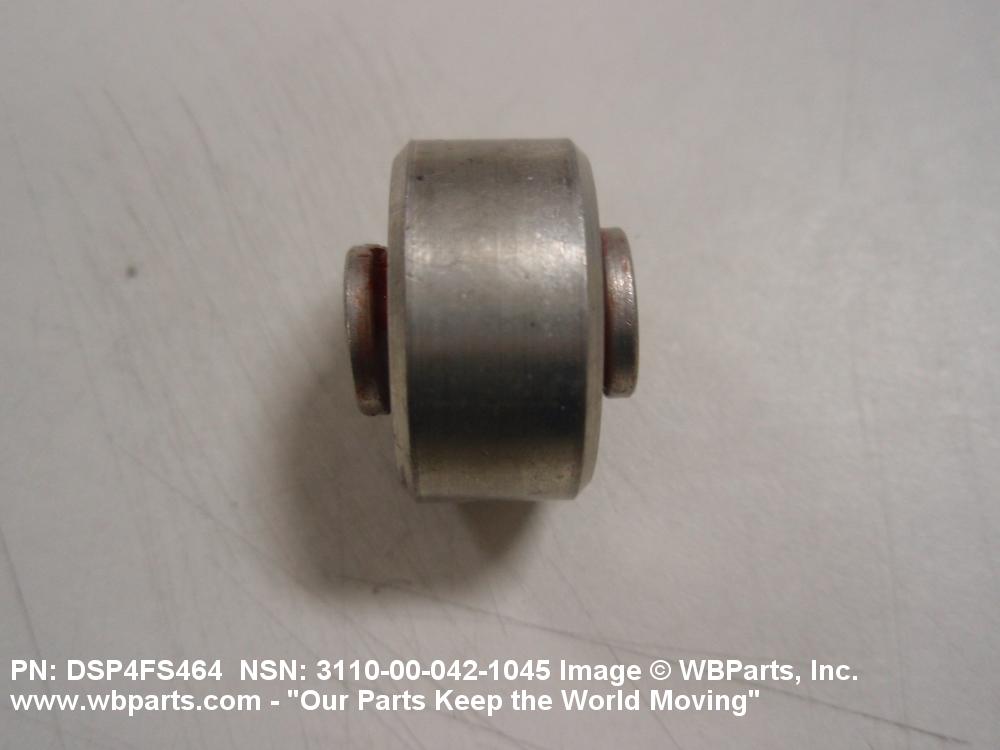

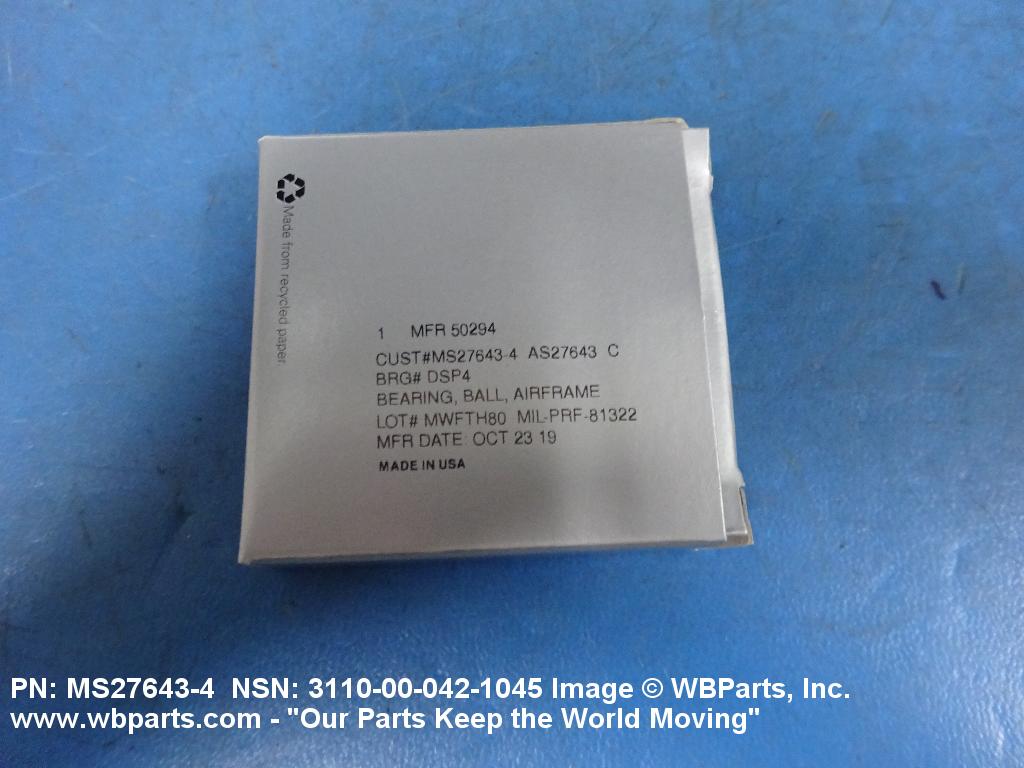

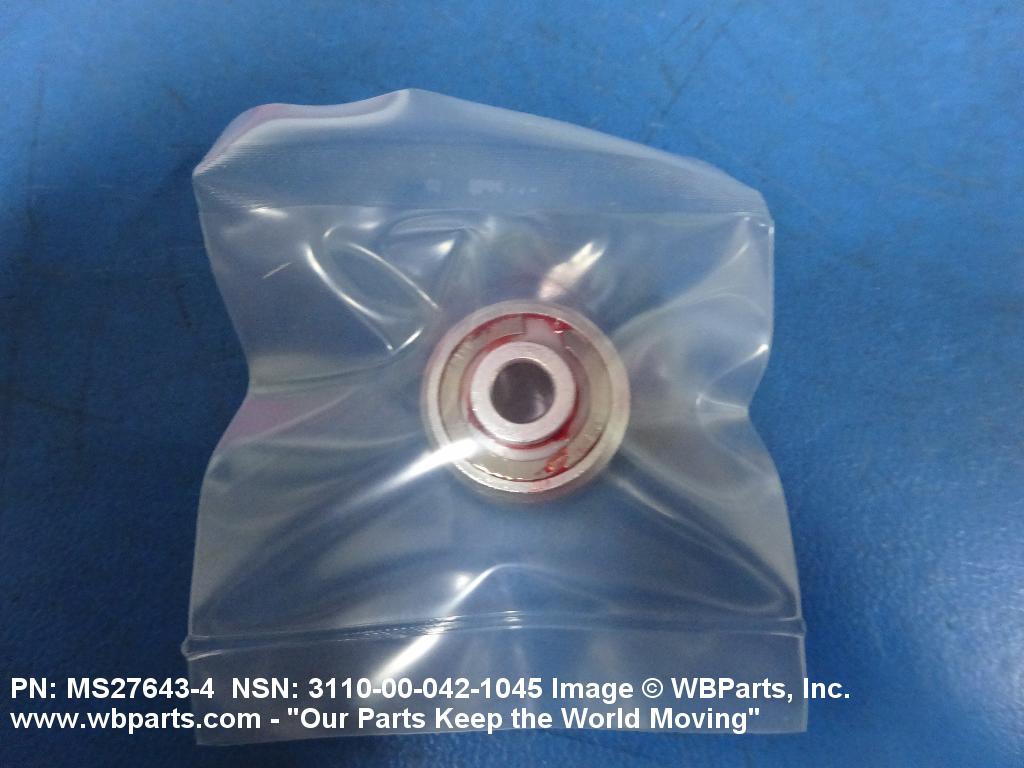

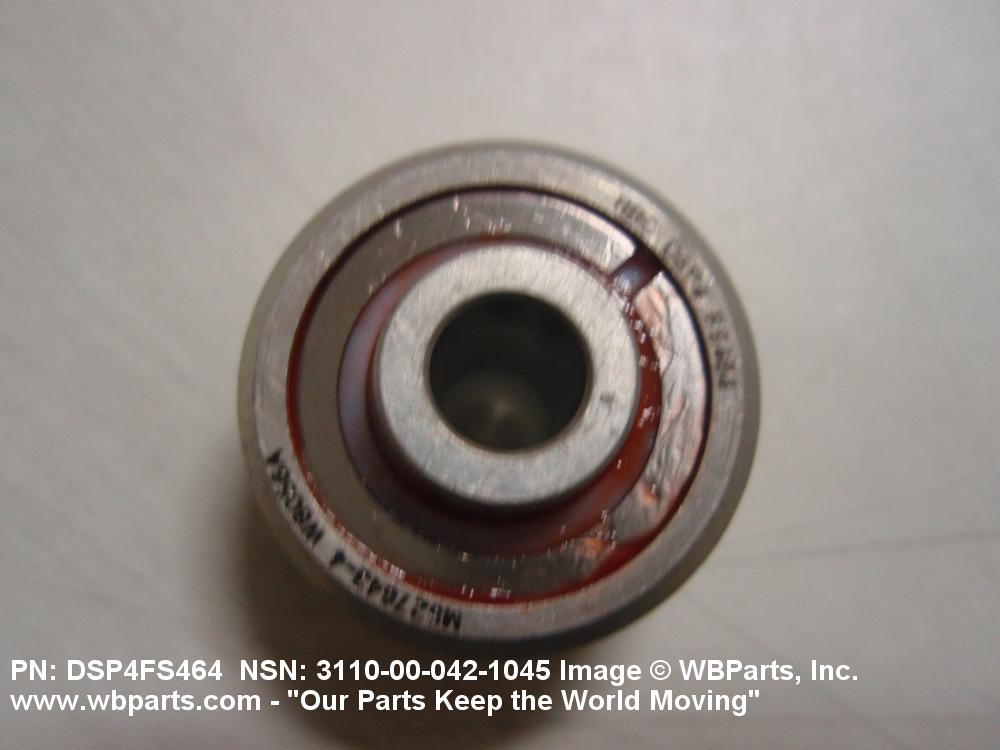

Drawings & Photos | NSN 3110-00-042-1045

Part Number	Request Date	QTY	Origin
3110-00-042-1045	2024-07-213	10	TR
MS276434	2023-12-342	10	United States
MS276434	2023-10-300	8	United States
3110-00-042-1045	2023-02-39	1	South Korea
3110-00-042-1045	2022-10-298	1	South Korea
MS276434	2022-01-13	22	United States
3110-00-042-1045	2021-11-314	1	US
3110-00-042-1045	2018-04-102	1	DIBBS-RFPs
MS276434	2017-10-297	200	BR
MS20206DSP4	2016-10-286	200	US
MS20206DSP4	2016-09-274	1	US
3110-00-042-1045	2016-09-256	4	Canada
3110-00-042-1045	2016-09-256	10	Canada
AS27643	2016-08-232	7	US
MS276434	2016-03-83	1	Australia
MS276434	2016-01-14	20	United States
MS276434	2015-12-350	10	United States
MS276434	2015-07-211	33	United States
AN206DSP4	2015-07-211	13	US
MS276434	2015-07-209	33	United States
AN206DSP4	2015-07-208	13	US
AN206DSP4	2015-06-167	14	United States
MS276434	2015-04-111	14	United States
AN206DSP4	2014-09-268	44	US
MS276434	2014-07-210	20	United States
3110-00-042-1045	2014-07-191	8	us
MS276434	2014-03-65	3	AE
MS276434	2014-02-37	1	US
MS276434	2014-02-37	50	US
3110-00-042-1045	2013-02-41	988	DIBBS
AN206DSP4	2013-01-16	2	United States
MS27643-4	2013-01-07	3	Indonesia
MS276434	2012-09-251	2	China
3110-00-042-1045	2012-09-250	20	US
MS276434	2012-05-135	250	UA
3110-00-042-1045	2012-05-135	250	UA
MS276434	2012-01-19	33	United States
MS20206DSP4	2011-09-264	70	United States
MS20206DSP4	2011-07-199	50	United States
MS276434	2011-06-171	8	France
MS276434	2011-05-144	85	US
3110-00-042-1045	2011-03-61	17	United States
3110-00-042-1045	2010-05-146	148	DIBBS
3110-00-042-1045	2009-11-317	10	DIBBS
DSP4FS464	2009-04-111	10	United States
DSP4FS464	2009-04-111	100	United States
MS20206DSP4	2009-04-98	34	United States
AN206DSP4	2009-04-98	40	United States
3110-00-042-1045	2008-11-329	60	United States
MS20206DSP4	2008-09-268	3	US
AN206DSP4	2008-07-203	10	US
3110-00-042-1045	2008-03-80	3198	DIBBS
MS276434	2008-02-49	250	Canada
3110-00-042-1045	2008-02-36	219	DIBBS
MS20206DSP4	2007-05-127	118	US
3110-00-042-1045	2007-05-121	150	DIBBS
3110-00-042-1045	2007-04-109	34	DIBBS
AN206DSP4	2007-03-75	50	US
MS276434	2007-03-74	300	US
MS276434	2006-05-151	30	France

Cross Reference | NSN 3110-00-042-1045

Part Number	Cage Code	Manufacturer
2910108	001JK	EMBRAER S/A
2910108	FB459	EMBRAER AVIATION INTERNATIONAL
2910108	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
AN206DSP4	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
AN206DSP4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS27643	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
DSP4FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
DSP4FS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
MS20206-DSP4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27643-4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27643-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-042-1045

Compare

Related Products | NSN 3110-00-042-1045

3110-00-042-3853, 3110-00-042-4262, 3110-00-042-4498, 3110-00-042-4532, 3110-00-042-4568

Technical Data | NSN 3110-00-042-1045

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	206 DOUBLE ROW, SELF ALIGNING

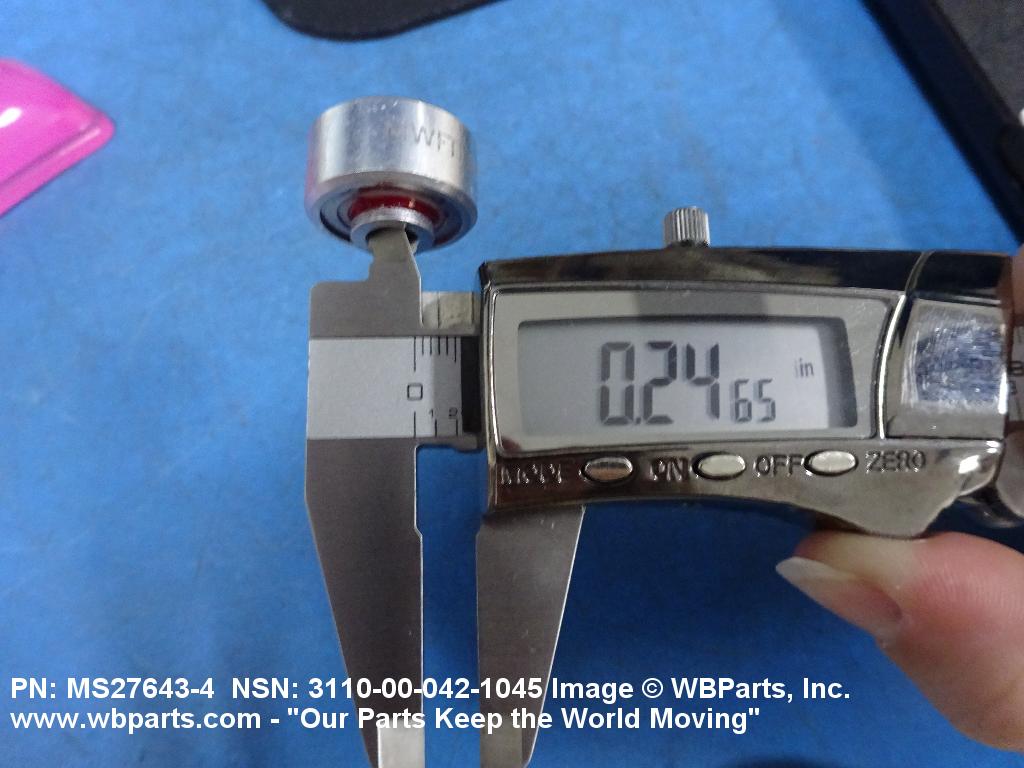

BORE DIAMETER	0.2500 INCHES NOMINAL

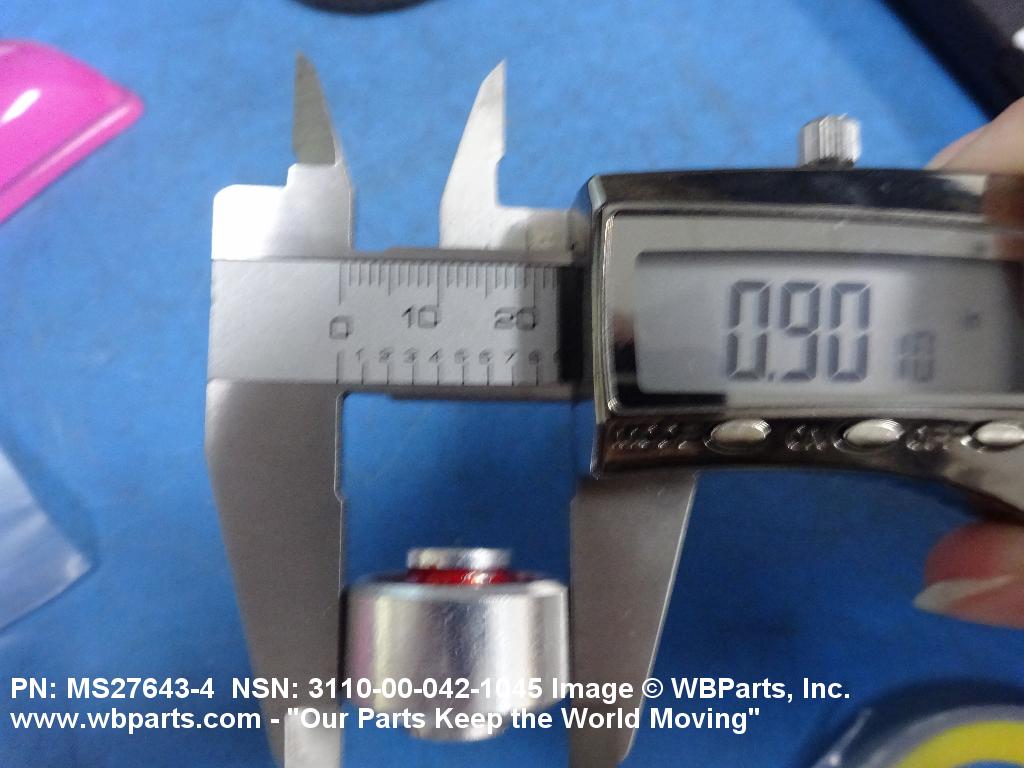

OVERALL OUTSIDE DIAMETER	0.9014 INCHES NOMINAL
OUTER RING WIDTH	0.4640 INCHES NOMINAL

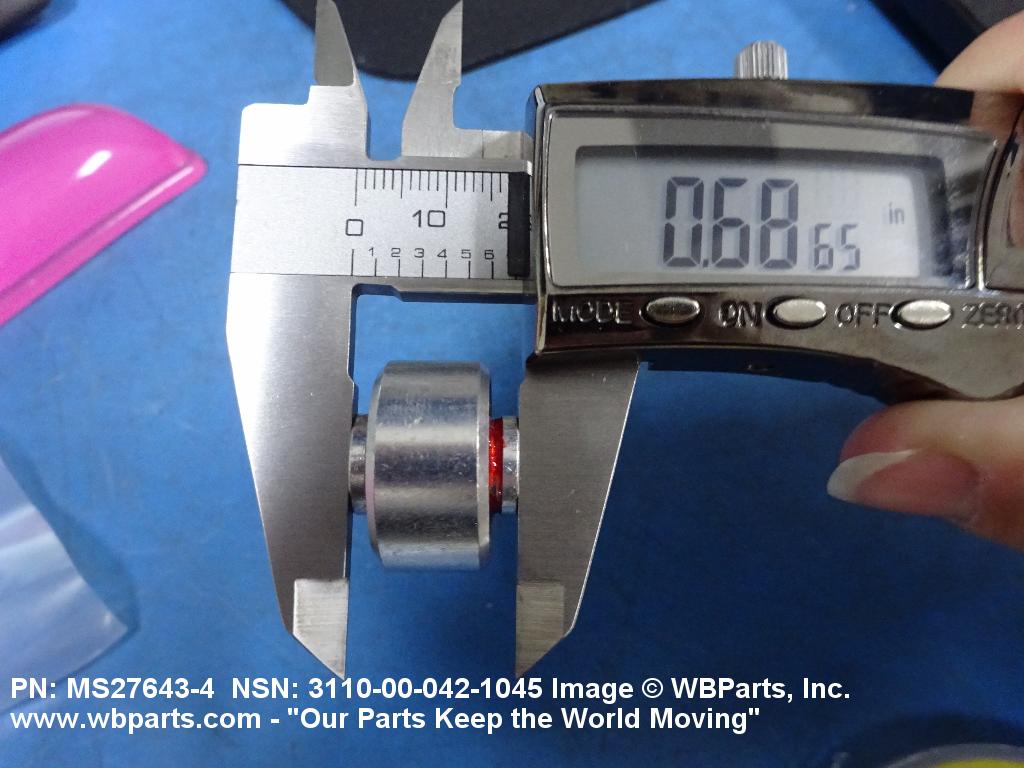

INNER RING WIDTH	0.6870 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,AXIAL PLAY 0.006 IN. MAX.,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 T0 66 AND STABILIZED FOR OPERATION AT 250 DEG.F,10 DEG SELF-ALIGNING IN EITHER DIRECTION

Restrictions/Controls & Freight Information | NSN 3110-00-042-1045

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-042-1045

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
