NSN 3110-00-042-4532 MS20207DPP10, MS2764410, MS27644-10
Product Details | AIRFRAME BALL BEARING
3110-00-042-4532 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS20207DPP10, MS2764410, MS27644-10, AS27644, DPP10, DPP10FS464, 3110-00-042-4532, 00-042-4532, 3110000424532, 000424532
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 JAN 1972 | 00-042-4532 | 00041 ( BEARING, BALL, AIRFRAME ) |

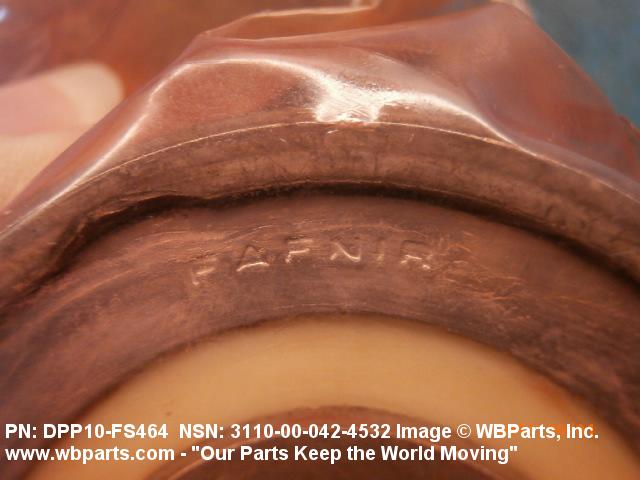

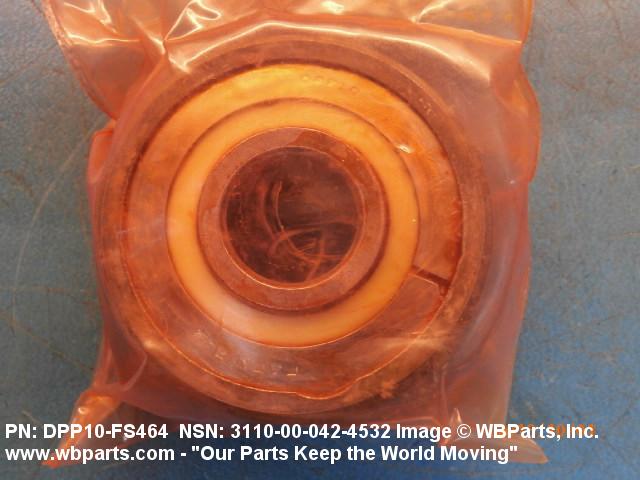

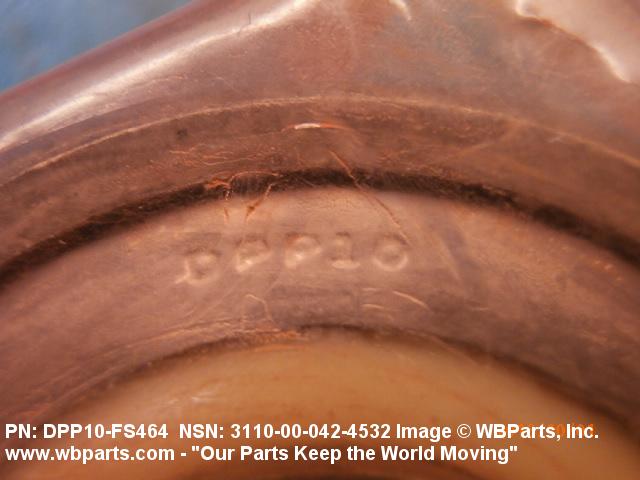

Drawings & Photos | NSN 3110-00-042-4532
Demand History | NSN 3110-00-042-4532
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-042-4532 | 2019-03-64 | 3 | United States |
| DPP10 | 2019-02-44 | 2 | Turkey |
| 3110-00-042-4532 | 2018-11-324 | 18 | US |
| DPP10FS464 | 2018-09-269 | 3 | us |
| MS20207DPP10 | 2014-02-36 | 4 | Australia |
| MS27644-10 | 2014-02-36 | 4 | Australia |
| MS2764410 | 2012-11-320 | 3 | US |
| MS2764410 | 2012-08-240 | 10 | Germany |
| DPP10 | 2012-07-206 | 1 | US |
| 3110-00-042-4532 | 2012-04-102 | 42 | US |
| 3110-00-042-4532 | 2011-01-12 | 5 | US |
| 3110-00-042-4532 | 2007-11-317 | 18 | United States |
Cross Reference | NSN 3110-00-042-4532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS27644 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| DPP10 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| DPP10FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DPP10FS464 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| MS20207DPP10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27644-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27644-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-042-4532
Technical Data | NSN 3110-00-042-4532
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OR STEEL COMP E51100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE OR PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS FIBER SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD 1ST MATERIAL RESPONSE OR AMS 3666 ASSN STD 2ND MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED |
| STYLE DESIGNATOR | 204 DOUBLE ROW |

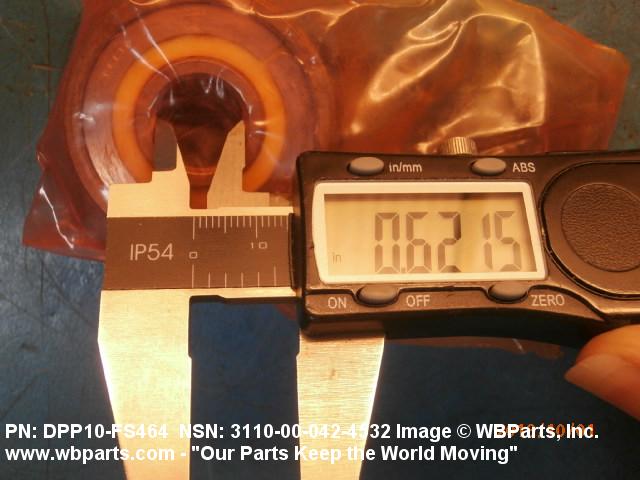

| BORE DIAMETER | 0.6250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.9375 INCHES NOMINAL |

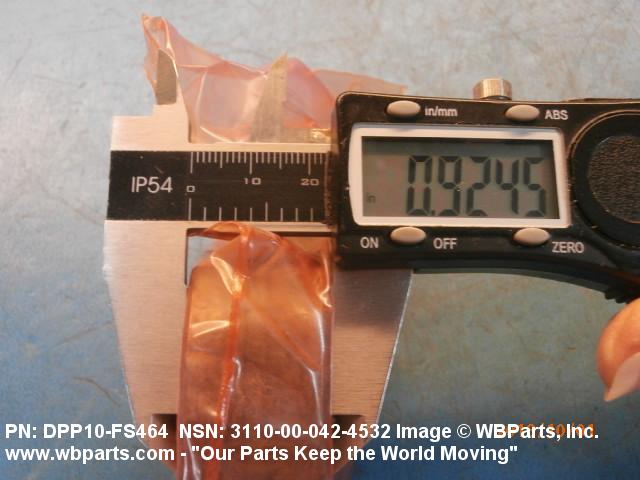

| OUTER RING WIDTH | 0.9200 INCHES NOMINAL |

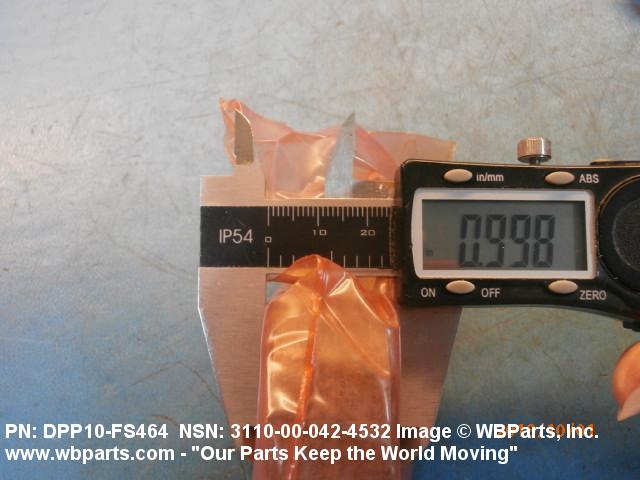

| INNER RING WIDTH | 0.9950 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | RIGID |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0004 INCHES MINIMUM RADIAL AND 0.0010 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | 80 PCT. FULL OF MIL-G-81322,AXIAL PLAY 0.007 IN.,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG F,RADIAL AND LATERAL ECCENTRICITY 0.0010 IN. INNER RING,0.0016 IN. OUTER RING |
Restrictions/Controls & Freight Information | NSN 3110-00-042-4532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
