NSN 3110-00-042-1011 MS2764310, MS27643-10, AS27643

Product Details | AIRFRAME BALL BEARING

3110-00-042-1011 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764310, MS27643-10, AS27643, DSP10, DSP10FS464, DSP10NFC, 3110-00-042-1011, 00-042-1011, 3110000421011, 000421011

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	09 FEB 1972	00-042-1011	00041 ( BEARING, BALL, AIRFRAME )

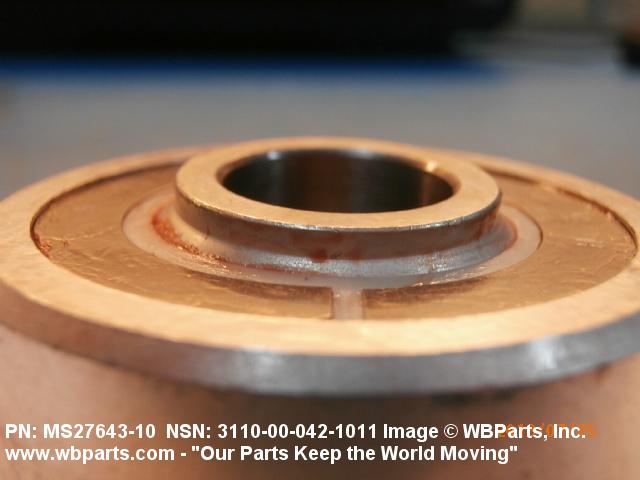

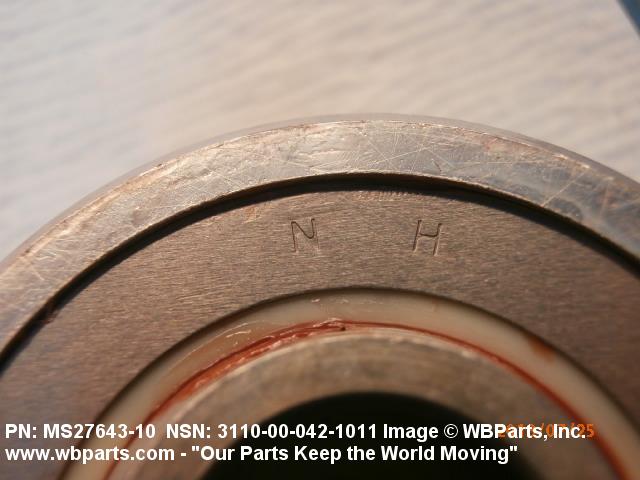

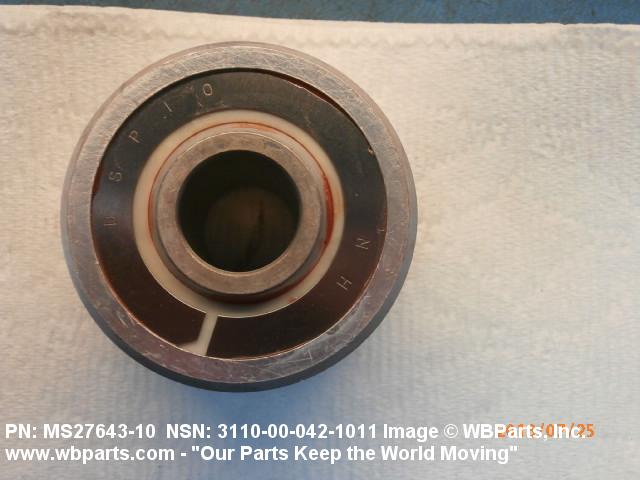

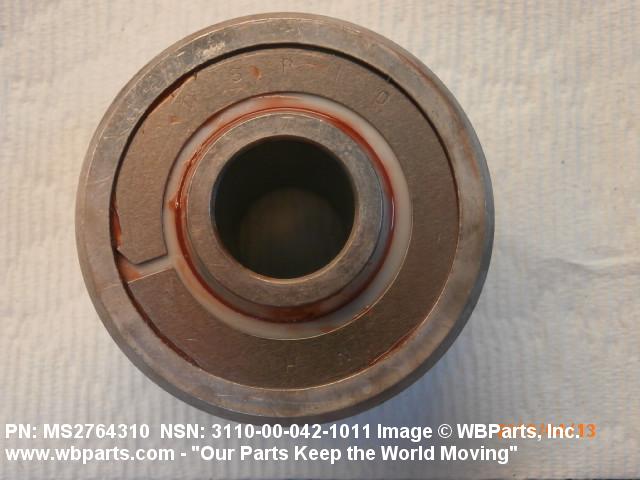

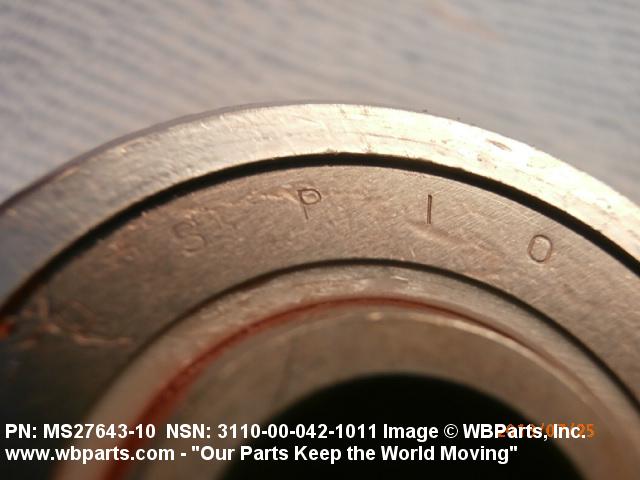

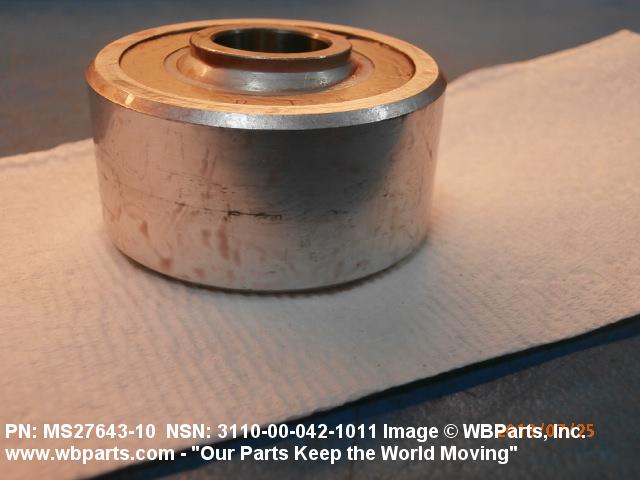

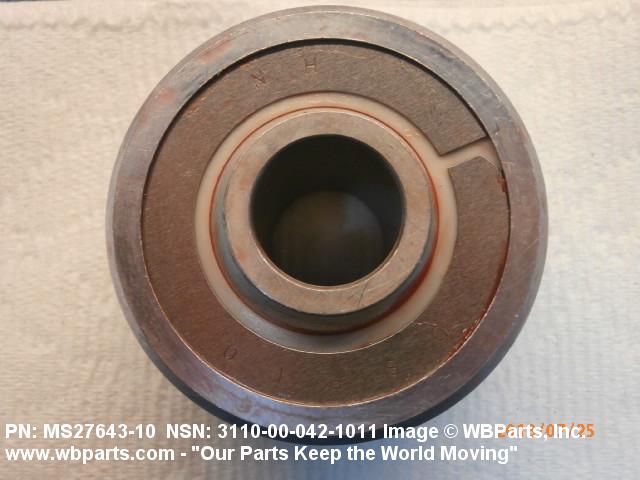

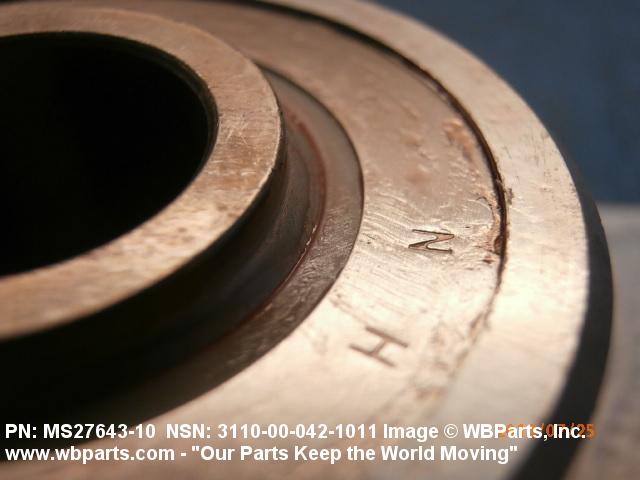

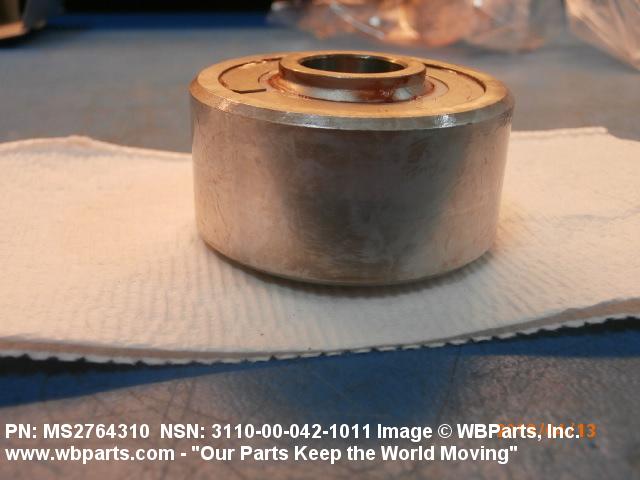

Drawings & Photos | NSN 3110-00-042-1011

Part Number	Request Date	QTY	Origin
3110-00-042-1011	2024-04-110	6	IT
MS2764310	2023-08-213	100	FI
3110-00-042-1011	2021-10-300	5	Canada
3110-00-042-1011	2020-04-108	1	United States
MS2764310	2018-07-199	2	United States
MS2764310	2018-04-95	3	United States
MS2764310	2018-04-93	3	United States
DSP10NFC	2017-03-88	40	UM
AS27643	2016-08-232	7	US
3110-00-042-1011	2013-11-324	5	US
MS2764310	2013-05-150	6	US
3110-00-042-1011	2012-05-127	4	DIBBS
3110-00-042-1011	2011-06-181	4	DIBBS
3110-00-042-1011	2011-02-32	16	UK
3110-00-042-1011	2010-12-343	4	DIBBS
3110-00-042-1011	2010-09-245	6	US
3110-00-042-1011	2010-07-197	6	US
3110-00-042-1011	2007-01-29	2	DIBBS
3110-00-042-1011	2007-01-29	4	DIBBS
DSP10FS464	2006-12-355	10	US
MS2764310	2006-11-333	12	US

Cross Reference | NSN 3110-00-042-1011

Part Number	Cage Code	Manufacturer
AS27643	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
DSP10	83086	NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION
DSP10FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
DSP10FS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
DSP10NFC	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
MS27643-10	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27643-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-042-1011

Compare

Related Products | NSN 3110-00-042-1011

3110-00-042-1012, 3110-00-042-1045, 3110-00-042-3853, 3110-00-042-4262, 3110-00-042-4498

Technical Data | NSN 3110-00-042-1011

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	206 DOUBLE ROW, SELF ALIGNING

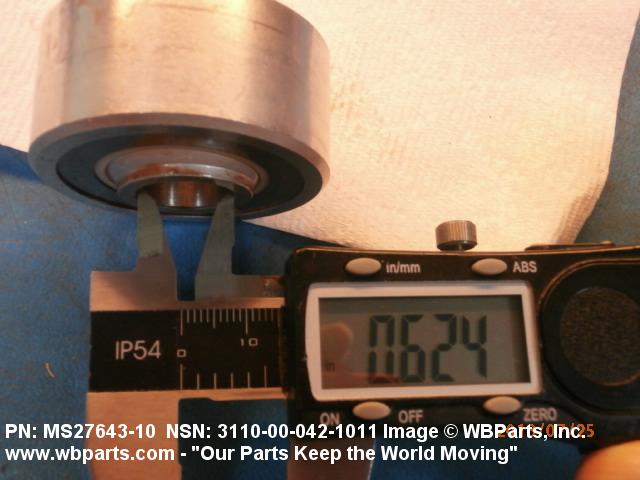

BORE DIAMETER	0.6250 INCHES NOMINAL

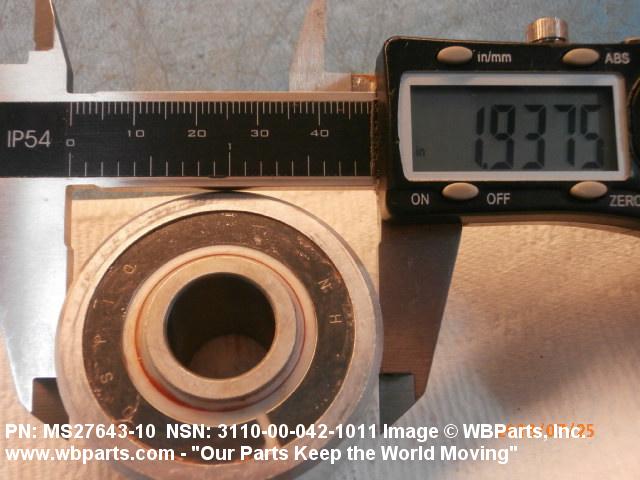

OVERALL OUTSIDE DIAMETER	1.9375 INCHES NOMINAL

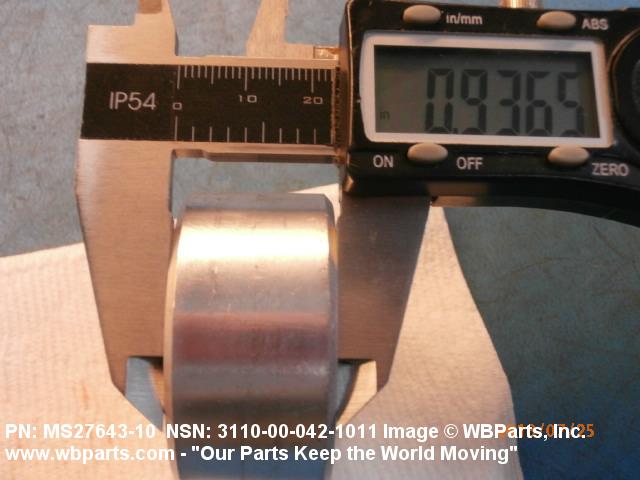

OUTER RING WIDTH	0.9370 INCHES NOMINAL

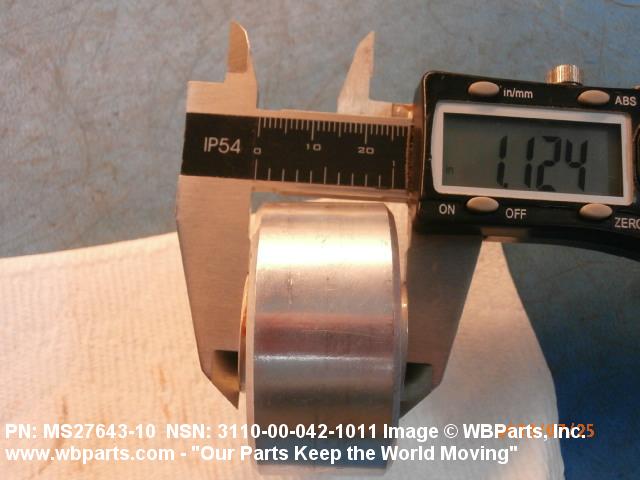

INNER RING WIDTH	1.1250 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,AXIAL PLAY 0.007 IN. MAX.,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG.F,10 DEG SELF-ALIGNING IN EIT HER DIRECTION
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27643-10

Restrictions/Controls & Freight Information | NSN 3110-00-042-1011

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-042-1011

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
