NSN 5307-00-149-9548 360372, 00-149-9548, 001499548
Product Details | STEPPED STUD
5307-00-149-9548 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: 360372, 5307-00-149-9548, 00-149-9548, 5307001499548, 001499548
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-149-9548 | 15949 ( STUD, STEPPED ) |

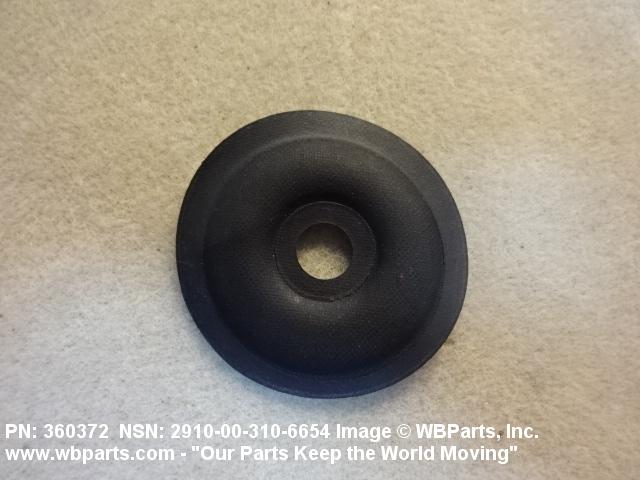

Drawings & Photos | NSN 5307-00-149-9548
Cross Reference | NSN 5307-00-149-9548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 360372 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-149-9548
Technical Data | NSN 5307-00-149-9548
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4130 |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 120 STEPPED |
| SHANK DIAMETER | 0.190 INCHES NOMINAL |
| OVERALL LENGTH | 1.219 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD 20 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.2283 TO 0.2303 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.562 INCHES NOMINAL NUT THREAD 0.469 INCHES NOMINAL STUD THREAD |
| III HARDNESS RATING | 28.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5307-00-149-9548
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-149-9548
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
