NSN 5307-00-833-4767 23037238P003, 6820363P003, 00-833-4767
Product Details | STEPPED STUD
5307-00-833-4767 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: 23037238P003, 6820363P003, 5307-00-833-4767, 00-833-4767, 5307008334767, 008334767
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-833-4767 | 15949 ( STUD, STEPPED ) |

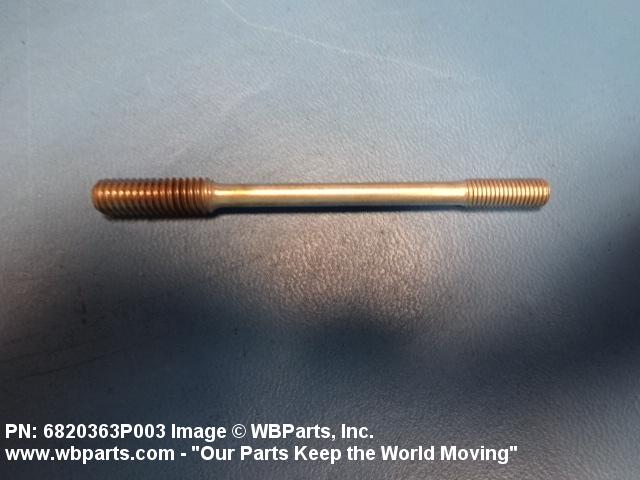

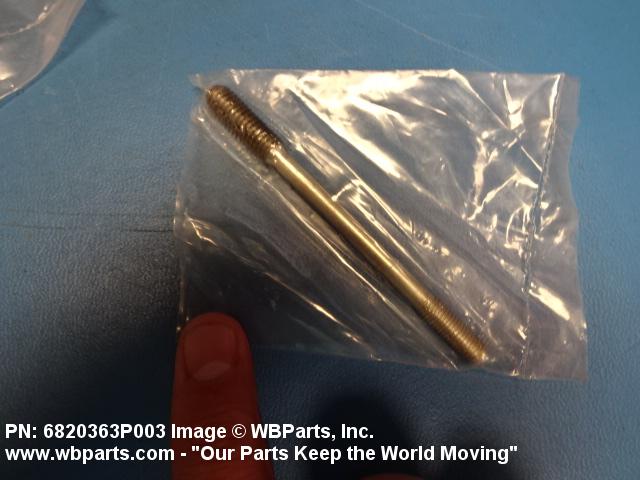

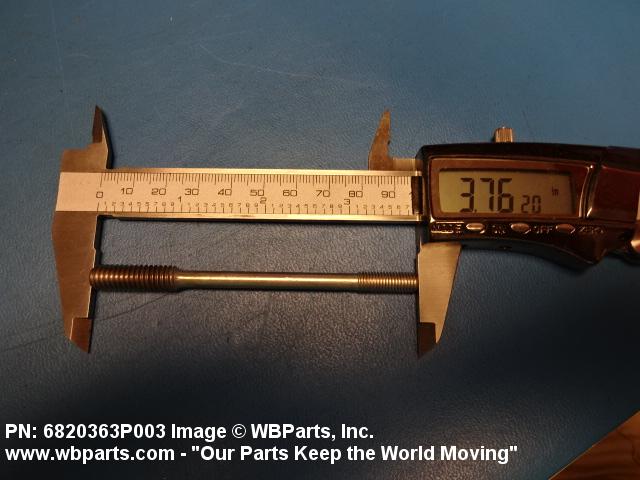

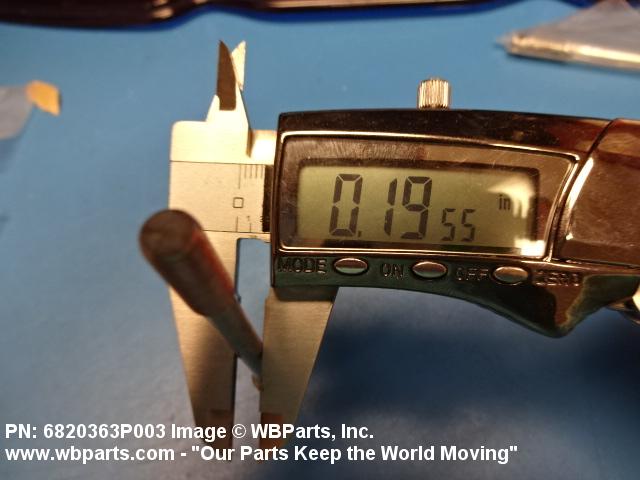

Drawings & Photos | NSN 5307-00-833-4767
Demand History | NSN 5307-00-833-4767
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23037238P003 | 2019-06-174 | 74 | DIBBS |
| 5307-00-833-4767 | 2018-05-149 | 45 | United States |
| 5307-00-833-4767 | 2017-10-291 | 45 | DIBBS |
| 5307-00-833-4767 | 2009-05-140 | 131 | DIBBS |
| 5307-00-833-4767 | 2009-01-06 | 108 | DIBBS |
| 5307-00-833-4767 | 2008-11-333 | 64 | DIBBS |
| 5307-00-833-4767 | 2008-08-217 | 44 | DIBBS |
| 5307-00-833-4767 | 2008-07-184 | 44 | DIBBS |
| 5307-00-833-4767 | 2008-06-182 | 44 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-833-4767
Restrictions/Controls & Freight Information | NSN 5307-00-833-4767
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
