NSN 5307-00-208-0265 AN150851, 00-208-0265, 002080265
Product Details | STEPPED STUD

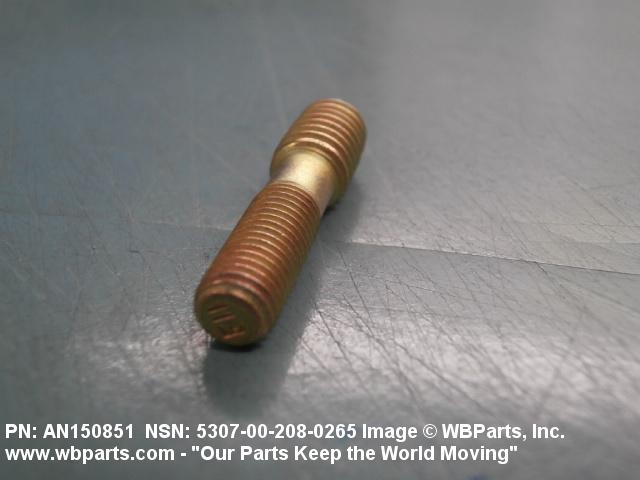

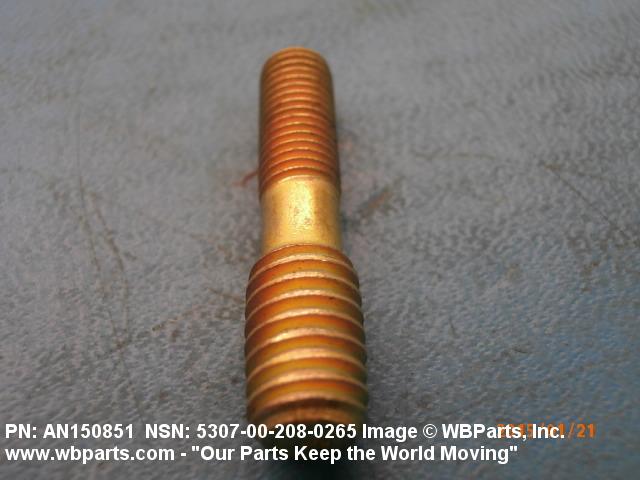

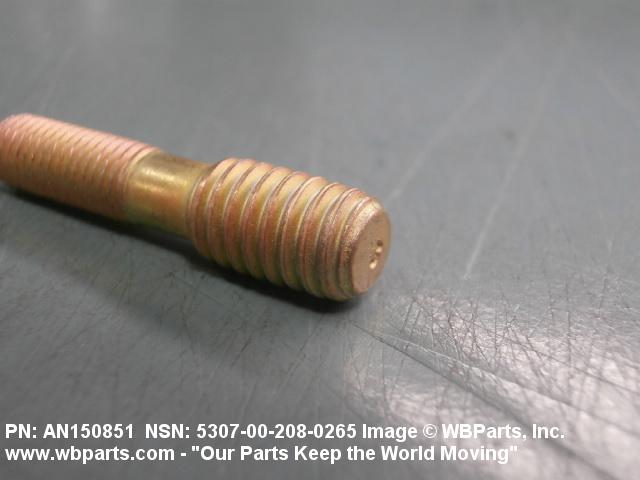

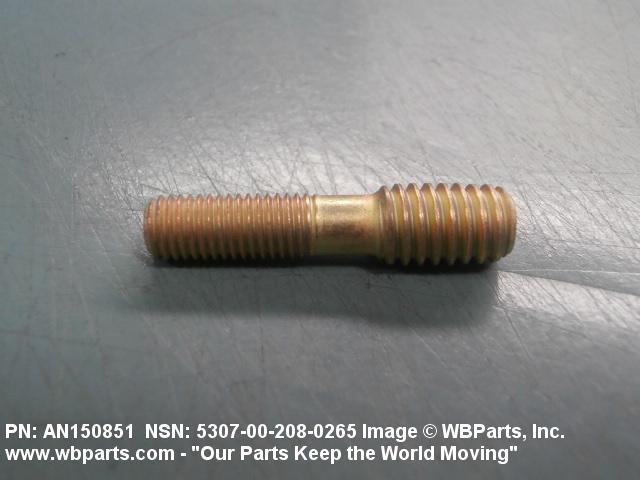

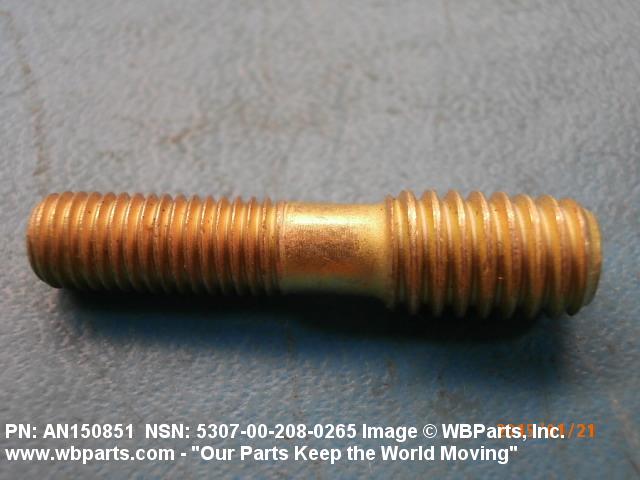

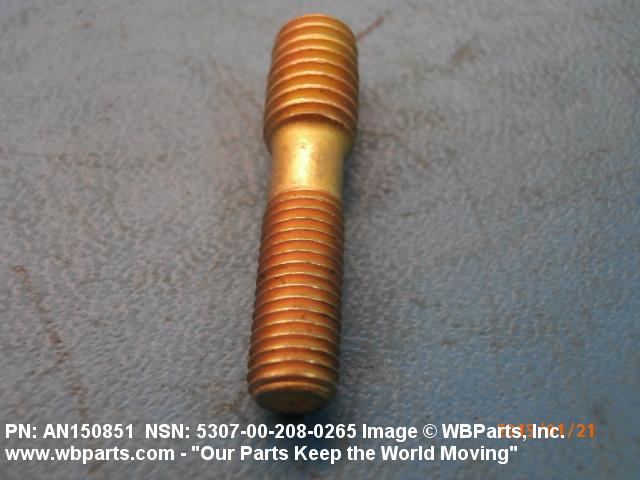

5307-00-208-0265 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: AN150851, 5307-00-208-0265, 00-208-0265, 5307002080265, 002080265
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-0265 | 15949 ( STUD, STEPPED ) |

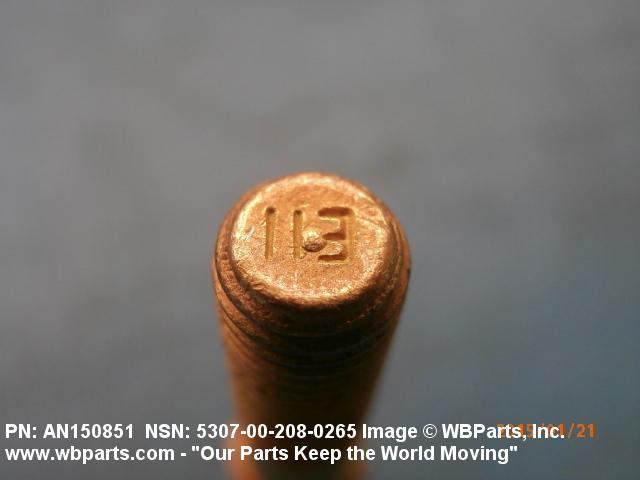

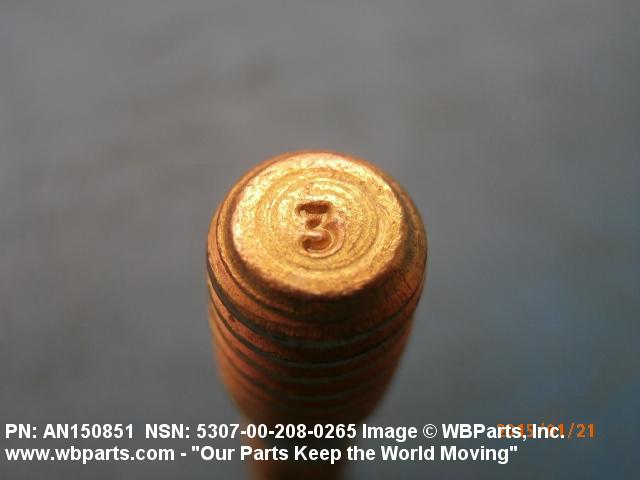

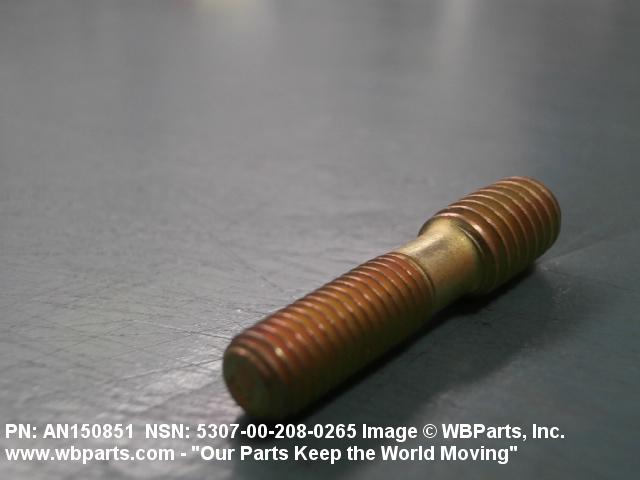

Drawings & Photos | NSN 5307-00-208-0265
Demand History | NSN 5307-00-208-0265
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN150851 | 2015-01-14 | 10 | Canada |
| AN150851 | 2014-05-126 | 5 | Canada |
Cross Reference | NSN 5307-00-208-0265
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN150851 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-208-0265
Related Products | NSN 5307-00-208-0265
Technical Data | NSN 5307-00-208-0265
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 120 STEPPED |

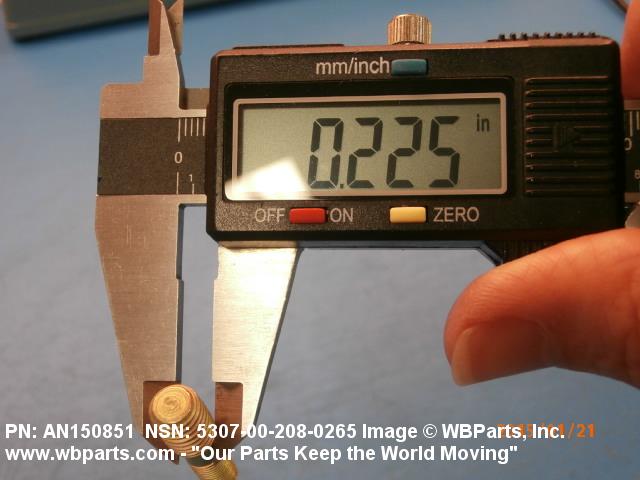

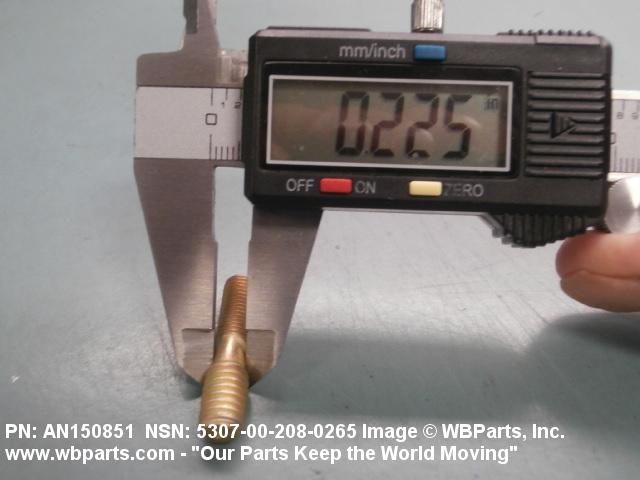

| SHANK DIAMETER | 0.221 INCHES MINIMUM AND 0.231 INCHES MAXIMUM |

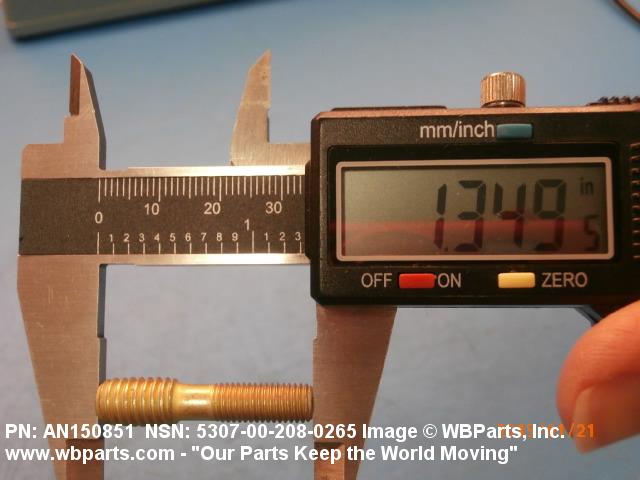

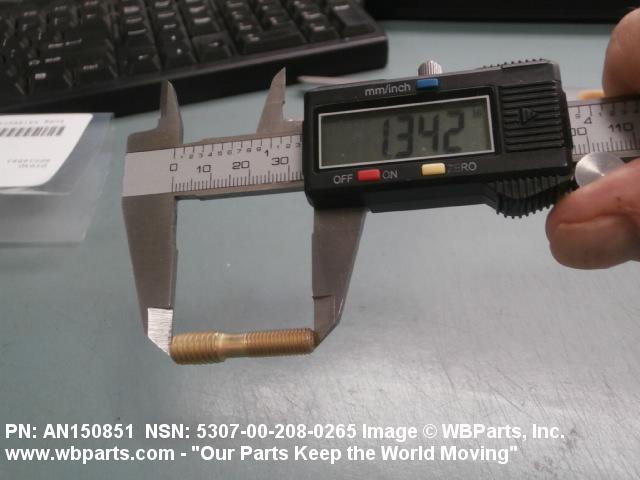

| OVERALL LENGTH | 1.334 INCHES MINIMUM AND 1.354 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |

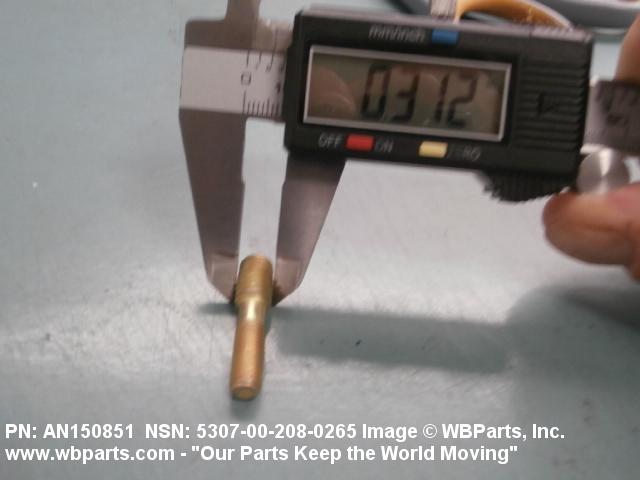

| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 18 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.2840 TO 0.2855 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |

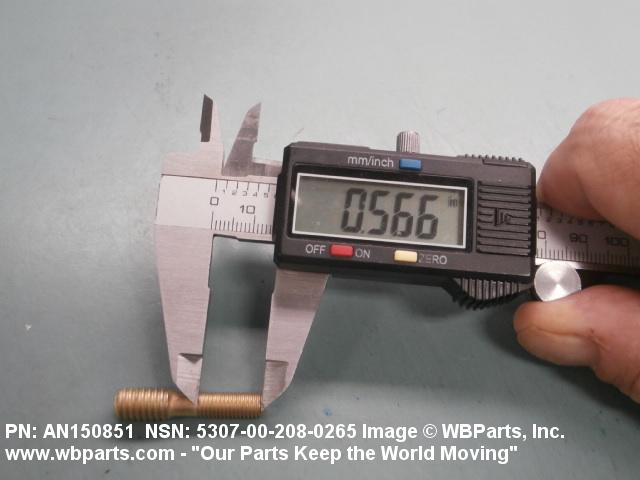

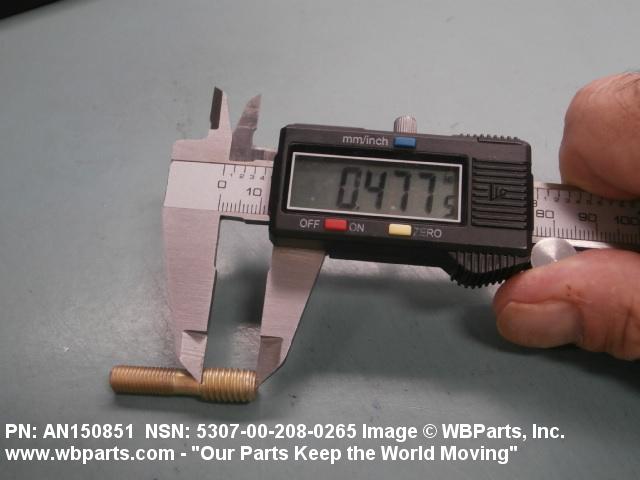

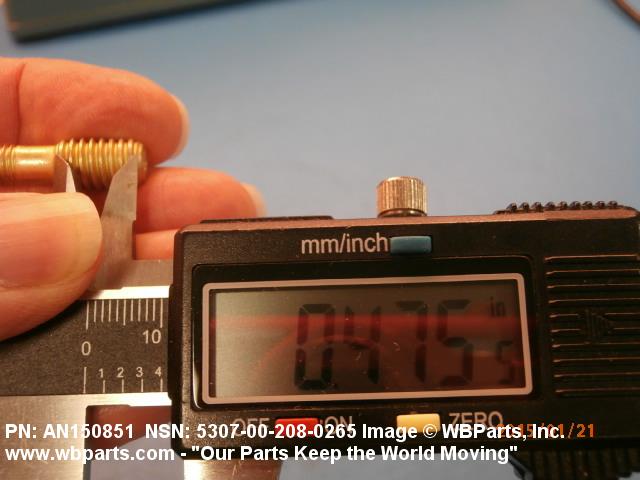

| THREAD LENGTH | 0.552 INCHES MINIMUM AND 0.572 INCHES MAXIMUM NUT THREAD 0.459 INCHES MINIMUM AND 0.479 INCHES MAXIMUM STUD THREAD |
| III HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| III SURFACE FINISH | 63.0 MICROINCHES SHANK |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN150851 |
Restrictions/Controls & Freight Information | NSN 5307-00-208-0265
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
