NSN 5307-00-851-2689 AN150850, 00-851-2689, 008512689

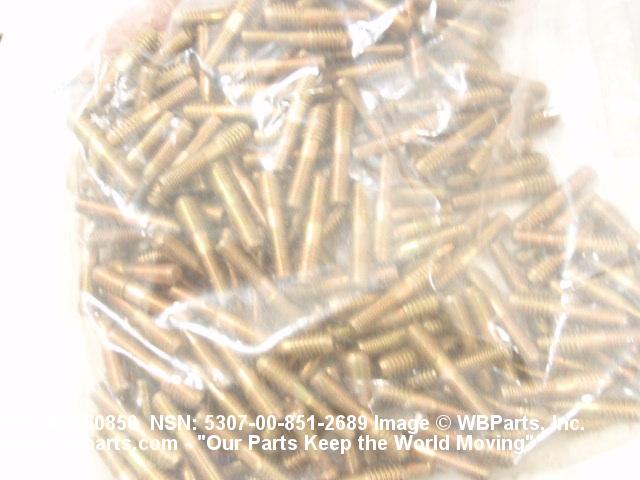

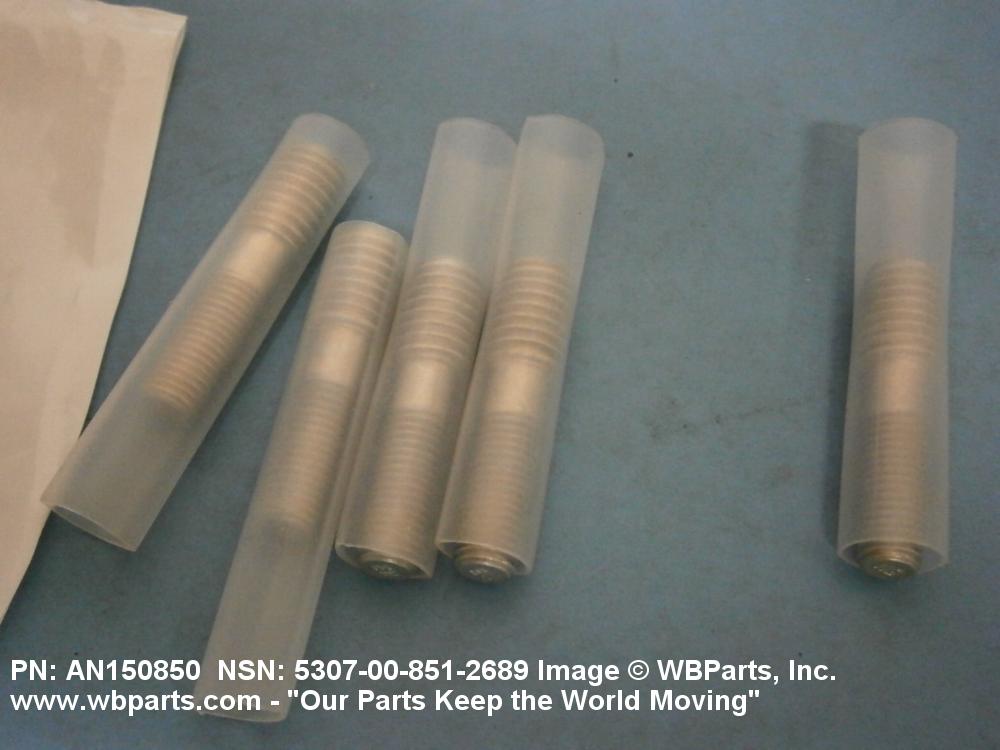

Product Details | STEPPED STUD
5307-00-851-2689 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: AN150850, 5307-00-851-2689, 00-851-2689, 5307008512689, 008512689
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JAN 1967 | 00-851-2689 | 15949 ( STUD, STEPPED ) |
Drawings & Photos | NSN 5307-00-851-2689
Demand History | NSN 5307-00-851-2689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN150850 | 2012-09-262 | 208 | United States |
| AN150850 | 2011-11-308 | 56 | United States |
| AN150850 | 2011-11-305 | 5 | United States |
| AN150850 | 2011-11-305 | 420 | United States |
| AN150850 | 2011-10-299 | 5 | United States |
| AN150850 | 2011-10-299 | 420 | United States |
| AN150850 | 2011-09-255 | 5 | United States |
| AN150850 | 2011-09-255 | 420 | United States |
| AN150850 | 2010-11-309 | 195 | United States |
| AN150850 | 2010-05-133 | 195 | United States |
| AN150850 | 2010-01-20 | 190 | United States |
Cross Reference | NSN 5307-00-851-2689
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN150850 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-851-2689
Related Products | NSN 5307-00-851-2689
Technical Data | NSN 5307-00-851-2689
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 120 STEPPED |
| SHANK DIAMETER | 0.221 INCHES MINIMUM AND 0.231 INCHES MAXIMUM |
| OVERALL LENGTH | 1.334 INCHES MINIMUM AND 1.354 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 18 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.2810 TO 0.2825 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.552 INCHES MINIMUM AND 0.572 INCHES MAXIMUM NUT THREAD 0.459 INCHES MINIMUM AND 0.479 INCHES MAXIMUM STUD THREAD |
| III HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| III SURFACE FINISH | 63.0 MICROINCHES SHANK |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN150850 |
Restrictions/Controls & Freight Information | NSN 5307-00-851-2689
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
