NSN 5307-00-936-3033 AN150581, 00-936-3033, 009363033
Product Details | STEPPED STUD
5307-00-936-3033 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads.
Part Alternates: AN150581, 5307-00-936-3033, 00-936-3033, 5307009363033, 009363033
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAR 1967 | 00-936-3033 | 15949 ( STUD, STEPPED ) |

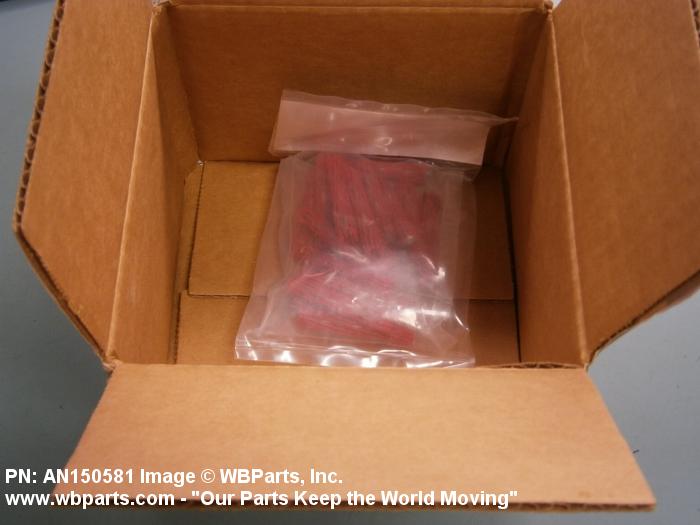

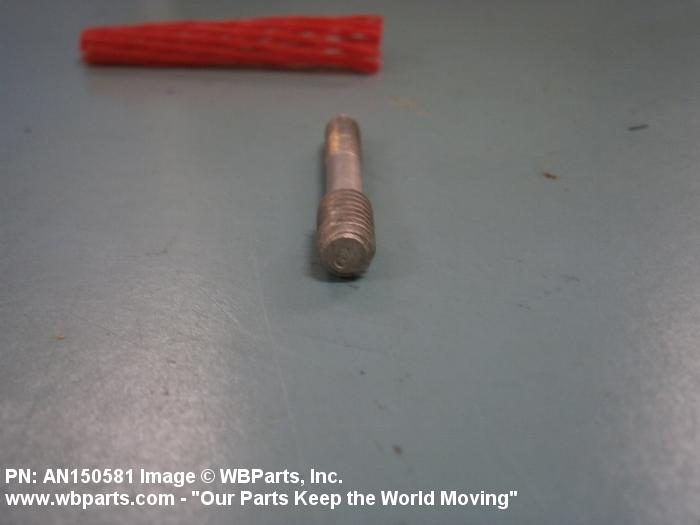

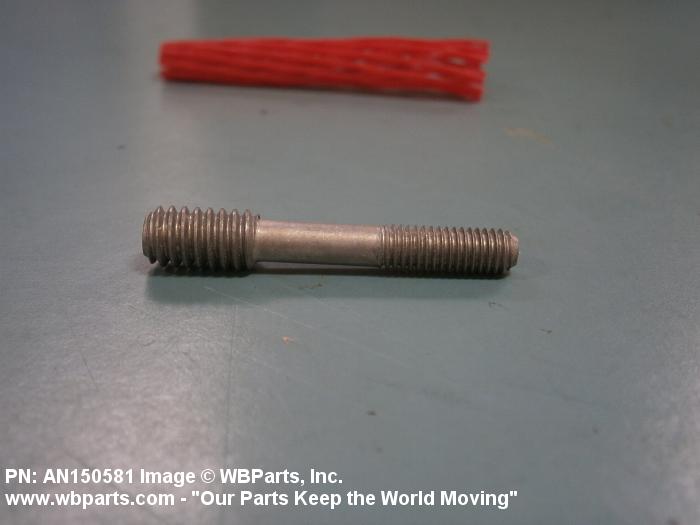

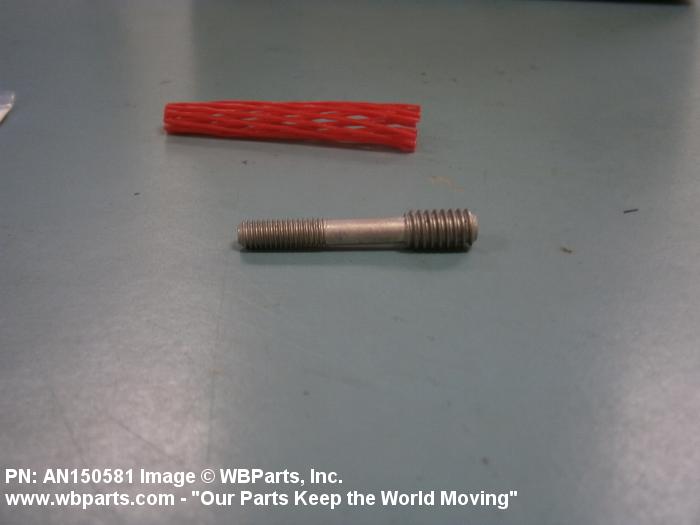

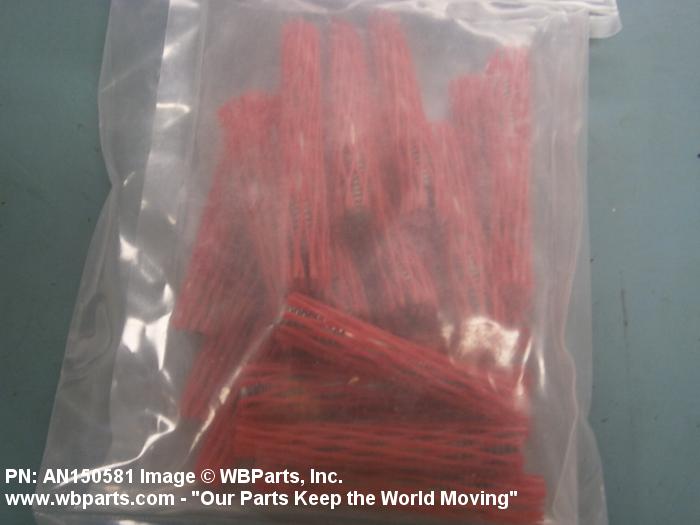

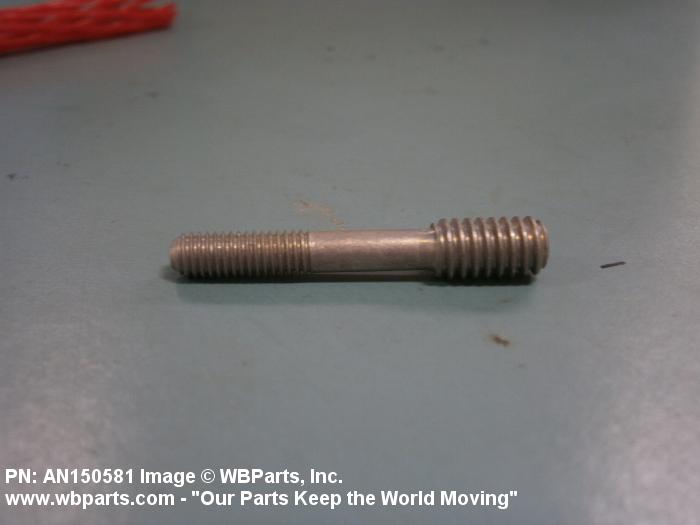

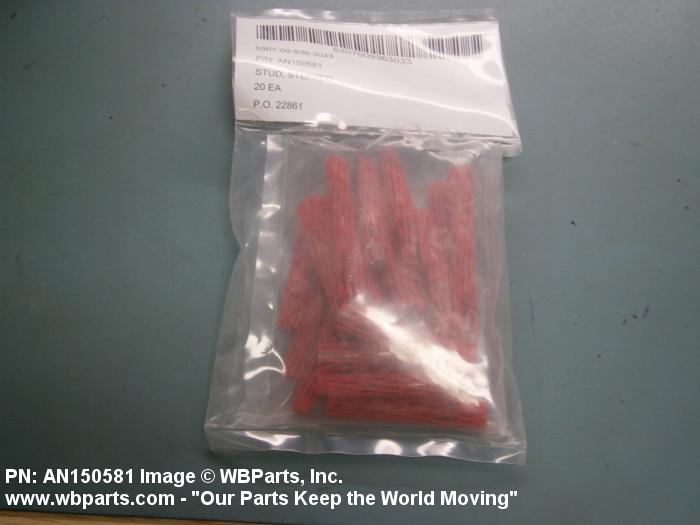

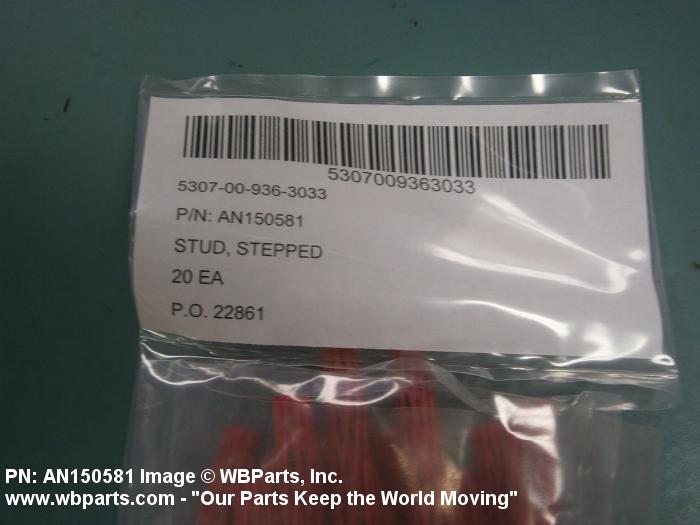

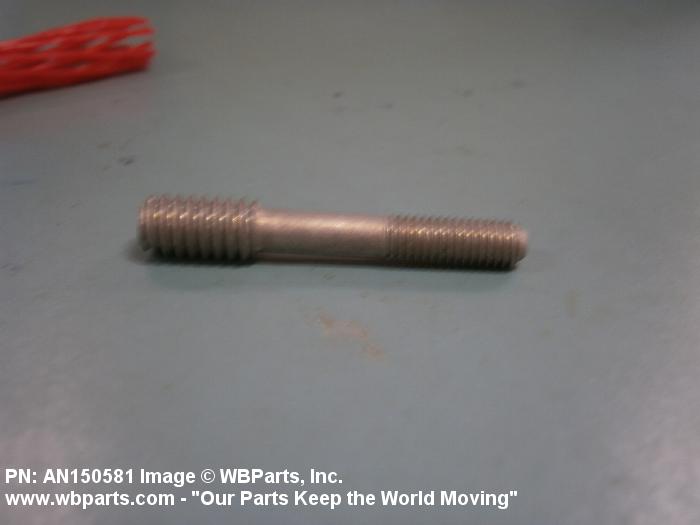

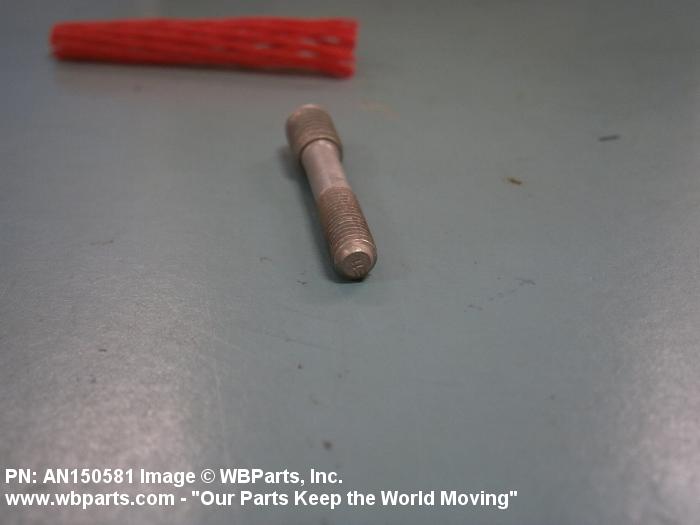

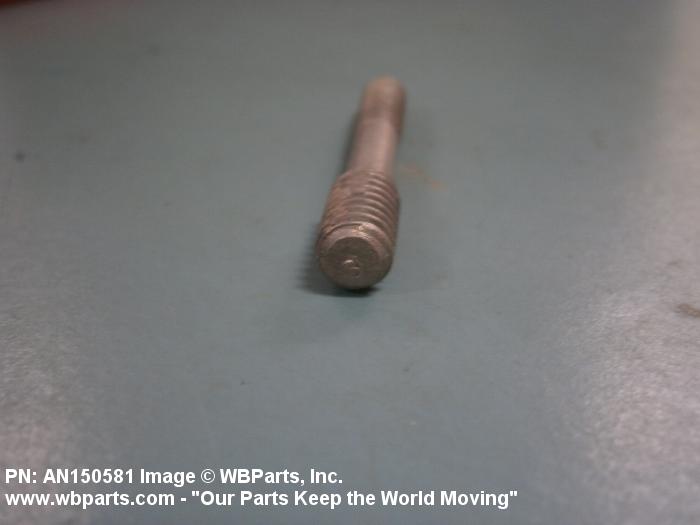

Drawings & Photos | NSN 5307-00-936-3033
Demand History | NSN 5307-00-936-3033
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN150581 | 2013-06-176 | 20 | United States |
Cross Reference | NSN 5307-00-936-3033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN150581 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-936-3033
Related Products | NSN 5307-00-936-3033
Technical Data | NSN 5307-00-936-3033
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 120 STEPPED |
| SHANK DIAMETER | 0.164 INCHES MINIMUM AND 0.174 INCHES MAXIMUM |
| OVERALL LENGTH | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD 20 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.2248 TO 0.2263 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM NUT THREAD 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM STUD THREAD |
| III HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| III SURFACE FINISH | 63.0 MICROINCHES SHANK |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN150581 |
Restrictions/Controls & Freight Information | NSN 5307-00-936-3033
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-936-3033
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
