NSN 5307-00-149-9579 2136H185, 00-149-9579, 001499579
Product Details | RECESSED AND STEPPED STUD
5307-00-149-9579 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The unthreaded section must have more than one diameter, none of which may be larger than the maximum major diameter of the larger thread. It may be thread relieved. Excludes items with tapered threads.
Part Alternates: 2136H185, 5307-00-149-9579, 00-149-9579, 5307001499579, 001499579
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-149-9579 | 15943 ( STUD, RECESSED AND STEPPED ) |
Drawings & Photos | NSN 5307-00-149-9579
Cross Reference | NSN 5307-00-149-9579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2136H185 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-149-9579
Technical Data | NSN 5307-00-149-9579
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8735 OR STEEL COMP 4140 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6320 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6382 ASSN STD 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |

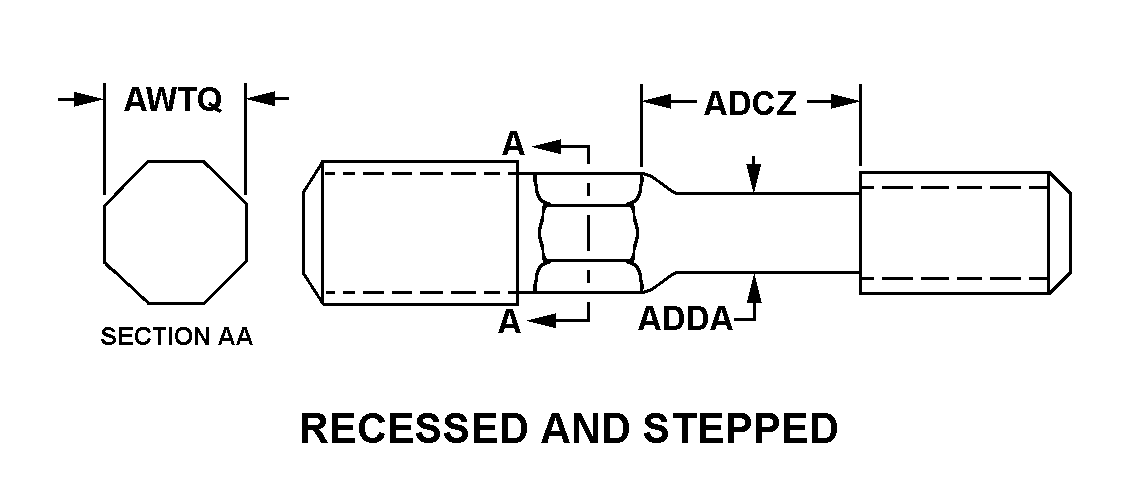

| STYLE DESIGNATOR | 66 RECESSED AND STEPPED |
| LENGTH OF RECESSED PORTION OF SHANK | 0.630 INCHES MINIMUM AND 0.740 INCHES MAXIMUM |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.180 INCHES MINIMUM AND 0.184 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.200 INCHES NOMINAL |
| OVERALL LENGTH | 2.430 INCHES MINIMUM AND 2.470 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 18 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.2847 TO 0.2857 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.510 INCHES MINIMUM AND 0.570 INCHES MAXIMUM NUT THREAD 0.580 INCHES MINIMUM AND 0.620 INCHES MAXIMUM STUD THREAD |
| SPECIAL FEATURES | STUD END THREAD 0.003 IN. OVERSIZE |
| III HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
