NSN 3110-00-042-4806 MS276454, MS27645-4, AS27645

Product Details | AIRFRAME BALL BEARING

3110-00-042-4806 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS276454, MS27645-4, AS27645, AS276454, AS27645-4, F300 0T 020 6156, F3000T0206156, GB520EEKSP4, GB520EE-KSP4, KSP4FS464, KSP4SPL, 940.83.28.506, 9408328506, KSP4, 3110-00-042-4806, 00-042-4806, 3110000424806, 000424806

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	13 JAN 1972	00-042-4806	00041 ( BEARING, BALL, AIRFRAME )

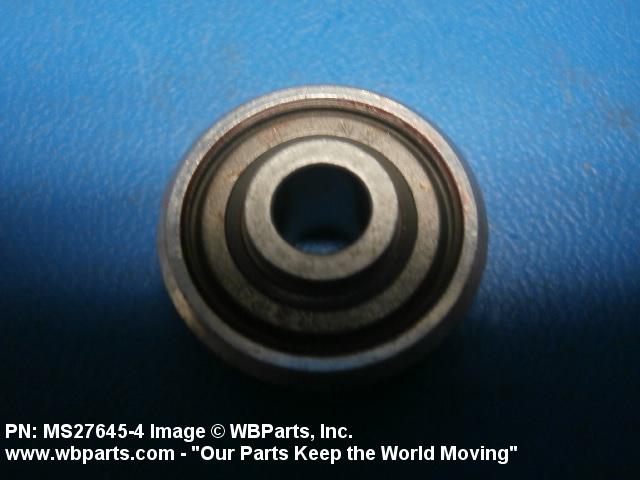

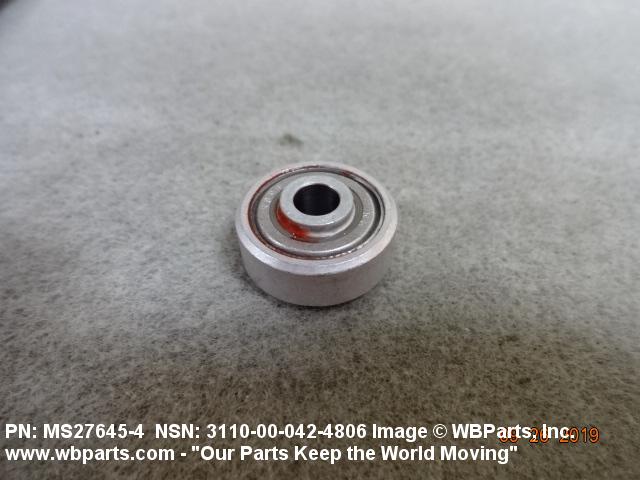

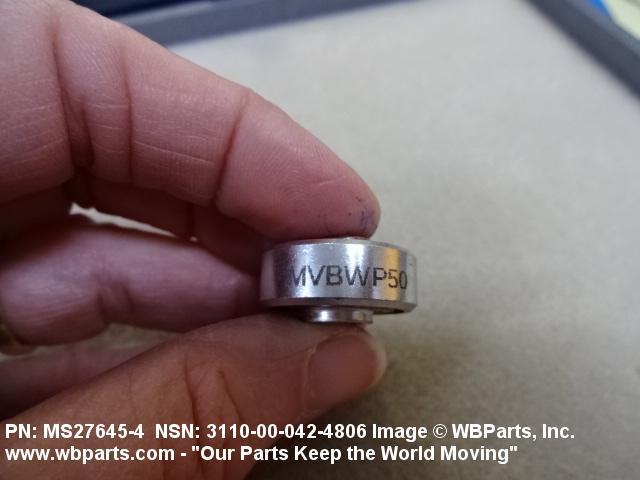

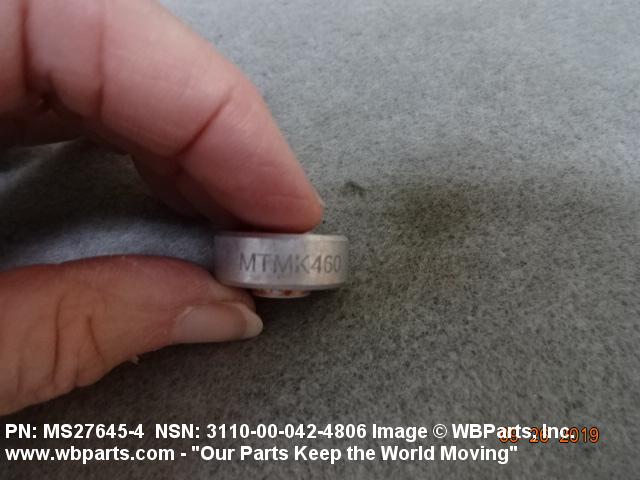

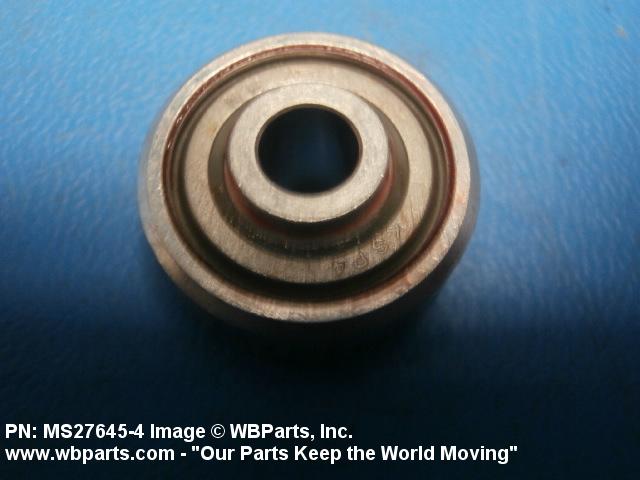

Drawings & Photos | NSN 3110-00-042-4806

Part Number	Request Date	QTY	Origin
3110-00-042-4806	2024-11-324	60	CN
3110-00-042-4806	2023-09-262	4	HU
3110-00-042-4806	2021-04-109	1000	us
3110-00-042-4806	2019-09-265	1	US
3110-00-042-4806	2019-02-59	1	DIBBS-RFPs
MS276454	2018-12-352	1	US
3110-00-042-4806	2018-08-218	1983	DIBBS
3110-00-042-4806	2018-07-185	1684	DIBBS
3110-00-042-4806	2018-03-73	350	DIBBS
3110-00-042-4806	2017-09-255	892	DIBBS
3110-00-042-4806	2017-09-249	892	DIBBS
3110-00-042-4806	2017-08-235	136	DIBBS
3110-00-042-4806	2017-08-235	268	DIBBS
3110-00-042-4806	2017-08-235	457	DIBBS
3110-00-042-4806	2017-08-220	1349	DIBBS
3110-00-042-4806	2017-06-165	136	DIBBS
3110-00-042-4806	2017-05-130	268	DIBBS
MS276454	2017-04-100	32	South Africa
3110-00-042-4806	2017-03-80	53	DIBBS
3110-00-042-4806	2016-12-355	846	DIBBS
3110-00-042-4806	2016-10-279	261	DIBBS
MS276454	2016-07-203	55	US
MS276454	2016-03-88	44	United States
3110-00-042-4806	2015-12-341	90	DIBBS
MS276454	2015-12-338	1	US
MS276454	2015-04-111	518	United States
3110-00-042-4806	2015-02-58	168	DIBBS
3110-00-042-4806	2015-01-06	269	DIBBS
MS276454	2014-11-309	1	United States
MS276454	2014-05-122	1	US
3110-00-042-4806	2013-11-308	319	DIBBS
3110-00-042-4806	2013-10-282	253	DIBBS
3110-00-042-4806	2013-09-270	242	DIBBS
3110-00-042-4806	2013-09-260	51	DIBBS
9408328506	2012-02-41	12	US
9408328506	2012-02-41	12	US
3110-00-042-4806	2012-01-09	935	DIBBS
3110-00-042-4806	2011-09-270	1096	DIBBS
MS276454	2011-07-189	125	US
3110-00-042-4806	2011-03-66	25	United States
MS276454	2011-01-13	24	Italy
MS276454	2010-09-250	6	US
3110-00-042-4806	2009-11-329	4	US
3110-00-042-4806	2009-07-182	2	Philippines
3110-00-042-4806	2009-05-129	4	Colombia
MS276454	2009-02-48	62	Italy
MS276454	2008-04-114	6	us
KSP4	2007-11-330	12	us
3110-00-042-4806	2007-10-298	120	us
3110-00-042-4806	2007-07-207	6	US
MS276454	2007-03-61	42	US
3110-00-042-4806	2006-06-180	30	United Arab Emirates

Cross Reference | NSN 3110-00-042-4806

Part Number	Cage Code	Manufacturer
940.83.28.506	S4080	PILATUS AIRCRAFT LTD
9408328506	S4080	PILATUS AIRCRAFT LTD
AS27645	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS27645-4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
GB520EE-KSP4	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
KSP4	21760	SCHATZ BEARING CORPORATION
KSP4	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KSP4FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KSP4FS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
KSP4SPL	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
MS27645-4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27645-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-042-4806

Compare

Related Products | NSN 3110-00-042-4806

3110-00-042-4807, 3110-00-042-4808, 3110-00-042-4809, 3110-00-042-4810, 3110-00-042-4823

Technical Data | NSN 3110-00-042-4806

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES

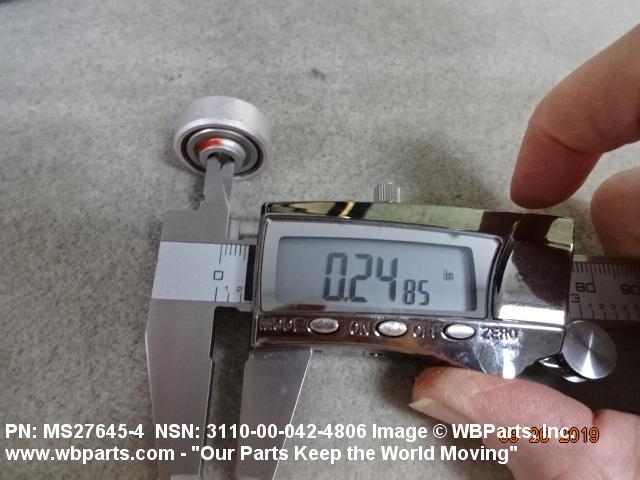

BORE DIAMETER	0.2500 INCHES NOMINAL

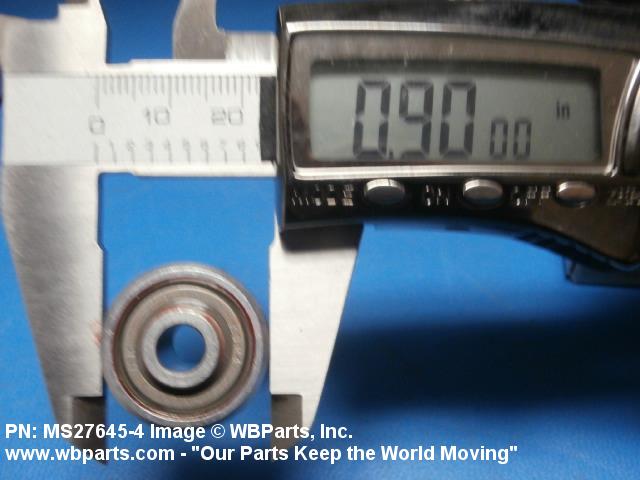

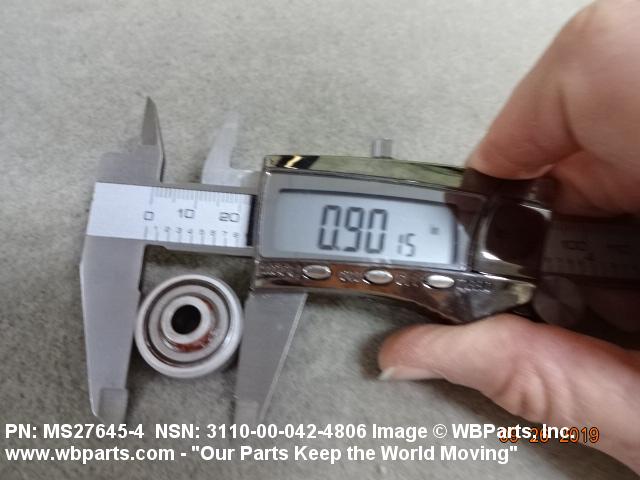

OVERALL OUTSIDE DIAMETER	0.9014 INCHES NOMINAL

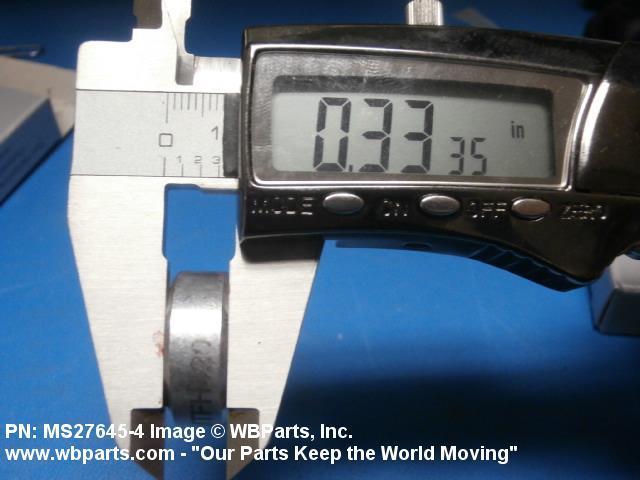

OUTER RING WIDTH	0.3350 INCHES NOMINAL

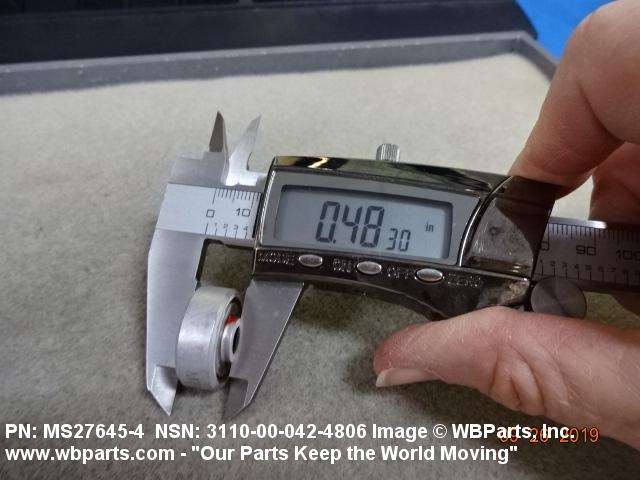

INNER RING WIDTH	0.4840 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT.FULL OF MIL-G-81322,AXIAL PLAY 0.025 IN. MAX.,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG.F,10 DEG SELF-ALIGNING IN EITHER DIRECTION TEST KX

Restrictions/Controls & Freight Information | NSN 3110-00-042-4806

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-042-4806

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
