NSN 3110-00-042-4809 MS276455A, MS27645-5A, AS276455A
Product Details | AIRFRAME BALL BEARING
3110-00-042-4809 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS276455A, MS27645-5A, AS276455A, AS27645-5A, SAE AS27645, SAE AS27645-5A, SAEAS27645, SAEAS276455A, K5P5A, KSP5A, KSP5AFS428, KSP5AFS464, 3103374, 3110-00-042-4809, 00-042-4809, 3110000424809, 000424809
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 JAN 1972 | 00-042-4809 | 00041 ( BEARING, BALL, AIRFRAME ) |

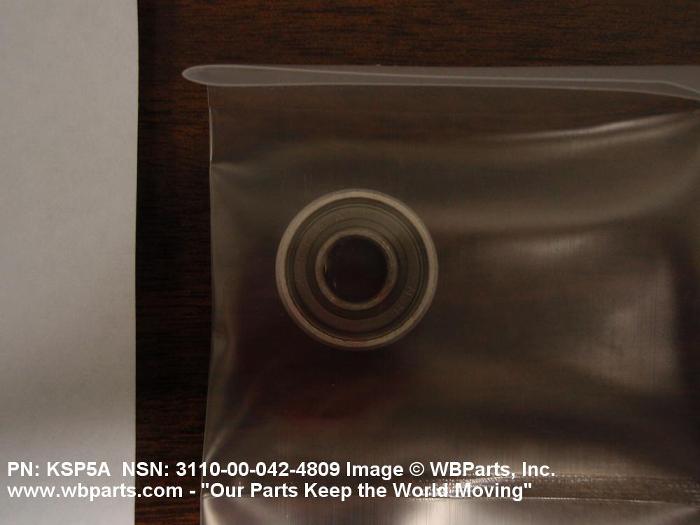

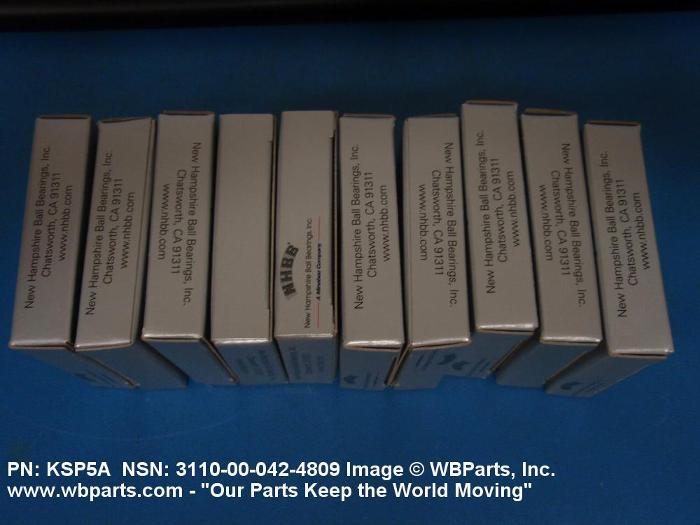

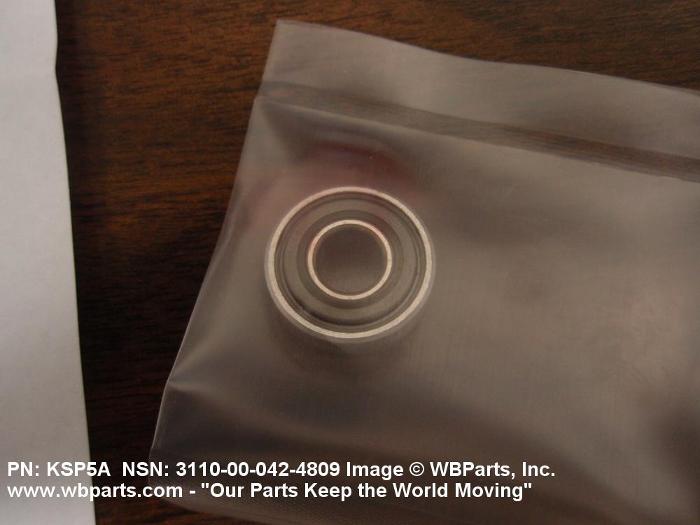

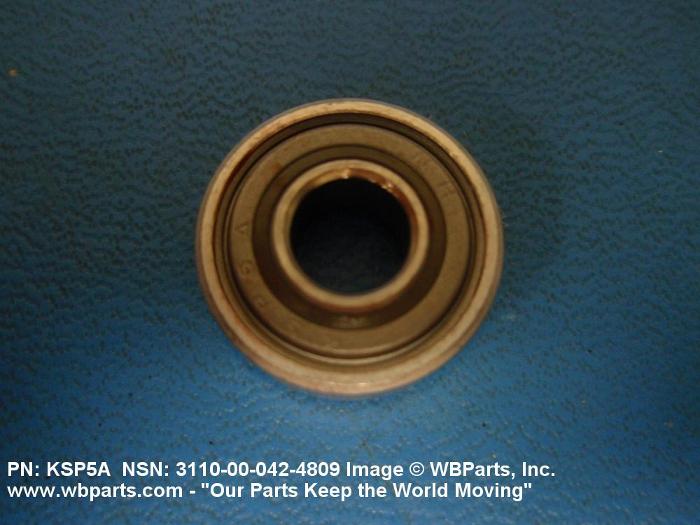

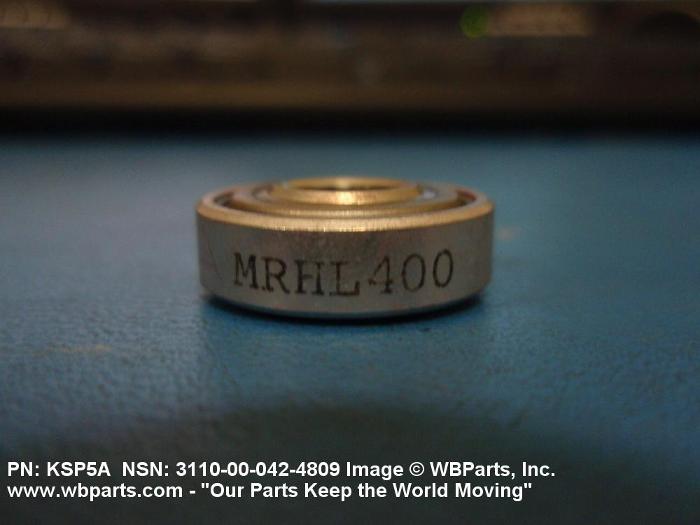

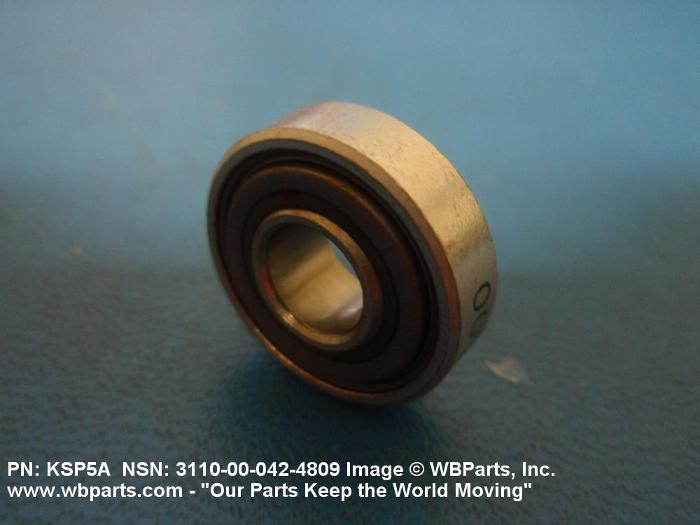

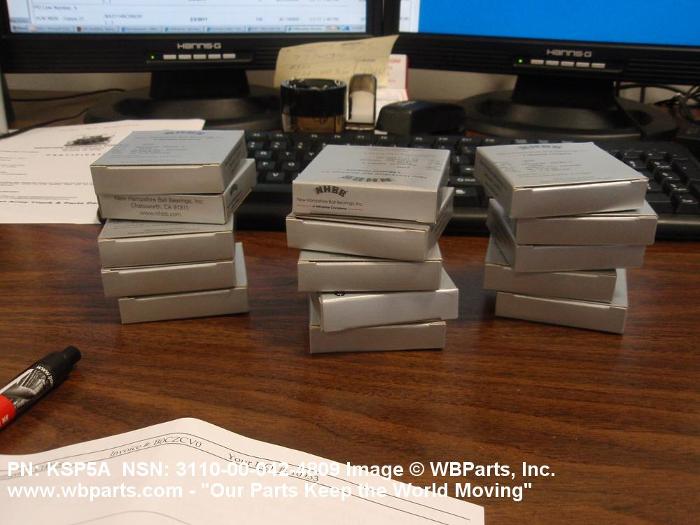

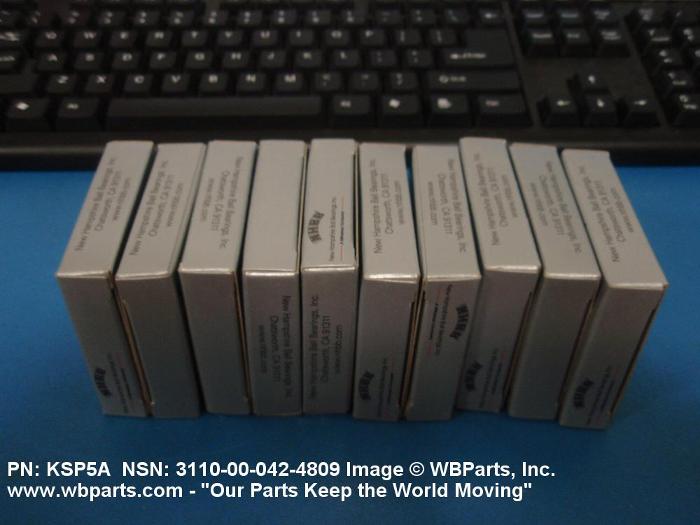

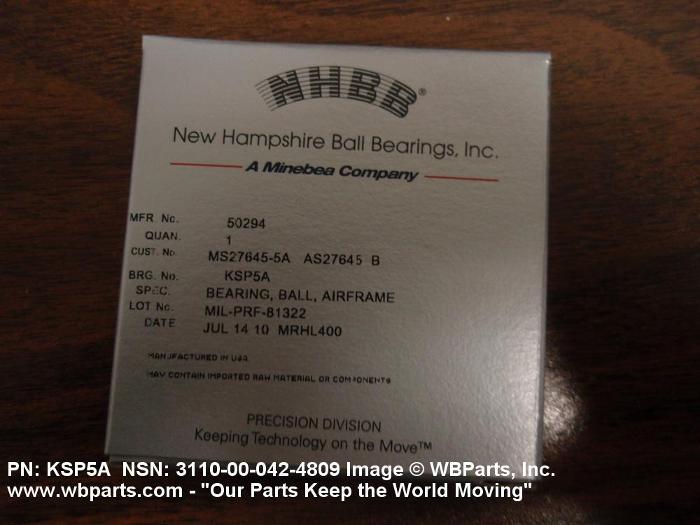

Drawings & Photos | NSN 3110-00-042-4809
Demand History | NSN 3110-00-042-4809
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-042-4809 | 2024-03-77 | 17 | DIBBS |
| 3110-00-042-4809 | 2023-11-325 | 44 | DIBBS |
| 3110-00-042-4809 | 2023-09-267 | 17 | DIBBS |
| KSP5AFS464 | 2022-12-348 | 1 | CN |
| 3110-00-042-4809 | 2016-09-251 | 67 | DIBBS |
| 3110-00-042-4809 | 2015-06-153 | 18 | Colombia |
| KSP5A | 2014-01-27 | 2 | US |
| MS276455A | 2014-01-21 | 26 | United States |
| MS27645-5A | 2012-11-310 | 5 | |
| MS276455A | 2011-11-325 | 20 | United States |
| 3110-00-042-4809 | 2011-11-306 | 2 | US |
| 3110-00-042-4809 | 2011-05-146 | 11 | US |
| KSP5AFS464 | 2011-04-109 | 10 | United States |
| 3110-00-042-4809 | 2011-02-54 | 15 | United States |
| MS276455A | 2010-12-335 | 8 | us |
| MS276455A | 2009-05-125 | 5 | Italy |
| MS276455A | 2009-02-48 | 2 | US |
| KSP5A | 2009-02-38 | 8 | US |
| MS276455A | 2007-10-275 | 2 | US |
| MS276455A | 2007-10-275 | 10 | US |
| MS276455A | 2007-10-275 | 20 | US |
Cross Reference | NSN 3110-00-042-4809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3103374 | 001JK | EMBRAER S/A |
| 3103374 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 3103374 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| AS27645-5A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| K5P5A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KSP5A | 21760 | SCHATZ BEARING CORPORATION |
| KSP5A | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| KSP5A | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| KSP5AFS428 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KSP5AFS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KSP5AFS464 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| MS27645-5A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27645-5A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SAE AS27645 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| SAE AS27645-5A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-042-4809
Related Products | NSN 3110-00-042-4809
Technical Data | NSN 3110-00-042-4809
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED |
| STYLE DESIGNATOR | 198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 0.3125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.8125 INCHES NOMINAL |
| OUTER RING WIDTH | 0.2340 INCHES NOMINAL |
| INNER RING WIDTH | 0.2970 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | 80 PCT FULL OF SPECIFIED LUBRICANT; AXIAL PLAY 0.0280 IN. MAX; HEAT TREAT RINGS AND BALLS TOROCKWELL C 60 TO 66; HEAT STABILIZED FOR OPERATION AT 250 DEG F; 8 DEG SELF-ALIGNING IN EITHER DIRECTION |
Restrictions/Controls & Freight Information | NSN 3110-00-042-4809
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-042-4809
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
