NSN 3110-00-042-4803 MS27261KSP10, MS2764510, MS27645-10

Product Details | AIRFRAME BALL BEARING

3110-00-042-4803 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS27261KSP10, MS2764510, MS27645-10, M2764510, M27645-10, AS27645, SAE AS27645, SAEAS27645, KSP10, KSP10FS464, 10107324 , 3110-00-042-4803, 00-042-4803, 3110000424803, 000424803

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	05 JAN 1972	00-042-4803	00041 ( BEARING, BALL, AIRFRAME )

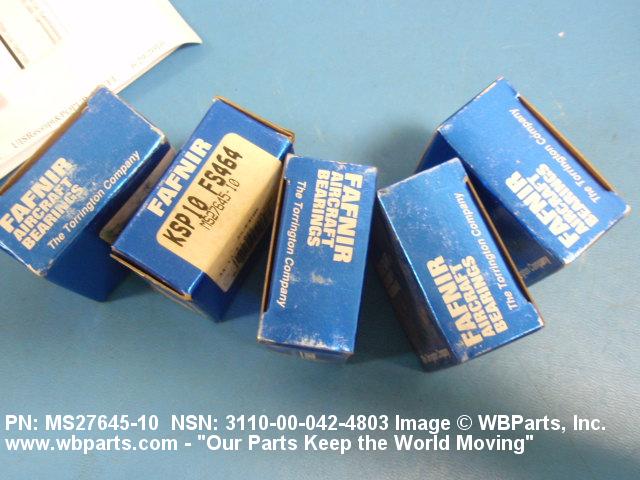

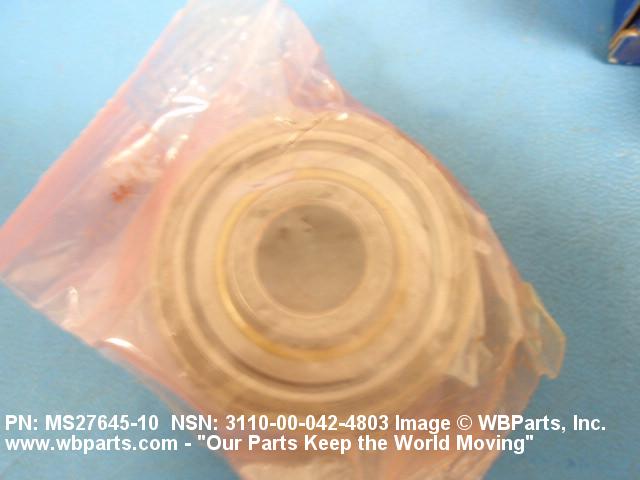

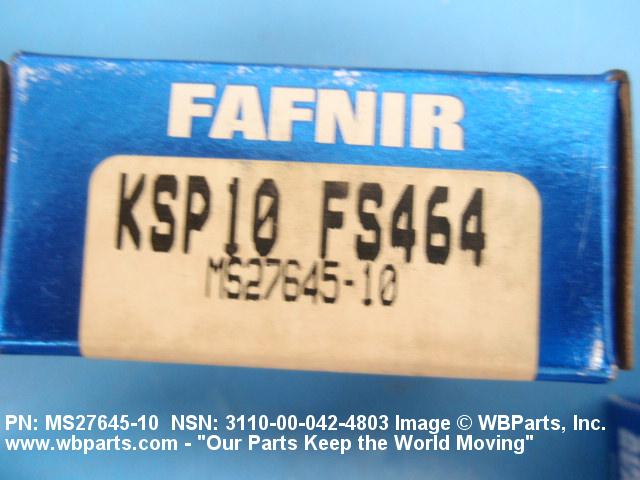

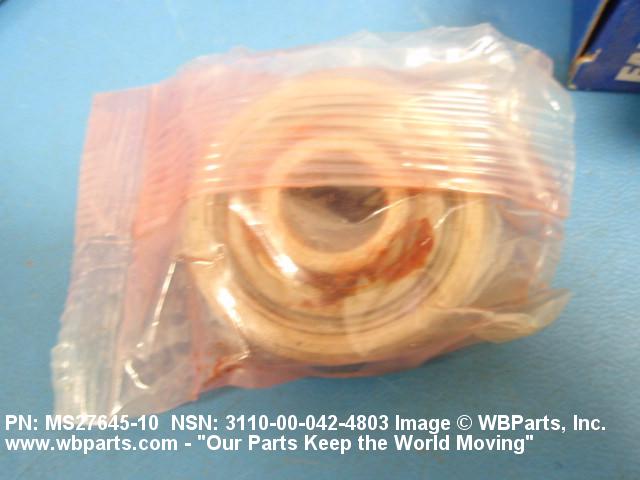

Drawings & Photos | NSN 3110-00-042-4803

Part Number	Request Date	QTY	Origin
3110-00-042-4803	2024-09-270	6	DIBBS
3110-00-042-4803	2024-09-262	6	DIBBS
3110-00-042-4803	2023-11-331	10	DIBBS
3110-00-042-4803	2023-11-323	10	DIBBS
3110-00-042-4803	2023-06-178	10	DIBBS
3110-00-042-4803	2023-06-170	10	DIBBS
MS2764510	2023-04-102	4	South Africa
MS2764510	2023-03-73	10	South Africa
3110-00-042-4803	2022-07-186	10	DIBBS
3110-00-042-4803	2022-06-178	10	DIBBS
3110-00-042-4803	2022-02-56	11	DIBBS
3110-00-042-4803	2022-02-48	11	DIBBS
3110-00-042-4803	2021-10-300	5	Canada
3110-00-042-4803	2021-06-179	8	DIBBS
3110-00-042-4803	2021-06-171	8	DIBBS
3110-00-042-4803	2021-04-109	1000	us
3110-00-042-4803	2021-03-81	8	DIBBS
3110-00-042-4803	2019-02-36	45	DIBBS
3110-00-042-4803	2015-08-216	51	DIBBS
KSP10FS464	2010-06-166	5	United States
KSP10FS464	2010-06-158	5	Singapore
KSP10FS464	2010-04-119	6	Australia

Cross Reference | NSN 3110-00-042-4803

Part Number	Cage Code	Manufacturer
3110000424803	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
AS27645	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KSP10	21760	SCHATZ BEARING CORPORATION
KSP10	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KSP10FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KSP10FS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
M27645-10	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27261KSP10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27645-10	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27645-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SAE AS27645	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-042-4803

Compare

Related Products | NSN 3110-00-042-4803

3110-00-042-4804, 3110-00-042-4805, 3110-00-042-4806, 3110-00-042-4807, 3110-00-042-4808

Technical Data | NSN 3110-00-042-4803

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	0.6250 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.9375 INCHES NOMINAL
OUTER RING WIDTH	0.6250 INCHES NOMINAL
INNER RING WIDTH	0.8130 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,AXIAL PLAY 0.034 IN. MAX.,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG.F,10 DEG SELF-ALIGNING IN EITHER DIRECTION

Restrictions/Controls & Freight Information | NSN 3110-00-042-4803

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-042-4803

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
