NSN 3110-00-042-0445 MS20202KP23B, MS2764223, MS27642-23
Product Details | AIRFRAME BALL BEARING

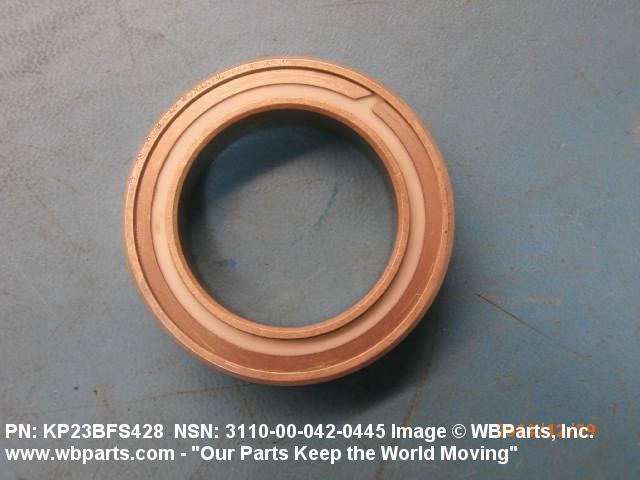

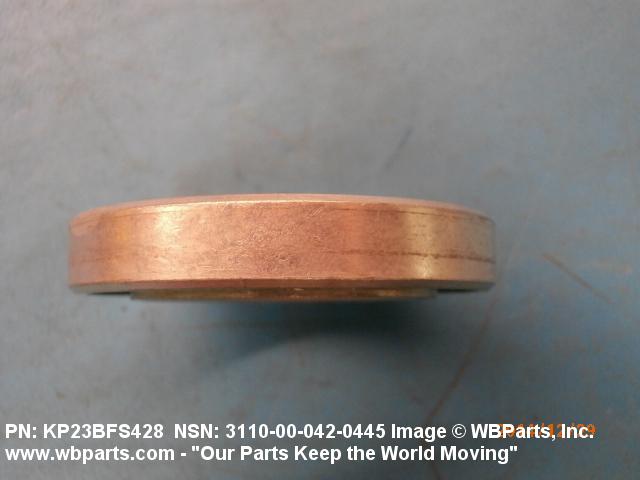

3110-00-042-0445 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS20202KP23B, MS2764223, MS27642-23, AN202KP23B, AS27642, KP23B, KP23BFS10160, KP23BFS428, KP23BFS464, 12738521, 3110-00-042-0445, 00-042-0445, 3110000420445, 000420445
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 JAN 1972 | 00-042-0445 | 00041 ( BEARING, BALL, AIRFRAME ) |

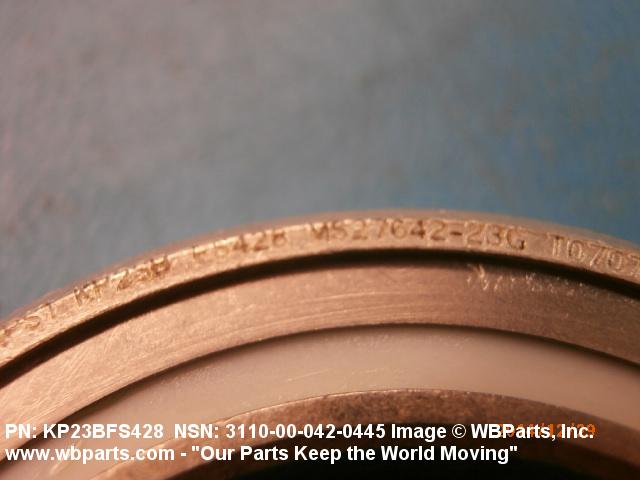

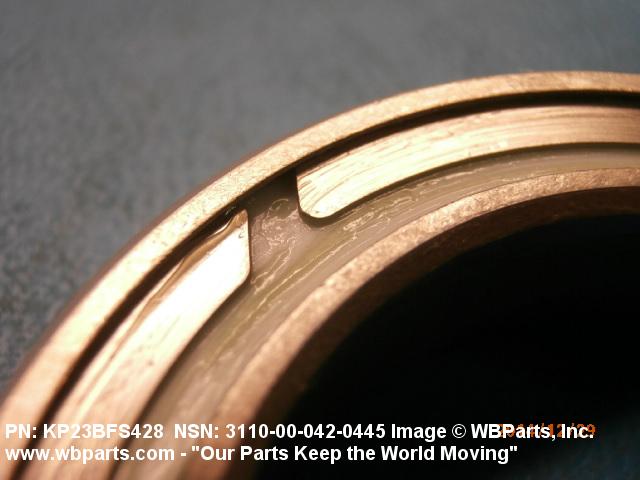

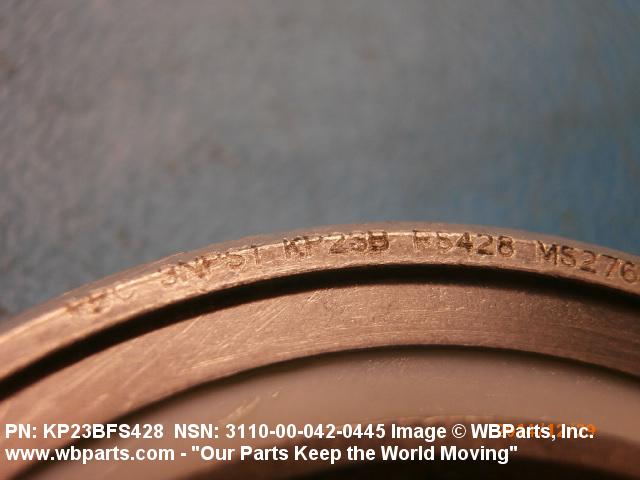

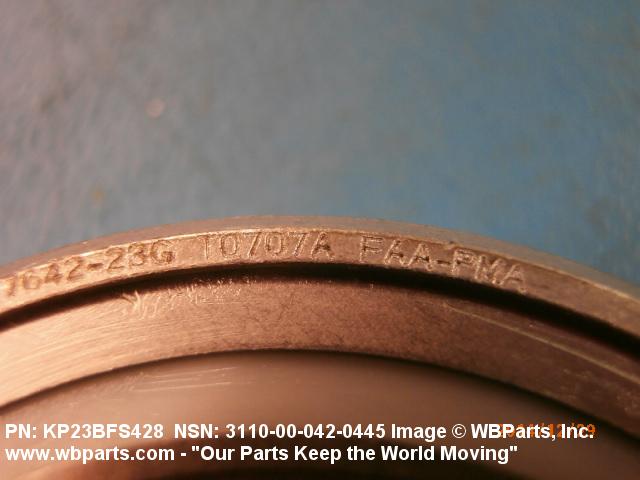

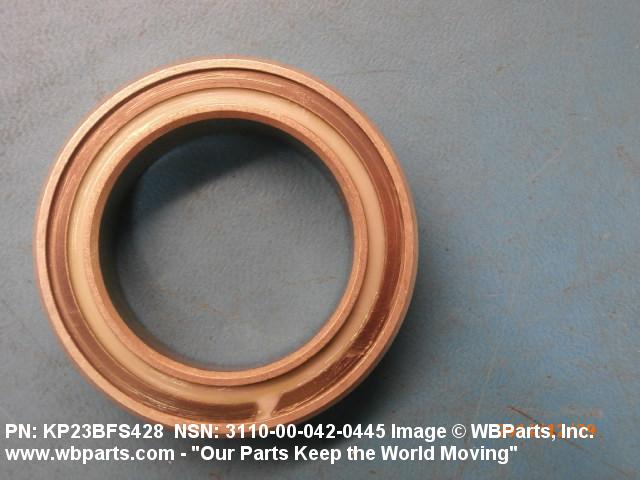

Drawings & Photos | NSN 3110-00-042-0445
Demand History | NSN 3110-00-042-0445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-042-0445 | 2018-01-25 | 1 | DIBBS-RFPs |
| 3110-00-042-0445 | 2017-04-118 | 24 | US |
| KP23BFS428 | 2014-12-346 | 6 | United States |
| MS2764223 | 2014-12-346 | 6 | United States |
| 3110-00-042-0445 | 2012-10-295 | 117 | DIBBS |
| 3110-00-042-0445 | 2012-08-236 | 63 | DIBBS |
| AN202KP23B | 2012-07-206 | 4 | United States |
| 3110-00-042-0445 | 2012-02-54 | 220 | DIBBS |
| 3110-00-042-0445 | 2011-12-353 | 200 | DIBBS |
| AN202KP23B | 2011-01-20 | 2 | RO |
| KP23BFS464 | 2011-01-20 | 2 | RO |
| 3110-00-042-0445 | 2009-05-145 | 19 | DIBBS |
| 3110-00-042-0445 | 2008-07-192 | 40 | United States |
| MS2764223 | 2006-10-299 | 4 | US |
Cross Reference | NSN 3110-00-042-0445
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1273852&1 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| AN202KP23B | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AS27642 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KP23B | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| KP23BFS10160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP23BFS428 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP23BFS464 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| KP23BFS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| MS20202KP23B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27642-23 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27642-23 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-042-0445
Related Products | NSN 3110-00-042-0445
Technical Data | NSN 3110-00-042-0445
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OR STEEL COMP E51100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM BALL CADMIUM INNER RING CADMIUM OUTER RING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE BALL QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE INNER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |

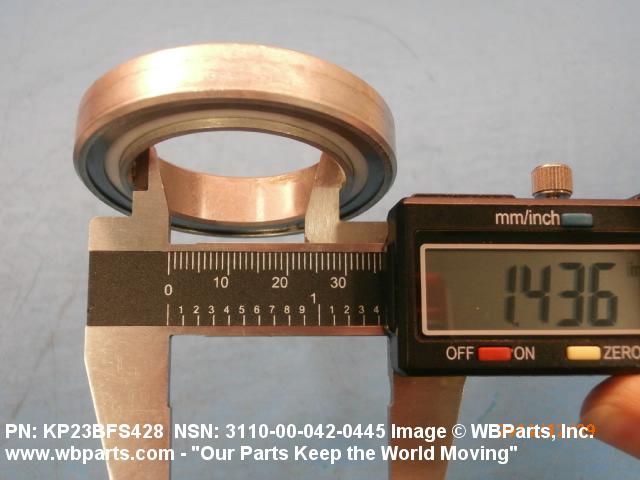

| BORE DIAMETER | 1.4380 INCHES NOMINAL |

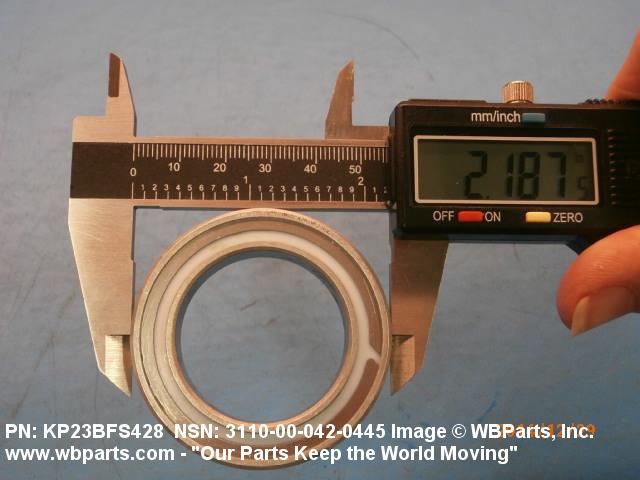

| OVERALL OUTSIDE DIAMETER | 2.1875 INCHES NOMINAL |

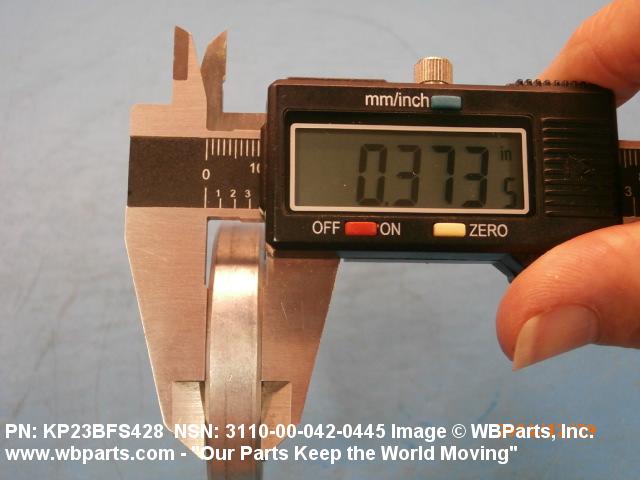

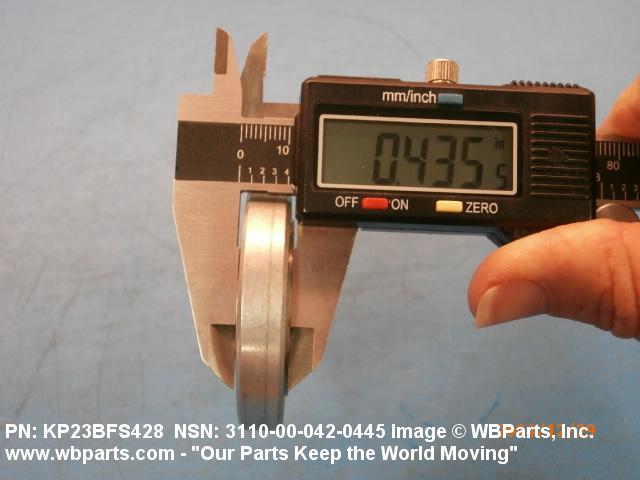

| OUTER RING WIDTH | 0.3750 INCHES NOMINAL |
| INNER RING WIDTH | 0.4370 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | 80 PCT. FULL OF MIL-G-81322,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG. F,RADIAL AND LATERAL ECCENTRICITY,INNER RING 0.0010 IN. OUTER RING 0.0016 IN.,0.0003-0.0010 IN. RADIAL CLEARANCE |
