Product Details | CONTROL TRANSFORMER SYNCHRO

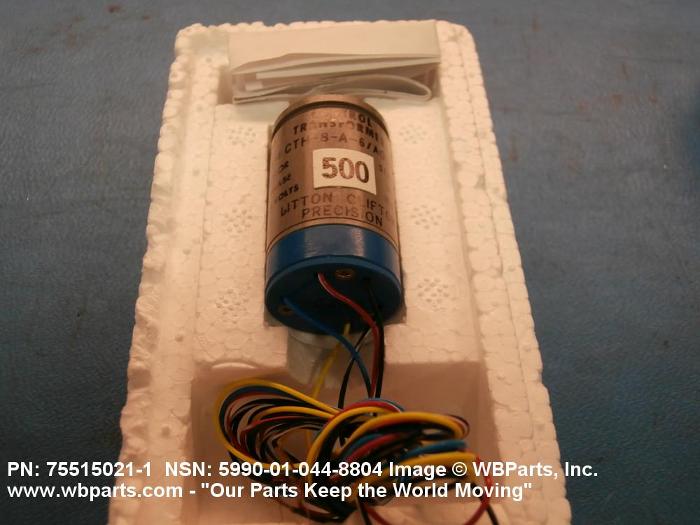

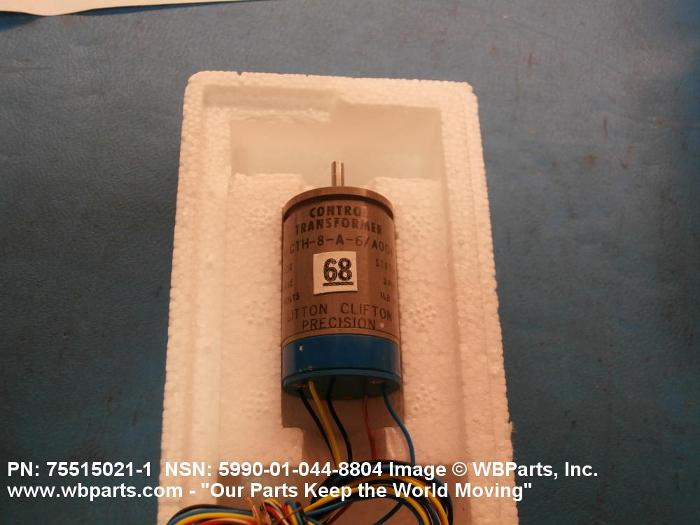

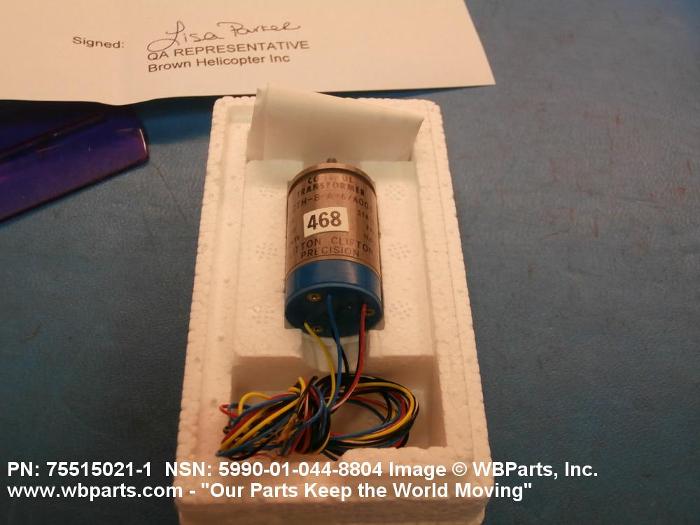

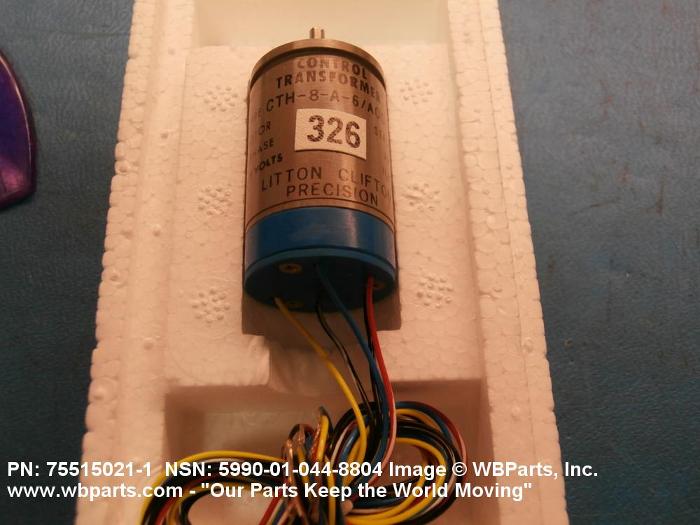

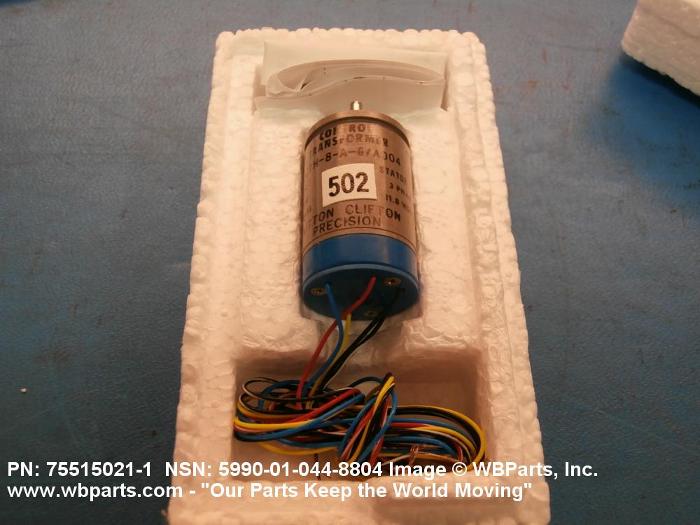

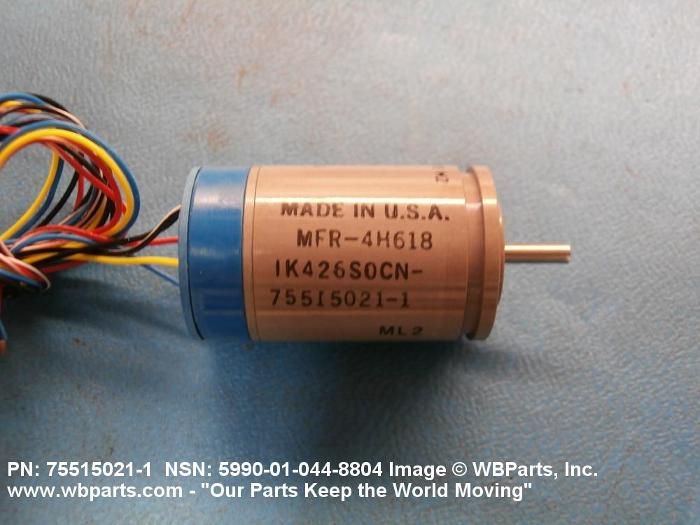

5990-01-044-8804 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: 75515021-1, 5990-01-044-8804, 01-044-8804, 5990010448804, 755150211, 010448804
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 JUL 1977 | 01-044-8804 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |

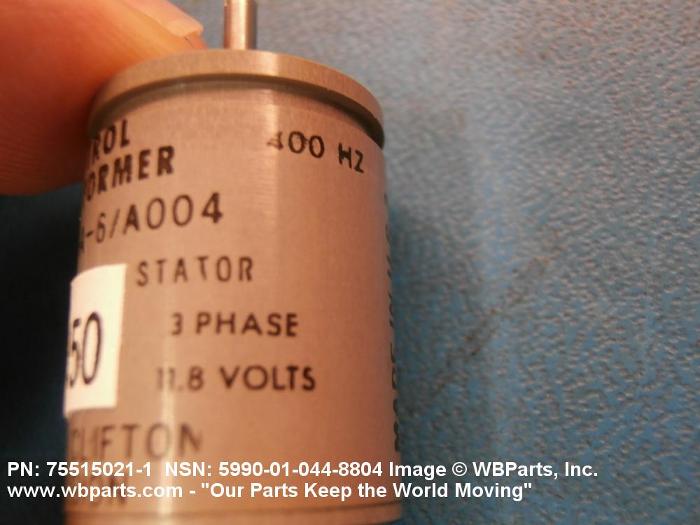

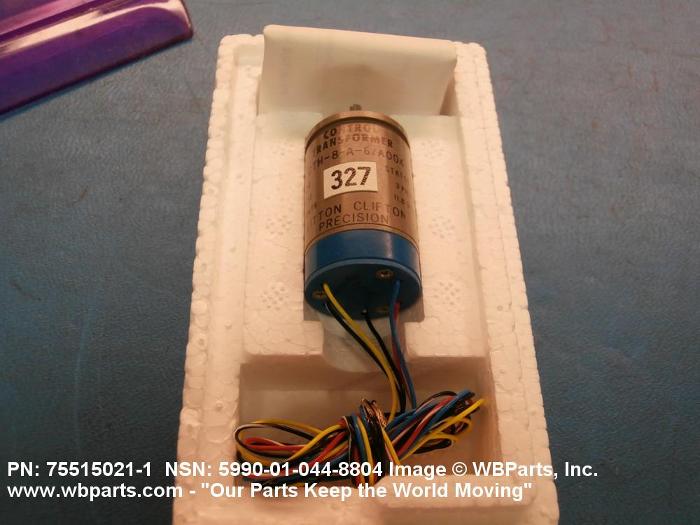

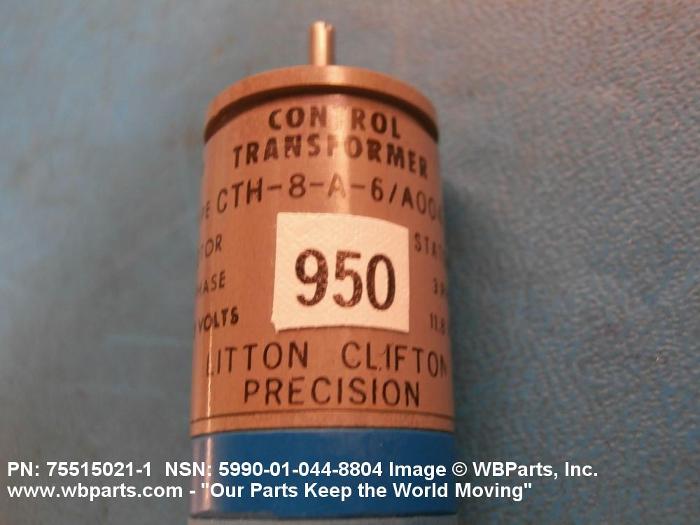

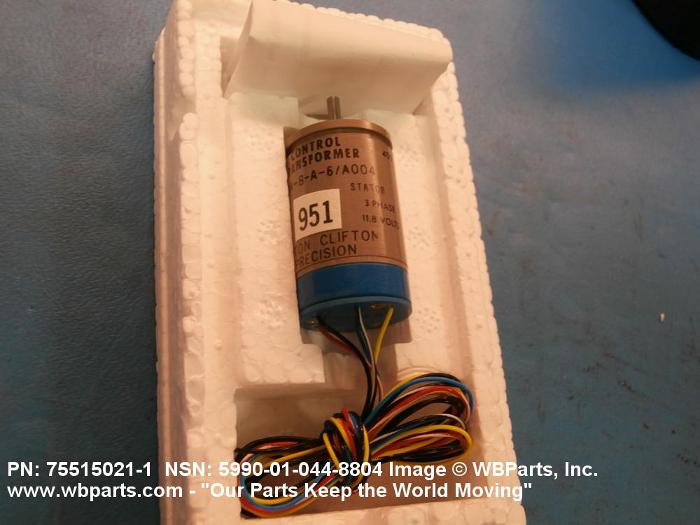

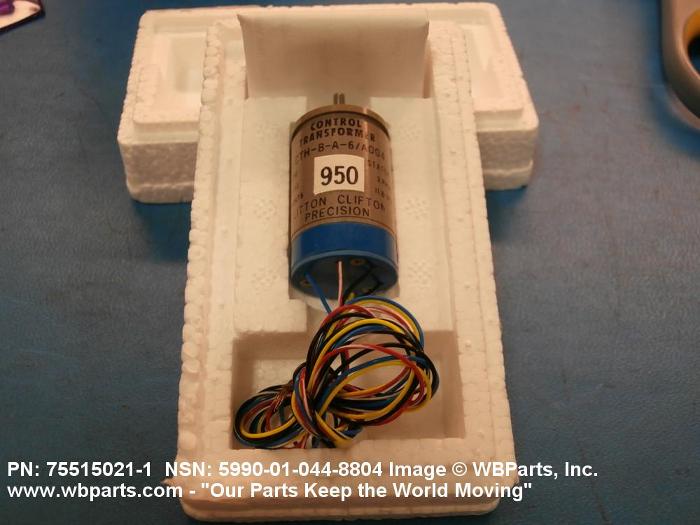

Drawings & Photos | NSN 5990-01-044-8804
Demand History | NSN 5990-01-044-8804
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 75515021-1 | 2022-01-06 | 48 | DIBBS |
| 75515021-1 | 2021-08-214 | 48 | DIBBS |
| 75515021-1 | 2021-04-103 | 48 | DIBBS |
| 75515021-1 | 2021-02-46 | 78 | DIBBS |
| 75515021-1 | 2020-11-316 | 53 | DIBBS |
| 75515021-1 | 2020-06-155 | 251 | DIBBS |
| 75515021-1 | 2019-03-84 | 31 | DIBBS |
| 75515021-1 | 2019-01-21 | 31 | DIBBS |
| 5990-01-044-8804 | 2015-05-138 | 92 | DIBBS |
| 5990-01-044-8804 | 2015-05-126 | 92 | DIBBS |
| 5990-01-044-8804 | 2015-04-103 | 5 | DIBBS |
| 5990-01-044-8804 | 2015-04-91 | 5 | DIBBS |
| 5990-01-044-8804 | 2015-03-68 | 125 | DIBBS |
| 5990-01-044-8804 | 2015-02-57 | 125 | DIBBS |
| 755150211 | 2014-12-363 | 11 | United States |
| 5990-01-044-8804 | 2014-12-338 | 55 | DIBBS |
| 5990-01-044-8804 | 2014-09-265 | 18 | DIBBS |
| 5990-01-044-8804 | 2014-07-210 | 18 | DIBBS |
| 755150211 | 2014-06-176 | 8 | US |
| 5990-01-044-8804 | 2014-06-170 | 8 | US |
| 5990-01-044-8804 | 2014-06-170 | 10 | US |
| 5990-01-044-8804 | 2014-06-170 | 15 | US |
| 5990-01-044-8804 | 2014-06-170 | 20 | US |
| 5990-01-044-8804 | 2013-02-57 | 26 | DIBBS |
| 5990-01-044-8804 | 2013-02-39 | 26 | DIBBS |
| 5990-01-044-8804 | 2013-02-36 | 10 | United States |
| 5990-01-044-8804 | 2012-12-353 | 10 | DIBBS |
| 5990-01-044-8804 | 2012-07-206 | 15 | DIBBS |
| 5990-01-044-8804 | 2012-03-79 | 7 | DIBBS |
| 5990-01-044-8804 | 2012-02-46 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-01-044-8804
Related Products | NSN 5990-01-044-8804
Technical Data | NSN 5990-01-044-8804
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 11.8 NOMINAL |
| STATOR INPUT CURRENT RATING | 22.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 58.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 800.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 2500.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 120.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 450.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 940.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 280.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 550.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 100.00 NOMINAL |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 30.00 |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL LENGTH | 1.6320 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.7500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6910 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0430 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2410 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0900 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.3320 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | ALUMINUM ALLOY |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
