NSN 5990-00-655-2436 CMD1004908, CTH8A4/L906, CTH-8-A-4/L906
Product Details | CONTROL TRANSFORMER SYNCHRO

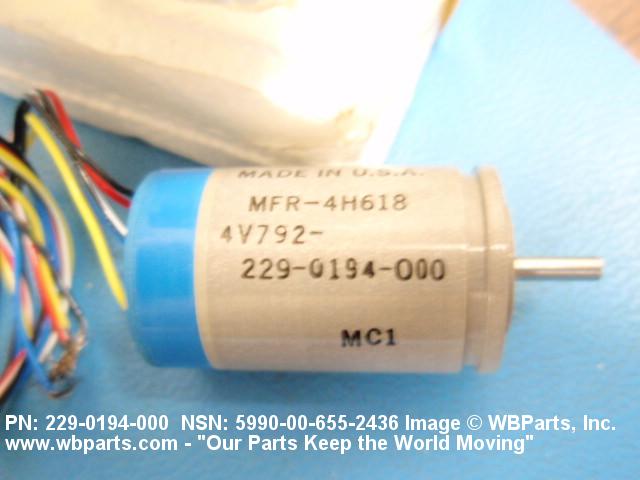

5990-00-655-2436 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: CMD1004908, CTH8A4/L906, CTH-8-A-4/L906, CTH8A4L906, R10012C, R1001-2C, V217012, 8CT300B1, 08CT0125B, 08CT192, 08MPKL, 229-0194-00, 2290194000, 229-0194-000, 42770105, 4277-01-05, 5990-00-655-2436, 00-655-2436, 5990006552436, 229019400, 006552436
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-655-2436 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |
Drawings & Photos | NSN 5990-00-655-2436
Demand History | NSN 5990-00-655-2436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 08CT0125B | 2023-07-201 | 25 | DIBBS |
| 08CT192 | 2023-07-201 | 25 | DIBBS |
| 229-0194-000 | 2023-07-201 | 25 | DIBBS |
| 8CT300B1 | 2023-07-201 | 25 | DIBBS |
| CTH-8-A-4/L906 | 2023-07-201 | 25 | DIBBS |
| V217012 | 2023-07-201 | 25 | DIBBS |
| 08CT0125B | 2023-03-82 | 25 | DIBBS |
| 08CT192 | 2023-03-82 | 25 | DIBBS |
| 229-0194-000 | 2023-03-82 | 25 | DIBBS |
| 8CT300B1 | 2023-03-82 | 25 | DIBBS |
| CTH-8-A-4/L906 | 2023-03-82 | 25 | DIBBS |
| V217012 | 2023-03-82 | 25 | DIBBS |
| 08CT0125B | 2022-08-223 | 25 | DIBBS |
| 08CT192 | 2022-08-223 | 25 | DIBBS |
| 229-0194-000 | 2022-08-223 | 25 | DIBBS |
| 8CT300B1 | 2022-08-223 | 25 | DIBBS |
| CTH-8-A-4/L906 | 2022-08-223 | 25 | DIBBS |
| V217012 | 2022-08-223 | 25 | DIBBS |
| 08CT0125B | 2022-06-153 | 11 | DIBBS |
| 08CT192 | 2022-06-153 | 11 | DIBBS |
| 229-0194-000 | 2022-06-153 | 11 | DIBBS |
| 8CT300B1 | 2022-06-153 | 11 | DIBBS |
| CTH-8-A-4/L906 | 2022-06-153 | 11 | DIBBS |
| V217012 | 2022-06-153 | 11 | DIBBS |
| 5990-00-655-2436 | 2015-12-356 | 8 | DIBBS |
| 5990-00-655-2436 | 2015-10-301 | 10 | DIBBS |
| 5990-00-655-2436 | 2015-09-245 | 8 | DIBBS |
| 5990-00-655-2436 | 2015-07-186 | 3 | DIBBS |
| 5990-00-655-2436 | 2015-06-159 | 3 | DIBBS |
| 5990-00-655-2436 | 2015-05-147 | 3 | DIBBS |
| 5990-00-655-2436 | 2012-05-123 | 2 | IN |
| 5990-00-655-2436 | 2010-11-334 | 10 | US |
| 229-0194-000 | 2010-11-333 | 10 | |
| 2290194000 | 2010-03-67 | 5 | Malaysia |
| 2290194000 | 2010-01-28 | 1 | Malaysia |
| 5990-00-655-2436 | 2009-07-208 | 22 | DIBBS |
Cross Reference | NSN 5990-00-655-2436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08CT0125B | 51761 | CDA INTERCORP LLC |
| 08CT192 | 14404 | AMETEK TECHNICAL & INDUSTRIAL PRODUCTS, INC. |
| 08MPKL | 0BKV4 | S P S INC |
| 229-0194-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 229-0194-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 4277-01-05 | 58880 | MEGGITT (NEW HAMPSHIRE), INC |
| 8CT300B1 | 06989 | API HAROWE INC DBA API MOTION DIV API |
| CMD1004908 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| CTH-8-A-4/L906 | 4H618 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| CTH8A4/L906 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| R1001-2C | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| V217012 | 82686 | TRANSICOIL LLC DBA ADS/TRANSICOIL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-655-2436
Related Products | NSN 5990-00-655-2436
Technical Data | NSN 5990-00-655-2436
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 11.8 NOMINAL |
| STATOR INPUT CURRENT RATING | 37.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 100.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 470.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 1770.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 81.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 330.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 590.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 190.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 381.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 48.00 MINIMUM AND 73.00 MAXIMUM |
| PHASE SHIFT ANGLE IN DEG | 9.200 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 3.0 DEG CELSIUS |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -15.0 TO 15.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 9.0 CENTIMETER-GRAMS NOMINAL |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 3.0 CENTIMETER-GRAMS NOMINAL |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.6160 INCHES NOMINAL |
| FLANGE DIAMETER | 0.7500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6880 INCHES MINIMUM AND 0.6910 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0430 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2410 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3750 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0300 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 13499 |
| MFR SOURCE CONTROLLING REFERENCE | 229-0194-00 |
