NSN 5990-00-847-3806 A10630, AS20708/94, AS2070894
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-847-3806 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: A10630, AS20708/94, AS2070894, AY240AA 10 A1, AY240AA10A1, VCT23/36-6A, VCT23366A, 23CT6, 7406453P4, 7676357, 5990-00-847-3806, 00-847-3806, 5990008473806, 008473806
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-847-3806 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |

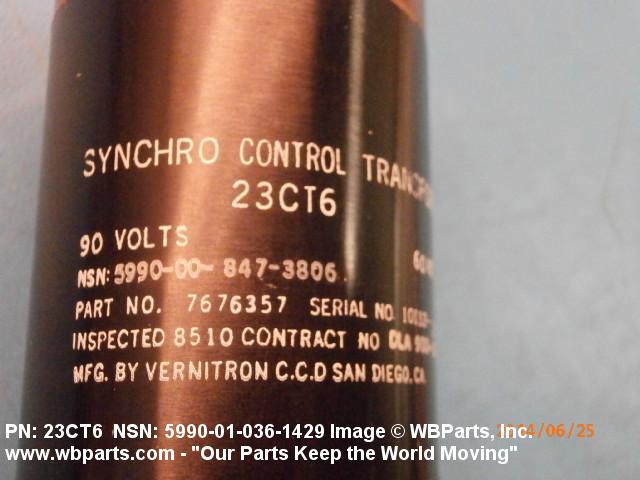

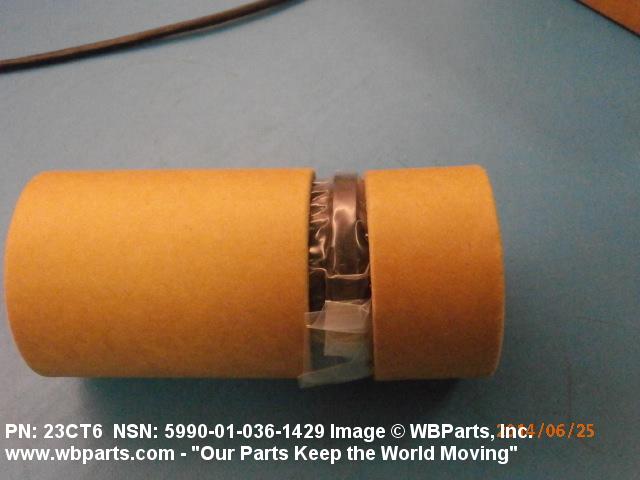

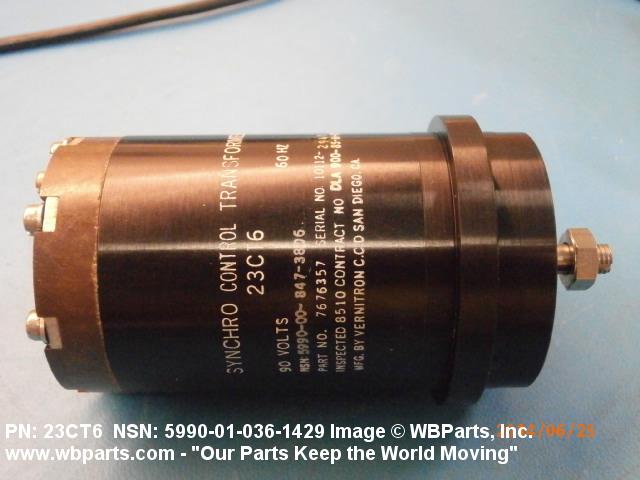

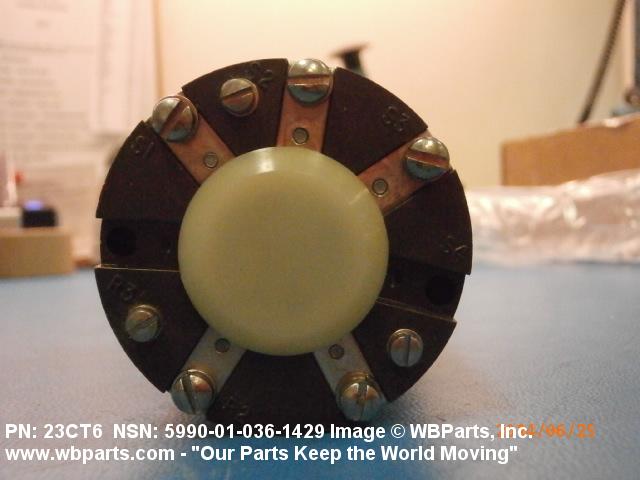

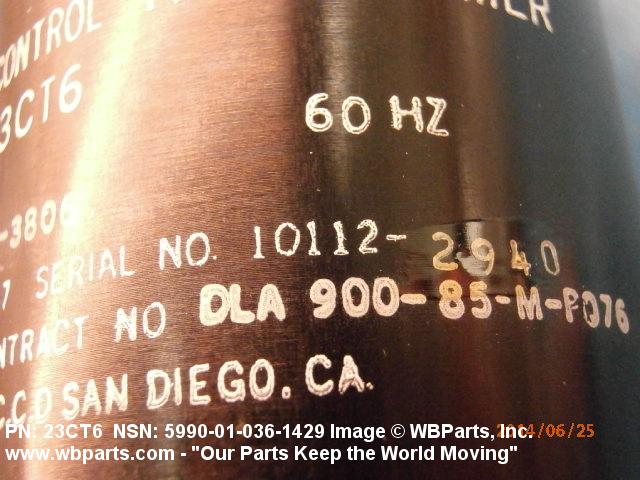

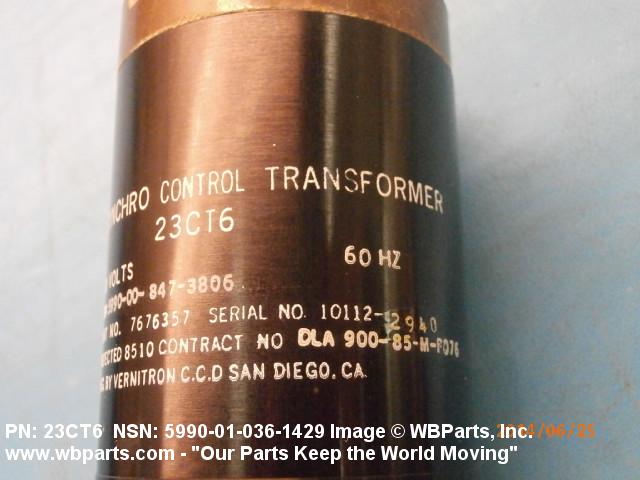

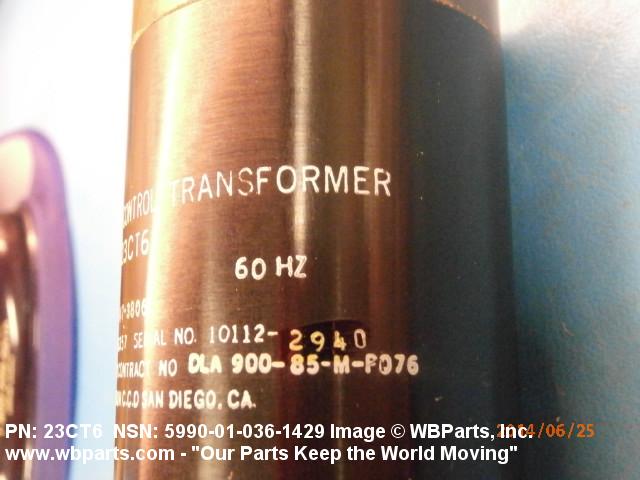

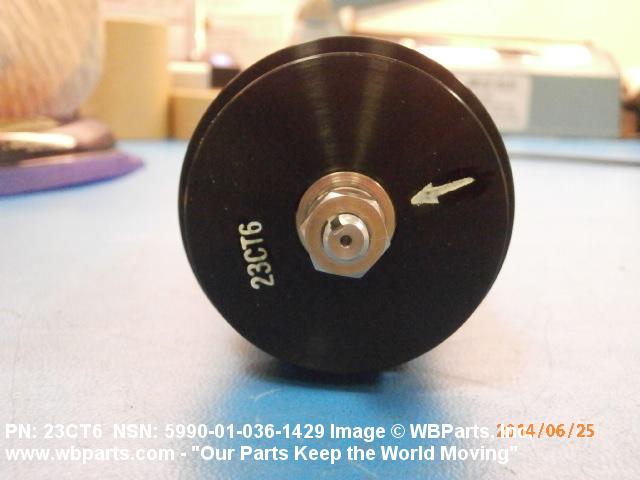

Drawings & Photos | NSN 5990-00-847-3806
Demand History | NSN 5990-00-847-3806
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-847-3806 | 2023-06-01 | 24 | Taiwan |
| 5990-00-847-3806 | 2023-05-10 | 1 | Taiwan |
| 5990-00-847-3806 | 2023-02-01 | 2 | HR |
| 5990-00-847-3806 | 2018-06-06 | 2 | CA |
| 23CT6 | 2017-05-04 | 4 | AE |
| 5990-00-847-3806 | 2016-06-03 | 1 | PK |
| 5990-00-847-3806 | 2016-05-06 | 4 | PK |
| 23CT6 | 2016-05-04 | 4 | US |
| 23CT6 | 2016-04-25 | 4 | AE |
| 5990-00-847-3806 | 2015-09-03 | 1 | CA |
| 23CT6 | 2014-10-10 | 1 | CA |
| 5990-00-847-3806 | 2012-01-24 | 1 | PK |
| 5990-00-847-3806 | 2010-10-11 | 2 | United Kingdom |
Cross Reference | NSN 5990-00-847-3806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23CT6 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| 23CT6 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 23CT6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 7406453P4 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7676357 | 19200 | US ARMY ARDEC RDECOM |
| A10630 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| AS20708/94 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AY240AA 10 A1 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| VCT23/36-6A | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-847-3806
Related Products | NSN 5990-00-847-3806
Technical Data | NSN 5990-00-847-3806
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 90.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 20.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 500.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 1015.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 2746.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 492.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 4027.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 239.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 81.00 NOMINAL |
| TRANSFORMATION RATIO | 0.735 ROTOR TO STATOR NOMINAL |
| MAXIMUM TEMP RISE | 45.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 60.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 75.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -6.0 TO 6.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 0.50 INCH-OUNCES MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 0.20 INCH-OUNCES MAXIMUM |
| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM |
| PILOT DIAMETER | 0.5900 INCHES MINIMUM AND 0.6000 INCHES MAXIMUM |
| SECOND SHOULDER DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
| SECOND SHOULDER LENGTH | 0.1680 INCHES MINIMUM AND 0.1700 INCHES MAXIMUM |
| OVERALL LENGTH | 4.2940 INCHES NOMINAL |
| FLANGE DIAMETER | 2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.2480 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| BODY DIAMETER | 1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM |
| PILOT LENGTH | 0.0360 INCHES MINIMUM AND 0.0460 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.2500 INCHES NOMINAL |
| AFT OF FIRST FLANGE DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.4450 INCHES MAXIMUM |
| ALIGNMENT HOLE DEPTH | 0.1250 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 1.6420 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 3 |
| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 0.2402 INCHES MINIMUM AND 0.2405 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.7190 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.2660 INCHES NOMINAL SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 22 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 96 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
Restrictions/Controls & Freight Information | NSN 5990-00-847-3806
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-847-3806
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
