NSN 5990-00-948-9229 MILS207081, MILS20708-1, MILS20708102
Product Details | CONTROL TRANSFORMER SYNCHRO

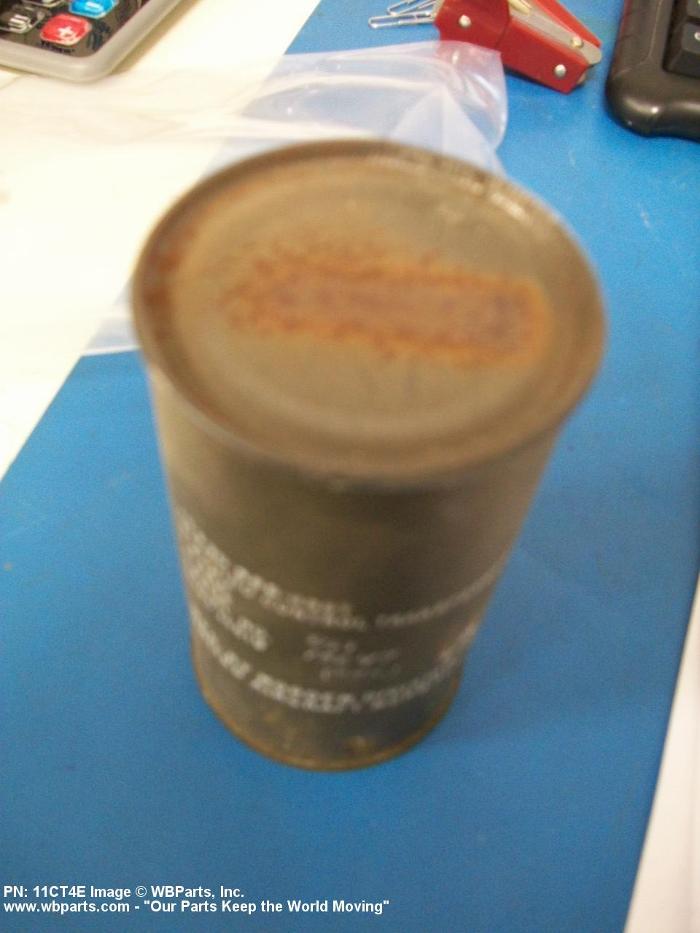

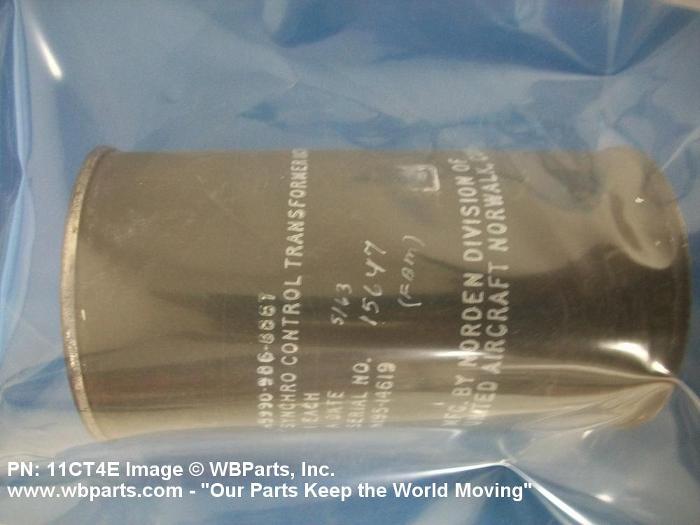

5990-00-948-9229 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: MILS207081, MILS20708-1, MILS20708102, MILS20708-102, Q 320 709 002, Q320709002, 030313BL26, 11CT4E, 2193102, 5990-00-948-9229, 00-948-9229, 5990009489229, 009489229, 069742130
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 APR 1966 | 00-948-9229 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |
Drawings & Photos | NSN 5990-00-948-9229
Demand History | NSN 5990-00-948-9229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-948-9229 | 2023-05-130 | 1 | Taiwan |
| Q320709002 | 2009-04-93 | 4 | PK |
| 11CT4E | 2007-09-258 | 5 | Italy |
Cross Reference | NSN 5990-00-948-9229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 030313BL26 | H0973 | B.V. NEDERLANDSE INSTRUMENTENCOMPAGNIE 'NEDINSCO' |
| 069742130 | D1876 | L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK |
| 11CT4E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 2193102 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MILS20708-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS20708-102 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| Q 320 709 002 | C2463 | RHEINMETALL SOLDIER ELECTRONICS GMB |
| Q320709002 | S3092 | RHEINMETALL AIR DEFENCE AG |
