NSN 5990-00-914-0838 M20708/46-001, M20708/46-01C, M2070846001
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-914-0838 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: M20708/46-001, M20708/46-01C, M2070846001, M20708-46-001, M207084601C, MIL-S-20708/46, MILS2070846, MILS20708C46A23CT4C, VCT234N3, VCT23-4N3, 23CT4C, 5990-00-914-0838, 00-914-0838, 5990009140838, 009140838
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-914-0838 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |

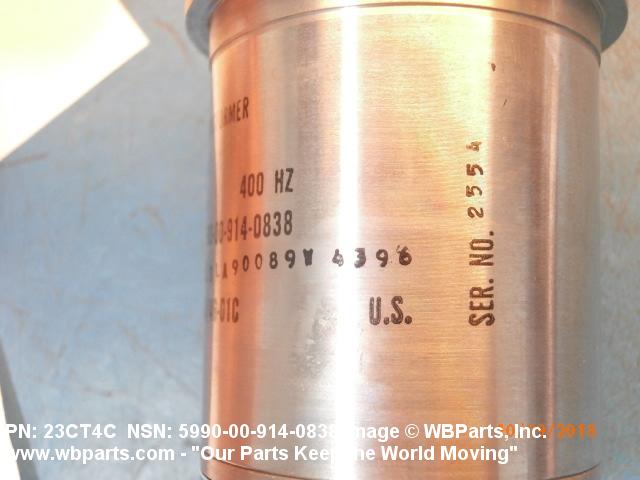

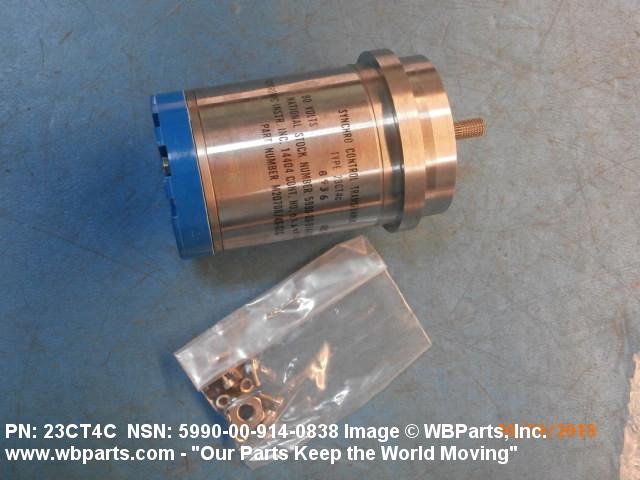

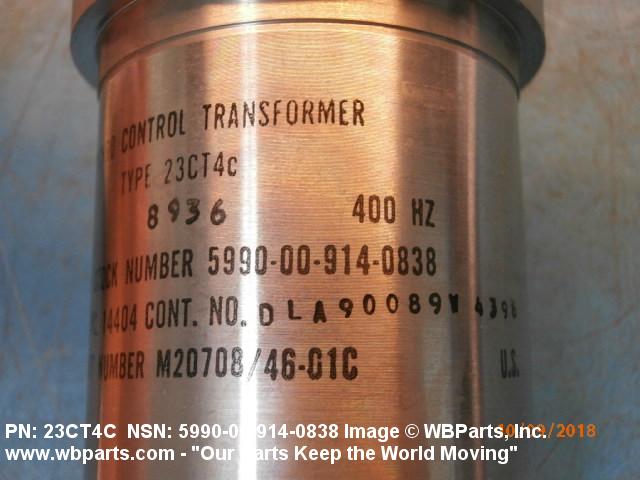

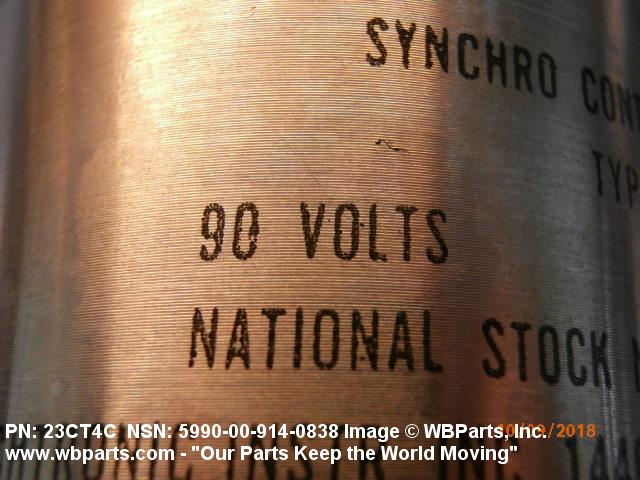

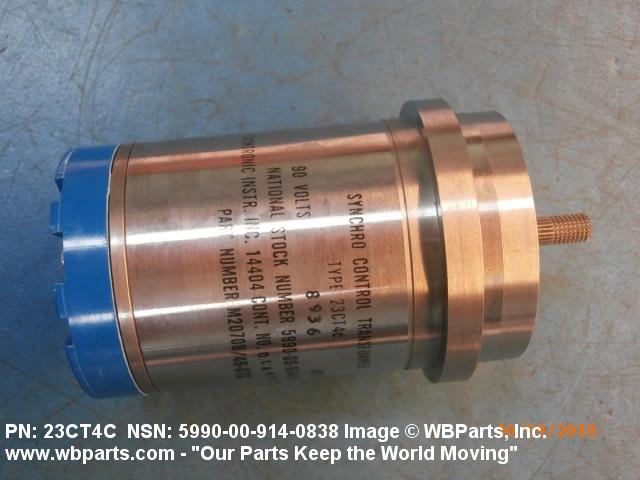

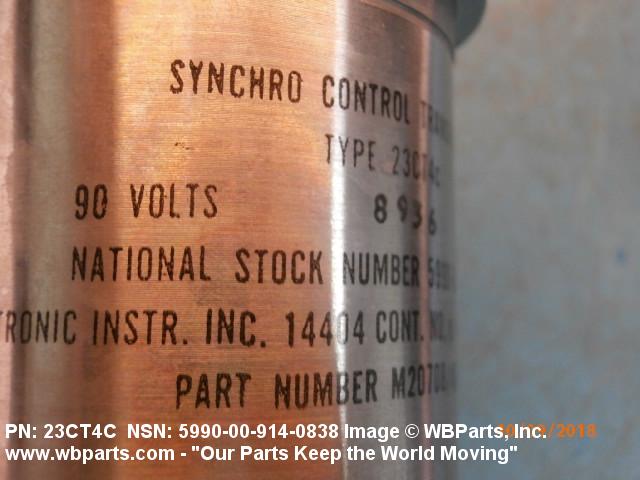

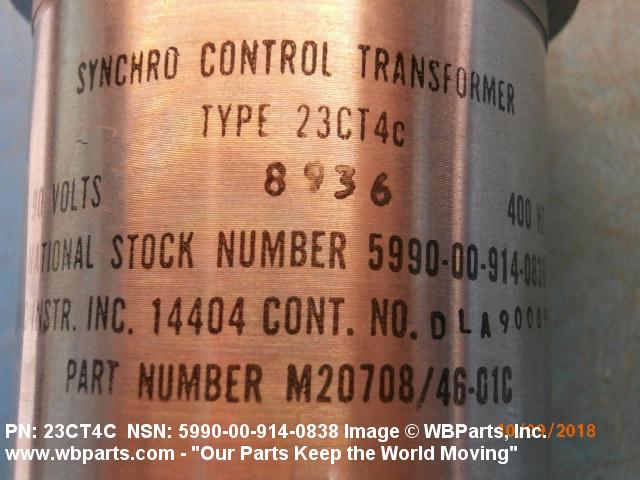

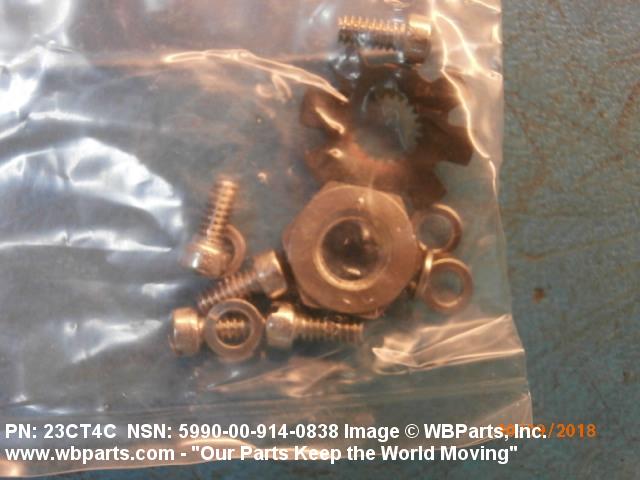

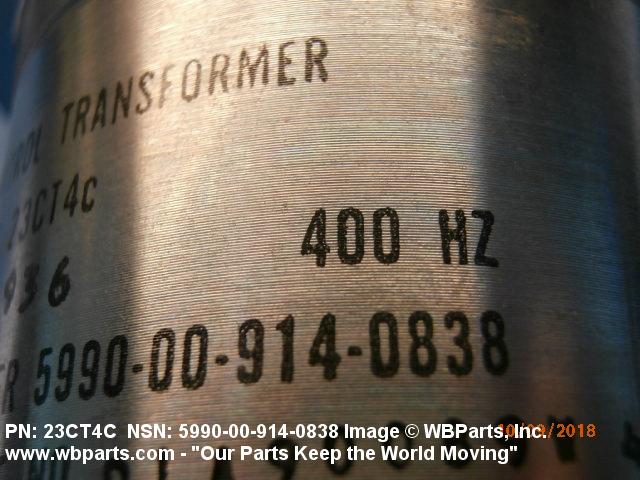

Drawings & Photos | NSN 5990-00-914-0838
Demand History | NSN 5990-00-914-0838
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-914-0838 | 2024-12-337 | 5 | United States |
| 5990-00-914-0838 | 2024-12-337 | 12 | United States |
| 23CT4C | 2024-11-332 | 12 | US |
| 5990-00-914-0838 | 2024-09-249 | 5 | DIBBS |
| 5990-00-914-0838 | 2024-08-238 | 5 | DIBBS |
| M207084601C | 2023-08-222 | 10 | US |
| M207084601C | 2023-08-221 | 10 | US |
| 5990-00-914-0838 | 2023-08-215 | 3 | DIBBS |
| 5990-00-914-0838 | 2023-02-59 | 60 | United States |
| 5990-00-914-0838 | 2023-02-40 | 7 | DIBBS |
| M207084601C | 2022-12-346 | 6 | US |
| 5990-00-914-0838 | 2022-11-319 | 6 | US |
| 5990-00-914-0838 | 2022-05-132 | 7 | DIBBS |
| 5990-00-914-0838 | 2022-05-125 | 2 | DIBBS |
| 5990-00-914-0838 | 2022-05-121 | 7 | DIBBS |
| 5990-00-914-0838 | 2022-04-108 | 4 | DIBBS |
| 5990-00-914-0838 | 2022-04-97 | 4 | DIBBS |
| 5990-00-914-0838 | 2022-03-87 | 10 | DIBBS |
| 5990-00-914-0838 | 2022-03-76 | 10 | DIBBS |
| 5990-00-914-0838 | 2022-01-02 | 2 | DIBBS |
| 5990-00-914-0838 | 2021-11-318 | 4 | DIBBS |
| 5990-00-914-0838 | 2021-10-280 | 6 | DIBBS |
| 5990-00-914-0838 | 2021-07-192 | 7 | DIBBS |
| 5990-00-914-0838 | 2021-06-164 | 3 | DIBBS |
| 5990-00-914-0838 | 2020-10-295 | 3 | DIBBS |
| 5990-00-914-0838 | 2020-10-282 | 14 | DIBBS |
| 5990-00-914-0838 | 2020-08-236 | 3 | DIBBS |
| 5990-00-914-0838 | 2020-08-232 | 18 | DIBBS |
| 5990-00-914-0838 | 2020-03-67 | 22 | DIBBS |
| 5990-00-914-0838 | 2020-02-56 | 4 | Singapore |
| 5990-00-914-0838 | 2020-02-51 | 4 | Singapore |
| 5990-00-914-0838 | 2020-01-23 | 4 | US |
| 5990-00-914-0838 | 2020-01-23 | 4 | IN |
| 5990-00-914-0838 | 2020-01-13 | 11 | DIBBS |
| 5990-00-914-0838 | 2020-01-02 | 11 | DIBBS |
| 5990-00-914-0838 | 2019-09-269 | 7 | DIBBS |
| 5990-00-914-0838 | 2019-09-246 | 6 | DIBBS |
| 5990-00-914-0838 | 2019-08-234 | 6 | DIBBS |
| 5990-00-914-0838 | 2019-06-169 | 5 | DIBBS |
| 5990-00-914-0838 | 2019-05-151 | 8 | BG |
| 5990-00-914-0838 | 2019-05-140 | 4 | Singapore |
| 5990-00-914-0838 | 2019-05-139 | 4 | Singapore |
| 5990-00-914-0838 | 2019-05-136 | 4 | IN |
| 5990-00-914-0838 | 2019-01-03 | 4 | United States |
| 23CT4C | 2018-10-281 | 1 | Taiwan |
| 5990-00-914-0838 | 2018-09-269 | 2 | United States |
| 5990-00-914-0838 | 2018-09-267 | 4 | Singapore |
| 5990-00-914-0838 | 2018-09-267 | 2 | United States |
| 5990-00-914-0838 | 2018-07-200 | 6 | DIBBS |
| 23CT4C | 2018-06-172 | 5 | Taiwan |
| 23CT4C | 2018-06-172 | 15 | Taiwan |
| 5990-00-914-0838 | 2018-06-164 | 5 | Taiwan |
| 5990-00-914-0838 | 2017-11-334 | 20 | DIBBS |
| 5990-00-914-0838 | 2017-10-277 | 10 | DIBBS |
| 5990-00-914-0838 | 2017-08-225 | 8 | DIBBS |
| 5990-00-914-0838 | 2017-06-157 | 4 | United States |
| 23CT4C | 2016-08-243 | 100 | United States |
| M207084601C | 2016-07-195 | 1 | United States |
| 5990-00-914-0838 | 2016-04-115 | 11 | DIBBS |
| 5990-00-914-0838 | 2015-12-349 | 21 | DIBBS |
| 5990-00-914-0838 | 2015-12-336 | 21 | DIBBS |
| 5990-00-914-0838 | 2015-09-263 | 40 | DIBBS |
| 5990-00-914-0838 | 2013-12-353 | 25 | DIBBS |
| 5990-00-914-0838 | 2013-11-319 | 25 | DIBBS |
| 5990-00-914-0838 | 2013-10-303 | 25 | DIBBS |
| 5990-00-914-0838 | 2013-10-274 | 1 | United States |
| 5990-00-914-0838 | 2013-09-269 | 10 | DIBBS |
| 5990-00-914-0838 | 2013-09-254 | 10 | DIBBS |
| 5990-00-914-0838 | 2013-08-235 | 14 | United States |
| 5990-00-914-0838 | 2013-03-85 | 13 | DIBBS |
| 5990-00-914-0838 | 2013-02-32 | 14 | DIBBS |
| 5990-00-914-0838 | 2012-12-360 | 14 | DIBBS |
| 5990-00-914-0838 | 2012-09-250 | 11 | DIBBS |
| 5990-00-914-0838 | 2011-12-341 | 20 | DIBBS |
| 23CT4C | 2011-09-259 | 6 | US |
| 5990-00-914-0838 | 2009-02-33 | 17 | DIBBS |
| 5990-00-914-0838 | 2009-01-26 | 16 | DIBBS |
| 5990-00-914-0838 | 2008-05-123 | 57 | DIBBS |
| 5990-00-914-0838 | 2008-04-95 | 21 | DIBBS |
| 5990-00-914-0838 | 2008-02-60 | 24 | DIBBS |
| 5990-00-914-0838 | 2008-02-42 | 7 | DIBBS |
| 5990-00-914-0838 | 2007-08-236 | 4 | DIBBS |
| 5990-00-914-0838 | 2007-06-171 | 7 | DIBBS |
Cross Reference | NSN 5990-00-914-0838
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23CT4C | 10212 | AERO-FLEX CORP |
| 23CT4C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708-46-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/46-001 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| M20708/46-01C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-20708/46 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS20708C46A23CT4C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| VCT23-4N3 | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-914-0838
Related Products | NSN 5990-00-914-0838
Technical Data | NSN 5990-00-914-0838
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 90.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 5.7 MILLIAMPERES MAXIMUM |
| STATOR INPUT ELECTRICAL POWER RATING | 50.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 134.00 MINIMUM AND 167.00 MAXIMUM |
| ZSO IMPEDANCE ANGLE IN DEG | 81.00 MINIMUM AND 84.50 MAXIMUM |
| ZRS IMPEDANCE MAGNITUDE IN OHMS | 1040.00 MINIMUM AND 1260.00 MAXIMUM |
| ZRS IMPEDANCE ANGLE IN DEG | 46.00 MINIMUM AND 56.00 MAXIMUM |
| TRANSFORMATION RATIO | 0.735 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 2.300 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 20.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 45.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -6.0 TO 6.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 0.200 INCH-OUNCES MAXIMUM |

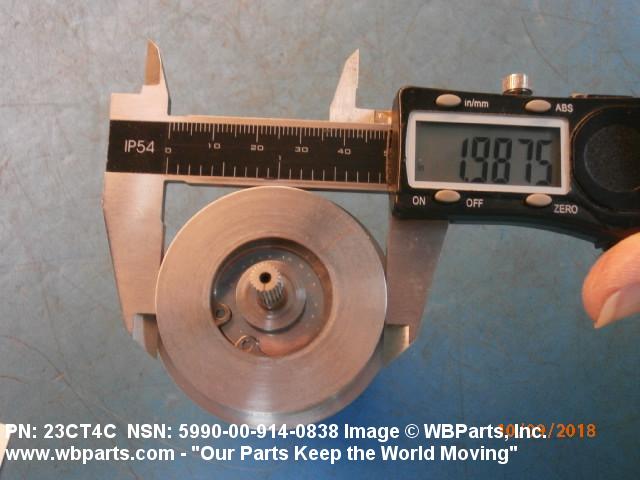

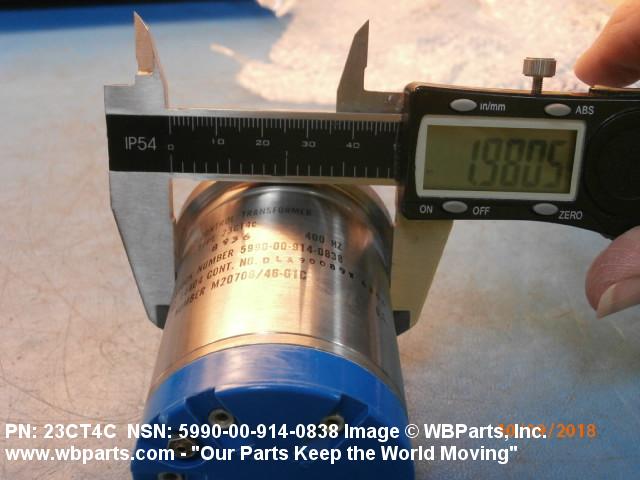

| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM |

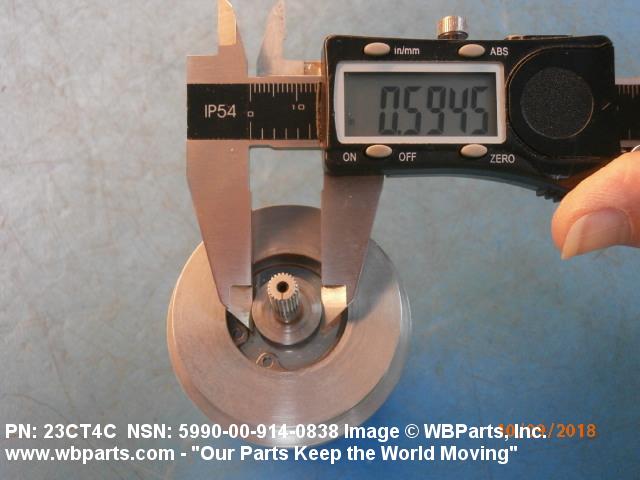

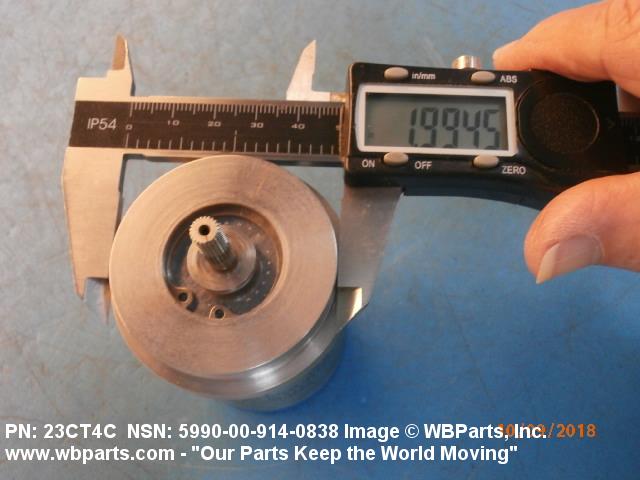

| PILOT DIAMETER | 0.5950 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 1.9935 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
| SECOND SHOULDER LENGTH | 0.1700 INCHES NOMINAL |

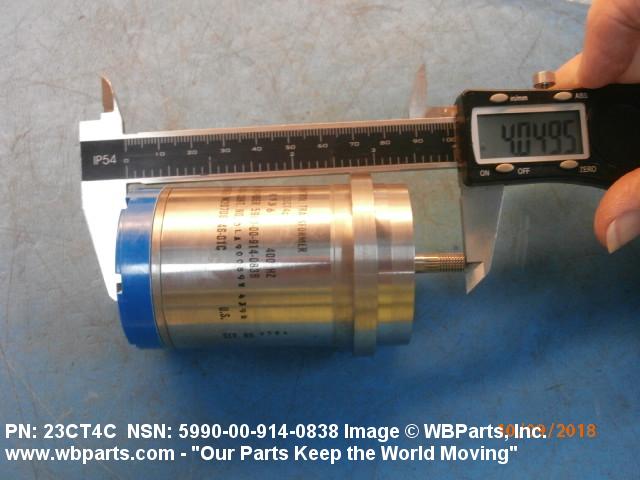

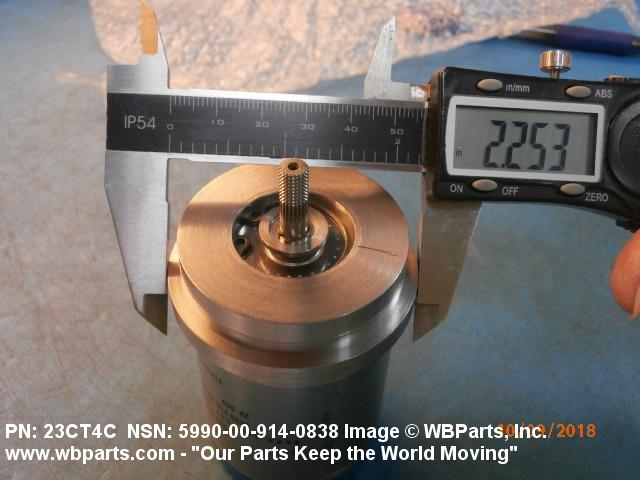

| OVERALL LENGTH | 4.2990 INCHES NOMINAL |
| FLANGE DIAMETER | 2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |

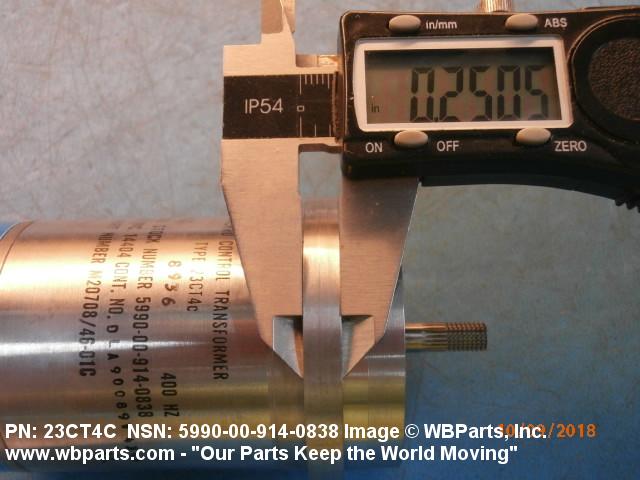

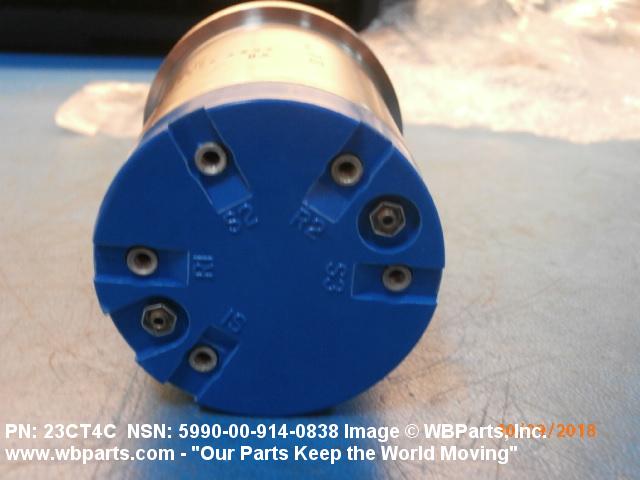

| FLANGE THICKNESS | 0.2500 INCHES NOMINAL |
| BODY DIAMETER | 1.9900 INCHES MAXIMUM |
| PILOT LENGTH | 0.0430 INCHES NOMINAL |
| SHOULDER LENGTH | 0.2500 INCHES NOMINAL |
| AFT OF FIRST FLANGE DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.5800 INCHES NOMINAL |

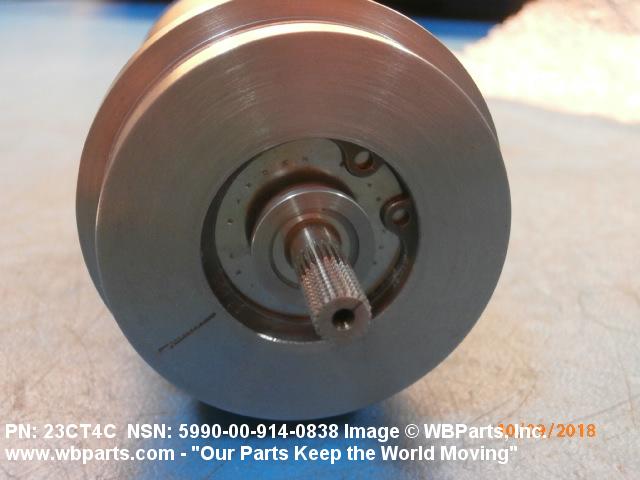

| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |

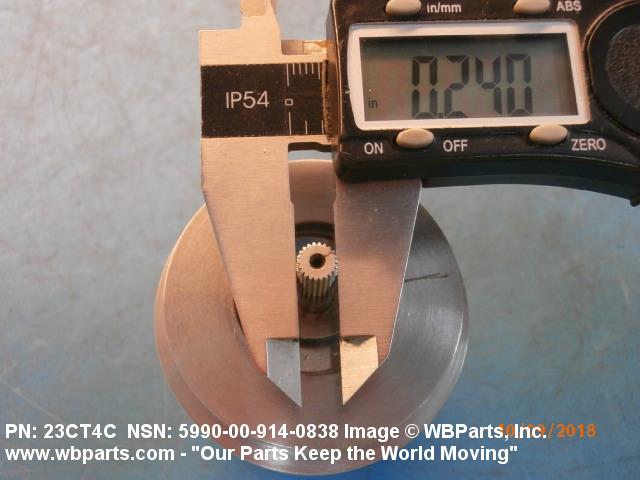

| SHAFT DIAMETER | 0.2403 INCHES MINIMUM AND 0.2405 INCHES MAXIMUM SINGLE SHAFT |
