NSN 5990-00-917-4215 M20708/1-001, M20708/1-01E, M207081001

Product Details | CONTROL TRANSFORMER SYNCHRO

5990-00-917-4215 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.

Part Alternates: M20708/1-001, M20708/1-01E, M207081001, M20708101E, M207081D001, M20708-1D-001, AS20708/1, AS207081, MIL-S-20708/1, MILS20708/1D, MILS207081, MILS207081D, X40301528, X40-301-528, 618380-000, 618380, 11CT13351, 11CT1335-1, 11CT4B, 11CT4E, 11CT4E/1-01E, 11CT4E001, 11CT4E-001, 11CT4E101E, 11CT4F, 352250005265, 3620281, 362028-1, 5990-00-917-4215, 00-917-4215, 5990009174215, 009174215, 618380000

Electrical and Electronic Equipment Components | Synchros and Resolvers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 JUL 1966	00-917-4215	15289 ( SYNCHRO, CONTROL TRANSFORMER )

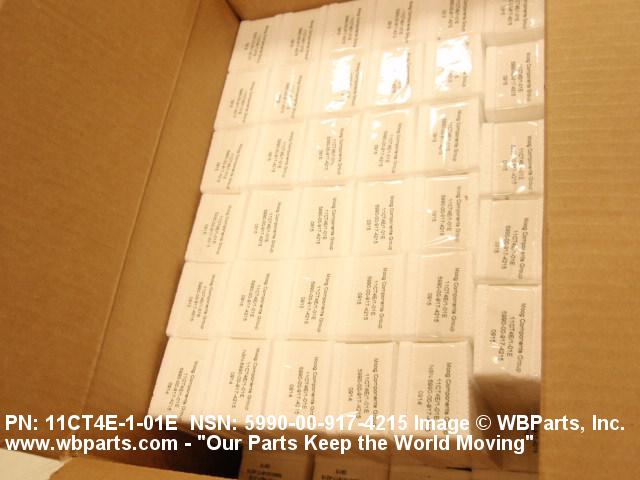

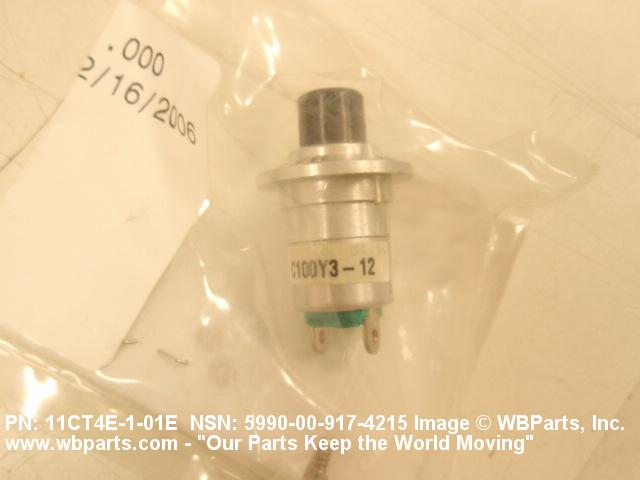

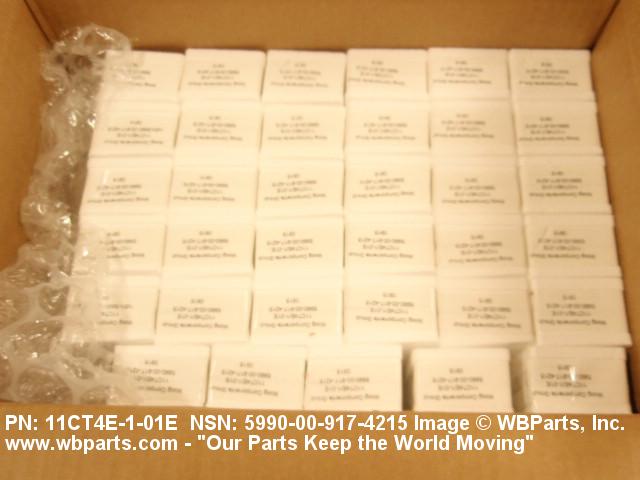

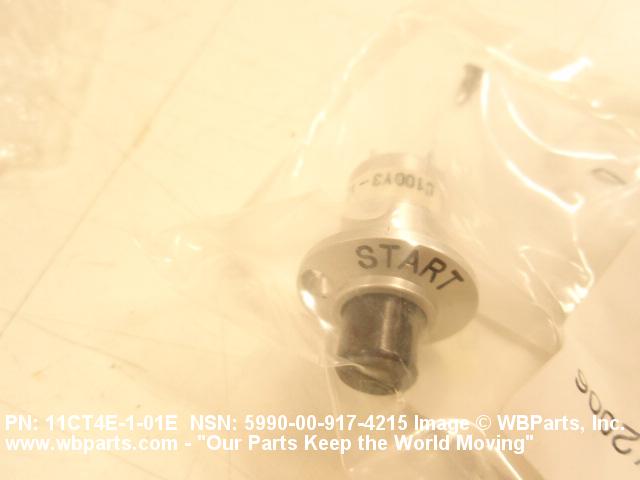

Drawings & Photos | NSN 5990-00-917-4215

Part Number	Request Date	QTY	Origin
5990-00-917-4215	2024-04-121	100	South Korea
M207081001	2023-08-234	4	IT
5990-00-917-4215	2023-05-130	1	Taiwan
5990-00-917-4215	2023-02-53	58	KR
5990-00-917-4215	2023-01-09	6	DIBBS
5990-00-917-4215	2023-01-06	4	KR
5990-00-917-4215	2022-12-356	6	DIBBS
5990-00-917-4215	2022-10-290	1	us
5990-00-917-4215	2022-10-284	1	TW
5990-00-917-4215	2022-07-207	1	Taiwan
5990-00-917-4215	2022-03-66	3	Malaysia
5990-00-917-4215	2021-01-22	10	US
5990-00-917-4215	2020-09-268	10	US
5990-00-917-4215	2020-08-226	22	United States
5990-00-917-4215	2020-03-71	5	US
5990-00-917-4215	2020-01-15	3	US
5990-00-917-4215	2020-01-13	3	MY
5990-00-917-4215	2019-08-220	1	MY
5990-00-917-4215	2019-07-183	1	MY
5990-00-917-4215	2018-06-177	2	US
5990-00-917-4215	2018-06-177	2	KR
5990-00-917-4215	2018-05-126	75	DIBBS
5990-00-917-4215	2018-03-85	4	IT
5990-00-917-4215	2018-01-11	65	DIBBS
5990-00-917-4215	2017-07-198	102	DIBBS
5990-00-917-4215	2017-06-180	92	DIBBS
M20708/1-001	2017-06-171	4	United States
5990-00-917-4215	2017-05-145	40	DIBBS
5990-00-917-4215	2017-05-142	42	DIBBS
5990-00-917-4215	2017-05-124	40	DIBBS
5990-00-917-4215	2017-04-108	47	DIBBS
5990-00-917-4215	2016-11-315	4	United States
5990-00-917-4215	2016-09-273	45	DIBBS
M207081001	2016-07-211	6	United States
5990-00-917-4215	2016-06-167	24	DIBBS
M207081001	2015-05-142	1	United States
5990-00-917-4215	2014-07-195	48	DIBBS
5990-00-917-4215	2014-03-90	32	DIBBS
5990-00-917-4215	2013-11-329	35	DIBBS
M207081D001	2013-01-17	2	CL
5990-00-917-4215	2012-06-165	2	United States
5990-00-917-4215	2012-06-157	10	US
5990-00-917-4215	2012-03-68	10	United Arab Emirates
5990-00-917-4215	2011-05-143	17	United States
5990-00-917-4215	2011-05-140	17	US
5990-00-917-4215	2009-08-215	24	DIBBS
5990-00-917-4215	2009-07-182	3	DIBBS
5990-00-917-4215	2009-07-182	5	DIBBS
5990-00-917-4215	2009-07-182	10	DIBBS
5990-00-917-4215	2009-06-173	3	DIBBS
5990-00-917-4215	2009-06-162	5	DIBBS
5990-00-917-4215	2009-05-150	10	DIBBS
5990-00-917-4215	2009-04-106	32	DIBBS
5990-00-917-4215	2009-03-84	3	US
5990-00-917-4215	2009-01-29	8	United States
5990-00-917-4215	2009-01-29	0	United States
5990-00-917-4215	2009-01-07	11	DIBBS
5990-00-917-4215	2009-01-07	64	DIBBS
5990-00-917-4215	2008-12-353	39	DIBBS
5990-00-917-4215	2008-11-316	64	DIBBS
5990-00-917-4215	2008-10-281	36	DIBBS
5990-00-917-4215	2008-09-248	11	DIBBS
11CT4E	2007-09-258	5	Italy
5990-00-917-4215	2007-03-78	22	DIBBS
5990-00-917-4215	2007-02-36	37	DIBBS

Cross Reference | NSN 5990-00-917-4215

Part Number	Cage Code	Manufacturer
11CT1335-1	14404	AMETEK TECHNICAL & INDUSTRIAL PRODUCTS, INC.
11CT4B	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
11CT4E	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
11CT4E	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
11CT4E	99932	MOOG INC. DBA MOOG COMPONENTS GROUP
11CT4E-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
11CT4E/1-01E	99932	MOOG INC. DBA MOOG COMPONENTS GROUP
11CT4F	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
352250005265	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
362028-1	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
362028-1	49956	RAYTHEON COMPANY DBA RAYTHEON
618380	02769	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
618380	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
618380	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
618380-000	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
AS20708/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M20708-1D-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M20708/1-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M20708/1-01E	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M20708/1-01E	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-20708/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILS20708/1D	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
X40-301-528	S3712	BAE SYSTEMS BOFORS AB
X40-301-528	S3715	BOFORS AB

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5990-00-917-4215

Compare

Related Products | NSN 5990-00-917-4215

5990-00-917-4220, 5990-00-917-5761, 5990-00-918-0914, 5990-00-918-3876, 5990-00-918-4467

Technical Data | NSN 5990-00-917-4215

Characteristic	Specifications
BODY SIZE	11
STATOR INPUT VOLTAGE RATING IN VOLTS	90.0 NOMINAL
STATOR INPUT CURRENT RATING	18.0 MILLIAMPERES MAXIMUM
STATOR INPUT ELECTRICAL POWER RATING	200.0 MILLIWATTS NOMINAL
FREQUENCY IN HERTZ	400.0 NOMINAL
ZSO IMPEDANCE MAGNITUDE IN OHMS	4350.00 MINIMUM AND 5700.00 MAXIMUM
ZSO IMPEDANCE ANGLE IN DEG	77.30 MINIMUM AND 83.50 MAXIMUM
ZRS IMPEDANCE MAGNITUDE IN OHMS	585.00 MINIMUM AND 700.00 MAXIMUM
ZRS IMPEDANCE ANGLE IN DEG	22.00 MINIMUM AND 32.00 MAXIMUM
TRANSFORMATION RATIO	0.735 ROTOR TO STATOR NOMINAL
PHASE SHIFT ANGLE IN DEG	5.000 INPUT TO OUTPUT NOMINAL
MAXIMUM TEMP RISE	10.0 DEG CELSIUS
MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT	32.00 OUTPUT
MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT	60.00
ELECTRICAL ERROR ANGULAR RANGE IN MINUTES	-7.0 TO 7.0
ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS	0.07 INCH-OUNCES MAXIMUM
BODY STYLE	A3 STANDARD ROUND C
SHOULDER DIAMETER	0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM
PILOT DIAMETER	0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM
OVERALL LENGTH	2.3560 INCHES NOMINAL
FLANGE DIAMETER	1.0570 INCHES MINIMUM AND 1.0620 INCHES MAXIMUM
FLANGE THICKNESS	0.0930 INCHES NOMINAL
UNDERCUT DIAMETER	0.9750 INCHES NOMINAL
UNDERCUT WIDTH	0.0620 INCHES NOMINAL
PILOT LENGTH	0.0620 INCHES NOMINAL
SHOULDER LENGTH	0.0620 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.7940 INCHES NOMINAL
ALIGNMENT HOLE DEPTH	0.1250 INCHES MINIMUM
ALIGNMENT HOLE BOLT CIRCLE DIAMETER	0.8120 INCHES NOMINAL
ALIGNMENT HOLE QUANTITY	4
SHAFT TYPE	SPLINE W/THREADS SINGLE SHAFT
SHAFT DIAMETER	0.1870 INCHES MINIMUM AND 0.1872 INCHES MAXIMUM SINGLE SHAFT
SHAFT LENGTH	0.5620 INCHES NOMINAL SINGLE SHAFT
SHAFT THREAD LENGTH	0.1900 INCHES NOMINAL SINGLE SHAFT
SPLINE TOOTH QUANTITY	21 SINGLE SHAFT
SPLINE TOOTH DIAMETRAL PITCH	120 SINGLE SHAFT
SHAFT THREAD SERIES DESIGNATOR	UNF SINGLE SHAFT
SHAFT NOMINAL THREAD SIZE	0.190 INCHES SINGLE SHAFT
SHAFT THREAD DIRECTION	RIGHT-HAND SINGLE SHAFT
TERMINAL TYPE AND QUANTITY	5 SCREW
TERMINAL LOCATION	REAR
BODY MATERIAL	STEEL, STAINLESS
TEST DATA DOCUMENT	81349-MIL-S-20708 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-S-20708/1 GOVERNMENT SPECIFICATION

Restrictions/Controls & Freight Information | NSN 5990-00-917-4215

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5990-00-917-4215

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
