Product Details | CONTROL TRANSFORMER SYNCHRO

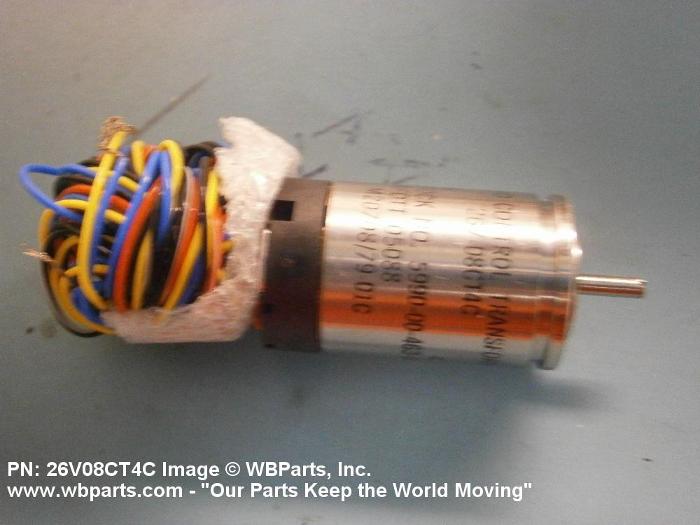

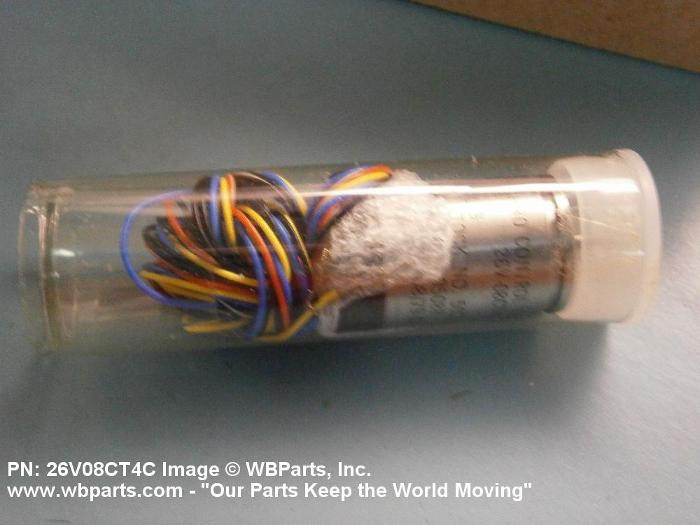

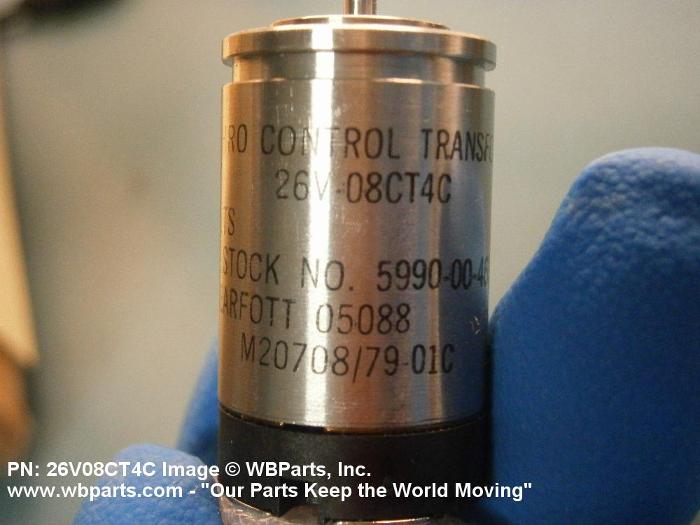

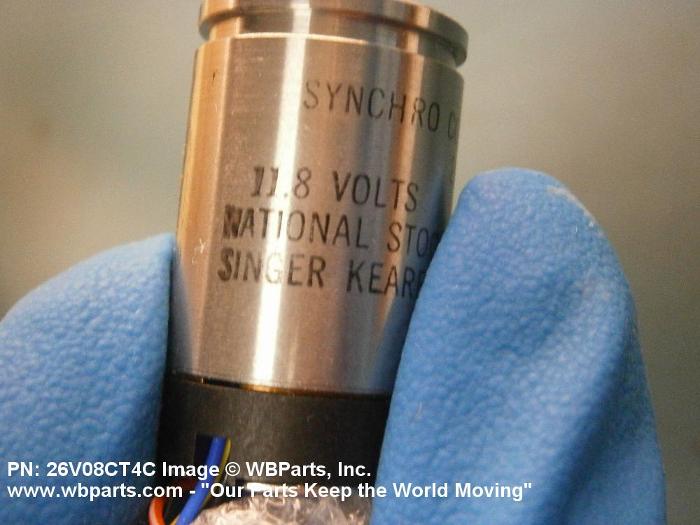

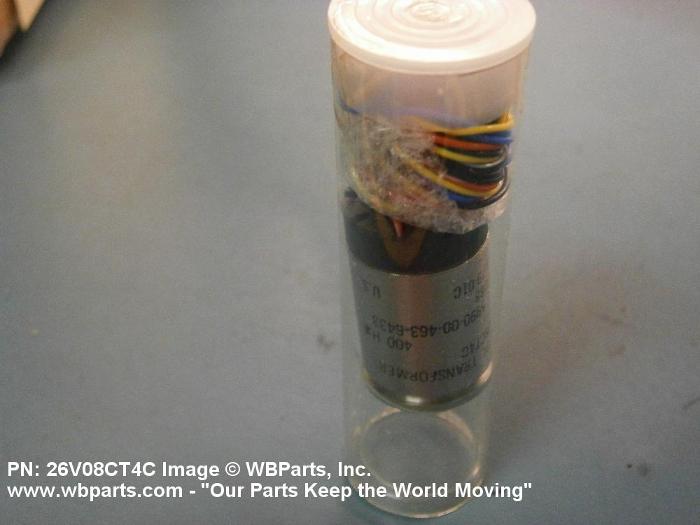

5990-00-881-1031 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: M20708/79-001, M20708/79-01C, M2070879001, M207087901C, M2070879D001, M20708-79D-001, AS20708/79, AS2070879, MILS2070879, MILS20708-79, 138A916001, 26V08CT4C, 26V-08CT4C/79-01C, 26V08CT4C7901C, 7101900, 5990-00-881-1031, 00-881-1031, 5990008811031, 008811031
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 NOV 1967 | 00-881-1031 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |

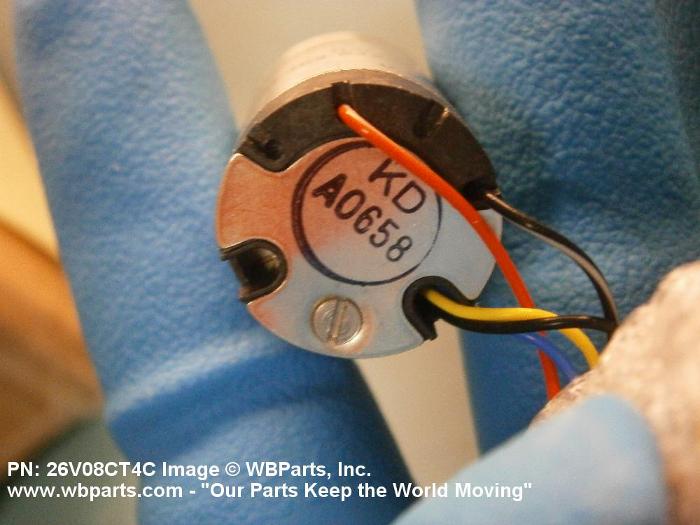

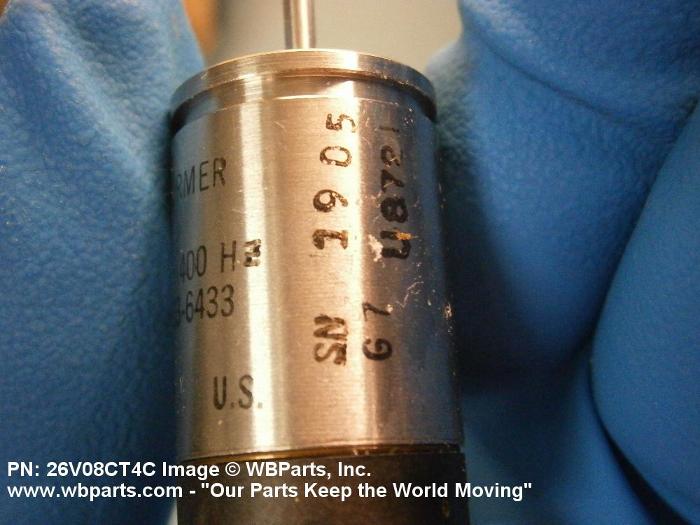

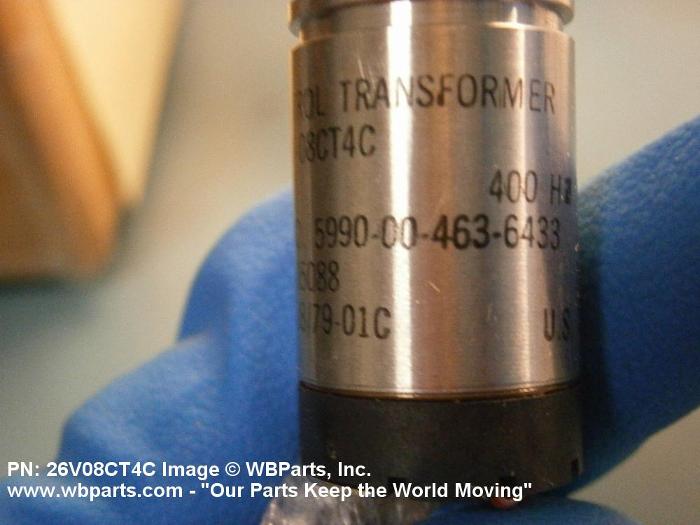

Drawings & Photos | NSN 5990-00-881-1031
Demand History | NSN 5990-00-881-1031
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-881-1031 | 2024-08-13 | 51 | DIBBS |
| 5990-00-881-1031 | 2023-05-11 | 41 | DIBBS |
| 5990-00-881-1031 | 2022-10-20 | 18 | DIBBS |
| 5990-00-881-1031 | 2022-05-31 | 14 | DIBBS |
| 5990-00-881-1031 | 2022-05-19 | 14 | DIBBS |
| 5990-00-881-1031 | 2020-11-24 | 26 | DIBBS |
| 5990-00-881-1031 | 2020-11-12 | 26 | DIBBS |
| 5990-00-881-1031 | 2020-09-30 | 10 | DIBBS |
| 5990-00-881-1031 | 2020-08-10 | 8 | DIBBS |
| 5990-00-881-1031 | 2020-07-26 | 8 | DIBBS |
| 5990-00-881-1031 | 2020-06-11 | 19 | DIBBS |
| 5990-00-881-1031 | 2020-05-21 | 19 | DIBBS |
| 5990-00-881-1031 | 2017-07-17 | 49 | DIBBS |
| 5990-00-881-1031 | 2017-06-29 | 46 | DIBBS |
| 5990-00-881-1031 | 2017-03-05 | 23 | DIBBS |
| 5990-00-881-1031 | 2016-06-06 | 22 | DIBBS |
| 5990-00-881-1031 | 2015-07-23 | 20 | DIBBS |
| 5990-00-881-1031 | 2014-12-09 | 24 | DIBBS |
| 5990-00-881-1031 | 2014-06-16 | 26 | DIBBS |
| 5990-00-881-1031 | 2013-04-11 | 25 | DIBBS |
| 5990-00-881-1031 | 2013-01-31 | 22 | DIBBS |
| 5990-00-881-1031 | 2012-12-05 | 19 | DIBBS |
| 5990-00-881-1031 | 2012-08-13 | 24 | DIBBS |
| 26V08CT4C | 2012-06-21 | 1 | United Kingdom |
| M207087901C | 2012-05-23 | 1 | United Kingdom |
| 5990-00-881-1031 | 2012-03-29 | 32 | DIBBS |
| 5990-00-881-1031 | 2011-09-30 | 12 | DIBBS |
| 5990-00-881-1031 | 2011-09-01 | 16 | DIBBS |
| 5990-00-881-1031 | 2011-05-17 | 15 | DIBBS |
| 5990-00-881-1031 | 2010-11-24 | 15 | DIBBS |
| 5990-00-881-1031 | 2010-07-30 | 14 | DIBBS |
| 5990-00-881-1031 | 2010-06-16 | 14 | DIBBS |
| 5990-00-881-1031 | 2010-04-22 | 13 | DIBBS |
| M207087901C | 2010-03-01 | 18 | US |
| 5990-00-881-1031 | 2010-02-18 | 18 | DIBBS |
| 5990-00-881-1031 | 2009-04-16 | 13 | DIBBS |
| 5990-00-881-1031 | 2009-03-17 | 11 | DIBBS |
| 5990-00-881-1031 | 2008-11-12 | 33 | DIBBS |
| 5990-00-881-1031 | 2008-10-10 | 25 | DIBBS |
| 5990-00-881-1031 | 2008-09-12 | 11 | DIBBS |
| 5990-00-881-1031 | 2008-05-23 | 10 | DIBBS |
| 5990-00-881-1031 | 2008-04-03 | 19 | DIBBS |
| 5990-00-881-1031 | 2008-01-11 | 7 | DIBBS |
Cross Reference | NSN 5990-00-881-1031
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 138A916001 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 26V-08CT4C/79-01C | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 26V08CT4C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 7101900 | 93322 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
| AS20708/79 | 0VH01 | SAE CUSTOMER SERVICE DEPT 2045 |
| M20708-79D-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/79-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/79-01C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS20708-79 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-881-1031
Related Products | NSN 5990-00-881-1031
Technical Data | NSN 5990-00-881-1031
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 11.8 NOMINAL |
| STATOR INPUT CURRENT RATING | 23.0 MILLIAMPERES MAXIMUM |
| STATOR INPUT ELECTRICAL POWER RATING | 44.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO IMPEDANCE MAGNITUDE IN OHMS | 830.00 MINIMUM AND 940.00 MAXIMUM |
| ZRO IMPEDANCE ANGLE IN DEG | 16.00 MINIMUM AND 20.00 MAXIMUM |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 444.00 MINIMUM AND 570.00 MAXIMUM |
| ZSO IMPEDANCE ANGLE IN DEG | 76.00 MINIMUM AND 81.00 MAXIMUM |
| TRANSFORMATION RATIO | 2.203 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 8.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 10.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 25.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 30.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 0.040 INCH-OUNCES MAXIMUM |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.5920 INCHES NOMINAL |
| FLANGE DIAMETER | 0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6870 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2400 INCHES MAXIMUM |

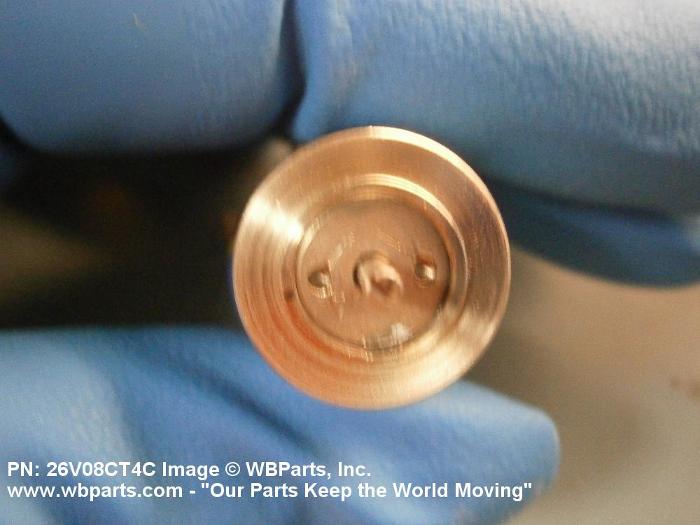

| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0898 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3520 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |

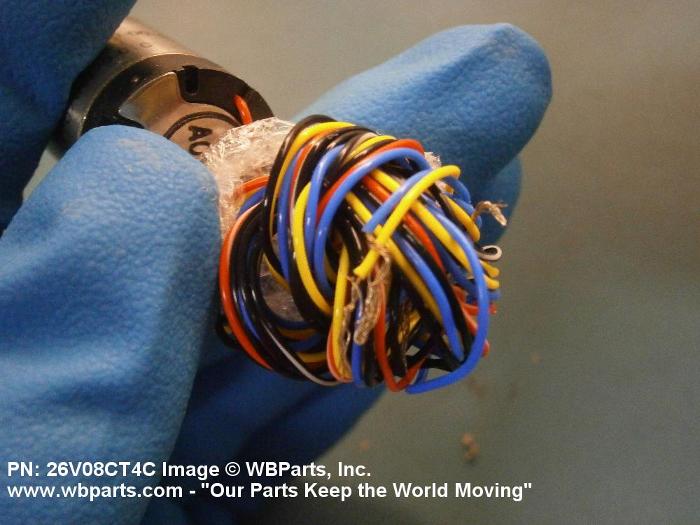

| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
