NSN 5990-00-677-6486 MILS2070839, MILS20708-39, 19CT4B
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-677-6486 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: MILS2070839, MILS20708-39, 19CT4B, 5990-00-677-6486, 00-677-6486, 5990006776486, 006776486
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-677-6486 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |
Drawings & Photos | NSN 5990-00-677-6486
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-677-6486
Related Products | NSN 5990-00-677-6486
Technical Data | NSN 5990-00-677-6486
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 20 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 90.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 7.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 250.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| TRANSFORMATION RATIO | 0.721 ROTOR TO STATOR MINIMUM AND 0.749 ROTOR TO STATOR MAXIMUM |
| PHASE SHIFT ANGLE IN DEG | 3.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 35.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 65.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -8.0 TO 8.0 |

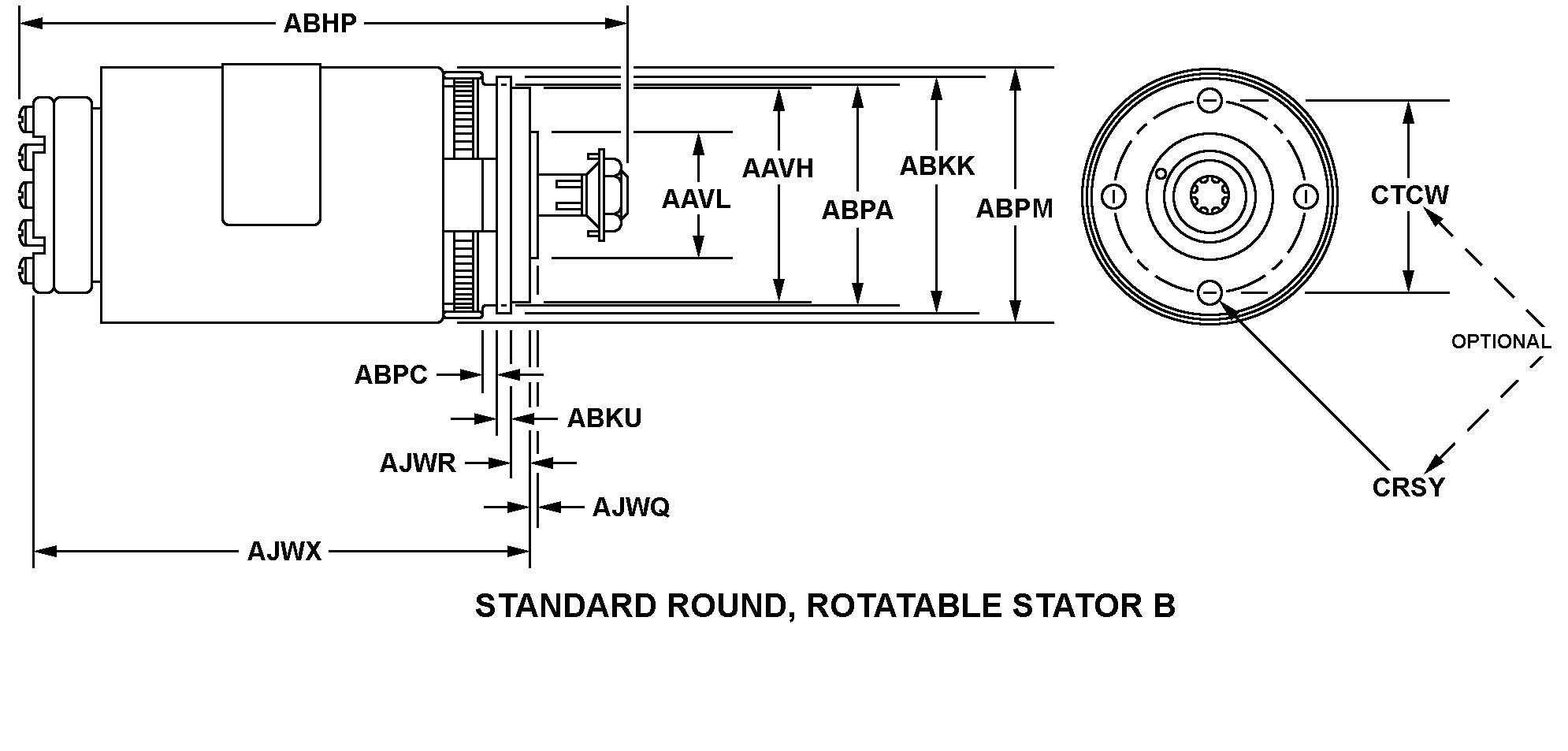

| BODY STYLE | A11 STANDARD ROUND, ROTATABLE STATOR B |
| SHOULDER DIAMETER | 1.5615 INCHES MINIMUM AND 1.5620 INCHES MAXIMUM |
| PILOT DIAMETER | 0.9375 INCHES MAXIMUM |
| OVERALL LENGTH | 3.7330 INCHES MAXIMUM |
| FLANGE DIAMETER | 1.7490 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0900 INCHES MINIMUM AND 0.0960 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0780 INCHES NOMINAL |
| BODY DIAMETER | 1.9000 INCHES NOMINAL |
| PILOT LENGTH | 0.0370 INCHES MINIMUM AND 0.0430 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.1290 INCHES MINIMUM AND 0.1350 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.3300 INCHES MAXIMUM |
| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 0.1870 INCHES MINIMUM AND 0.1872 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.5450 INCHES MINIMUM AND 0.5650 INCHES MAXIMUM SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 120 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.1900 INCHES SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0006 INCHES |
| III SHAFT RADIAL PLAY TEST POINT | 0.125 INCHES MAXIMUM |
| III SHAFT RADIAL PLAY DETERMINING WEIGHT | 16.0 OUNCES |
| III SHAFT END PLAY | 0.0030 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 16.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0008 INCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS20708-39 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 19CT4B |
Restrictions/Controls & Freight Information | NSN 5990-00-677-6486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-677-6486
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
