NSN 5990-00-649-8352 N21809, CT234G, CT23-4G
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-649-8352 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: N21809, CT234G, CT23-4G, VCT23/48-4G, VCT23484G, 9091809, 23CT1382, 5990-00-649-8352, 00-649-8352, 5990006498352, 006498352
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-649-8352 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |

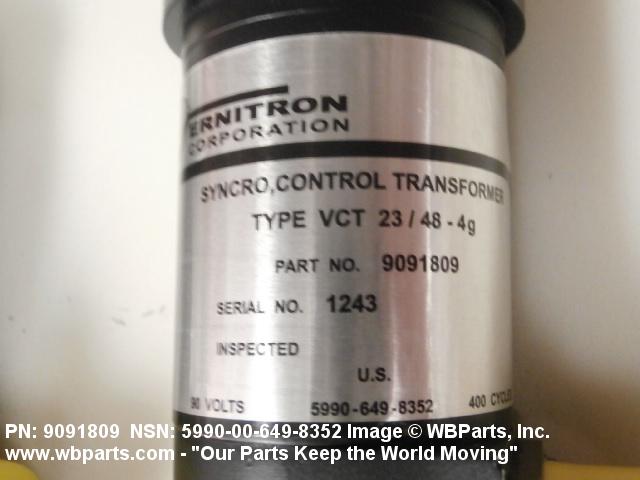

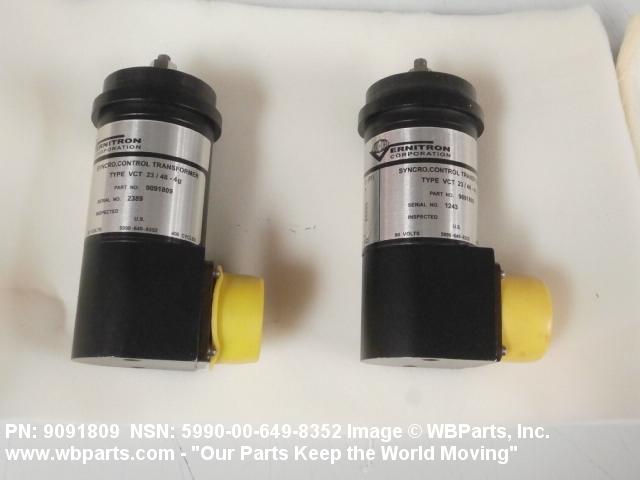

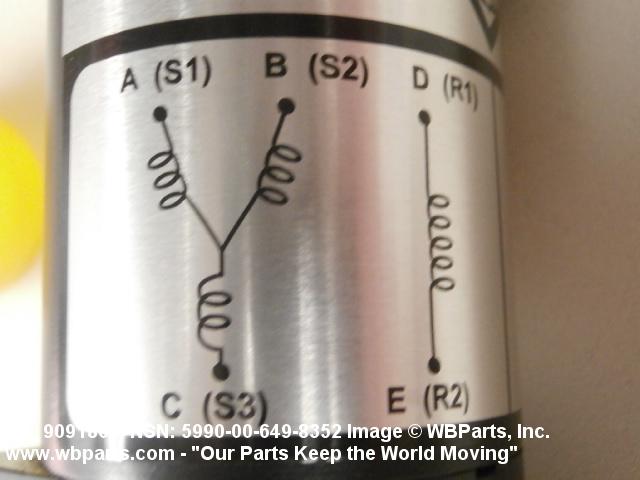

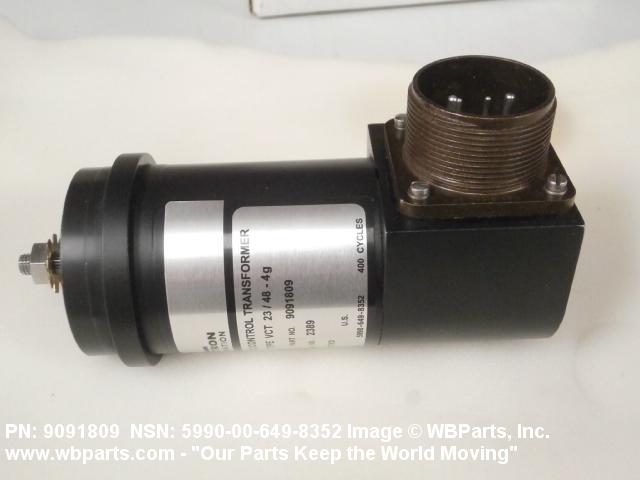

Drawings & Photos | NSN 5990-00-649-8352
Demand History | NSN 5990-00-649-8352
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-649-8352 | 2018-07-205 | 5 | DIBBS |
| 5990-00-649-8352 | 2018-07-197 | 6 | DIBBS |
| 5990-00-649-8352 | 2018-07-185 | 6 | DIBBS |
| 5990-00-649-8352 | 2016-04-109 | 2 | DIBBS |
| 5990-00-649-8352 | 2016-04-96 | 2 | DIBBS |
| 5990-00-649-8352 | 2016-01-19 | 10 | DIBBS |
| 5990-00-649-8352 | 2015-11-306 | 2 | DIBBS |
| 5990-00-649-8352 | 2015-03-77 | 2 | us |
| 5990-00-649-8352 | 2015-02-55 | 4 | DIBBS |
| 5990-00-649-8352 | 2014-11-323 | 2 | DIBBS |
| 5990-00-649-8352 | 2013-06-161 | 5 | DIBBS |
| 5990-00-649-8352 | 2013-06-153 | 5 | DIBBS |
| 5990-00-649-8352 | 2012-05-135 | 10 | DIBBS |
| 5990-00-649-8352 | 2011-12-353 | 5 | DIBBS |
| 5990-00-649-8352 | 2011-11-320 | 10 | CA |
| N21809 | 2011-11-320 | 2 | China |
| 9091809 | 2011-11-312 | 5 | China |
| 5990-00-649-8352 | 2011-10-297 | 5 | MANUAL |
| 9091809 | 2011-10-297 | 5 | Hong Kong |
| 5990-00-649-8352 | 2011-07-210 | 4 | DIBBS |
| 5990-00-649-8352 | 2011-06-164 | 10 | MANUAL |
| 9091809 | 2011-06-164 | 10 | Hong Kong |
| 5990-00-649-8352 | 2010-07-201 | 5 | DIBBS |
| 5990-00-649-8352 | 2010-07-185 | 5 | DIBBS |
| 5990-00-649-8352 | 2010-06-156 | 6 | DIBBS |
| 5990-00-649-8352 | 2010-04-120 | 1 | DIBBS |
| 5990-00-649-8352 | 2009-06-161 | 8 | DIBBS |
| 5990-00-649-8352 | 2007-03-67 | 2 | DIBBS |
Cross Reference | NSN 5990-00-649-8352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23CT1382 | 14404 | AMETEK TECHNICAL & INDUSTRIAL PRODUCTS, INC. |
| 9091809 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| CT23-4G | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
| N21809 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| VCT23/48-4G | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-649-8352
Related Products | NSN 5990-00-649-8352
Technical Data | NSN 5990-00-649-8352
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| BODY STYLE | A4 STANDARD ROUND D |
| SHOULDER DIAMETER | 1.9875 INCHES NOMINAL |
| PILOT DIAMETER | 0.6000 INCHES MAXIMUM |
| SECOND SHOULDER DIAMETER | 1.9990 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.4210 INCHES NOMINAL |
| OVERALL LENGTH | 5.7900 INCHES MAXIMUM |
| FLANGE DIAMETER | 2.2495 INCHES NOMINAL |
| FLANGE THICKNESS | 0.4175 INCHES NOMINAL |
| BODY DIAMETER | 1.9985 INCHES MAXIMUM |
| PILOT LENGTH | 0.0460 INCHES NOMINAL |
| SHOULDER LENGTH | 0.7060 INCHES NOMINAL |
| AFT OF FIRST FLANGE DIAMETER | 1.9990 INCHES NOMINAL |

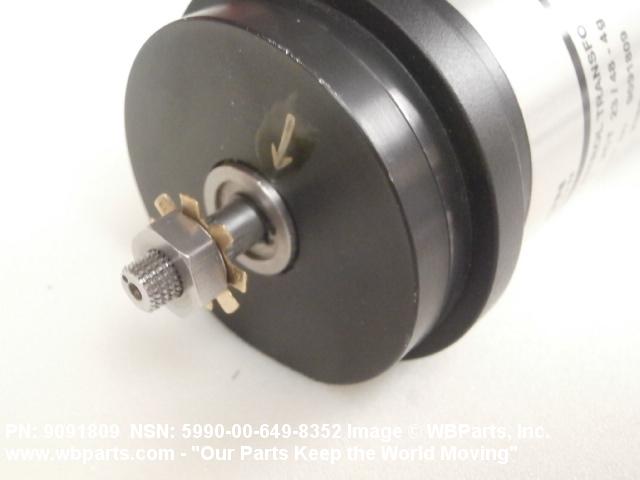

| SHAFT TYPE | ROUND, THREADED SINGLE SHAFT |
| SHAFT DIAMETER | 0.2454 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.6600 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.3895 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |

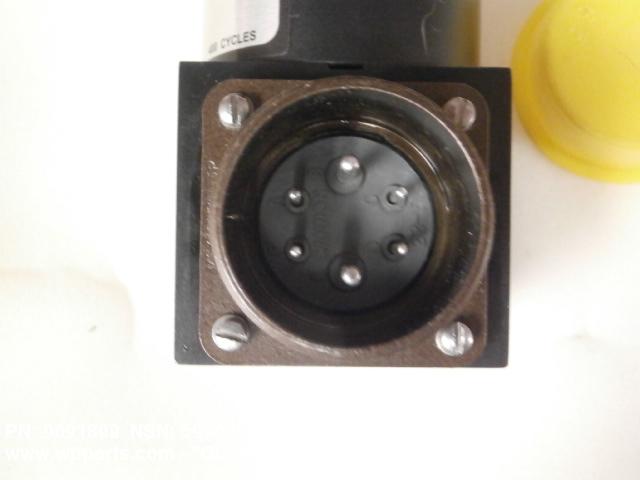

| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, PLUG |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-649-8352
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-649-8352
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
