NSN 5990-00-111-8601 1237, 12-37, 2RS9013A
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-111-8601 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: 1237, 12-37, 2RS9013A, 2RS901-3A, 5990-00-111-8601, 00-111-8601, 5990001118601, 001118601
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 AUG 1968 | 00-111-8601 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |
Drawings & Photos | NSN 5990-00-111-8601
Demand History | NSN 5990-00-111-8601
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-111-8601 | 2019-06-170 | 8 | DIBBS |
| 5990-00-111-8601 | 2018-12-350 | 8 | DIBBS |
| 5990-00-111-8601 | 2017-12-340 | 8 | DIBBS |
| 5990-00-111-8601 | 2017-07-190 | 8 | DIBBS |
| 5990-00-111-8601 | 2014-12-342 | 2 | DIBBS |
| 5990-00-111-8601 | 2014-11-322 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-111-8601
Related Products | NSN 5990-00-111-8601
Technical Data | NSN 5990-00-111-8601
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 11 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 11.8 NOMINAL |
| STATOR INPUT CURRENT RATING | 21.0 MILLIAMPERES MAXIMUM |
| STATOR INPUT ELECTRICAL POWER RATING | 30.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO IMPEDANCE MAGNITUDE IN OHMS | 3340.00 NOMINAL |
| ZRO IMPEDANCE ANGLE IN DEG | 79.20 NOMINAL |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 577.00 NOMINAL |
| ZSO IMPEDANCE ANGLE IN DEG | 80.70 NOMINAL |
| ZRS IMPEDANCE MAGNITUDE IN OHMS | 659.00 NOMINAL |
| ZRS IMPEDANCE ANGLE IN DEG | 30.10 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 385.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 60.00 NOMINAL |
| TRANSFORMATION RATIO | 2.203 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 4.200 OUTPUT TO INPUT NOMINAL |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 25.00 INPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 30.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -2.0 TO 2.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 16.0 CENTIMETER-GRAMS NOMINAL |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 4.0 CENTIMETER-GRAMS NOMINAL |
| BODY STYLE | A3 STANDARD ROUND C |
| SHOULDER DIAMETER | 1.0000 INCHES MAXIMUM |
| PILOT DIAMETER | 0.6250 INCHES MAXIMUM |
| OVERALL LENGTH | 2.1840 INCHES MAXIMUM |
| FLANGE DIAMETER | 1.0620 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.9750 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0500 INCHES NOMINAL |
| PILOT LENGTH | 0.0620 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0620 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.7340 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.1200 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3120 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0300 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0010 INCHES |
| III SHAFT RADIAL PLAY TEST POINT | 0.125 INCHES MAXIMUM |
| III SHAFT RADIAL PLAY DETERMINING WEIGHT | 4.0 OUNCES |
| III SHAFT END PLAY | 0.0005 INCHES MINIMUM AND 0.0015 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 16.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0014 INCHES |

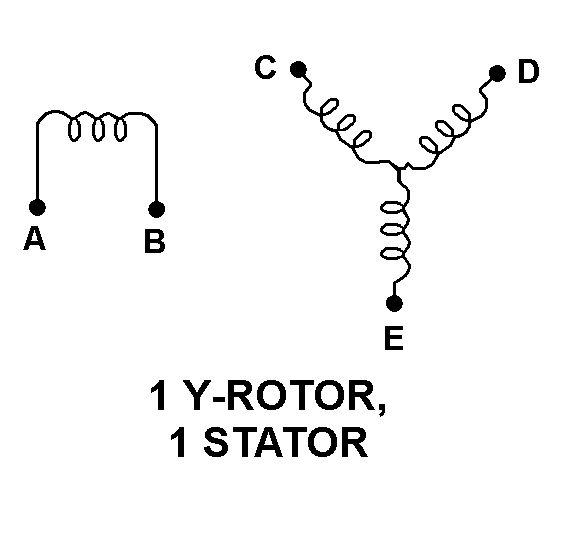

| III SCHEMATIC DIAGRAM DESIGNATOR | E2 ONE Y-ROTOR, ONE STATOR |
| III UNPACKAGED UNIT WEIGHT | 4.000 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-111-8601
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-111-8601
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
