NSN 5990-00-053-1646 CTC15D1A010, 4145001, 414500-1
Product Details | CONTROL TRANSFORMER SYNCHRO
5990-00-053-1646 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the rotor is dependent upon both the position of the rotor and the electrical input to the stator from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, or variable transformers.
Part Alternates: CTC15D1A010, 4145001, 414500-1, 5990-00-053-1646, 00-053-1646, 5990000531646, 000531646
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-053-1646 | 15289 ( SYNCHRO, CONTROL TRANSFORMER ) |
Drawings & Photos | NSN 5990-00-053-1646
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-053-1646

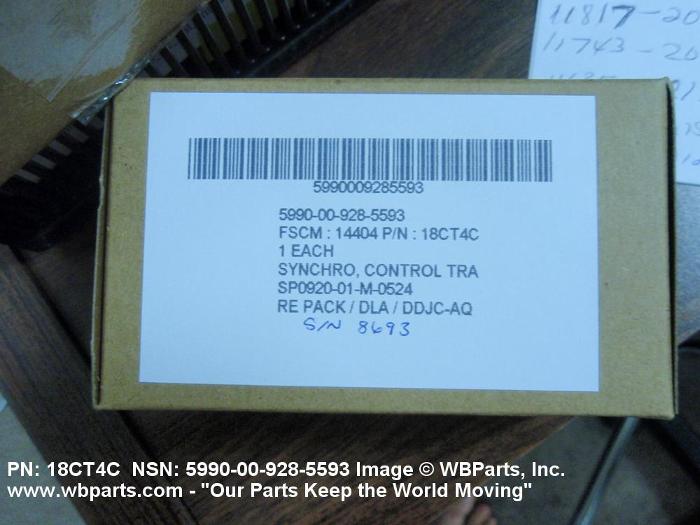

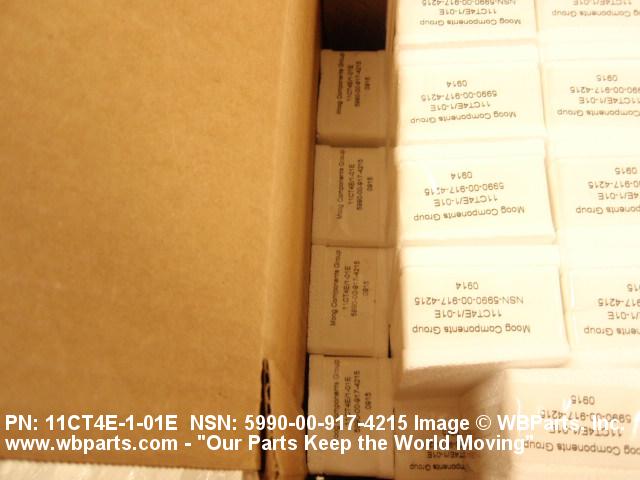

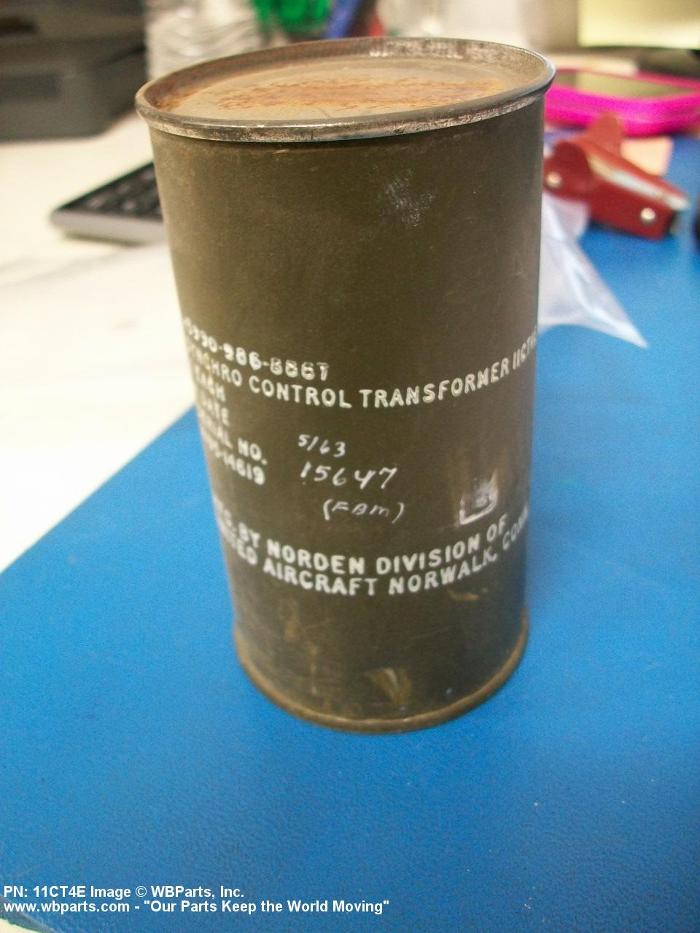

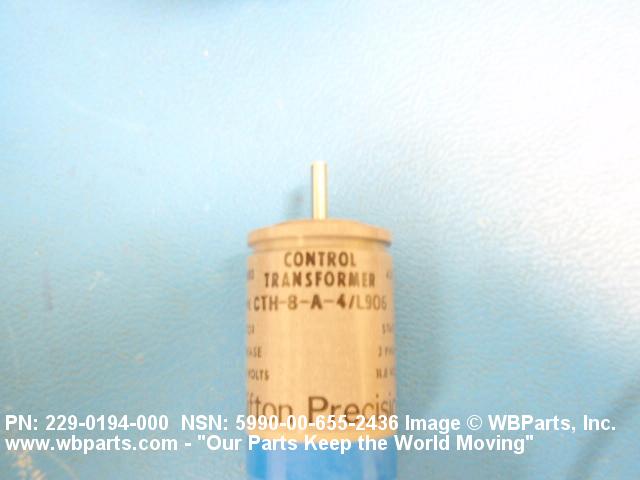

Related Products | NSN 5990-00-053-1646
Technical Data | NSN 5990-00-053-1646
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 15 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 120.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 220.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 16.00 CENTIMETER-GRAMS MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 4.00 CENTIMETER-GRAMS MAXIMUM |
| BODY STYLE | A3 STANDARD ROUND C |
| SHOULDER DIAMETER | 1.3115 INCHES MINIMUM AND 1.3120 INCHES MAXIMUM |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 2.1400 INCHES NOMINAL |
| FLANGE DIAMETER | 1.4360 INCHES MINIMUM AND 1.4370 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| UNDERCUT DIAMETER | 1.3120 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0780 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| SHOULDER LENGTH | 0.1320 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.6000 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.1195 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.5400 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0220 INCHES MINIMUM AND 0.0320 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0220 INCHES MINIMUM AND 0.0320 INCHES MAXIMUM SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| MANUFACTURERS CODE | 99932 |
| DESIGN CONTROL REFERENCE | CTC15D1A010 |
Restrictions/Controls & Freight Information | NSN 5990-00-053-1646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-053-1646
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
