NSN 5340-01-353-7179 MS1828816, MS18288-16, 83-02-3368D7 ITEM 21
Product Details | NUT AND BOLT LOCKING PLATE
5340-01-353-7179 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Part Alternates: MS1828816, MS18288-16, 83-02-3368D7 ITEM 21, 83023368D7ITEM21, 83023386821, 83-02-33868-21, 5340-01-353-7179, 01-353-7179, 5340013537179, 013537179
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 1992 | 01-353-7179 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |

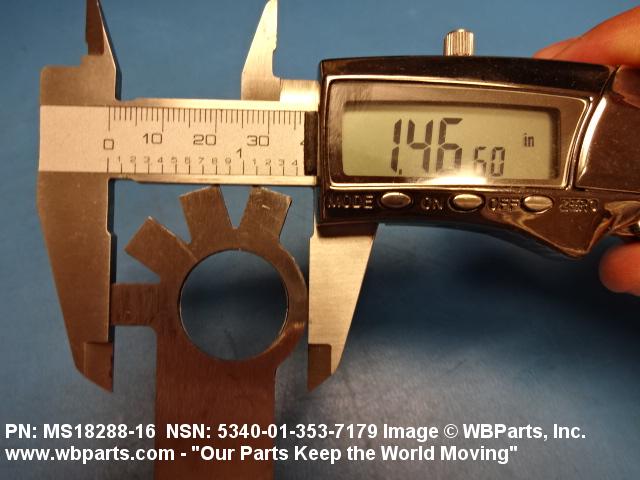

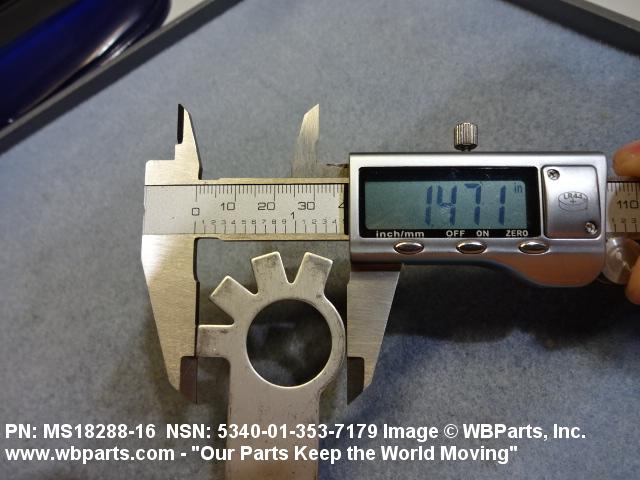

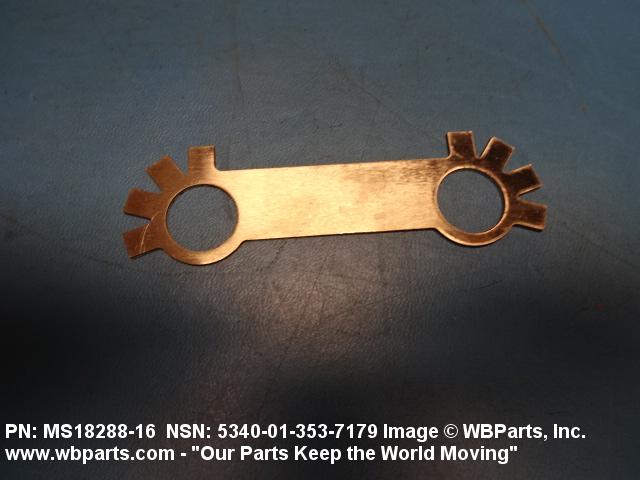

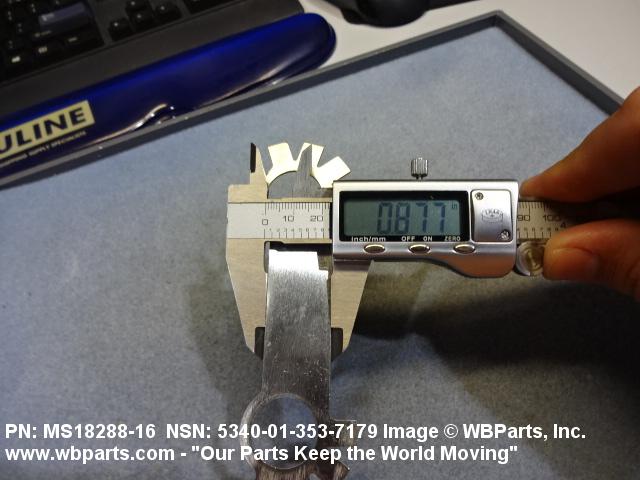

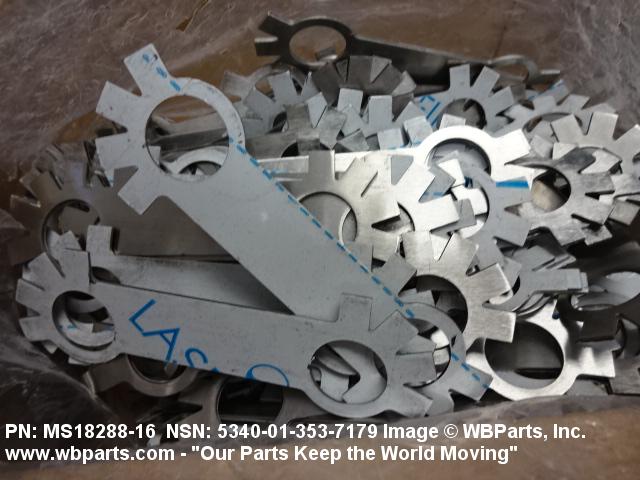

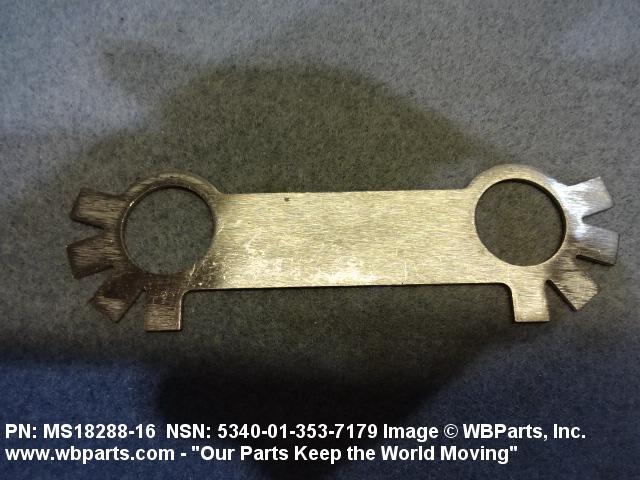

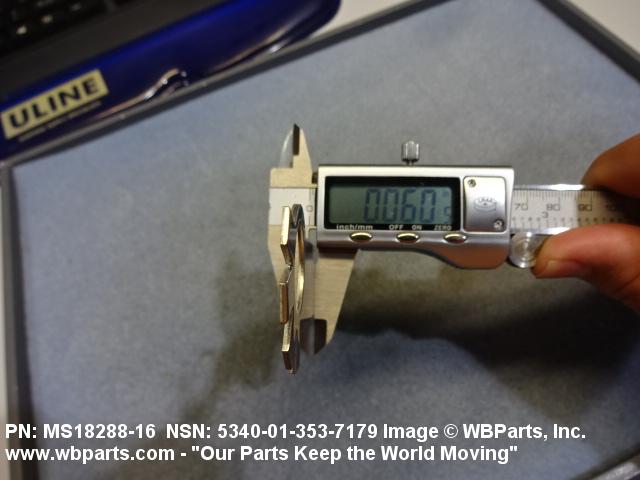

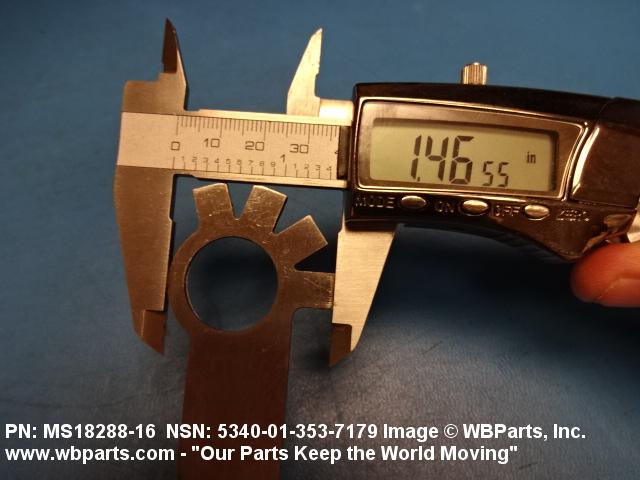

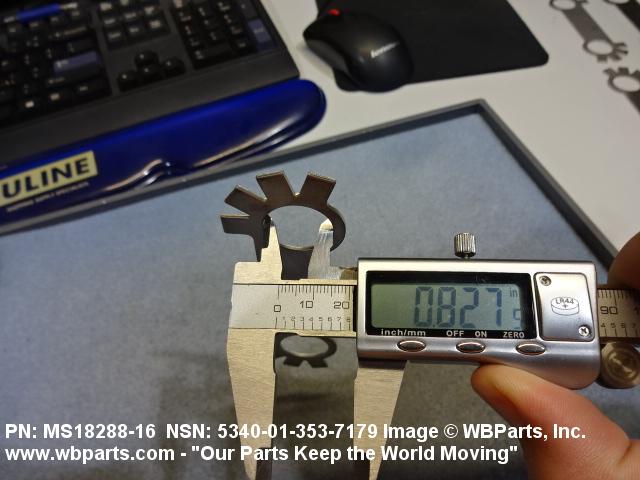

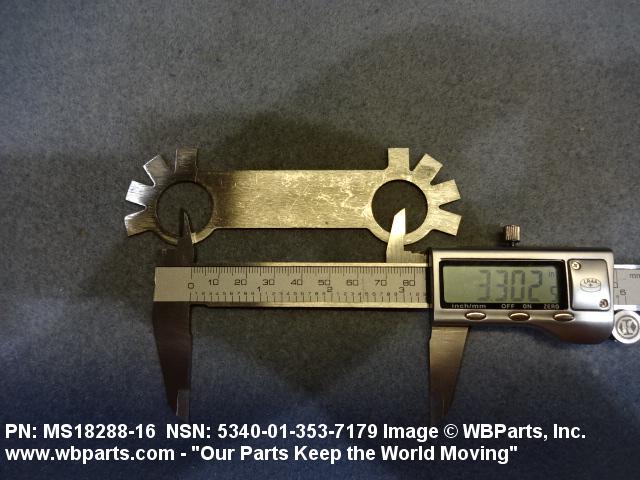

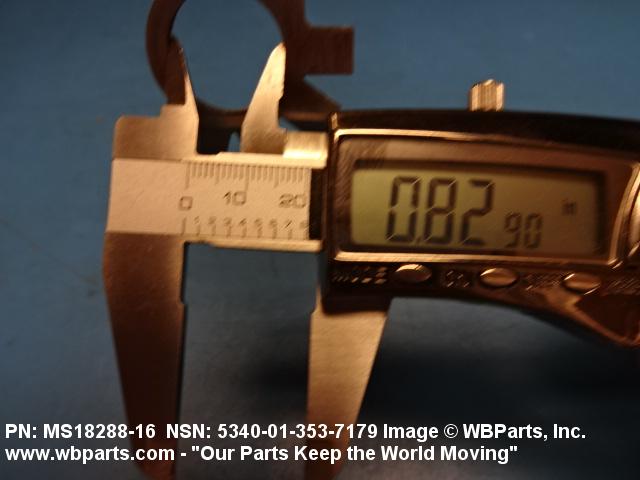

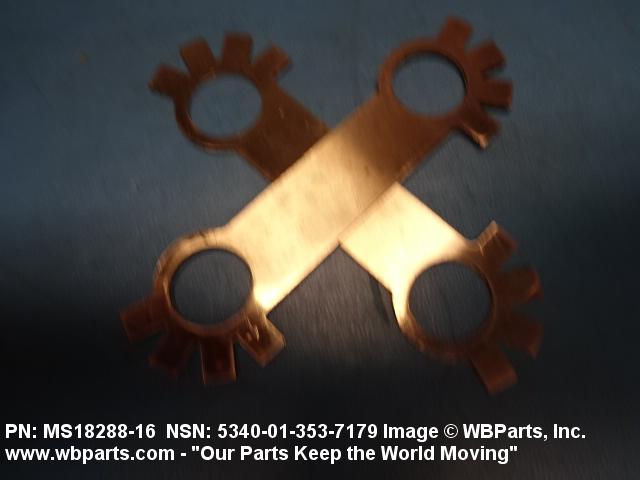

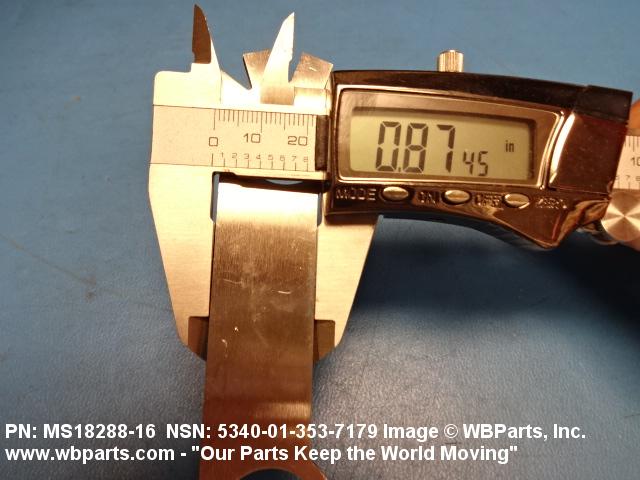

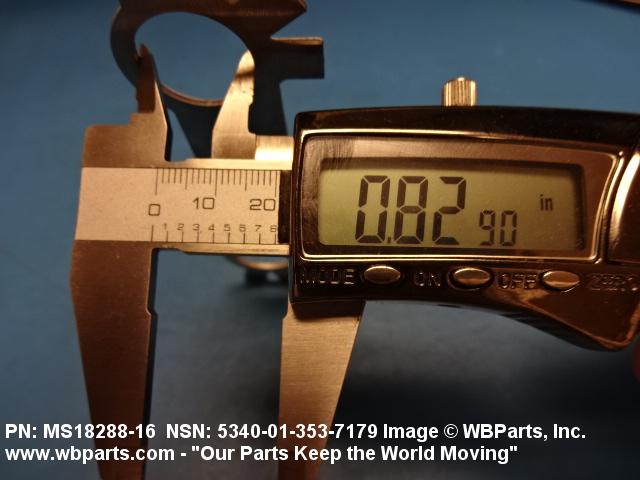

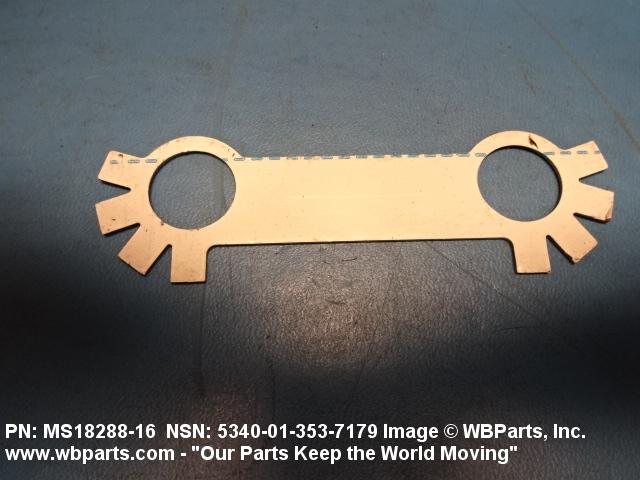

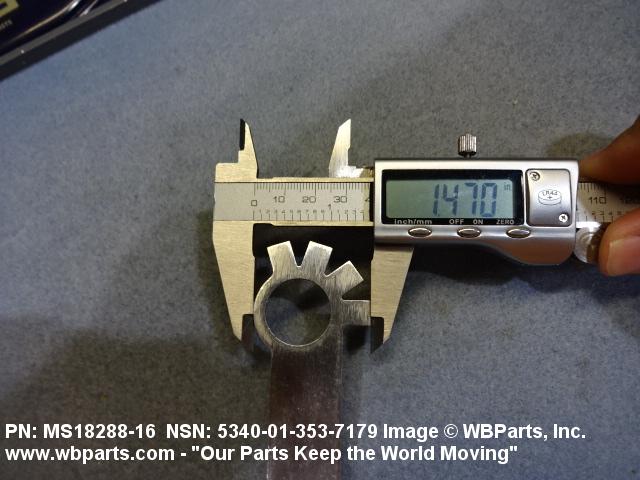

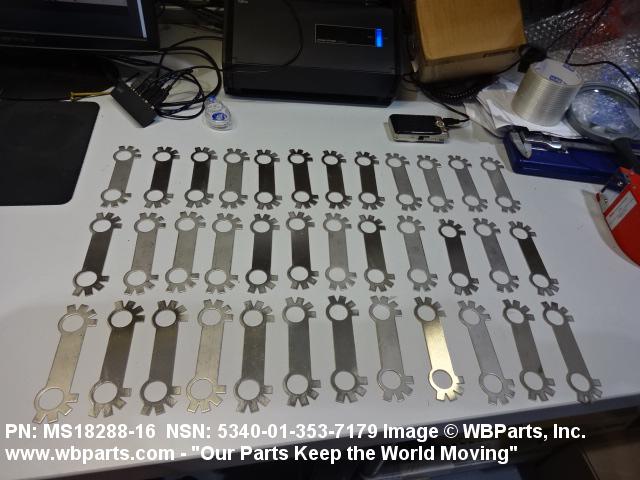

Drawings & Photos | NSN 5340-01-353-7179
Demand History | NSN 5340-01-353-7179
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 83-02-33868-21 | 2020-10-281 | 247 | DIBBS |
| 83-02-33868-21 | 2020-05-143 | 215 | DIBBS |
| 83-02-33868-21 | 2020-04-113 | 74 | DIBBS |
| 83-02-33868-21 | 2019-11-321 | 215 | DIBBS |
| 5340-01-353-7179 | 2018-06-173 | 36 | United States |
| 5340-01-353-7179 | 2018-03-87 | 205 | United States |
| 5340-01-353-7179 | 2018-02-57 | 205 | DIBBS |
| 5340-01-353-7179 | 2018-01-25 | 32 | DIBBS |
| 5340-01-353-7179 | 2018-01-15 | 32 | DIBBS |
| 5340-01-353-7179 | 2017-10-293 | 36 | DIBBS |
| 5340-01-353-7179 | 2017-10-285 | 36 | DIBBS |
| 5340-01-353-7179 | 2017-06-177 | 74 | DIBBS |
| 5340-01-353-7179 | 2015-06-154 | 198 | DIBBS |
| 5340-01-353-7179 | 2014-09-254 | 134 | DIBBS |
| 5340-01-353-7179 | 2014-03-64 | 78 | US |
| 5340-01-353-7179 | 2014-02-57 | 78 | DIBBS |
| 5340-01-353-7179 | 2014-02-51 | 10 | DIBBS |
| 5340-01-353-7179 | 2013-10-276 | 10 | DIBBS |
| 5340-01-353-7179 | 2009-06-169 | 70 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-353-7179
Related Products | NSN 5340-01-353-7179
Technical Data | NSN 5340-01-353-7179
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| STYLE DESIGNATOR | E13 SOCKET |
| WIDTH | 1.5000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.8125 INCHES MINIMUM AND 0.8437 INCHES MAXIMUM |
| BODY WIDTH | 0.5313 INCHES MINIMUM AND 0.5937 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 3.1250 INCHES MINIMUM AND 3.1874 INCHES MAXIMUM |
| ANGLE BETWEEN EARS IN DEG | 36.0 |
| EAR WIDTH | 0.3125 INCHES MINIMUM AND 0.3437 INCHES MAXIMUM |
| PLATE THICKNESS | 0.0400 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS18288-16 |
Restrictions/Controls & Freight Information | NSN 5340-01-353-7179
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-353-7179
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
