NSN 5340-00-510-1243 302901, 00-510-1243, 005101243
Product Details | NUT AND BOLT LOCKING PLATE
5340-00-510-1243 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Part Alternates: 302901, 5340-00-510-1243, 00-510-1243, 5340005101243, 005101243
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-510-1243 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |
Drawings & Photos | NSN 5340-00-510-1243
Demand History | NSN 5340-00-510-1243
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-510-1243 | 2023-10-277 | 1 | US |
| 5340-00-510-1243 | 2019-05-150 | 1 | DIBBS-RFPs |
| 5340-00-510-1243 | 2019-01-30 | 1024 | DIBBS |
| 5340-00-510-1243 | 2018-01-31 | 767 | DIBBS |
| 5340-00-510-1243 | 2017-11-310 | 491 | DIBBS |
| 5340-00-510-1243 | 2017-05-136 | 491 | DIBBS |
| 302901 | 2016-09-251 | 100 | us |
| 5340-00-510-1243 | 2014-10-293 | 705 | DIBBS |
| 5340-00-510-1243 | 2014-10-281 | 705 | DIBBS |
| 302901 | 2014-03-73 | 50 | Turkey |
| 302901 | 2012-12-346 | 50 | Turkey |
| 302901 | 2012-11-331 | 50 | Turkey |
| 5340-00-510-1243 | 2012-11-331 | 50 | MANUAL |
| 5340-00-510-1243 | 2011-12-346 | 546 | DIBBS |
| 5340-00-510-1243 | 2011-11-318 | 783 | DIBBS |
| 5340-00-510-1243 | 2009-02-34 | 639 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-510-1243
Related Products | NSN 5340-00-510-1243
Technical Data | NSN 5340-00-510-1243

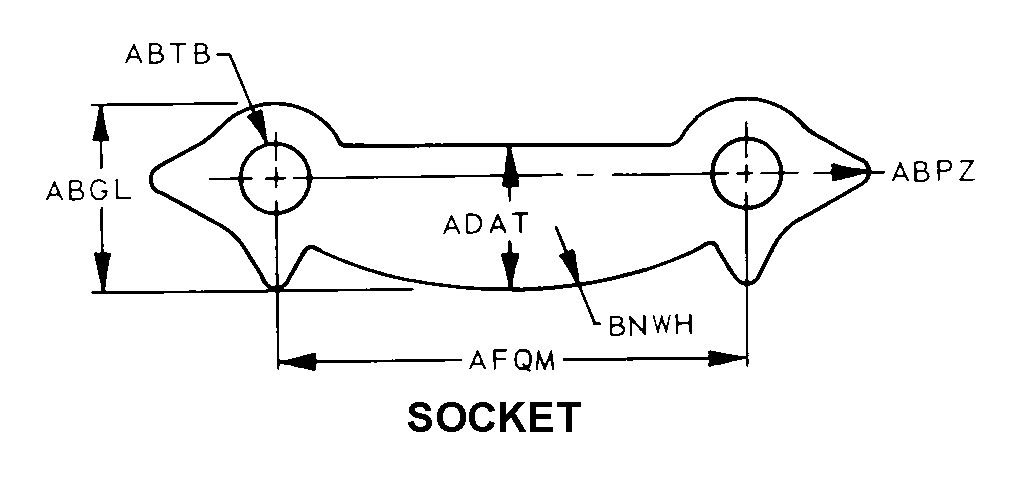

| Characteristic | Specifications |
|---|---|
