NSN 5340-01-035-6520 9533121, 01-035-6520, 010356520

Product Details | NUT AND BOLT LOCKING PLATE

5340-01-035-6520 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.

Part Alternates: 9533121, 5340-01-035-6520, 01-035-6520, 5340010356520, 010356520

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 FEB 1977	01-035-6520	22247 ( LOCKING PLATE, NUT AND BOLT )

Drawings & Photos | NSN 5340-01-035-6520

Part Number	Request Date	QTY	Origin
9533121	2022-06-160	150	DIBBS
9533121	2022-05-139	88	DIBBS
9533121	2022-01-02	62	DIBBS
9533121	2021-11-333	157	DIBBS
5340-01-035-6520	2019-02-50	1	DIBBS-RFPs
5340-01-035-6520	2018-11-334	326	DIBBS
5340-01-035-6520	2018-11-326	326	DIBBS
5340-01-035-6520	2018-10-296	326	DIBBS
5340-01-035-6520	2018-09-263	326	DIBBS
9533121	2018-08-219	1	United States
5340-01-035-6520	2018-08-214	326	DIBBS
5340-01-035-6520	2018-03-66	497	DIBBS
5340-01-035-6520	2017-11-334	497	US
5340-01-035-6520	2017-11-333	497	US
5340-01-035-6520	2017-11-333	497	DIBBS
5340-01-035-6520	2017-09-267	168	DIBBS
5340-01-035-6520	2017-06-158	168	DIBBS
5340-01-035-6520	2017-03-88	168	DIBBS
5340-01-035-6520	2017-02-43	157	DIBBS
5340-01-035-6520	2016-08-244	103	DIBBS
5340-01-035-6520	2015-06-173	472	DIBBS
5340-01-035-6520	2015-06-161	472	DIBBS
5340-01-035-6520	2015-01-26	472	DIBBS
5340-01-035-6520	2015-01-14	472	DIBBS
5340-01-035-6520	2014-03-73	150	US
5340-01-035-6520	2014-03-69	136	DIBBS
5340-01-035-6520	2014-02-54	136	DIBBS
5340-01-035-6520	2013-07-202	291	DIBBS
5340-01-035-6520	2013-07-199	300	DIBBS
5340-01-035-6520	2013-06-175	294	DIBBS
5340-01-035-6520	2013-03-81	298	DIBBS
5340-01-035-6520	2012-08-240	280	DIBBS
5340-01-035-6520	2012-06-181	94	DIBBS
5340-01-035-6520	2012-03-90	159	DIBBS
5340-01-035-6520	2012-02-38	166	DIBBS
5340-01-035-6520	2011-10-297	166	DIBBS
5340-01-035-6520	2011-10-279	35	DIBBS
5340-01-035-6520	2011-06-166	168	DIBBS
5340-01-035-6520	2011-04-103	168	DIBBS
5340-01-035-6520	2011-02-41	101	DIBBS
5340-01-035-6520	2010-12-350	134	DIBBS
5340-01-035-6520	2010-09-246	83	DIBBS
5340-01-035-6520	2010-06-175	64	DIBBS
5340-01-035-6520	2010-02-36	84	DIBBS
5340-01-035-6520	2009-08-218	45	United States
5340-01-035-6520	2009-08-218	45	United States
5340-01-035-6520	2009-07-202	90	DIBBS
5340-01-035-6520	2009-06-152	18	DIBBS

Cross Reference | NSN 5340-01-035-6520

Part Number	Cage Code	Manufacturer
9533121	73842	GOODYEAR TIRE AND RUBBER CO THE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-035-6520

Compare

Related Products | NSN 5340-01-035-6520

5340-01-035-6544, 5340-01-035-6545, 5340-01-035-6549, 5340-01-035-6794, 5340-01-035-6832

Technical Data | NSN 5340-01-035-6520

Characteristic	Specifications

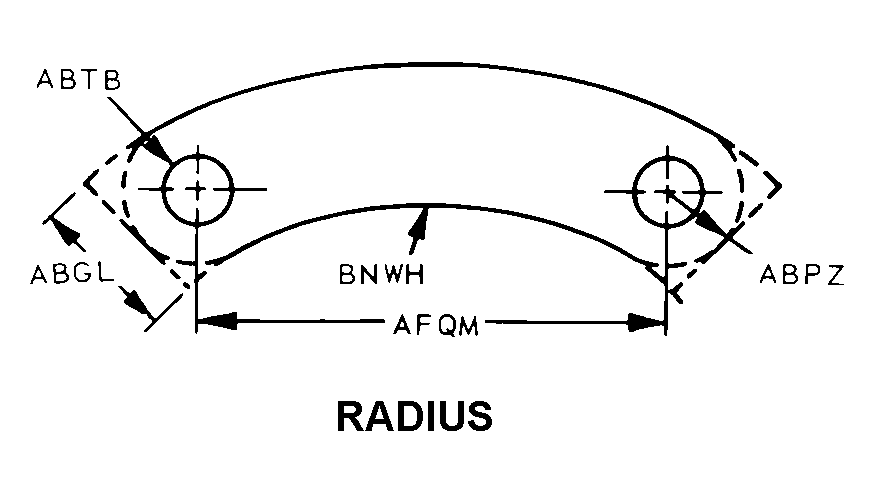

STYLE DESIGNATOR	E8 RADIUS
WIDTH	1.178 INCHES NOMINAL
CENTER RADIUS	3.437 INCHES NOMINAL
PLATE THICKNESS	0.125 INCHES NOMINAL
INSIDE HEIGHT	0.406 INCHES NOMINAL
MANUFACTURERS CODE	73842
DESIGN CONTROL REFERENCE	9533121

Restrictions/Controls & Freight Information | NSN 5340-01-035-6520

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-035-6520

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
