Product Details | NUT AND BOLT LOCKING PLATE
5340-00-772-9435 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Part Alternates: 109076, 5340-00-772-9435, 00-772-9435, 5340007729435, 007729435
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-772-9435 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |

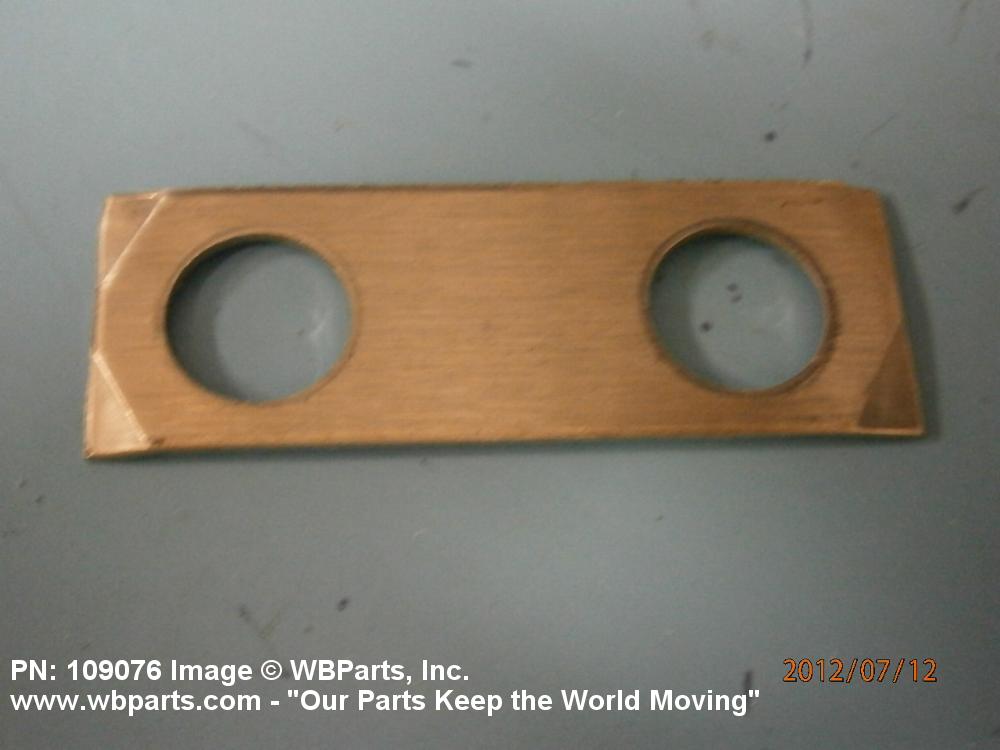

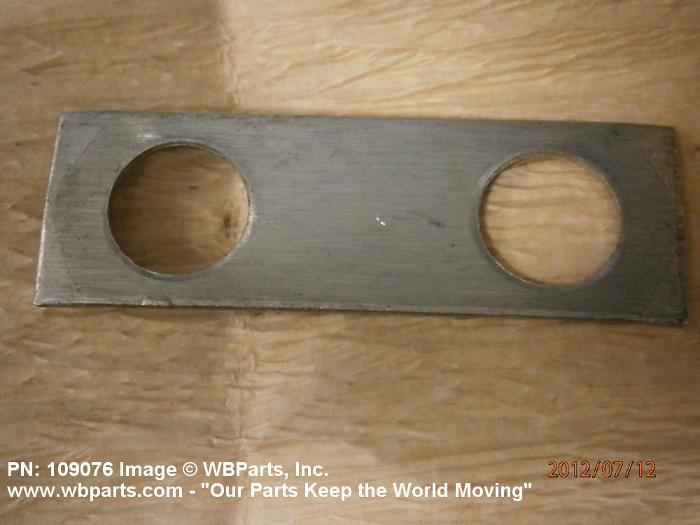

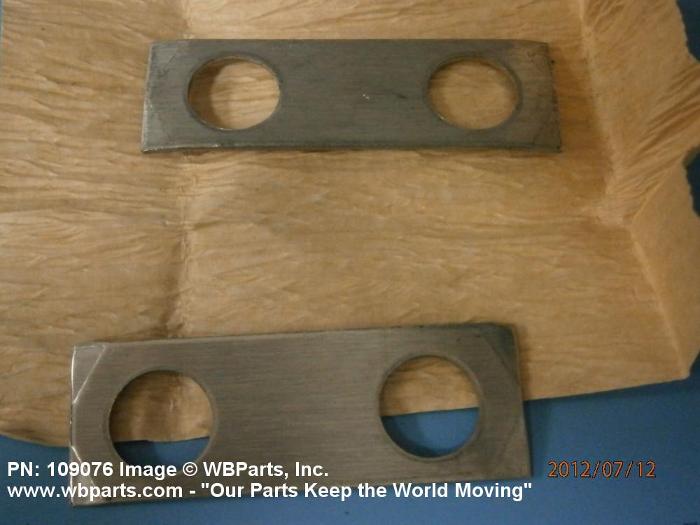

Drawings & Photos | NSN 5340-00-772-9435
Demand History | NSN 5340-00-772-9435
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-772-9435 | 2012-06-178 | 20 | United States |
| 5340-00-772-9435 | 2008-04-112 | 60 | DIBBS |
| 5340-00-772-9435 | 2008-04-104 | 40 | DIBBS |
Cross Reference | NSN 5340-00-772-9435
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 109076 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-772-9435
Related Products | NSN 5340-00-772-9435
Technical Data | NSN 5340-00-772-9435
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AISI 302 OR STEEL, AISI 303 OR STEEL, AISI 304 |

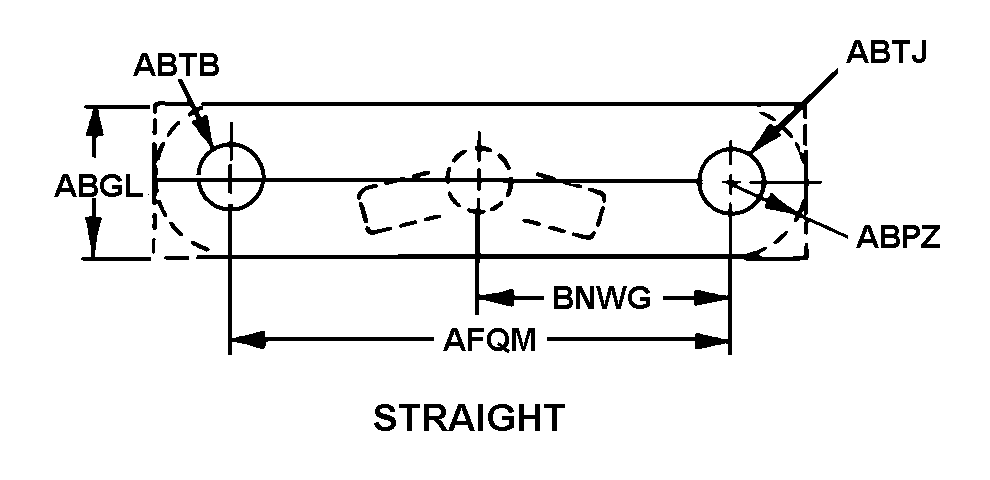

| STYLE DESIGNATOR | E6 STRAIGHT |
| WIDTH | 0.875 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.594 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.531 INCHES NOMINAL |
| PLATE THICKNESS | 0.053 INCHES MINIMUM AND 0.066 INCHES MAXIMUM |
| PREBENT LOCKING FEATURE LOCATION | END |
