NSN 5340-00-231-0933 734456, 734456PRIORTOEC283447, 00-231-0933
Product Details | NUT AND BOLT LOCKING PLATE
5340-00-231-0933 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Part Alternates: 734456, 734456PRIORTOEC283447, 5340-00-231-0933, 00-231-0933, 5340002310933, 002310933
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAY 1973 | 00-231-0933 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |
Drawings & Photos | NSN 5340-00-231-0933
Demand History | NSN 5340-00-231-0933
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 734456 | 2010-04-104 | 2 | Israel |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-231-0933
Related Products | NSN 5340-00-231-0933
Technical Data | NSN 5340-00-231-0933
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5504 |

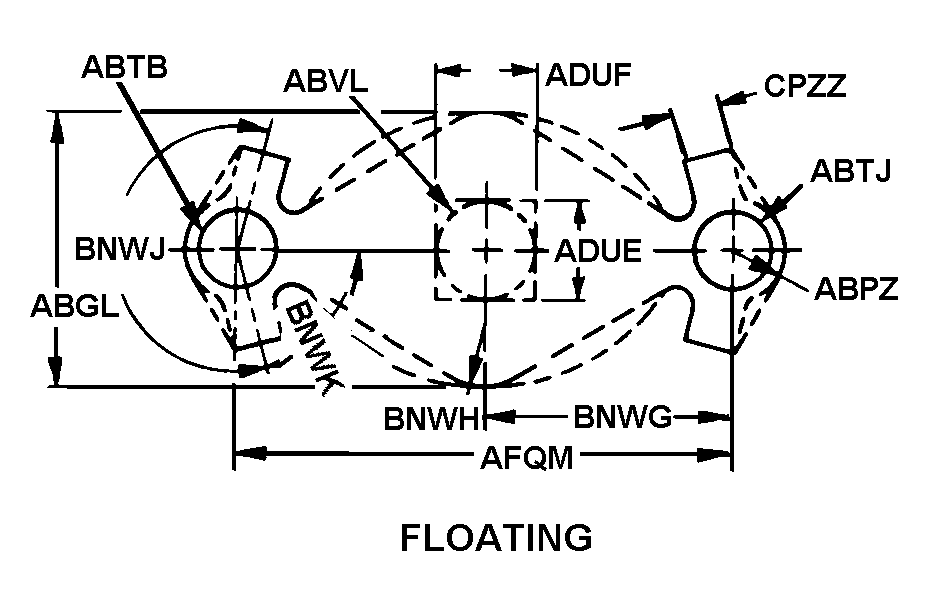

| STYLE DESIGNATOR | E1 FLOATING |
| WIDTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| END RADIUS | 0.210 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.276 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 2 |
| APERTURE DIAMETER | 0.193 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.120 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CENTER APERTURE/MOUNTING HOLE AND END MOUNTING HOLE | 0.560 INCHES NOMINAL |
| CENTER RADIUS | 0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| ANGLE BETWEEN EARS IN DEG | 135.0 |
| ANGLE FROM HORIZONTAL CENTERLINE TO EAR IN DEG | 135.0 |
| EAR WIDTH | 0.250 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| PLATE THICKNESS | 0.027 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| PREBENT LOCKING FEATURE LOCATION | END |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 734456PRIORTOEC283447 |
Restrictions/Controls & Freight Information | NSN 5340-00-231-0933
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
