Product Details | NUT AND BOLT LOCKING PLATE
5340-01-249-7308 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Part Alternates: 2154455005, 215-4455005, 2154455005PC7, 215-4455005PC7, 8204384792PC5, 820-4384792PC5, 5340-01-249-7308, 01-249-7308, 5340012497308, 012497308
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 FEB 1987 | 01-249-7308 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |

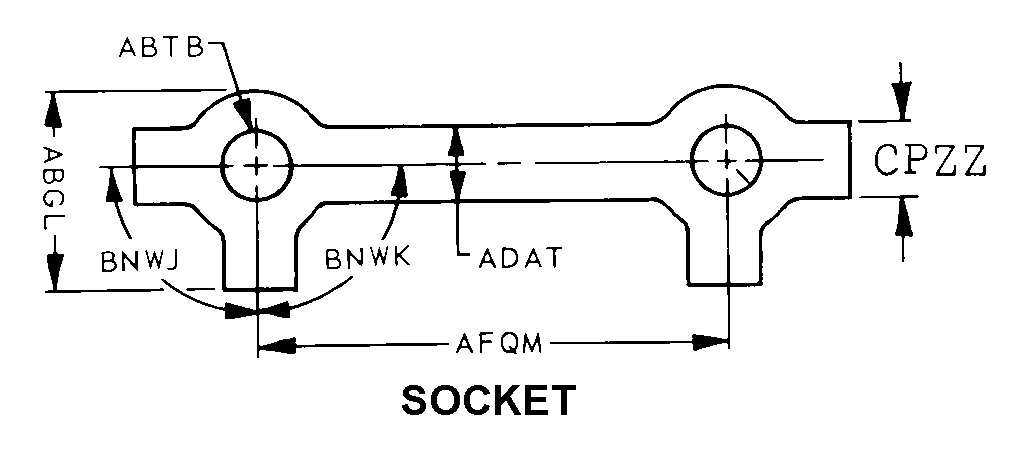

Drawings & Photos | NSN 5340-01-249-7308
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-249-7308
Technical Data | NSN 5340-01-249-7308
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL COPPER ALLOY |
| STYLE DESIGNATOR | E13 SOCKET |
| WIDTH | 1.563 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 1.062 INCHES NOMINAL |
| BODY WIDTH | 1.188 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.547 INCHES MINIMUM AND 2.609 INCHES MAXIMUM |
| ANGLE BETWEEN EARS IN DEG | 36.0 |
| EAR WIDTH | 0.375 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 215-4455005PC7 |
