NSN 5340-00-530-4432 384080, 5304432, 00-530-4432
Product Details | NUT AND BOLT LOCKING PLATE
5340-00-530-4432 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Part Alternates: 384080, 5304432, 5340-00-530-4432, 00-530-4432, 5340005304432, 005304432
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-530-4432 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |

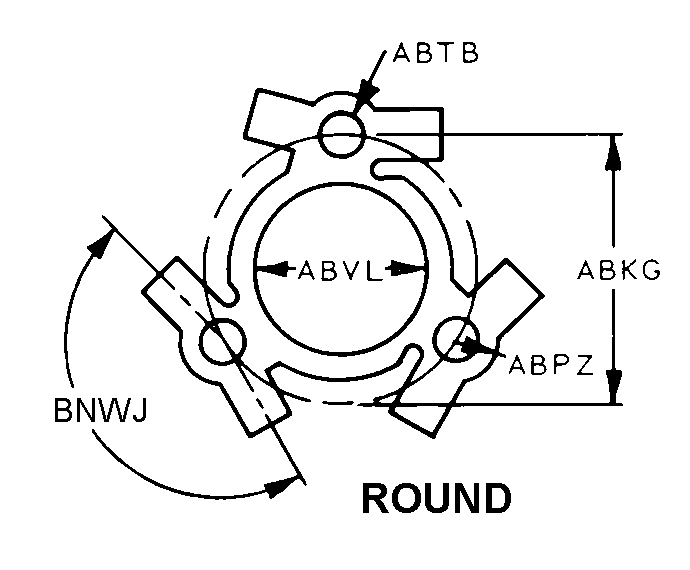

Drawings & Photos | NSN 5340-00-530-4432
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-530-4432
Technical Data | NSN 5340-00-530-4432
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, QQ-B-626, COMP 2 |
| STYLE DESIGNATOR | E16 ROUND |
| BOLT CIRCLE DIAMETER | 1.062 INCHES NOMINAL |
| END RADIUS | 0.156 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |
| APERTURE DIAMETER | 0.656 INCHES NOMINAL |
| ANGLE BETWEEN EARS IN DEG | 135.0 |
| PREBENT LOCKING FEATURE LOCATION | ALL |
Restrictions/Controls & Freight Information | NSN 5340-00-530-4432
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
