NSN 5340-00-075-3794 123LM101263, 123LM10126-3, 00-075-3794
Product Details | NUT AND BOLT LOCKING PLATE
5340-00-075-3794 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Part Alternates: 123LM101263, 123LM10126-3, 5340-00-075-3794, 00-075-3794, 5340000753794, 000753794
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-075-3794 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |

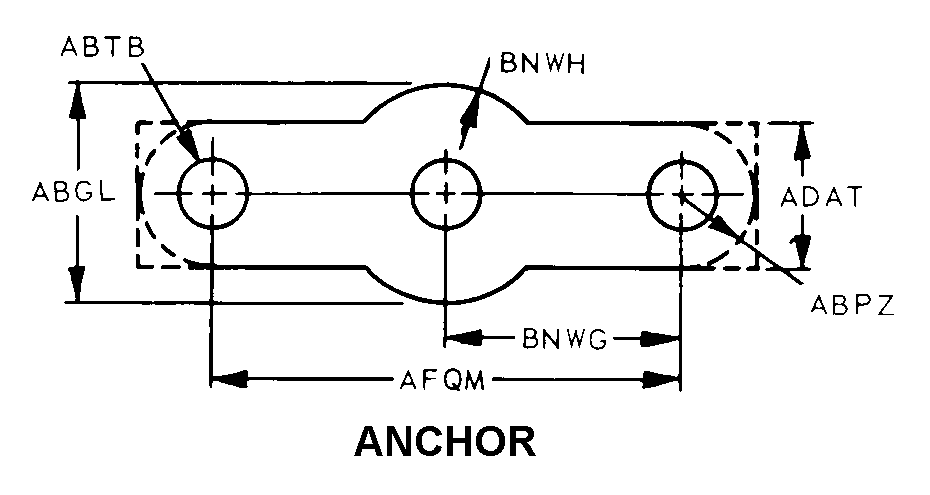

Drawings & Photos | NSN 5340-00-075-3794
Demand History | NSN 5340-00-075-3794
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-075-3794 | 2010-10-293 | 22 | DIBBS |
| 5340-00-075-3794 | 2010-08-221 | 19 | DIBBS |
| 5340-00-075-3794 | 2010-04-105 | 10 | DIBBS |
Cross Reference | NSN 5340-00-075-3794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123LM10126-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-075-3794
Related Products | NSN 5340-00-075-3794
Technical Data | NSN 5340-00-075-3794
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AMS 6359 COMP 4340 |
| STYLE DESIGNATOR | E9 ANCHOR |
| WIDTH | 1.750 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.315 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| BODY WIDTH | 0.625 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CENTER APERTURE/MOUNTING HOLE AND END MOUNTING HOLE | 1.250 INCHES NOMINAL |
| CENTER RADIUS | 0.875 INCHES NOMINAL |
| PLATE THICKNESS | 0.187 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| PREBENT LOCKING FEATURE LOCATION | END |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 123LM10126-3 |
Restrictions/Controls & Freight Information | NSN 5340-00-075-3794
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
