Product Details | SCREW THREAD INSERT
5325-00-290-4515 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS122201, 11854CN0625, 1185-4CN0625, 11854CN625, 1185-4CN625, 11854CNX58, 1185-4CNX5-8, 208C40625, 208C4-0625, 26503375GP1ITEM1317, 43460741, 43460-741, 5325-00-290-4515, 00-290-4515, 5325002904515, 002904515
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-290-4515 | 11444 ( INSERT, SCREW THREAD ) |

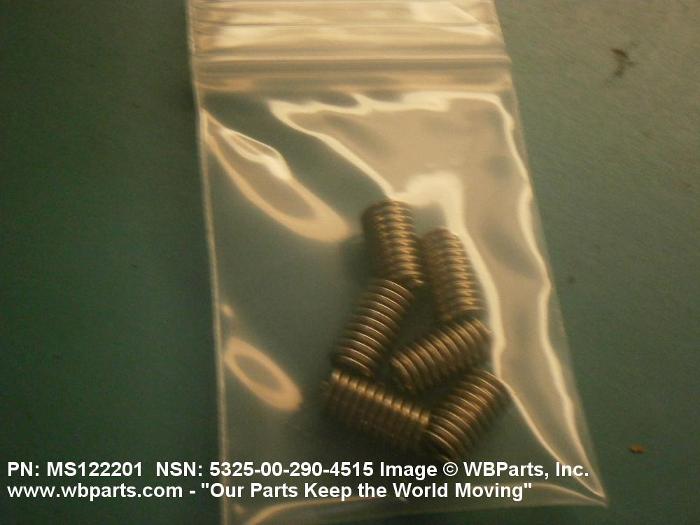

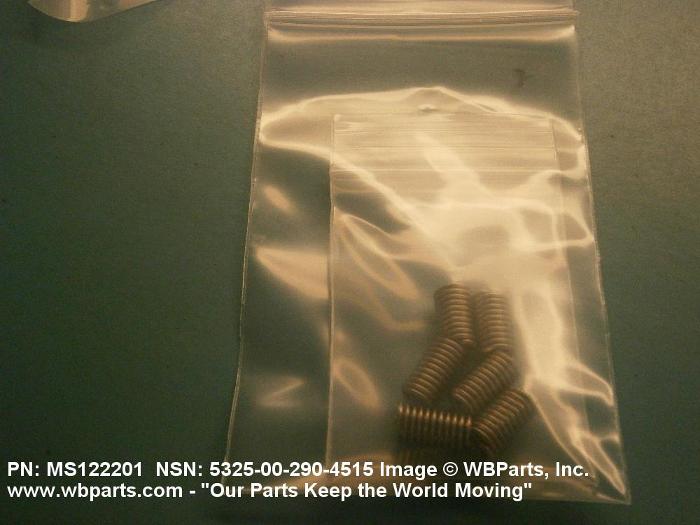

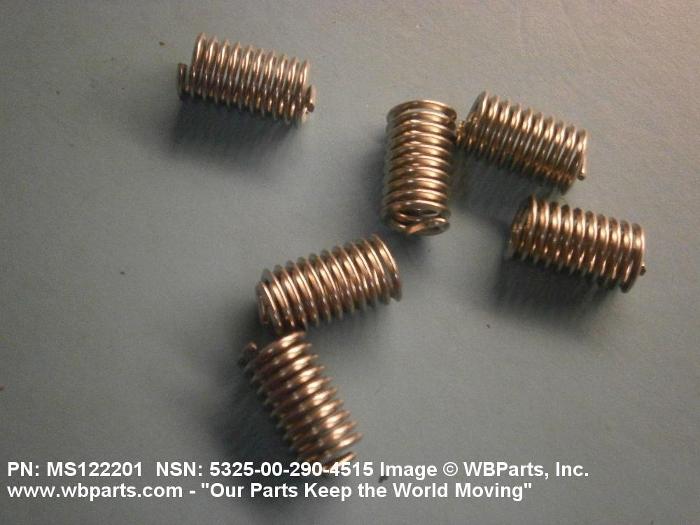

Drawings & Photos | NSN 5325-00-290-4515
Demand History | NSN 5325-00-290-4515
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS122201 | 2024-05-145 | 10 | United States |
| MS122201 | 2022-04-94 | 850 | Turkey |
| 5325-00-290-4515 | 2013-03-65 | 14868 | DIBBS |
| 5325-00-290-4515 | 2012-11-310 | 681 | DIBBS |
| 5325-00-290-4515 | 2012-09-271 | 684 | DIBBS |
| 5325-00-290-4515 | 2012-06-163 | 6 | United States |
| 5325-00-290-4515 | 2012-06-160 | 6 | United States |
| 5325-00-290-4515 | 2012-05-124 | 5 | United States |
| MS122201 | 2011-02-41 | 5 | US |
| MS122201 | 2011-01-13 | 17 | US |
| MS122201 | 2010-11-334 | 20 | US |
| MS122201 | 2008-08-217 | 26 | United States |
Cross Reference | NSN 5325-00-290-4515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1185-4CN0625 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1185-4CN625 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1185-4CNX5-8 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 208C4-0625 | 12360 | ALBANY FASTENERS PAWTUCKET FASTENERS DIV |
| 2650-3375GP1 ITEM 13,17 | 51802 | HANSOME ENERGY SYSTEMS INC |
| 2650-3375GP1 ITEM 13,17 | 95402 | ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC |
| 43460-741 | 14028 | SYPRIS ELECTRONICS, LLC |
| MS122201 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
