NSN 5325-00-290-4518 MS122123, MS21208C615, MS21208C6-15

Product Details | SCREW THREAD INSERT

5325-00-290-4518 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS122123, MS21208C615, MS21208C6-15, D305308 FIND NO 80, D305308FINDNO80, D320448 FIND NO 89, D320448FINDNO89, 492050-201, 11856CN0562, 1185-6CN0562, 11856CN562, 1185-6CN562, 208C50625, 208C5-0625 , 208C60562, 208C6-0562, 243235C2, 24323-5C2 , 26503375GP1ITEM212, 364MT006P015, 452672 , 452692, 53402904520 , 610526, 61-0526, 6500444950, 6500-444950 , 6761319, 69991520C, 69991-5-20C , 7374505, 7627352, 8227491, 822749-1, 84839 , 85177500, 851775-00, 91120357, 91122299, 5325-00-290-4518, 00-290-4518, 5325002904518, 5340002904518 , 5340002904520, 002904518, 492050201

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-290-4518	11444 ( INSERT, SCREW THREAD )

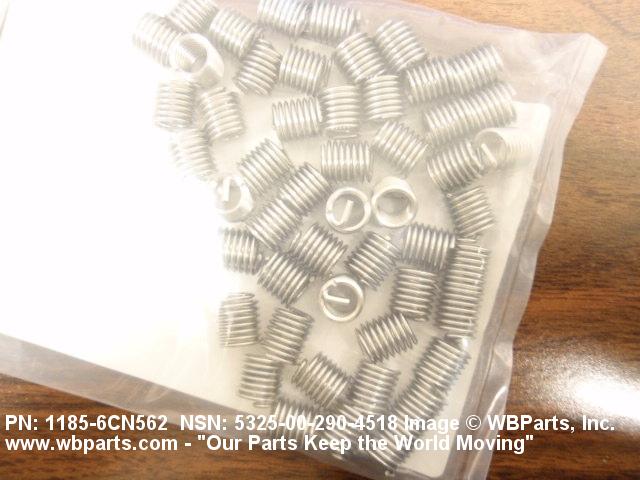

Drawings & Photos | NSN 5325-00-290-4518

Part Number	Request Date	QTY	Origin
452692	2024-09-249	1	JP
452692	2024-08-236	1	JP
5325-00-290-4518	2023-11-333	3035	DIBBS
MS122123	2023-11-332	150	India
MS122123	2023-11-310	4	United States
452692	2023-05-123	1	US
452692	2022-11-314	2	US
452692	2022-03-76	1	PT
MS122123	2021-05-146	10	US
12	2020-03-84	0	United States
MS122123	2019-10-288	10	United States
MS122123	2019-04-91	4	India
MS122123	2018-11-310	682	Israel
5325-00-290-4518	2018-11-305	3419	DIBBS
MS122123	2017-07-206	1	India
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
MS122123	2017-06-165	1	Australia
5325-00-290-4518	2015-12-364	5103	DIBBS
452692	2015-06-167	1	US
452692	2015-06-160	2	CA
MS122123	2015-05-140	500	US
452692	2015-05-127	1	US
MS122123	2015-04-99	15	US
452692	2013-11-330	1	US
MS122123	2013-08-220	4	India
MS122123	2012-11-335	14	United States
5325-00-290-4518	2011-10-283	2	United States
MS122123	2011-06-158	75	US
5325-00-290-4518	2011-03-61	2	DE
11856CN562	2010-10-281	50	Poland
5325-00-290-4518	2009-06-167	30	US
5325-00-290-4518	2008-10-277	7152	DIBBS
5325-00-290-4518	2008-09-270	30	US
MS122123	2008-09-260	40	US
MS122123	2008-07-199	550	United States
MS122123	2008-07-185	3000	Canada
5325-00-290-4518	2008-04-114	10252	DIBBS

Cross Reference | NSN 5325-00-290-4518

Part Number	Cage Code	Manufacturer
1185-6CN0562	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1185-6CN562	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
208C6-0562	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
452692	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
452692	24617	GENERAL MOTORS CORP
492050-201	30086	SPD ELECTRICAL SYSTEMS, INC
5340002904518	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
61-0526	42280	NASH ENGINEERING COMPANY INC THE
6761319	24617	GENERAL MOTORS CORP
6761319	73342	ALLISON TRANSMISSION, INC.
7374505	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
7627352	19200	US ARMY ARDEC RDECOM
822749-1	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
851775-00	32345	DEFENSE REDUCTION AGENCY
91120357	82796	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
91122299	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
D305308 FIND NO 80	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
D320448 FIND NO 89	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
MS122123	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS122123	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21208C6-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-290-4518

Compare

Related Products | NSN 5325-00-290-4518

5325-00-290-4519, 5325-00-290-4520, 5325-00-290-4521, 5325-00-290-4550, 5325-00-290-4652

Technical Data | NSN 5325-00-290-4518

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 7245 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	H1 COIL
LENGTH	0.562 INCHES NOMINAL
INSERT SIZE	0.452 IN.MIN,0.472 IN.MAX
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	16
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS122123

Restrictions/Controls & Freight Information | NSN 5325-00-290-4518

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-290-4518

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
