NSN 5325-00-290-4521 MS122122, MS122142, MS21208C515
Product Details | SCREW THREAD INSERT
5325-00-290-4521 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS122122, MS122142, MS21208C515, MS21208C5-15, 86573, 106A902555, 11855CN0469, 1185-5CN0469, 11855CN469, 1185-5CN469, 11855CNX1532, 1185-5CNX15-32, 1736525392, 1736525-392, 208C50469, 208C5-0469, 35702, 530D2, 5325-00-290-4521, 00-290-4521, 5325002904521, 002904521
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-290-4521 | 11444 ( INSERT, SCREW THREAD ) |

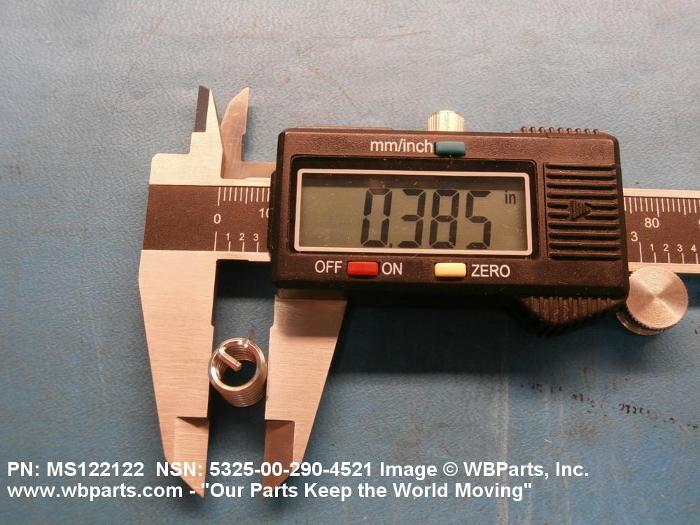

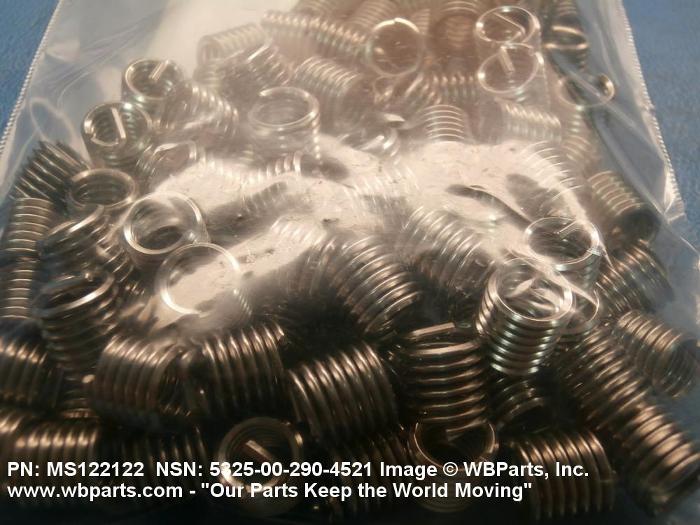

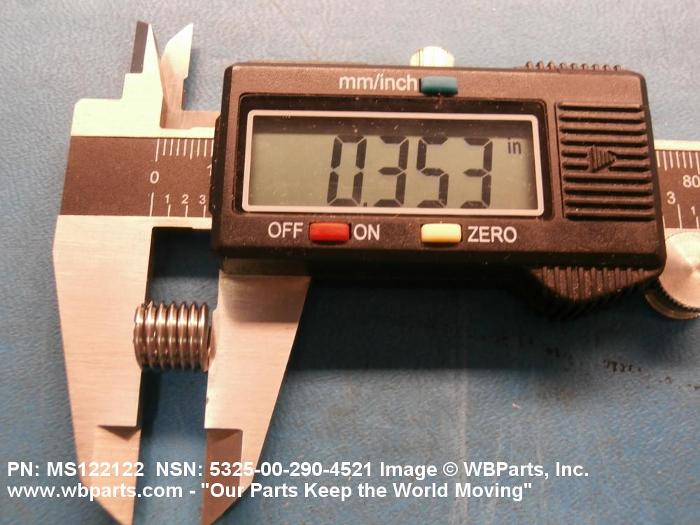

Drawings & Photos | NSN 5325-00-290-4521
Demand History | NSN 5325-00-290-4521
