NSN 5325-00-290-4520 MS122162, MS122182, MS21208C520
Product Details | SCREW THREAD INSERT
5325-00-290-4520 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS122162, MS122182, MS21208C520, MS21208C5-20, MS2122162, H431813523, H4318135-23, 6500444950, 6500-444950, 69991520C, 69991-5-20C, 84839, 9053624, 0713196, 0713-196, 11855CN0625, 1185-5CN0625, 11855CN625, 1185-5CN625, 11855CNX58, 1185-5CNX5-8, 11855CNX625, 1185-5CNX625, 11855CX58, 1185-5CX5-8, 206873, 208C50625, 208C5-0625, 243235C2, 24323-5C2, 26503375GP1ITEM212, 364MT006P015, 452672, 5325-00-290-4520, 00-290-4520, 5325002904520, 002904520
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-290-4520 | 11444 ( INSERT, SCREW THREAD ) |

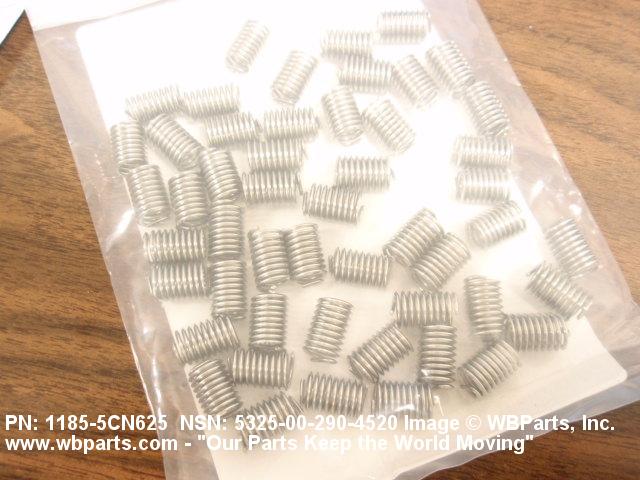

Drawings & Photos | NSN 5325-00-290-4520
Demand History | NSN 5325-00-290-4520
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12 | 2020-03-84 | 0 | United States |
| 5325-00-290-4520 | 2019-07-205 | 5000 | DIBBS |
| 5325-00-290-4520 | 2018-09-259 | 3049 | DIBBS |
| 5325-00-290-4520 | 2018-07-210 | 2118 | DIBBS |
| MS122162 | 2018-04-100 | 12 | |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| MS122162 | 2017-06-165 | 1 | Australia |
| 5325-00-290-4520 | 2014-12-343 | 4167 | DIBBS |
| 5325-00-290-4520 | 2012-12-352 | 2893 | DIBBS |
| MS122162 | 2012-11-335 | 6 | United States |
| MS122162 | 2012-11-318 | 40 | US |
| MS122162 | 2011-01-17 | 50 | India |
| 11855CN625 | 2010-10-281 | 50 | Poland |
| MS122162 | 2010-07-195 | 100 | Australia |
| 11855CN0625 | 2009-05-147 | 8 | US |
| MS122162 | 2008-09-255 | 700 | US |
Cross Reference | NSN 5325-00-290-4520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0713-196 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 0713-196 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 1185-5CN0625 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1185-5CN625 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1185-5CNX5-8 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1185-5CNX625 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1185-5CX5-8 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 206873 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 206873 | 16004 | DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC |
| 206873 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| 208C5-0625 | 12360 | ALBANY FASTENERS PAWTUCKET FASTENERS DIV |
| 24323-5C2 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| 24323-5C2 | R1120 | SATAIR A/S |
| 2650-3375GP1 ITEM 2,12 | 51802 | HANSOME ENERGY SYSTEMS INC |
| 364MT006P015 | 05452 | RAYTHEON CO RAYTHEON SYSTEMS CO |
| 364MT006P015 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 452672 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 5340002904520 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 53402904520 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6500-444950 | 00703 | AHRENS FOX CO |
| 69991-5-20C | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 84839 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 9053624 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| H4318135-23 | 94135 | NAVAL ORDNANCE STANDARDS |
| MS122162 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS122182 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21208C5-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS2122162 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
