NSN 5307-01-384-6839 CFHC6326, CFHC-632-6, 01-384-6839
Product Details | SELF-LOCKING STUD
5307-01-384-6839 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: CFHC6326, CFHC-632-6, 5307-01-384-6839, 01-384-6839, 5307013846839, 013846839
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1993 | 01-384-6839 | 27783 ( STUD, SELF-LOCKING ) |

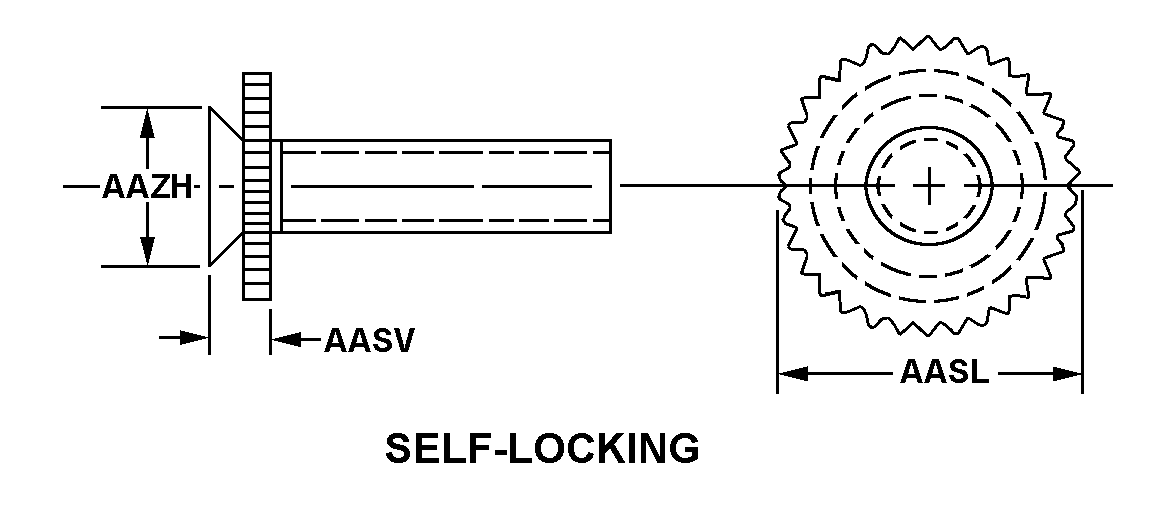

Drawings & Photos | NSN 5307-01-384-6839
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-384-6839
Related Products | NSN 5307-01-384-6839
Technical Data | NSN 5307-01-384-6839
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | 84 SELF-LOCKING |
| HEAD DIAMETER | 0.318 INCHES MINIMUM AND 0.338 INCHES MAXIMUM |
| HEAD LENGTH | 0.075 INCHES MAXIMUM |
| HEAD MINOR DIAMETER | 0.212 INCHES MAXIMUM |
| OVERALL LENGTH | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.138 INCHES STUD THREAD |
| THREAD CLASS | 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 32 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.313 INCHES MAXIMUM STUD THREAD |
| LOCKING FEATURE | HEAD SERRATIONS |
Restrictions/Controls & Freight Information | NSN 5307-01-384-6839
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
