NSN 5307-01-327-6208 23039007-2, 01-327-6208, 230390072

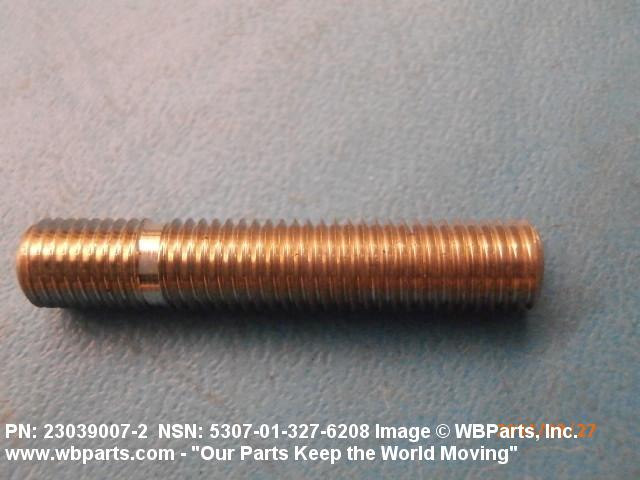

Product Details | SELF-LOCKING STUD
5307-01-327-6208 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: 23039007-2, 5307-01-327-6208, 01-327-6208, 5307013276208, 230390072, 013276208
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 OCT 1990 | 01-327-6208 | 27783 ( STUD, SELF-LOCKING ) |

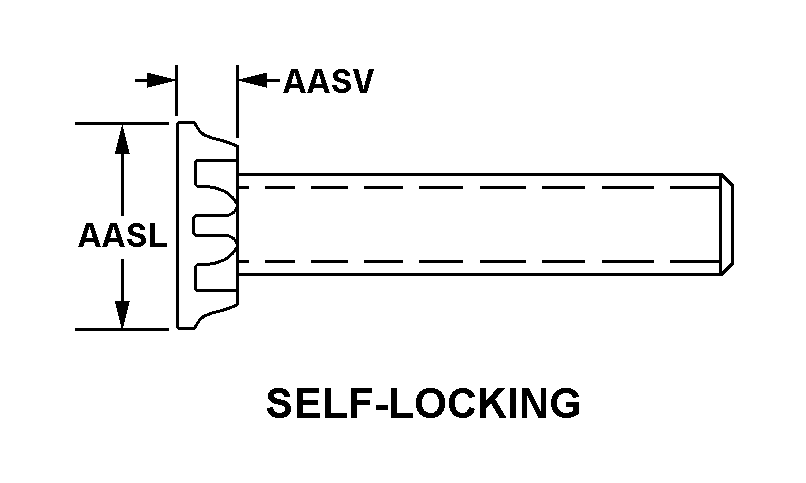

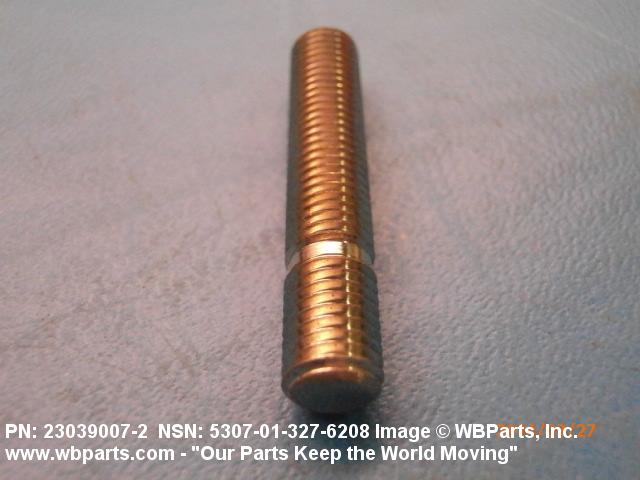

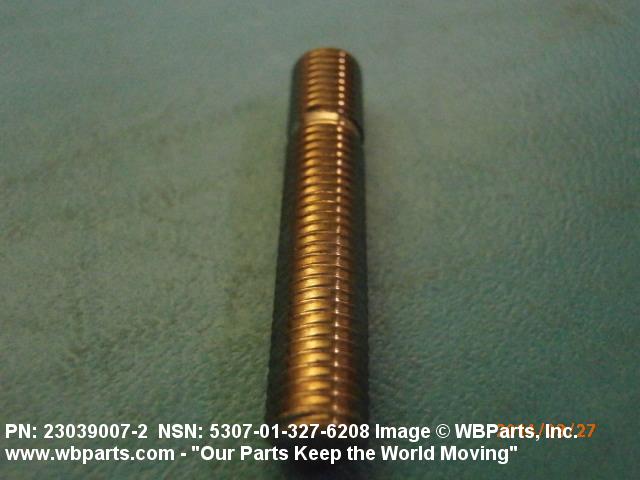

Drawings & Photos | NSN 5307-01-327-6208
Demand History | NSN 5307-01-327-6208
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23039007-2 | 2019-09-252 | 20 | DIBBS |
| 23039007-2 | 2019-07-191 | 20 | DIBBS |
| 230390072 | 2014-03-72 | 1 | United States |
| 230390072 | 2014-03-71 | 1 | United States |
Cross Reference | NSN 5307-01-327-6208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23039007-2 | 63005 | ROLLS-ROYCE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-327-6208
Related Products | NSN 5307-01-327-6208
Technical Data | NSN 5307-01-327-6208
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 CRES ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 80 SELF-LOCKING |

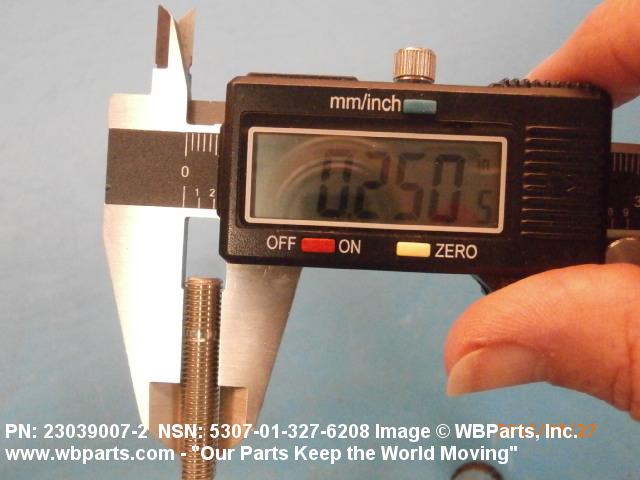

| HEAD DIAMETER | 0.209 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| HEAD LENGTH | 0.280 INCHES NOMINAL |

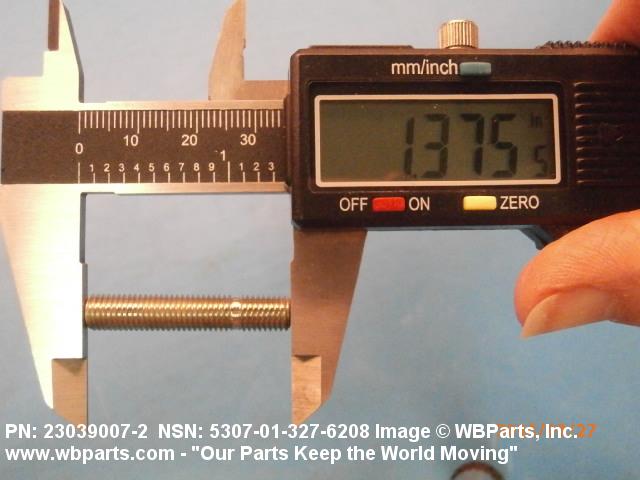

| OVERALL LENGTH | 1.370 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.370 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | SELF-CLINCHING HEAD |
| III END ITEM IDENTIFICATION | ENGINE MODEL T56 |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 23039007-2 |
Restrictions/Controls & Freight Information | NSN 5307-01-327-6208
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
