NSN 5307-00-435-2094 FHS03212, FHS-032-12, FHS103212

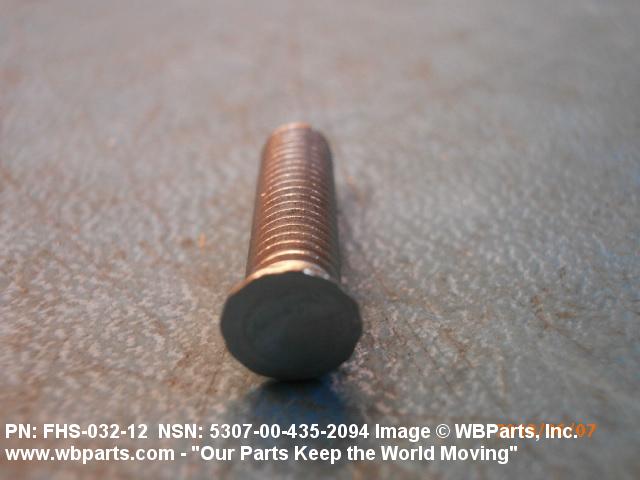

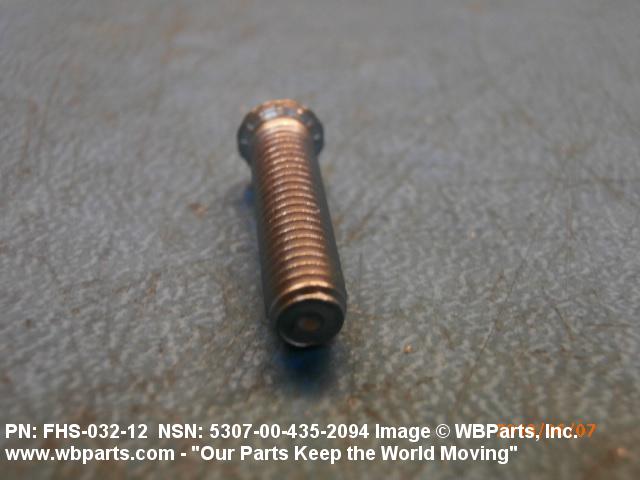

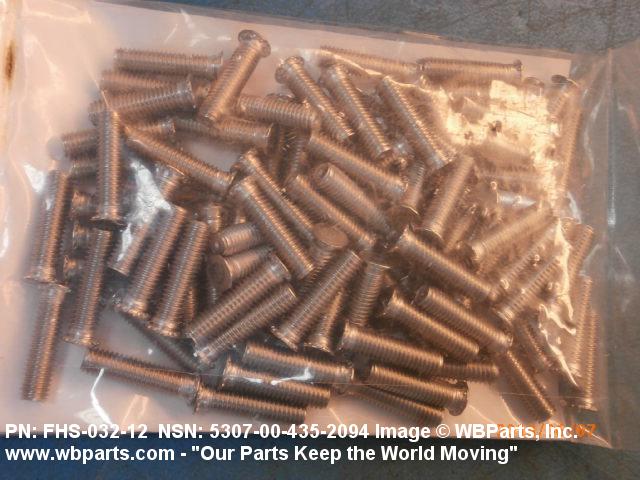

Product Details | SELF-LOCKING STUD

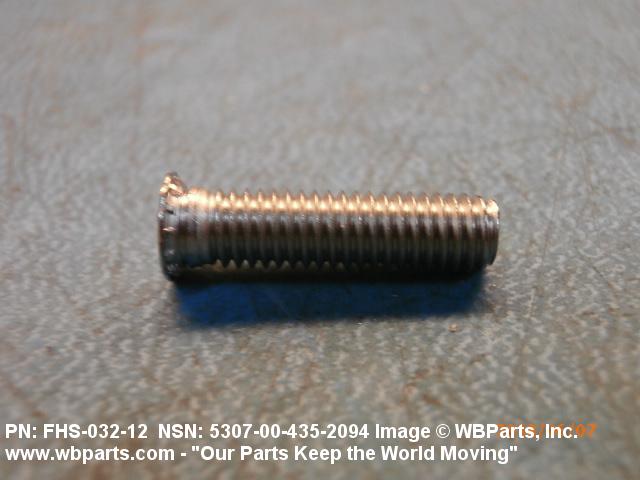

5307-00-435-2094 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: FHS03212, FHS-032-12, FHS103212, FHS-1032-12, R10246P26, 6820109106, 682-010-9106, 11176086-6, 1617000-23, 5307-00-435-2094, 00-435-2094, 5307004352094, 004352094, 111760866, 161700023
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1997 | 00-435-2094 | 27783 ( STUD, SELF-LOCKING ) |
Drawings & Photos | NSN 5307-00-435-2094
Demand History | NSN 5307-00-435-2094
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FHS03212 | 2019-02-52 | 48 | United States |
| FHS03212 | 2018-06-156 | 1 | United States |
| R10246P26 | 2010-06-154 | 50 | US |
| 5307-00-435-2094 | 2010-03-67 | 6000 | DIBBS |
| 5307-00-435-2094 | 2010-02-56 | 12000 | DIBBS |
| 5307-00-435-2094 | 2009-10-285 | 660 | US |
| 5307-00-435-2094 | 2008-10-304 | 100 | US |
| 5307-00-435-2094 | 2008-08-228 | 50 | DIBBS |
| 5307-00-435-2094 | 2008-07-210 | 25 | DIBBS |
| 5307-00-435-2094 | 2008-07-210 | 100 | DIBBS |
| FHS03212 | 2008-06-162 | 60 | Canada |
| 5307-00-435-2094 | 2008-04-92 | 5 | Greece |
Cross Reference | NSN 5307-00-435-2094
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11176086-6 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 1617000-23 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 682-010-9106 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| FHS-032-12 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| FHS-1032-12 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| R10246P26 | 16331 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-435-2094
Related Products | NSN 5307-00-435-2094
Technical Data | NSN 5307-00-435-2094
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 305 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 80 SELF-LOCKING |

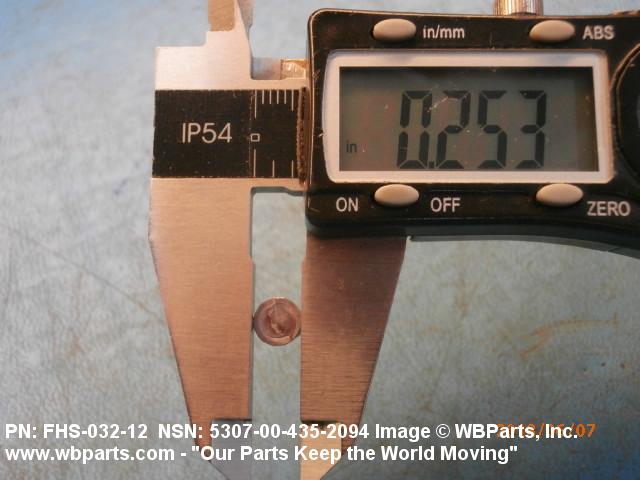

| HEAD DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |

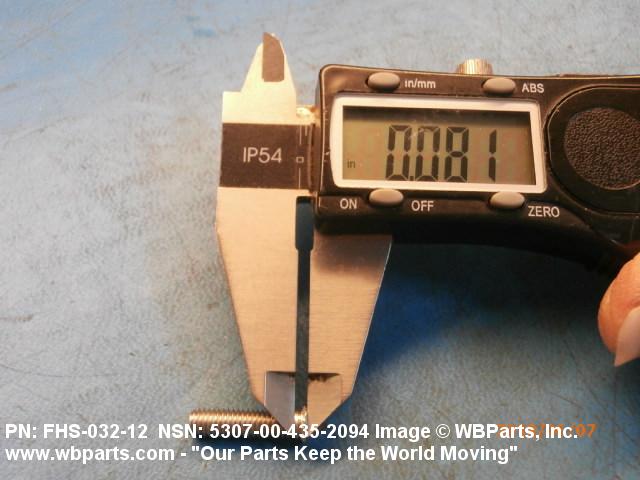

| HEAD LENGTH | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

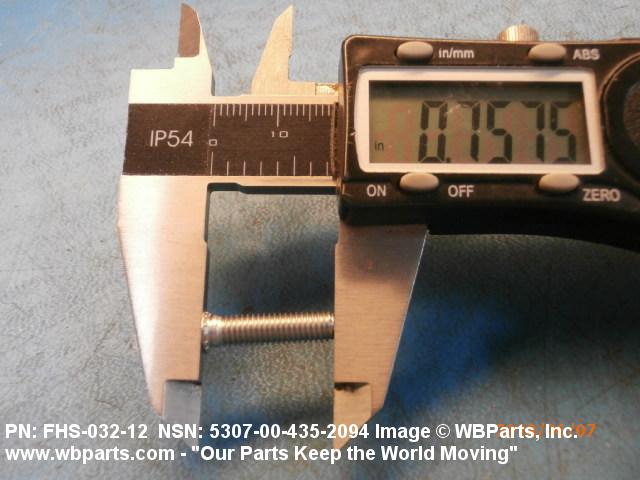

| OVERALL LENGTH | 0.734 INCHES MINIMUM AND 0.766 INCHES MAXIMUM |

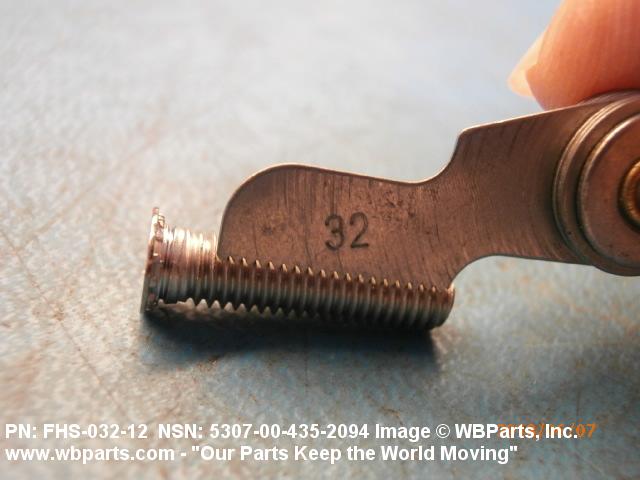

| THREAD SERIES DESIGNATOR | UNF NUT THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |

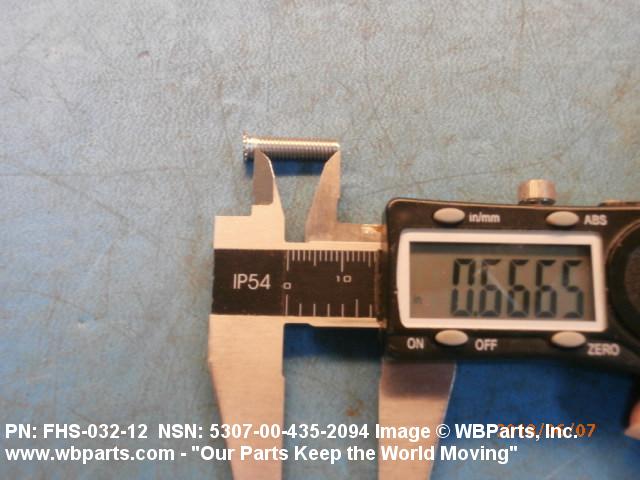

| THREAD LENGTH | 0.654 INCHES MINIMUM AND 0.686 INCHES MAXIMUM NUT THREAD |

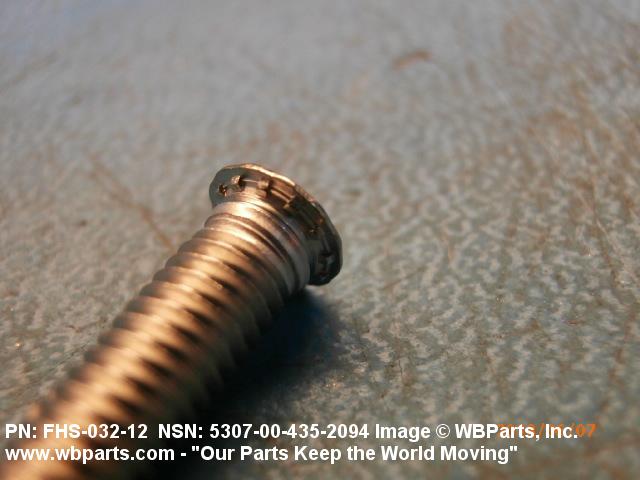

| LOCKING FEATURE | SELF-CLINCHING HEAD |
