NSN 5307-00-043-1972 CHS103216, CHS-1032-16, FHS03216
Product Details | SELF-LOCKING STUD
5307-00-043-1972 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: CHS103216, CHS-1032-16, FHS03216, FHS-032-16, KTS103216, KTS-1032-16, 610015P21, 6820109108, 682-010-9108, 12707752-2, 16600755077, 16600755-077, 41927927, 419279-27, 5307-00-043-1972, 00-043-1972, 5307000431972, 127077522, 000431972
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAY 1967 | 00-043-1972 | 27783 ( STUD, SELF-LOCKING ) |

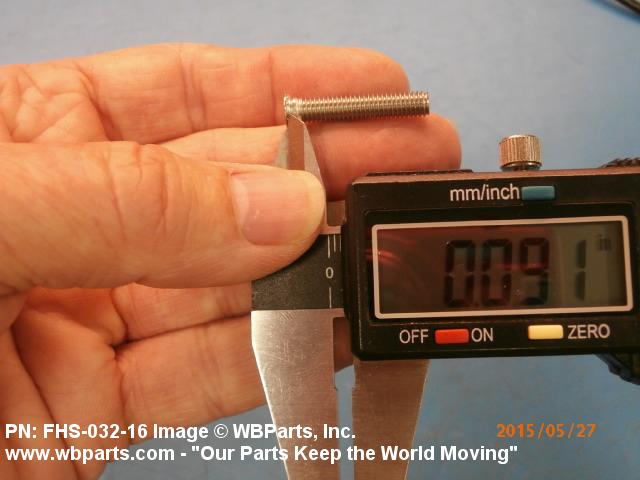

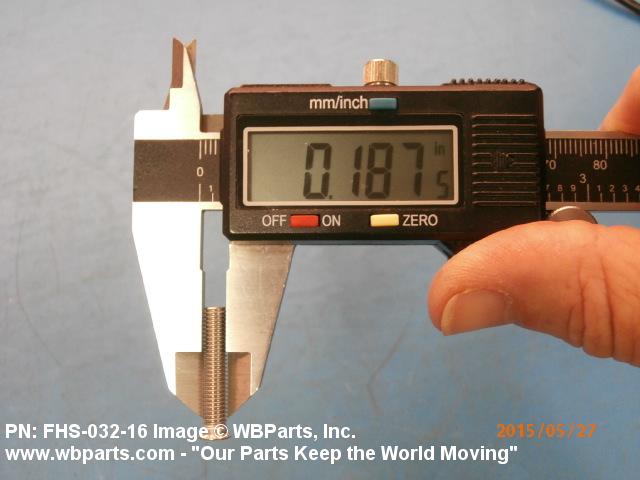

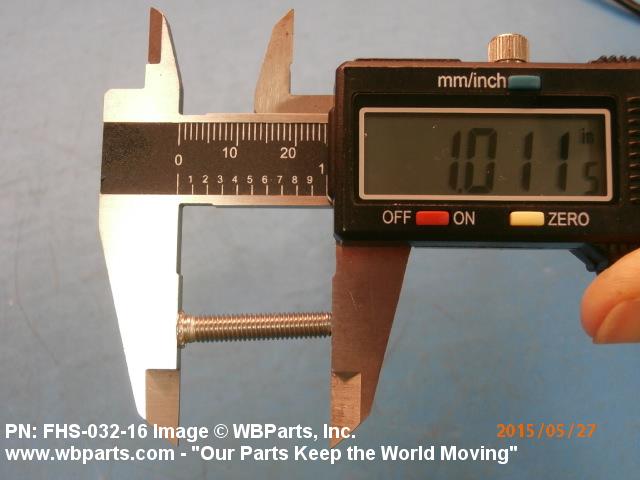

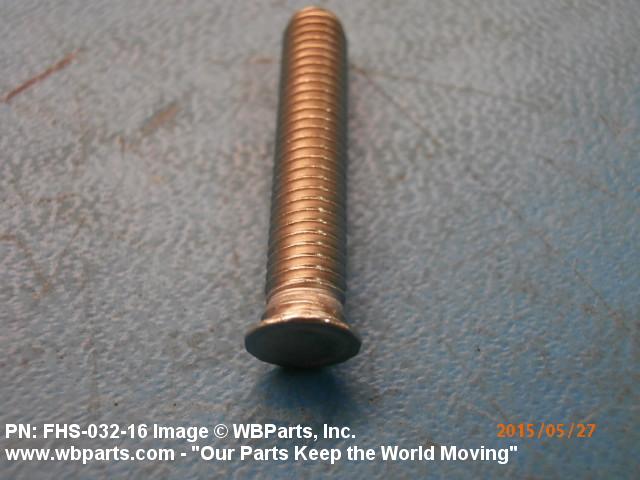

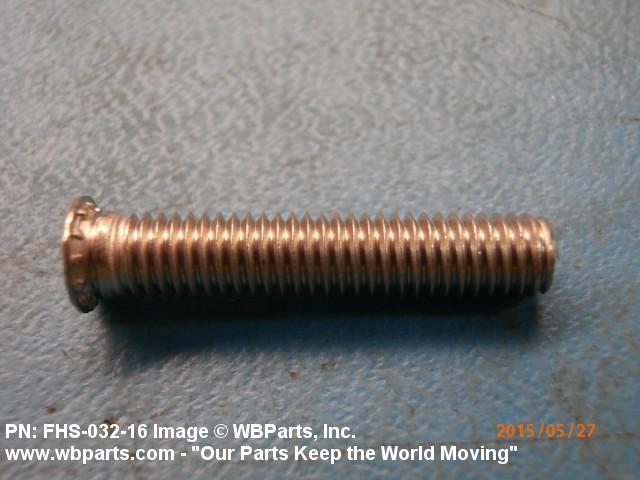

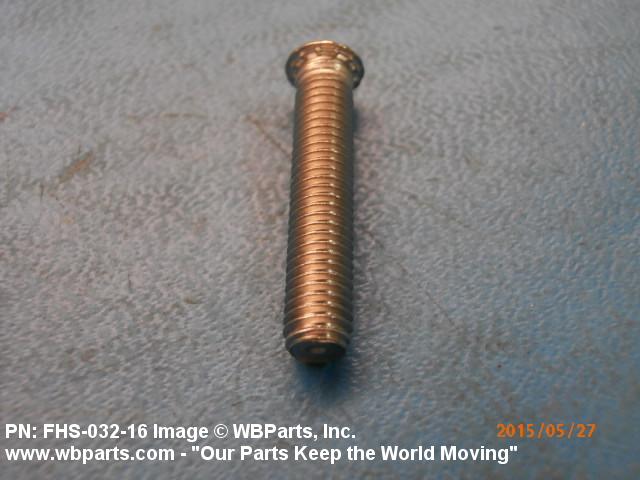

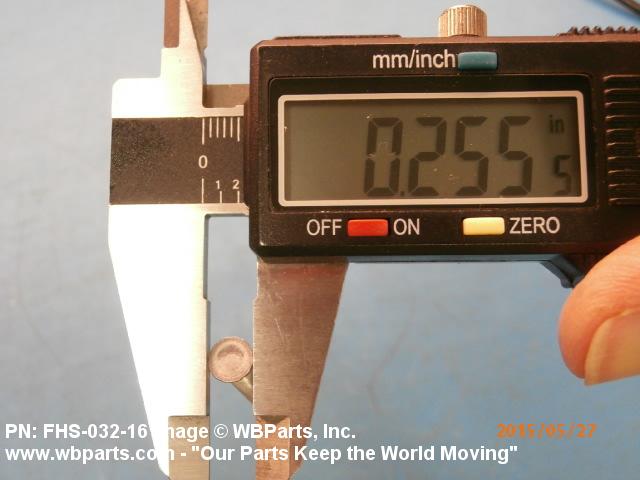

Drawings & Photos | NSN 5307-00-043-1972
Demand History | NSN 5307-00-043-1972
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FHS03216 | 2015-05-141 | 100 | United States |
| FHS03216 | 2014-09-259 | 4 | United States |
| 5307-00-043-1972 | 2008-10-304 | 200 | US |
Cross Reference | NSN 5307-00-043-1972
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12707752-2 | 19200 | US ARMY ARDEC RDECOM |
| 16600755-077 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
| 419279-27 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 610015P21 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 682-010-9108 | 72010 | CLENDENIN BROS INC |
| CHS-1032-16 | 56987 | CAPTIVE FASTENERS CORP |
| FHS-032-16 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| KTS-1032-16 | 71724 | JOHN CRANE INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-043-1972
Technical Data | NSN 5307-00-043-1972
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 305 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 80 SELF-LOCKING |
| HEAD DIAMETER | 0.266 INCHES NOMINAL |
| HEAD LENGTH | 0.035 INCHES NOMINAL |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.965 INCHES MINIMUM NUT THREAD |
| LOCKING FEATURE | HEAD DISTORTIONS |
| MANUFACTURERS CODE | 46384 |
| DESIGN CONTROL REFERENCE | FHS-032-16 |
Restrictions/Controls & Freight Information | NSN 5307-00-043-1972
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5307-00-043-1972
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
