NSN 5307-01-327-9153 MS5186410216, MS51864-102-16, 01-327-9153

Product Details | PLAIN STUD

5307-01-327-9153 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD.

Part Alternates: MS5186410216, MS51864-102-16, 5307-01-327-9153, 01-327-9153, 5307013279153, 013279153

Hardware and Abrasives | Studs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	24 OCT 1990	01-327-9153	15948 ( STUD, PLAIN )

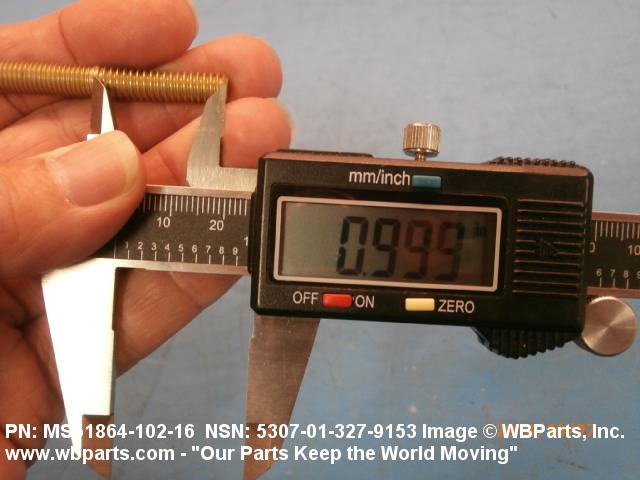

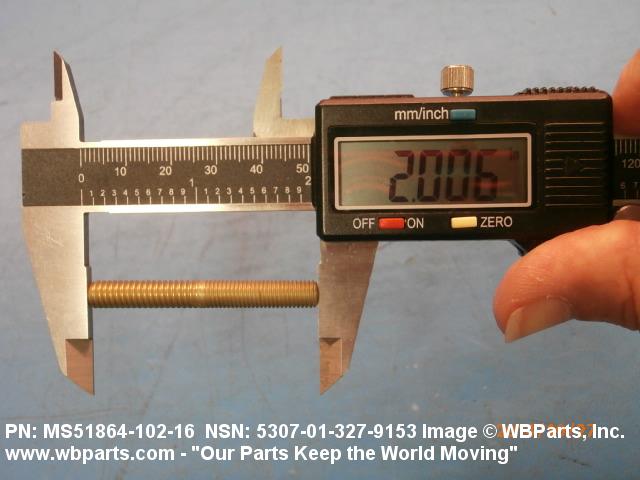

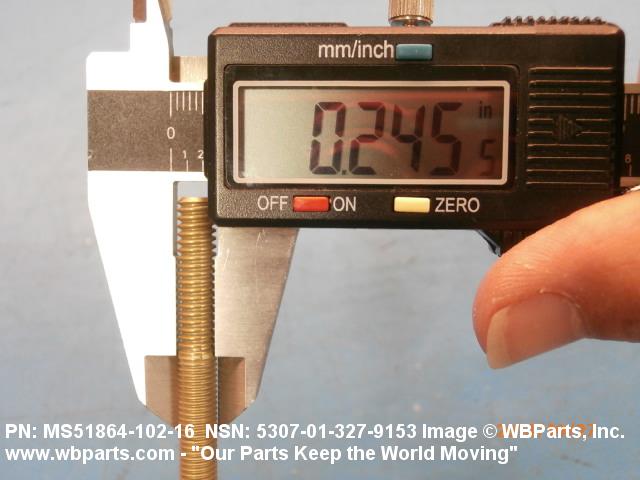

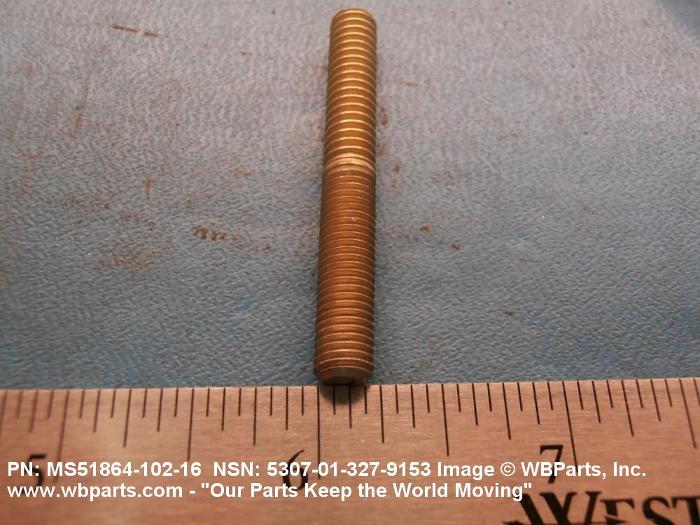

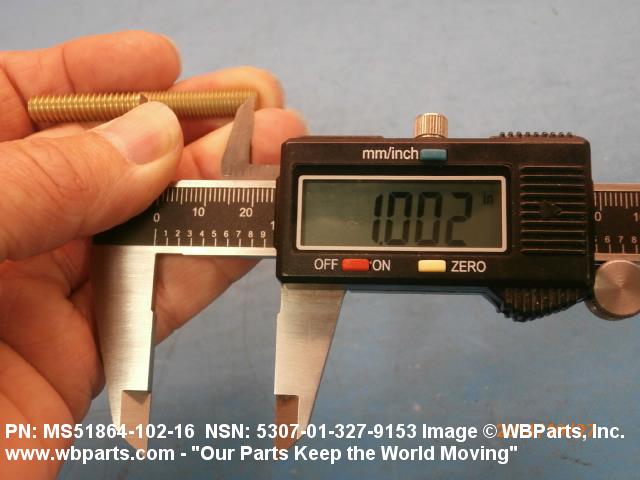

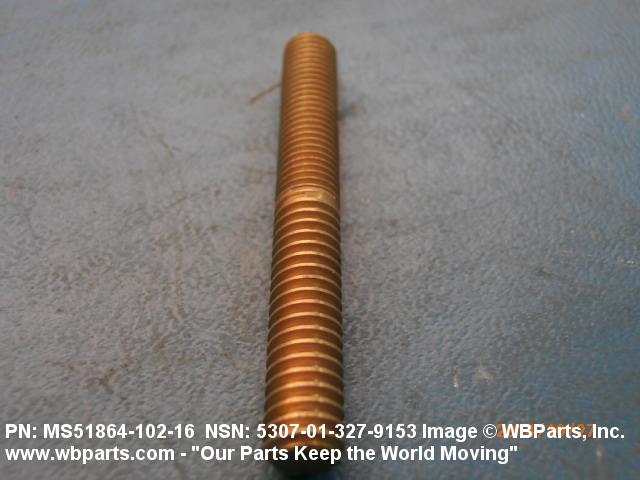

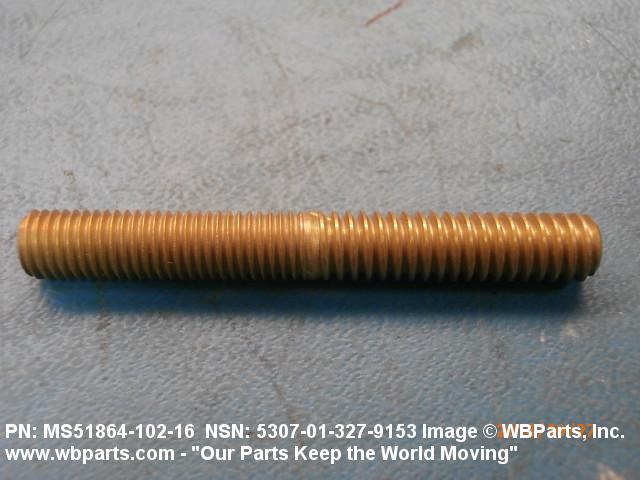

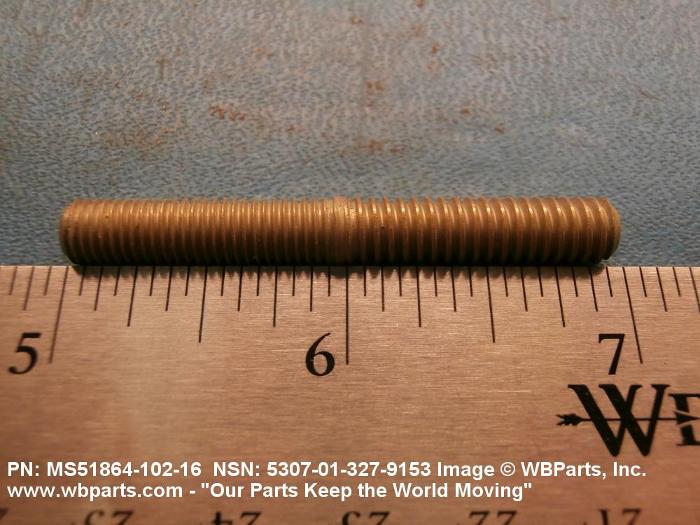

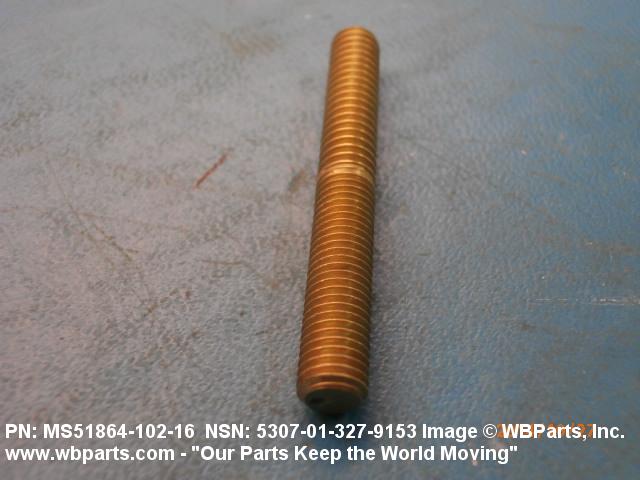

Drawings & Photos | NSN 5307-01-327-9153

Part Number	Request Date	QTY	Origin
MS5186410216	2023-06-08	50	United States
MS5186410216	2023-06-08	100	United States
5307-01-327-9153	2023-05-16	100	United States
5307-01-327-9153	2020-06-25	50	United States
5307-01-327-9153	2019-01-08	25	United States
5307-01-327-9153	2015-06-17	1	DIBBS
5307-01-327-9153	2015-02-01	2	DIBBS
MS5186410216	2015-01-05	3	United States
MS5186410216	2015-01-05	6	United States
MS5186410216	2014-11-05	75	United States
MS5186410216	2014-10-10	7	United States
MS5186410216	2014-10-10	6	United States
MS5186410216	2013-03-04	1	us
MS5186410216	2008-04-11	7	US

Cross Reference | NSN 5307-01-327-9153

Part Number	Cage Code	Manufacturer
MS51864-102-16	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS51864-102-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5307-01-327-9153

Compare

Related Products | NSN 5307-01-327-9153

5307-01-327-9604, 5307-01-327-9767, 5307-01-327-9768, 5307-01-328-0346, 5307-01-328-0983

Technical Data | NSN 5307-01-327-9153

Characteristic	Specifications
MATERIAL	STEEL
MATERIAL DOCUMENT AND CLASSIFICATION	FED 66 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
OVERALL LENGTH	2.000 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNF NUT THREAD UNC STUD THREAD
NOMINAL THREAD SIZE	0.250 INCHES NUT THREAD 0.250 INCHES STUD THREAD
THREAD CLASS	2A NUT THREAD 5HF STUD THREAD
THREAD QUANTITY PER INCH	28 NUT THREAD 20 STUD THREAD
THREAD DIRECTION	RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD
THREAD LENGTH	1.000 INCHES NOMINAL NUT THREAD 1.000 INCHES NOMINAL STUD THREAD

Restrictions/Controls & Freight Information | NSN 5307-01-327-9153

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5307-01-327-9153

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
