Product Details | WELDING STUD

5307-01-384-9129 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.

Part Alternates: IHAB187187A, IHAB-187-187A, IHAB187187AL, IHAB-187-187AL, 5307-01-384-9129, 01-384-9129, 5307013849129, 013849129

Hardware and Abrasives | Studs

Supply Group (FSG) NSN Assign. NIIN
53 27 DEC 1993 01-384-9129

Drawings & Photos | NSN 5307-01-384-9129


Demand History | NSN 5307-01-384-9129

Part Number Request Date QTY Origin
5307-01-384-9129 2015-09-20 1 DIBBS
5307-01-384-9129 2010-02-22 1 DIBBS

Cross Reference | NSN 5307-01-384-9129

Part Number Cage Code Manufacturer
IHAB-187-187A 0LJY9 MIDWEST FASTENERS, INC
IHAB-187-187AL 0LJY9 MIDWEST FASTENERS, INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5307-01-384-9129

Technical Data | NSN 5307-01-384-9129

Characteristic Specifications
MATERIAL STEEL
MATERIAL DOCUMENT AND CLASSIFICATION LOW CARBON STEEL, CAGEC 0LJY9 MFR REF SINGLE MATERIAL RESPONSE
SURFACE TREATMENT COPPER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION COPPER PLATING, CAGEC 0LJY9 MFR REF SINGLE TREATMENT RESPONSE OVERALL

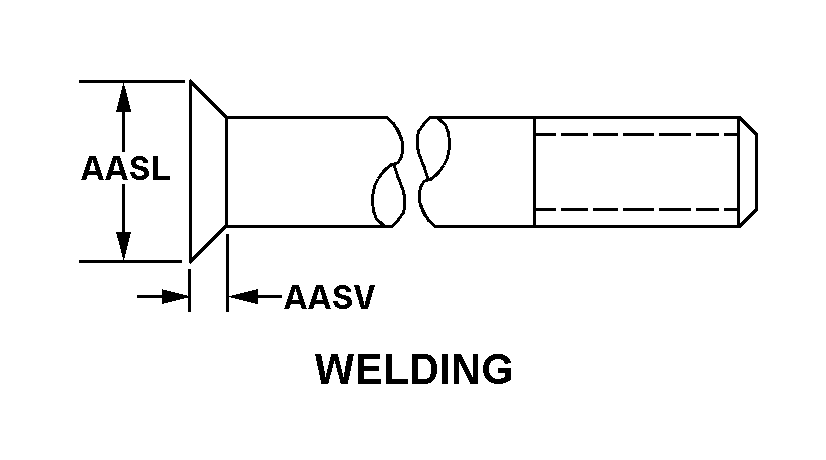

STYLE DESIGNATOR 136 WELDING

Restrictions/Controls & Freight Information | NSN 5307-01-384-9129

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 575 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5307-01-384-9129

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
