NSN 5307-01-294-4362 M24149/3-242, M241493242, MIL-S-24149/3
Product Details | WELDING STUD
5307-01-294-4362 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: M24149/3-242, M241493242, MIL-S-24149/3, MILS241493, 5307-01-294-4362, 01-294-4362, 5307012944362, 012944362
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 FEB 1989 | 01-294-4362 | 16944 ( STUD, WELDING ) |

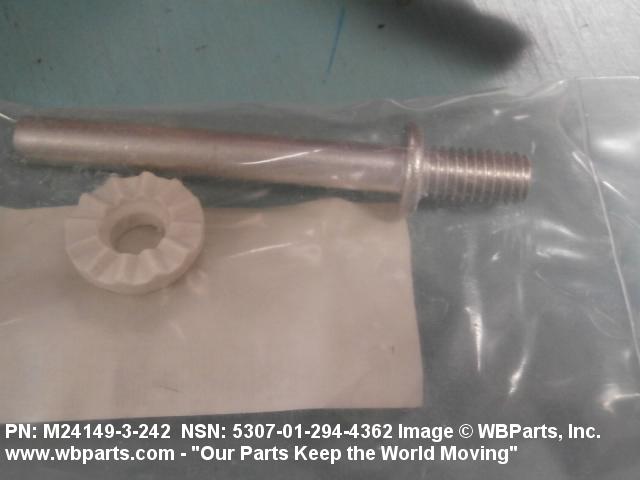

Drawings & Photos | NSN 5307-01-294-4362
Demand History | NSN 5307-01-294-4362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-294-4362 | 2015-07-210 | 73 | DIBBS |
| M241493242 | 2014-01-07 | 30 | United States |
| M241493242 | 2011-01-18 | 100 | United States |
| MILS241493 | 2010-12-340 | 24 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-294-4362
Technical Data | NSN 5307-01-294-4362
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 |
| STYLE DESIGNATOR | 142 WELDING |

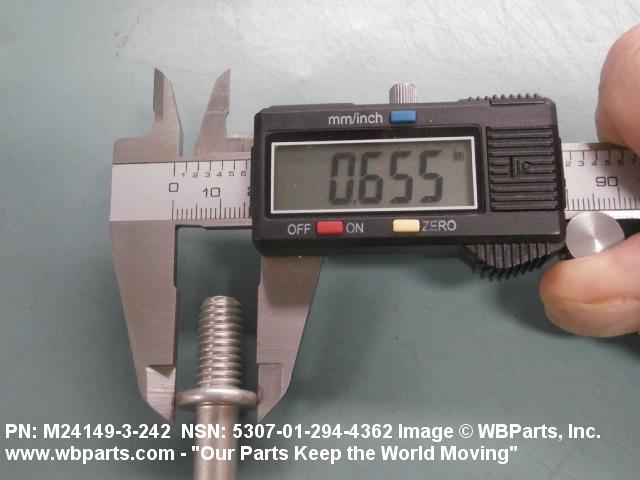

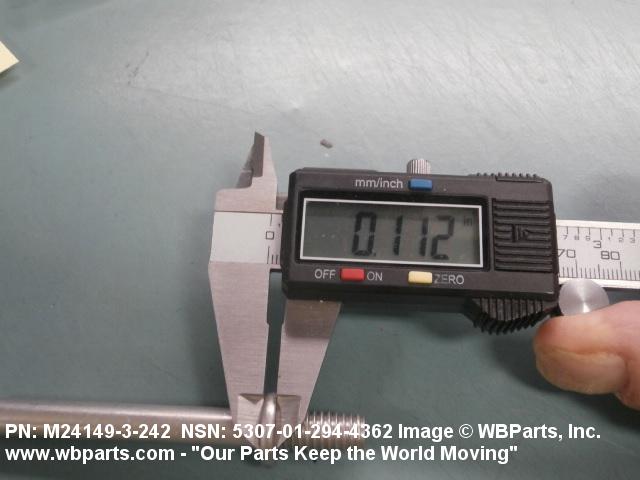

| SHOULDER DIAMETER | 0.625 INCHES MINIMUM AND 0.687 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.093 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |

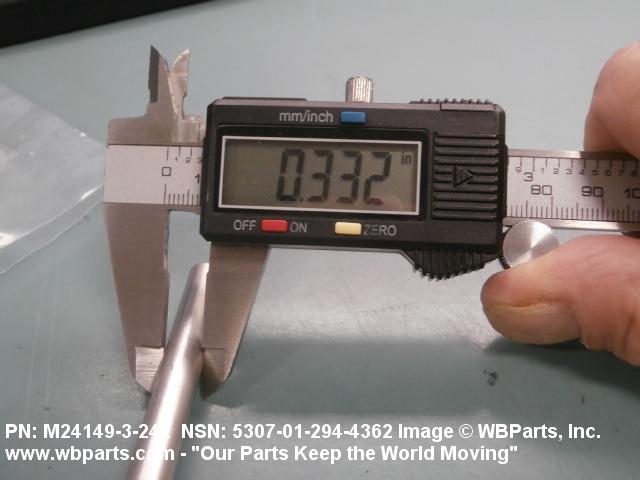

| UNTHREADED END DIAMETER | 0.325 INCHES MINIMUM AND 0.335 INCHES MAXIMUM |

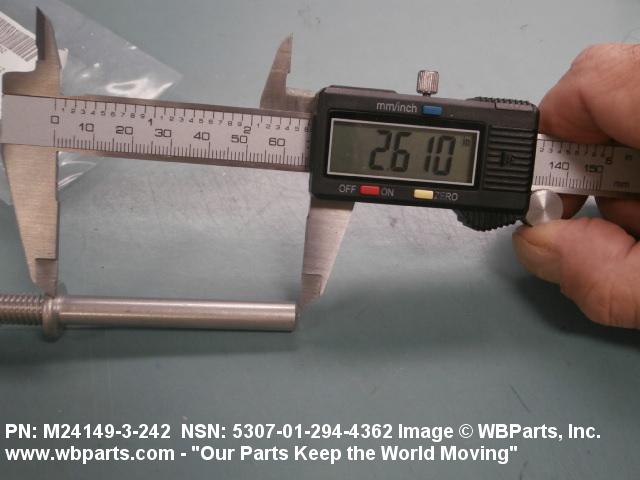

| UNTHREADED END LENGTH | 2.579 INCHES MINIMUM AND 2.703 INCHES MAXIMUM |

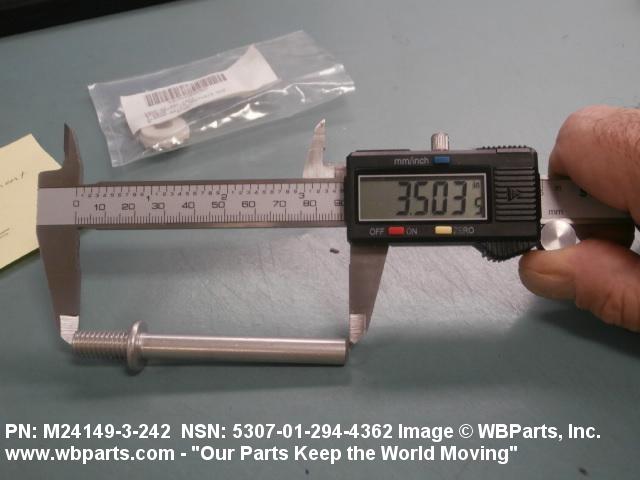

| LENGTH EXCLUDING FLUXED WELDING TIP | 3.469 INCHES MINIMUM AND 3.531 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |

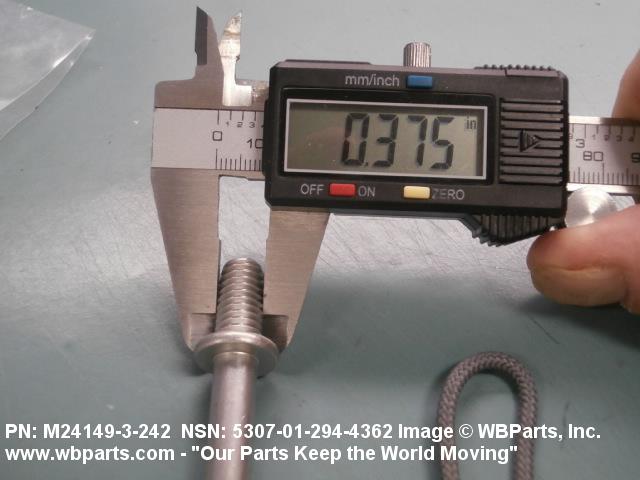

| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 16 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |

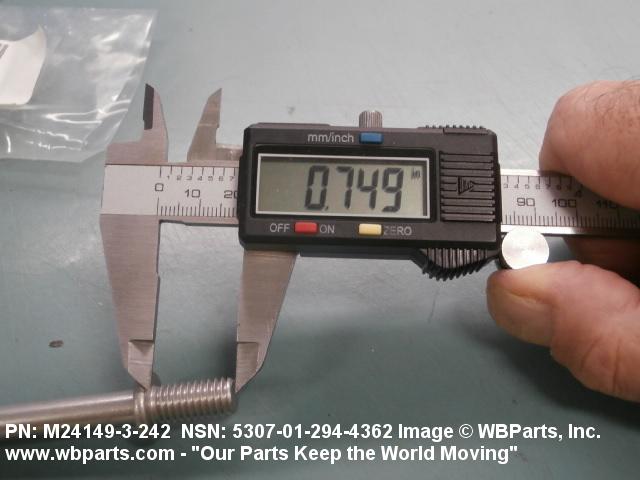

| THREAD LENGTH | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM NUT THREAD |
| FEATURES PROVIDED | HEAT SHIELD |

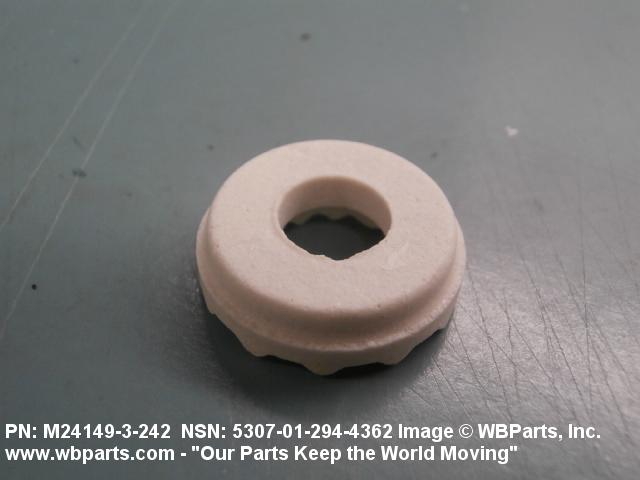

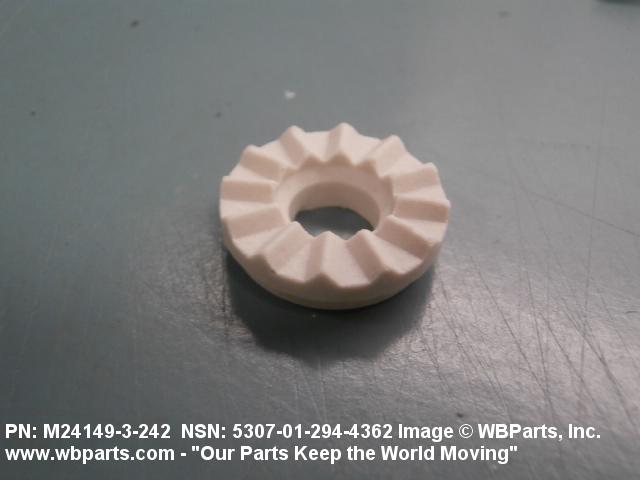

| SPECIAL FEATURES | ARC SHIELD HEAT RESISTANT CERAMIC |
| NONDEFINITIVE SPEC/STD DATA | 5 TYPE AND 4 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24149/3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24149/3-242 |
