Product Details | SHOULDERED STUD
5307-01-378-5664 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: LVK6/21-OP3, LVK6/26 ITEM 4, LVK621OP3, LVK626ITEM4, 5307-01-378-5664, 01-378-5664, 5307013785664, 013785664
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1993 | 01-378-5664 | 15946 ( STUD, SHOULDERED ) |

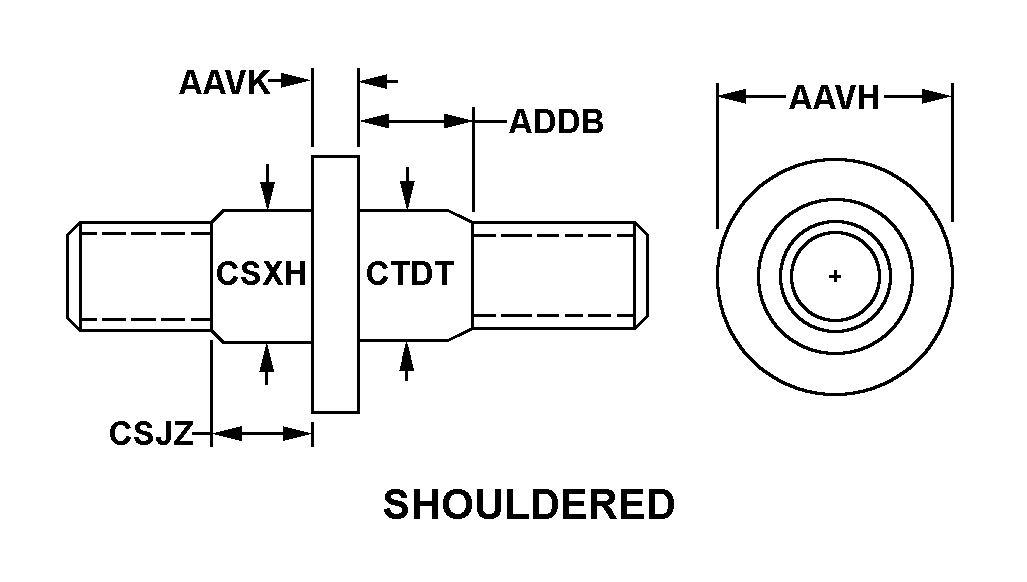

Drawings & Photos | NSN 5307-01-378-5664
