NSN 5307-00-374-1763 P4769, 1020Z1186, 17123E
Product Details | SHOULDERED STUD
5307-00-374-1763 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN.
Part Alternates: P4769, 1020Z1186, 17123E, 17124, 20X59, 20-X-59, 5307-00-374-1763, 00-374-1763, 5307003741763, 003741763
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-374-1763 | 15946 ( STUD, SHOULDERED ) |

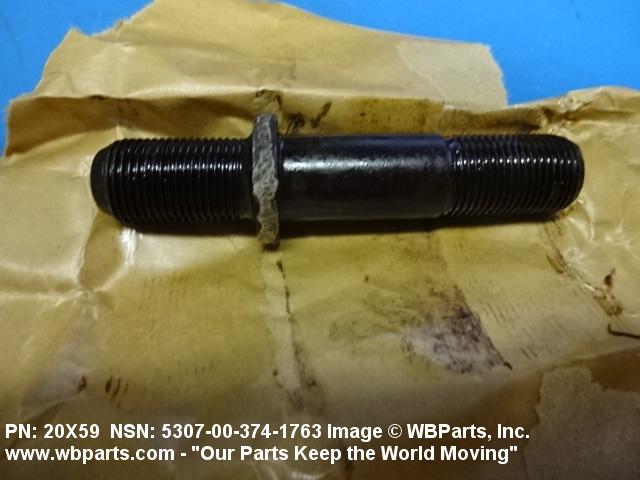

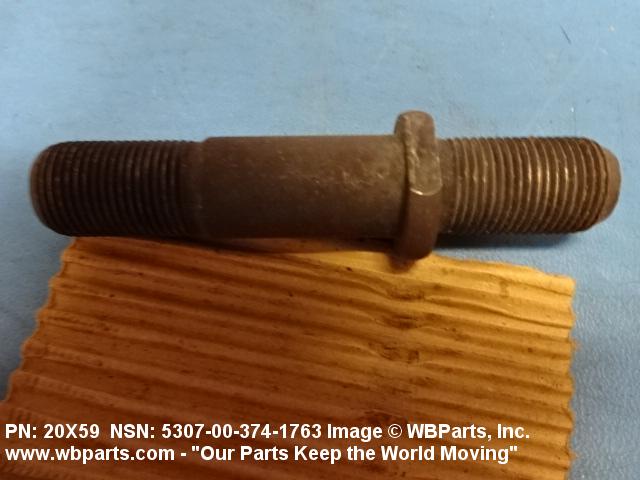

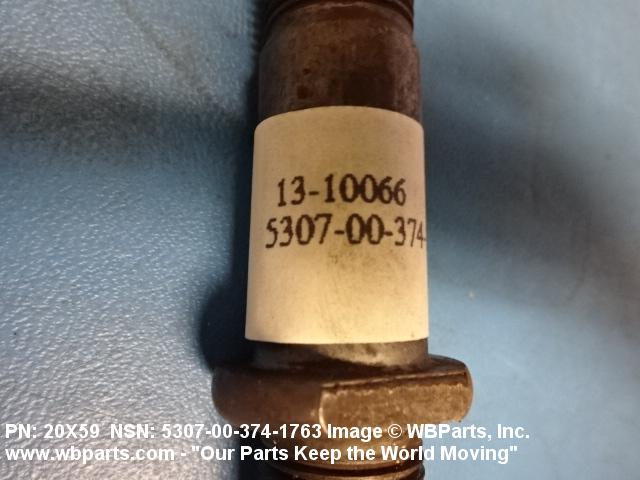

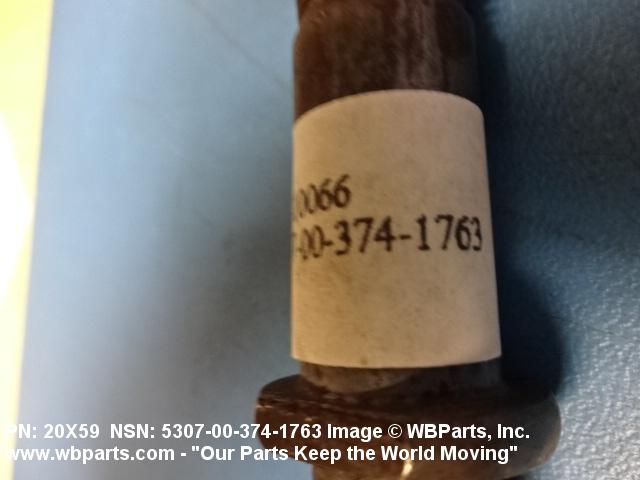

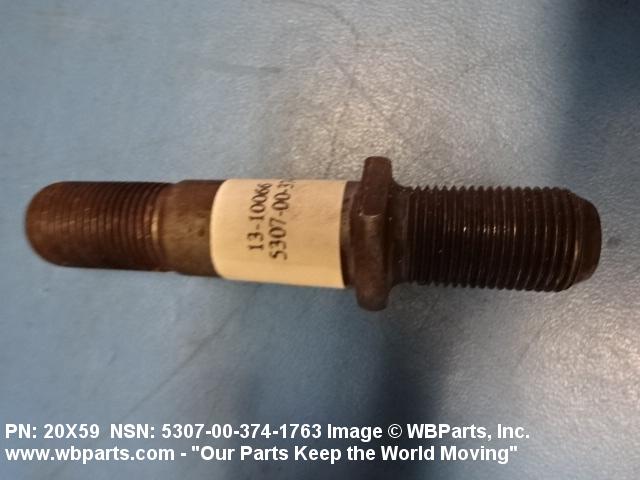

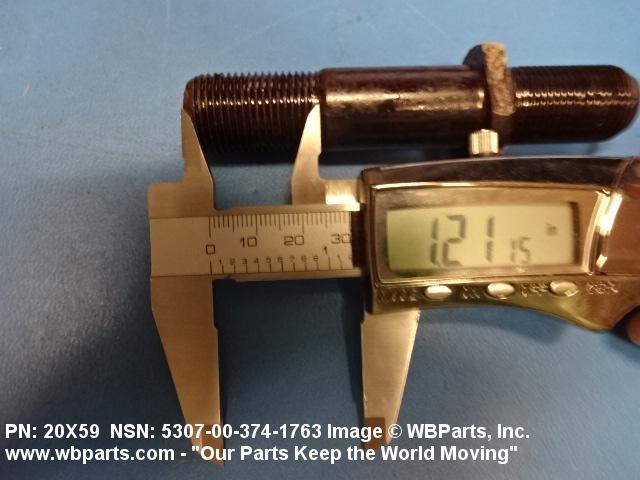

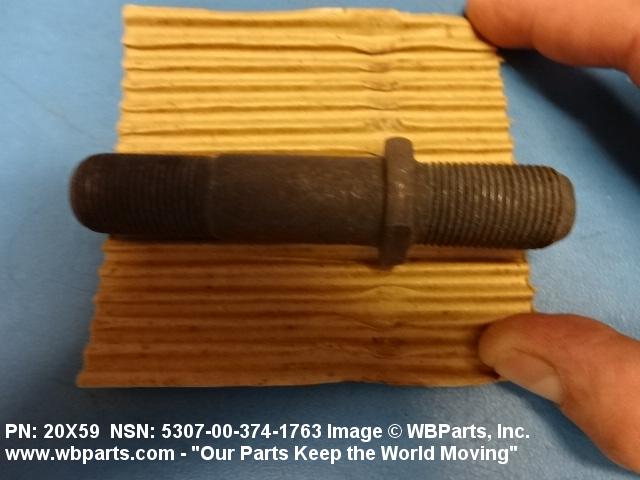

Drawings & Photos | NSN 5307-00-374-1763
Demand History | NSN 5307-00-374-1763
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-374-1763 | 2018-01-08 | 147 | United States |
| 5307-00-374-1763 | 2017-10-299 | 224 | DIBBS |
| 5307-00-374-1763 | 2014-12-335 | 186 | DIBBS |
| 5307-00-374-1763 | 2014-11-322 | 186 | DIBBS |
| 17124 | 2006-07-190 | 1 | China |
Cross Reference | NSN 5307-00-374-1763
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1020Z1186 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 17123E | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 17124 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 20-X-59 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 20X59 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| P4769 | 59690 | KOEHRING CO LORAIN DIV |
| P4769 | 8E499 | KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-374-1763
Related Products | NSN 5307-00-374-1763
Technical Data | NSN 5307-00-374-1763
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 3120 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 96 SHOULDERED |
| SHOULDER DIAMETER | 0.125 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.187 INCHES NOMINAL |
| NUT END SHANK LENGTH | 1.656 INCHES NOMINAL |

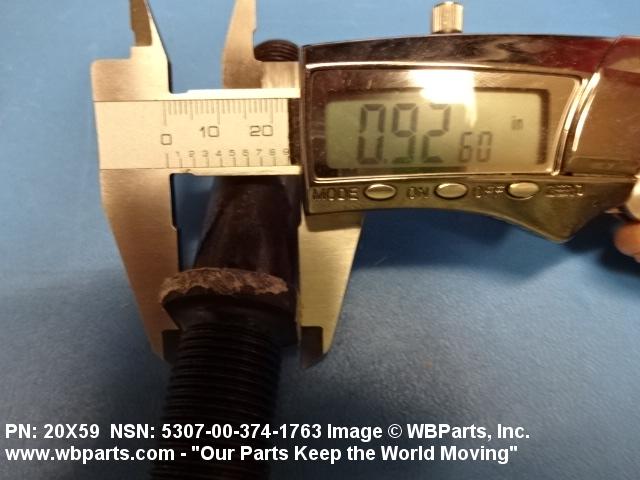

| DISTANCE ACROSS FLATS | 0.938 INCHES NOMINAL |
| STUD END SHANK LENGTH | 1.126 INCHES NOMINAL |

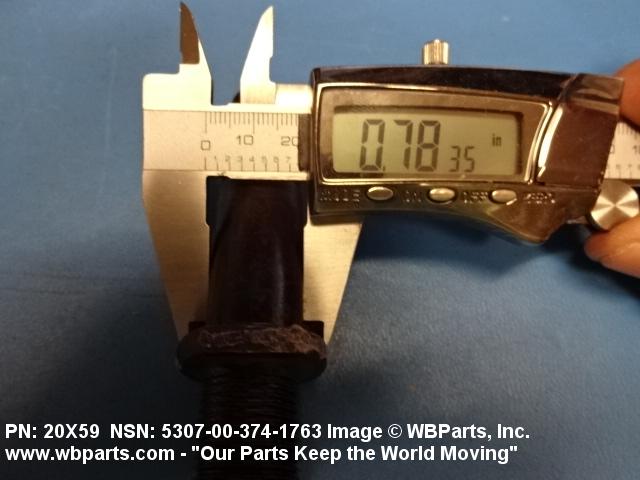

| STUD END SHANK DIAMETER | 0.783 INCHES MINIMUM AND 0.786 INCHES MAXIMUM |
| NUT END SHANK DIAMETER | 0.783 INCHES MINIMUM AND 0.786 INCHES MAXIMUM |

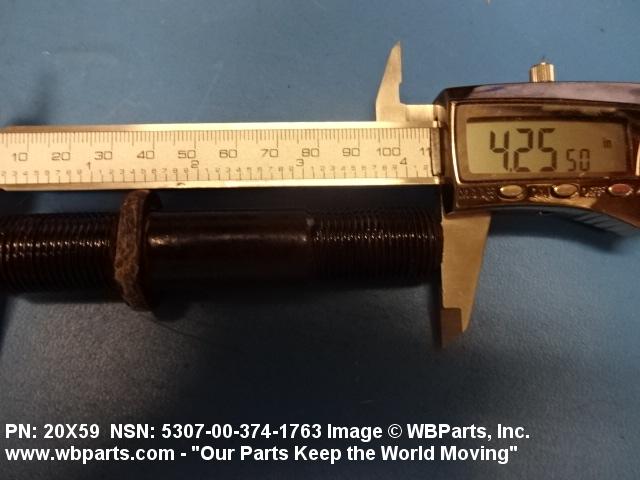

| OVERALL LENGTH | 4.219 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNS NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.750 INCHES NUT THREAD 0.750 INCHES STUD THREAD |
| THREAD QUANTITY PER INCH | 16 NUT THREAD 16 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.7044 TO 0.7084 INCHES NUT THREAD 0.7044 TO 0.7084 INCHES STUD THREAD |
| THREAD DIRECTION | LEFT-HAND NUT THREAD RIGHT-HAND STUD THREAD |

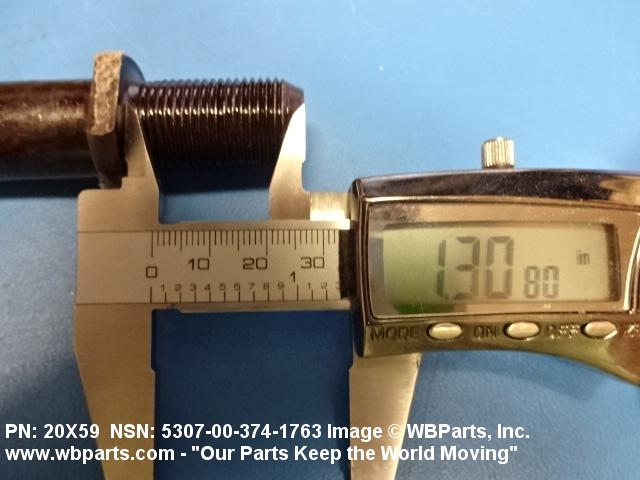

| THREAD LENGTH | 1.156 INCHES MINIMUM NUT THREAD 1.000 INCHES MINIMUM STUD THREAD |
| MANUFACTURERS CODE | 78500 |
| DESIGN CONTROL REFERENCE | 20X59 |
Restrictions/Controls & Freight Information | NSN 5307-00-374-1763
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-374-1763
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
